Quick answer: If you need a high-gloss transparent part, specify an A1-A2 mirror finish. If you need a clean, non-glare housing, a controlled matte finish is usually enough. If you need etched texture, the base surface must be polished correctly first, and draft angle must increase as texture gets deeper.
When a plastic part looks premium, the resin often gets the credit. In real production, however, the mold surface is usually what decides whether the part comes out clean, releases smoothly, and stays consistent from T1 samples to mass production.
Gloss variation, drag marks, sticking, whitening, and texture damage often start at the tool surface, not at the molding machine. For OEM buyers, understanding mold surface finish early can reduce mold rework, shorten approval time, and prevent avoidable cosmetic defects.

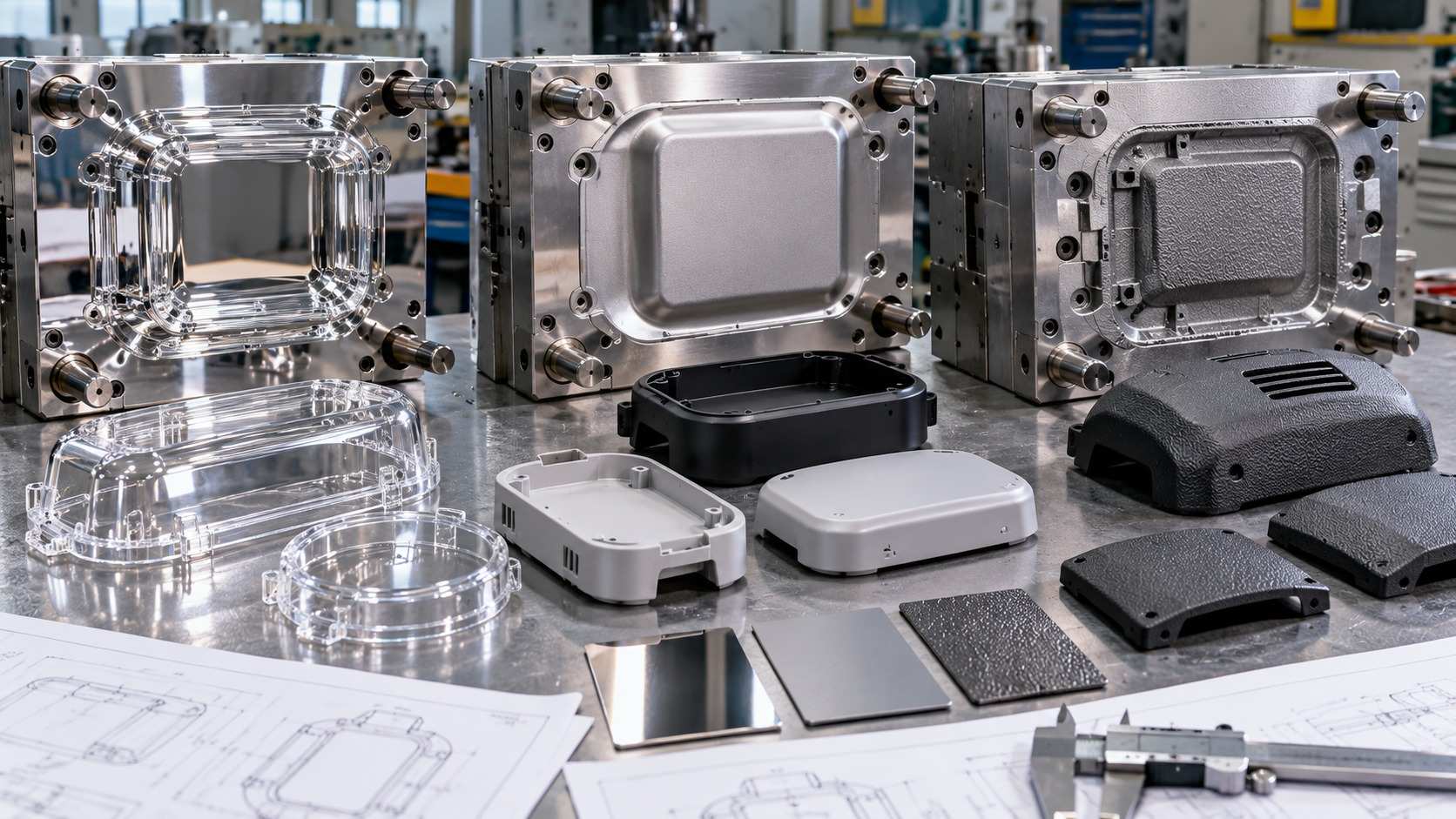

This guide explains the three most common mold surface finish categories used in injection molding: mirror polish, matte finish, and etched texture.
Mold surface treatment affects much more than appearance alone. A well-controlled finish helps with:
Part appearance
Gloss, transparency, texture uniformity, and perceived product quality
Demolding performance
Reduced sticking, drag marks, whitening, and scratch risk
Consistency
Stable visual quality from sample approval to long production runs
Cost control
Less polishing rework, fewer mold repairs, and lower rejection rates
Tool life
Proper finishing reduces local stress points and helps maintain surface quality over time
For appearance parts, mold surface preparation is not a cosmetic detail. It is a production control item.
In export mold projects, buyers often refer to SPI A-series polishing standards. In practice, some mold shops also use A0 for ultra-fine optical surfaces beyond the typical A1-A3 range.
Grade | Surface Roughness | Typical Use |
A0 | Ra 0.008 µm | Ultra-clear optical parts, lens-grade surfaces |
A1 | Ra 0.016 µm | Transparent parts, light guides, automotive lighting |
A2 | Ra 0.032 µm | High-gloss housings, clear covers, premium cosmetic parts |
A3 | Ra 0.064 µm | Fine polished surfaces with good visual quality |
For parts such as:
transparent covers
automotive lamp components
lenses
glossy cosmetic housings
display windows
A1-A2 is typically the safe choice. These surfaces should be free from:
cutter marks
sanding lines
orange peel
EDM pattern transfer
visible scratches under directional light
If the part is cosmetic and the customer will inspect it under strong light, polish quality must be controlled very strictly.

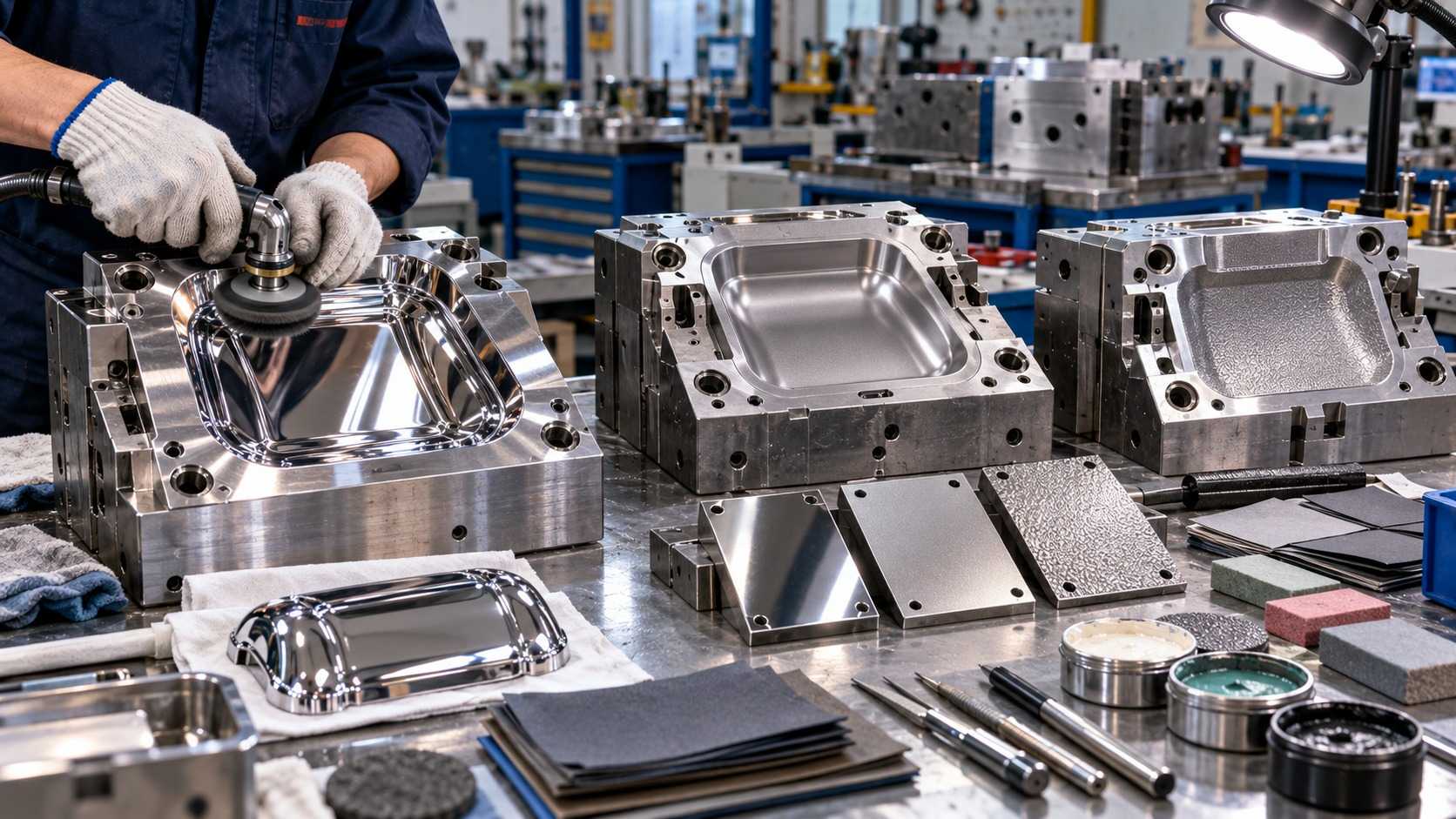

A mirror finish should be built step by step. A typical sequence is:
600# → 800# → 1200# → 2000# → diamond paste finishing
The most important rule is simple:
Do not skip grit levels.
Skipping steps may save time in the workshop, but it often leaves fine subsurface scratches that only become visible later during sampling, texture inspection, or mass production. That usually leads to rework.
Remove all machining marks before moving to finer abrasives
Keep polishing pressure even
Change abrasives in sequence
Inspect under strong directional lighting
Use clean tools and clean polishing compounds to avoid contamination
For high-gloss or optical surfaces, polishing is not just a finishing task. It is a precision process.
A matte mold finish is widely used for:
home appliance housings
consumer products
daily-use plastic parts
industrial covers
non-glare exterior surfaces
Matte does not mean rough or unfinished. A good matte finish still requires controlled, even sanding. The goal is a uniform surface that does not show random bright spots, patchiness, or direction changes.
For many standard matte applications, polishing to:
800# to 1000#
is usually enough.
sanding lines should be consistent
surface should not look locally glossy
corners and difficult areas should not be missed
the finish should appear even across the full cavity surface
A controlled matte finish can help:
reduce the visual impact of sink marks
hide minor scratches more effectively than gloss surfaces
create a more stable appearance across batches
improve perceived durability on functional products
In many cases, matte surfaces are also more forgiving during production than high-gloss parts, especially for larger housings and general consumer products.
Texture etching is common for:
appliance exteriors
automotive interior parts
hand-held products
industrial enclosures
consumer electronics housings
But there is one rule every experienced mold maker knows:
Texture never hides a bad base surface. It exposes it.
If the pre-texture polishing is not good enough, the etched pattern will make defects more obvious, not less.
As a practical guideline:
Fine texture below 15 µm: polish to 1000# or finer
Common texture around 20-30 µm: 800# preparation is usually acceptable
Coarser texture: 600# base preparation may be enough
Before texture processing, the mold surface should be free from:
EDM pattern
cutter path marks
polishing scratches
pinholes or sand holes
local dents or repair marks
Special attention should also be given to:
shut-off areas
insert edges
penetrating features
sealing surfaces
parting line transitions
These zones must be protected correctly before etching.
The deeper the texture, the greater the release resistance.
If draft angle is too small, textured parts are much more likely to show:
drag marks
whitening
scuffing
texture damage
sticking during ejection
As a general rule, deeper textures need more draft. Exact draft recommendations should be confirmed based on:
resin type
shrinkage behavior
texture depth
part geometry
This is one of the most common causes of cosmetic failure on textured plastic parts.
Usually linked to insufficient draft, poor polishing direction, or overly aggressive texture.
Often caused by poor release conditions, uneven surface finish, or local high-friction areas.
Common near ejector zones or textured walls where release resistance is too high.
Typically caused by inconsistent polishing, mixed abrasive patterns, or local over-polishing.
Often the result of skipped grit steps during mirror polishing.
Usually caused by inadequate substrate preparation before etching.

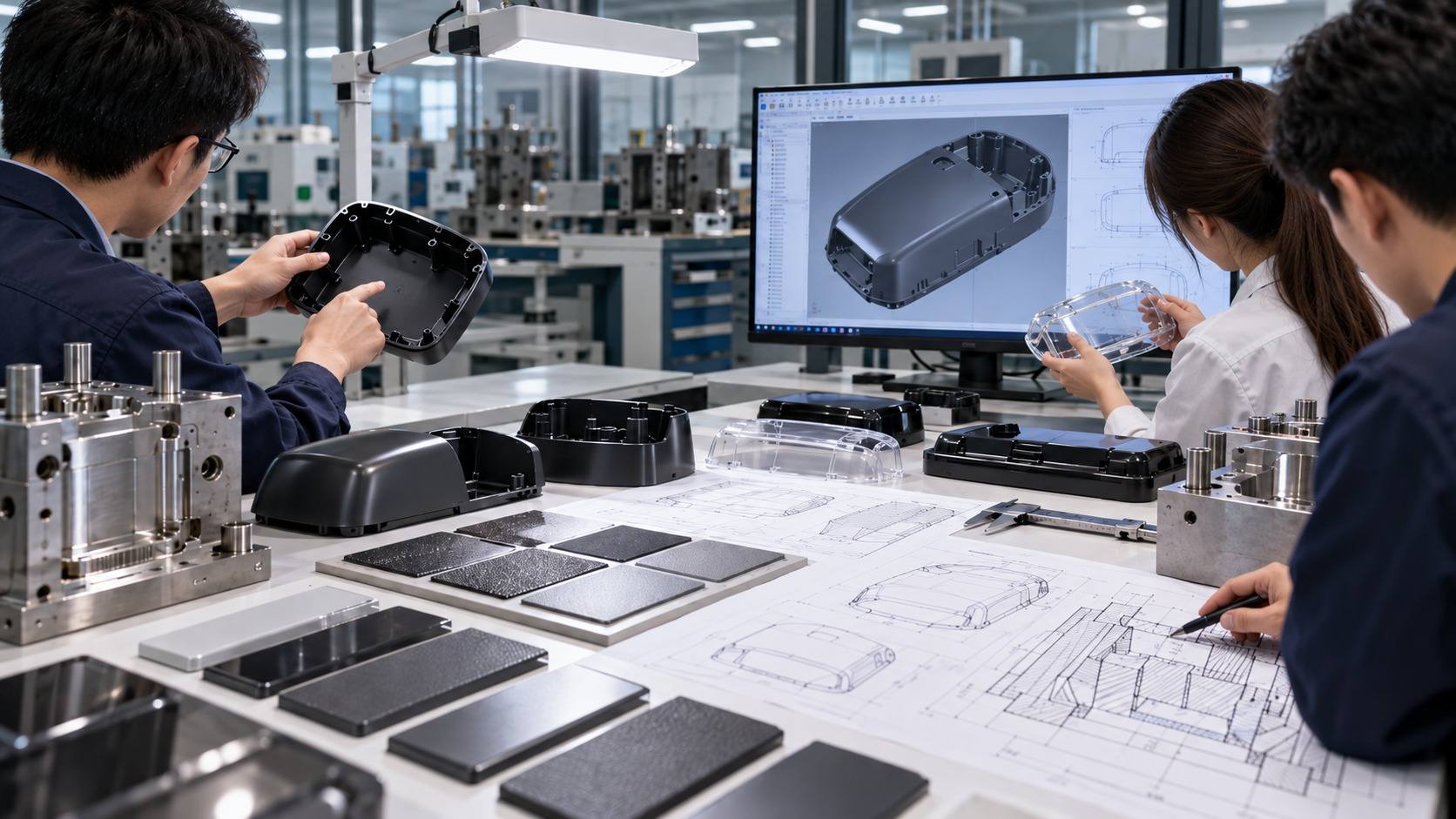

Before approving mold production, it helps to confirm the following:
Which surfaces are cosmetic
Which finish grade is required in each area
Whether the part needs gloss, matte, or texture
The resin type and expected shrinkage
Draft angle suitability for the requested surface
Texture standard or sample reference
Sample acceptance criteria under real inspection lighting
This kind of alignment saves time later. Many appearance issues are easier to prevent during DFM than to fix after steel has been cut.
For OEM programs, surface finish should be reviewed together with mold design, resin selection, part geometry, and production volume.
At ABERY, this is usually handled through a coordinated process that includes:
DFM review of wall thickness, draft, parting lines, gates, and undercuts
mold structure evaluation before steel cutting
polishing and texture feasibility review based on part use and appearance expectations
T1 sampling and visual inspection
dimensional checks on critical features
process validation before mass production
For cosmetic parts, a finish specification is only useful when it can be executed consistently in tooling and repeated in production.
Yes. If you send the 3D model, resin, annual volume, and appearance requirements, the engineering team can review draft angle, polish feasibility, texture suitability, and tooling risk before quotation.
For clear or high-gloss transparent parts, A1-A2 is commonly required. The final choice depends on optical expectations, wall thickness, resin type, and how the part will be inspected.
Yes. Surface finish can be planned according to customer requirements, common export standards, and practical mold manufacturing conditions. It is best to confirm the standard before tooling starts.
In most cases, yes. The deeper the texture, the more draft is normally required for stable ejection and surface protection.
In many cases, yes. However, feasibility depends on the current mold condition, steel margin, previous texture depth, and whether dimensional or shut-off areas will be affected.
Yes. For OEM customers, support can cover DFM, mold making, mold trials, sample approval, and repeat injection molding production.
If you want gloss, control mirror polish grades strictly.
If you want matte, keep the sanding pattern even.
If you want texture, prepare the base surface first and give the part enough draft.
Those three rules solve a large share of appearance problems before they ever reach production.
