In injection molding, flash is one of those defects that triggers the same first reaction almost everywhere: increase clamp force, reduce injection pressure, lower temperature, and hope the problem goes away.
Sometimes that works. Very often, it does not.
The reason is simple. Flash happens when molten plastic escapes through a gap where it should not be able to go. If you want a stable fix, you need to answer one of two questions first:
Does the gap already exist in the mold?
Or is the process pressure high enough to force the mold open during filling or packing?
That distinction matters. If the real problem is contamination, mold wear, poor shut-off contact, or machine condition, simply adding more clamp force may not solve anything. In some cases, it can even create new problems such as deformation, venting issues, dimension shift, or accelerated mold wear.
This guide walks through a practical, shop-floor method to troubleshoot flash step by step.

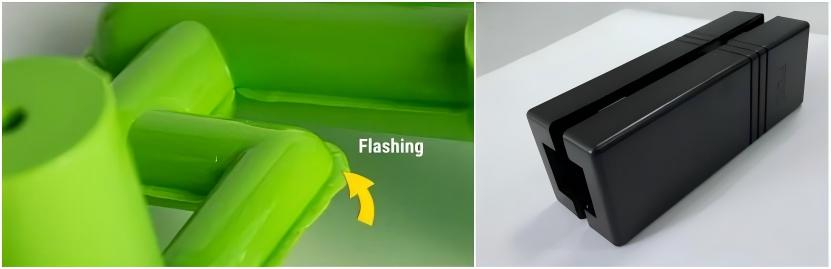

Flash is the thin, unwanted excess plastic that forms along:
the parting line
inserts
sliders or lifters
ejector areas
shut-off surfaces
vents
damaged sealing edges
Some teams also call it burr or fin.
On cosmetic parts, flash is an appearance defect. On functional parts, it can also create assembly issues, extra trimming cost, sharp edges, and quality complaints in the field.
If you remember one thing, make it this:
Plastic does not create flash by magic. It either finds a gap that already exists, or it creates one by pushing the mold open.
That is why good troubleshooting starts with the mold condition first, then moves to clamping, then to process settings.
Symptom | Most Likely Cause | First Check |
Uniform flash around the full parting line | Clamp force mismatch or excessive cavity pressure | Verify required clamp force and holding pressure |
Flash only in one local area | Dirt, damage, poor shut-off contact, insert mismatch | Clean and inspect the mold contact area |
Flash appears after long production runs | Wear, heat buildup, machine instability | Check mold spotting, alignment and machine condition |
Flash gets worse after a material change | Lower viscosity, wetter material, higher melt flow | Review resin drying, regrind ratio and temperature |
Flash remains after parameter adjustment | Mold rigidity or machine limitation | Inspect tooling structure and press capability |
Before touching the machine settings, clean the mold properly.
Focus on these areas:
parting line surfaces
inserts and block interfaces
guide pillars and bushings
shut-off edges
venting areas
any area where dirt, resin residue, rust, oil, or foreign particles may prevent full mold closure
Use a clean cotton swab or lint-free cloth with a suitable mold cleaner, then close the mold again and run a few shots.
That usually means something was physically holding the mold open.
This is more common than many people think, especially in high-volume production, glass-filled materials, recycled content, or molds with multiple inserts.
A proper low-pressure mold protection setting is the first line of defense.
If the mold closes on debris without effective protection, the parting surface may get dented. Once that happens, flash can become a permanent recurring issue instead of a temporary one. In many shops, poor mold protection settings are the hidden reason why flash gets worse over time.
If the mold is clean and you still see uniform flash around the full perimeter, the next item to review is clamp force.
However, a common mistake is to keep increasing clamp tonnage without calculation.
In most production conditions, the machine should normally run at about:
70% to 80% of available clamp force
and ideally not more than 90%
If you are already close to the machine limit and flash still remains, the issue may not be something process adjustment alone can solve.
Required clamp force depends on:
part projected area
runner projected area
cavity pressure
safety factor
A simple engineering expression is:
Required clamp force = projected area × cavity pressure × safety factor
1.15 to 1.20 is often sufficient for standard parts
1.30 to 1.50 may be needed for thin-wall parts or more aggressive filling conditions
If the calculation shows the press is undersized, more tuning may reduce symptoms temporarily, but it will not remove the root cause.
Once mold cleanliness and clamp force have been checked, move to the process.
The best sequence is usually:
Reduce holding pressure
Reduce injection speed
Then review temperature
This order matters because flash is often driven more by excessive pressure during the late filling and packing stages than by melt temperature alone.
Start by reducing holding pressure in small steps, for example:
5% to 10% at a time
The target is not to reduce it blindly. The target is to reduce it until the part is just free of flash while still meeting:
appearance requirements
dimensional tolerance
sink mark limits
assembly function
Holding time should also be reviewed. If holding time is longer than necessary, excess pressure may continue to force material into weak mold gaps.
A good rule is simple:
Use only as much holding pressure and holding time as the part actually needs.
If flash still remains, the next step is to reduce injection speed.
This is especially important in the last 10% of fill. If the cavity is being filled too aggressively at the end, cavity pressure can spike and push the mold open momentarily.
For many parts, it helps to:
keep normal fill efficiency in the early stage
switch to a lower speed near the end of fill
avoid over-packing at transfer
That final deceleration is often where flash can be controlled without causing major cosmetic or dimensional trade-offs.
Although operators often focus on pressure and speed, poor V/P transfer timing can also contribute to flash.
Check whether:
the transfer point is too late
the cavity is overfilled before packing starts
cushion is unstable
screw recovery variation is affecting shot consistency
If transfer is not stable, flash may appear intermittently even when the mold itself is fine.
If the problem is still not solved, then look at temperature.
Start with the areas that most directly affect melt fluidity at the gate entrance:
nozzle temperature
front barrel zone near the nozzle
A practical adjustment is often:
reduce each zone by 5°C to 10°C
This can help reduce melt flow into marginal gaps, especially with low-viscosity materials or heavily packed parts.
Temperature should usually be adjusted after pressure and speed, not before. If you lower temperature too early, you may create:
short shots
weld line issues
unstable fill
surface defects
increased internal stress
The goal is controlled flow, not simply colder plastic.
If the previous steps have all been tried and flash is still present, the next stage is to verify whether the issue goes beyond normal processing.

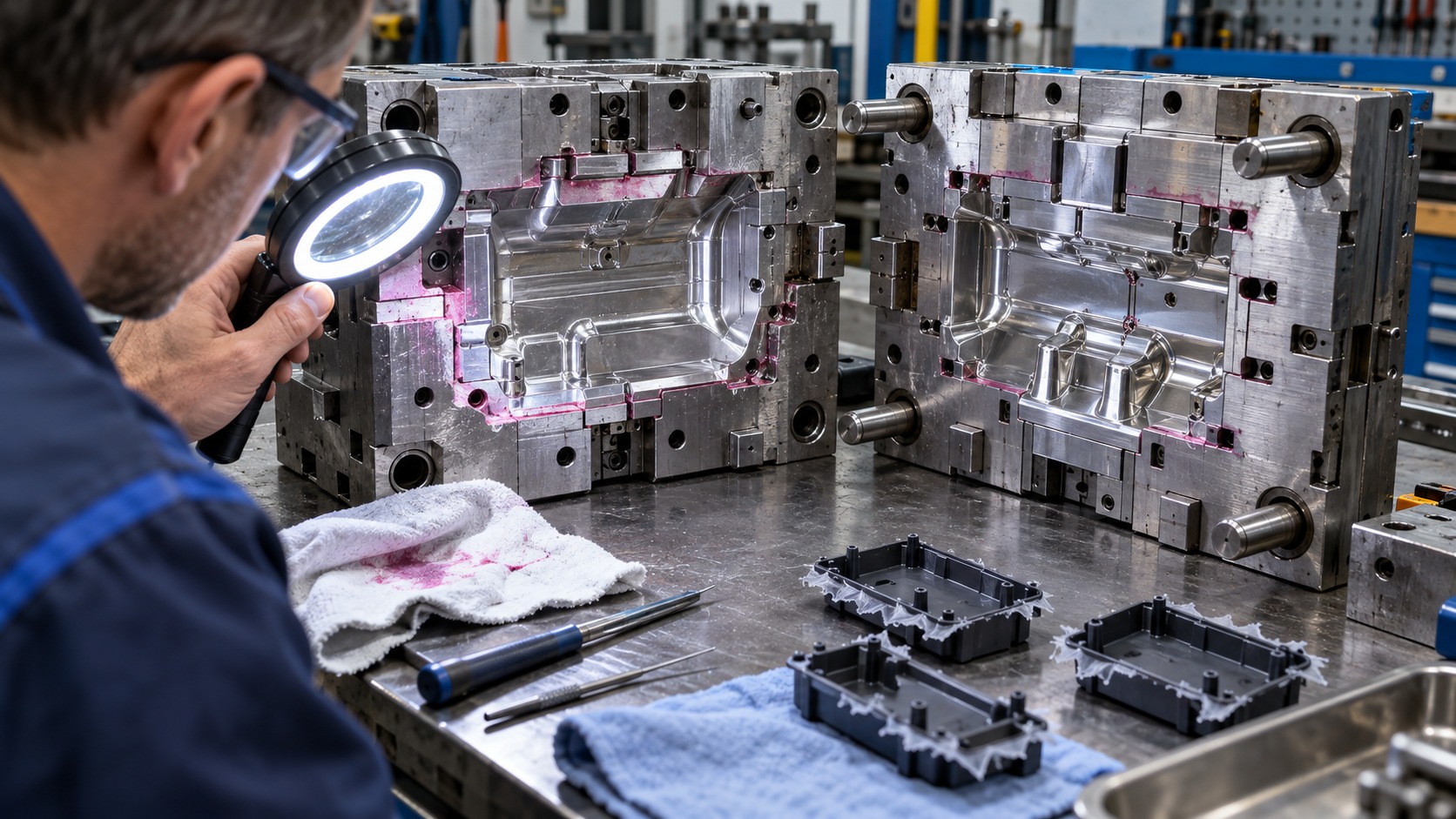

Use spotting paste or red lead checking to confirm whether the mold is actually contacting properly in the intended shut-off areas.
This helps identify:
local gaps
poor parting line contact
unsupported areas
mismatch between inserts
deformation under clamping
A mold can look fine visually and still fail to seal correctly under production conditions.
Material condition also matters.
Check whether:
the resin is properly dried
the actual moisture level is acceptable
the regrind ratio is stable
the material grade has changed
viscosity variation is affecting cavity pressure
If the material flows more easily than expected, flash may appear even when machine settings are unchanged.
Some flash problems are not process problems at all. They are tooling rigidity problems.
Look at whether the mold has enough support in:
wide flat areas
large cavities
thin shut-off zones
insert-heavy layouts
long unsupported parting surfaces
If the tool deflects under pressure, flash can appear even when clamp force is technically sufficient.
Machine condition is often overlooked, especially on older presses.
Investigate whether there is:
toggle wear
uneven tie-bar loading
platen parallelism issues
unstable clamp repeatability
insufficient real clamp force compared with machine rating
In some cases, the fastest way to confirm the true cause is simply to run the mold on a larger or better-maintained machine and compare the result.
This distinction is extremely useful in troubleshooting.
Usually points to:
insufficient effective clamp force
excessive cavity pressure
end-of-fill pressure spike
incorrect clamp force calculation
machine limitation
Usually points to:
contamination
damaged parting surface
poor shut-off fit
insert mismatch
local wear
vent too deep
mold deflection at a weak area
If flash is localized, do not spend too much time globally increasing clamp force. The problem is often geometric or mechanical, not overall tonnage.
This may hide the symptom temporarily, but it does not fix contamination, mold damage, or machine wear.
This can create filling instability before the actual root cause is identified.
Reducing holding pressure too much may remove flash but create sink, size drift, or poor assembly.
Poor low-pressure protection can turn a temporary contamination problem into permanent mold damage.
Molds change over time. Wear, heat, repairs, and machine changes all matter.
If you are managing a mold program with a supplier, these are the right questions to ask:
Is the flash uniform or localized?
Was the mold cleaned and re-tested before changing process parameters?
What is the actual calculated clamp force requirement?
What percentage of machine clamp capacity is being used?
Has holding pressure been reduced before changing melt temperature?
Is the end-of-fill speed too high?
Was mold contact checked with spotting paste?
Has the resin grade, moisture level, or regrind ratio changed?
Is the issue machine-related, mold-related, or process-related?
These questions help separate short-term machine adjustment from long-term corrective action.
For OEM programs, flash should never be treated as only an operator problem. It should be reviewed across:
part design
draft and shut-off geometry
mold structure
venting strategy
clamp force requirement
material behavior
machine capability
process window stability
At ABERY, troubleshooting typically starts with the same logic outlined above:
verify the actual defect location
inspect mold closure condition
review clamp force margin
optimize holding pressure and end-of-fill speed
check temperature only after pressure-related causes are reviewed
confirm mold contact, rigidity, and machine condition if needed
That structured approach is usually much faster than changing multiple parameters at once and hoping one of them works.
Yes. Clear defect photos, part drawings, resin information, machine tonnage, and current process data are often enough for an initial engineering review. If needed, a deeper assessment can be made after checking the mold structure and parting surfaces.
Yes. If you provide part data, runner layout, cavity count, material, and target cycle, the required clamp force can be estimated and compared against your current press capacity.
Sometimes, but localized flash is more often linked to mold contact, insert fit, vent depth, wear, or local deflection. That kind of defect usually needs mold inspection, not just machine adjustment.
In many cases, yes. Feasibility depends on the damage level, steel condition, shut-off design, and whether dimensional or sealing functions would be affected by repair work.
Yes. For OEM customers, support can cover mold review, corrective action, sample validation, and stable production after the defect is removed.
Ideally, send:
3D/2D part files
resin grade
cavity number
machine tonnage used
defect photos
current molding parameters
annual volume
any known mold history or repair record
When flash appears, the answer is not always “add more clamp force.”
A better way to think about it is this:
Clean first
Verify clamp force second
Reduce holding pressure before chasing temperature
Slow the last stage of filling
Check mold contact, rigidity, material condition, and machine health if the problem remains
There is no single universal recipe for every flash defect. What works in one mold may fail in another. In real production, the best solution is always the one confirmed by disciplined testing on the machine and careful inspection of the mold.
