Every experienced mold engineer has a story about a part that looked perfectly fine on screen and turned into a headache the moment steel got cut. A wall section that was thinner in one spot than the designer realized. A boss that needed a side-action nobody flagged. A rib that looked harmless in CAD but showed up as a visible sink mark on every single part off the line. None of these are exotic problems — they're the ordinary, predictable ones that a proper Design for Manufacturability (DFM) review catches before they cost you money.

This article isn't about advanced mold theory. It's a practical checklist you can run through before you send drawings out for a custom plastic injection molding quote, so the quote you get back is based on a design that will actually mold cleanly — not one that will need a change order three weeks into tooling.

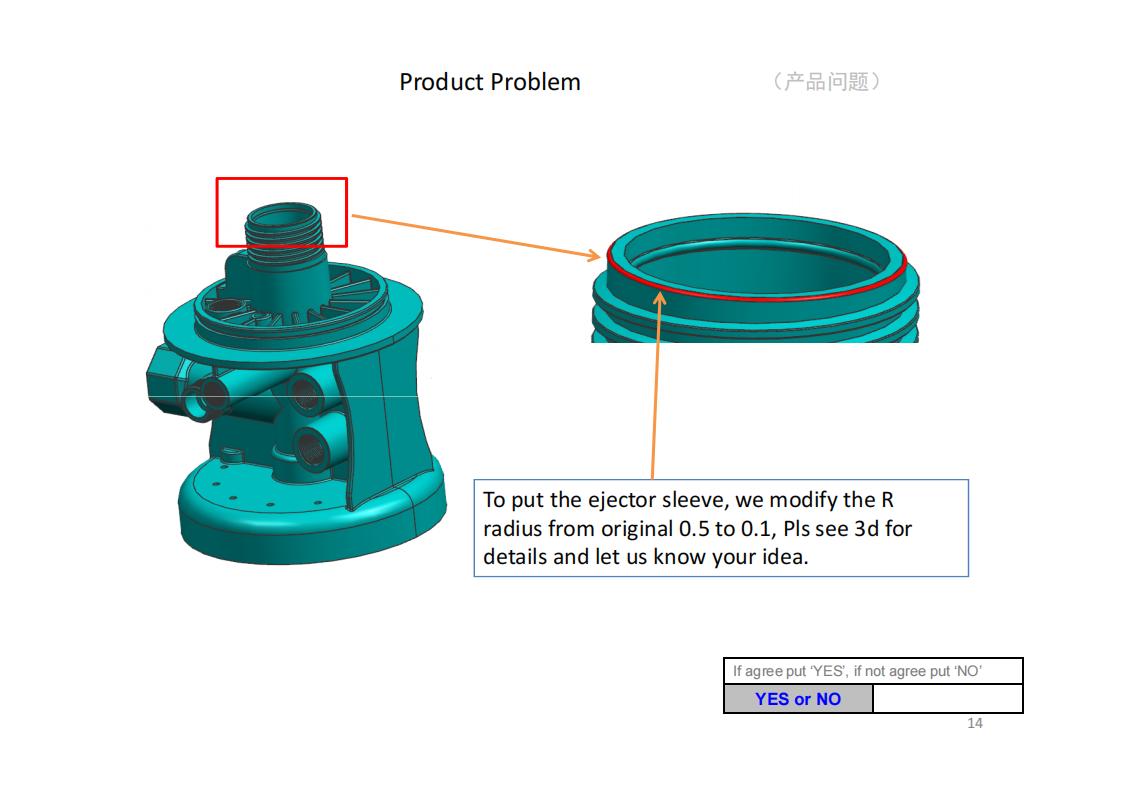

DFM Report of OSC_BASE 2018-09-21_14.jpg

Why DFM Review Matters More Than It Seems

Once a mold maker starts cutting steel, changes get expensive fast. A wall thickness issue that would have taken an email and a CAD revision in week one can mean re-machining a cavity, delaying your trial date, and adding real cost if it's caught in week four instead. The earlier a design issue is caught, the cheaper and faster it is to fix — that's true in nearly every manufacturing process, and injection molding tooling is a particularly unforgiving example because the mold itself is a fixed, expensive, hard-to-modify asset.

A good DFM review isn't about telling you your product design is wrong. It's about translating "this is what the part needs to do" into "this is how the part needs to be shaped so a mold can actually produce it consistently, at the tolerance and cosmetic quality you need, for the volume you're planning." Those are two different design problems, and most product designers are experts in the first one, not necessarily the second.

Common Design Issues That Cause Mold Problems

These are the issues that come up again and again in DFM reviews, regardless of industry or part complexity.

Uneven Wall Thickness

Plastic shrinks as it cools, and it doesn't shrink evenly if wall thickness varies across a part. Thick sections cool slower than thin ones, which can cause sink marks, warping, or internal voids. As a general rule of thumb in the industry, designers aim for wall thickness as uniform as the part's function allows, with gradual transitions where thickness has to change. Exact target thickness depends heavily on your material and part geometry, so this is worth confirming with your mold engineer rather than guessing from a general rule.

Sharp Internal Corners

Sharp internal corners concentrate stress and are also where cracks are most likely to start under load. They also make the mold itself harder to machine cleanly and can trap air during injection, leading to burn marks or incomplete fill. Adding a generous internal radius is one of the simplest, lowest-cost design changes you can make, and it's one of the first things a DFM reviewer will flag.

Insufficient Draft Angle

Draft angle is the slight taper on vertical walls that lets a part release from the mold without dragging, scuffing, or sticking. A part with zero draft — straight vertical walls — will often eject with visible drag marks or won't release cleanly at all, especially on textured surfaces, which typically need more draft than a smooth surface to release properly. If your CAD model has been designed without draft in mind, this is one of the most common things flagged in a first-pass DFM review.

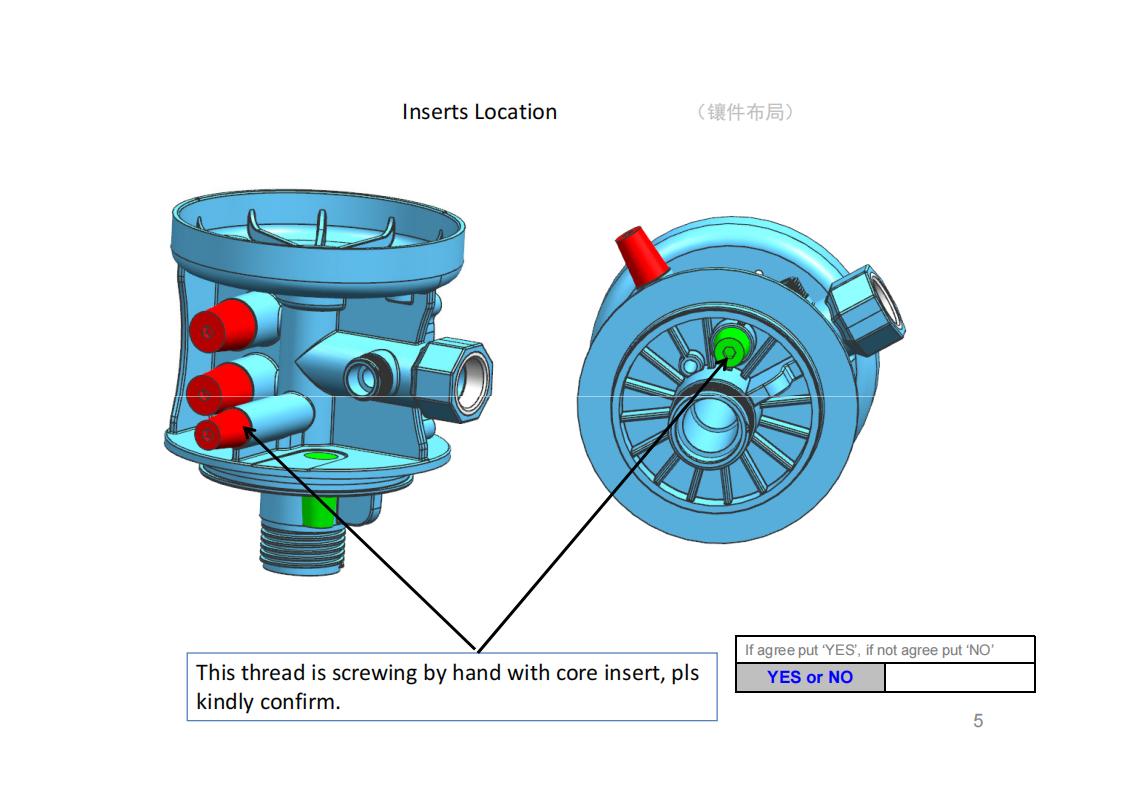

DFM Report of OSC_BASE 2018-09-21_05.jpg

Undercuts Not Flagged as Requiring Side-Actions

An undercut is any feature that would prevent a part from being pulled straight out of a simple two-plate mold — a snap-fit hook, a side hole, an internal boss at an angle. Undercuts aren't a problem by themselves, but they need to be identified early because they typically require side-actions, lifters, or unscrewing mechanisms in the mold, which add cost and complexity. The mistake we see most often isn't designing with undercuts — it's designers not realizing a feature is an undercut at all until the quote comes back higher than expected, or until tooling is already underway.

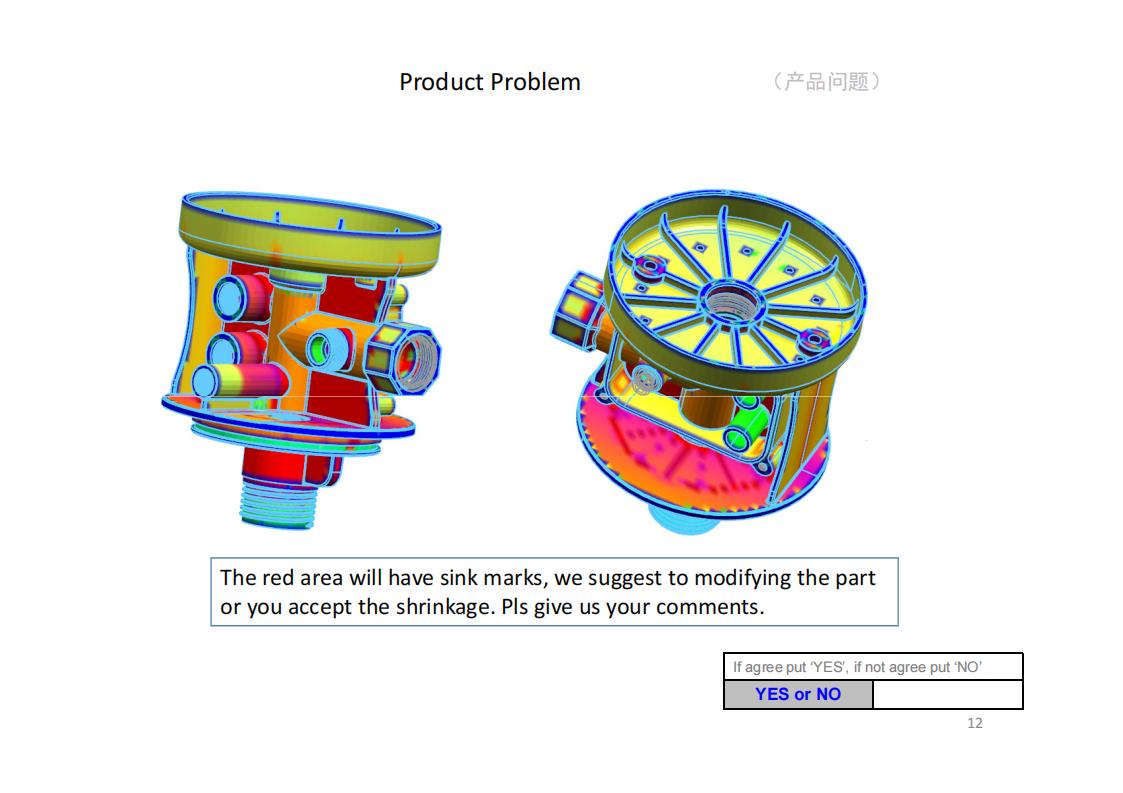

Rib Design Causing Sink Marks

Ribs are added for strength and rigidity, but a rib that's too thick relative to the wall it's attached to almost always shows up as a visible sink mark on the opposite (usually cosmetic) surface. The general industry guideline is to keep rib thickness meaningfully thinner than the adjoining wall — the exact ratio depends on material and cosmetic tolerance, so this is a case where it's worth asking your mold engineer to confirm the right ratio for your specific resin rather than relying on a fixed number.

Boss and Screw Thread Design

Bosses (the raised cylindrical features that accept screws or self-tapping fasteners) are a frequent source of both sink marks and cracking if designed without enough wall support or if placed too close to an outer wall without a proper gusset. Screw thread design inside a molded boss also needs enough clearance and the right thread pitch for the fastener type — getting this wrong often isn't visible until assembly, which is a frustrating and expensive point to discover it.

What to Include When You Send Drawings for a Quote

The single biggest factor in getting an accurate, useful quote back quickly is sending complete information the first time. Here's what a mold engineer actually needs:

Item

Why it matters

2D drawings with dimensions and tolerances

Confirms critical dimensions and lets engineers spot tolerance-tight features early

3D CAD files (STEP, IGES, or native format)

Needed for actual mold flow and tooling design, not just a rough quote

Material specification or performance requirements

Different resins shrink, flow, and cool differently — this drives cavity design and steel choice

Expected annual volume

Determines mold construction approach and expected tool life needs

Surface finish or texture requirements

Affects draft angle requirements and polishing time/cost

Tolerance-critical features explicitly flagged

Prevents assumptions — don't assume the engineer will guess which dimensions matter most

Assembly requirements

Snap-fits, screw bosses, and mating parts all affect design review and gate placement

If you're missing one or two of these, don't let that stop you from sending an RFQ — a competent supplier will ask. But the more complete your first submission, the fewer back-and-forth rounds you'll need before you have a workable quote and design.

How Abery's Free DFM Review Works

Before your order is placed, Abery's engineering team reviews your design and works with you on optimization at no charge. This isn't a rubber-stamp review — it means our mold designers look specifically for the issues above (wall thickness, draft, undercuts, rib and boss design) and flag them back to you with suggested changes before tooling starts, not after. The goal is straightforward: catch the expensive problems on a screen, not in steel.

If your project needs specific tolerance guarantees or material behavior data beyond general guidance, that's exactly the kind of detail worth confirming directly with Abery's engineering team once you send your drawings — we'd rather give you a precise answer for your actual part than a generic number that may not apply.

Self-Check Checklist Before You Submit Your RFQ

Run through this before you hit send:

  • Wall thickness is as uniform as function allows, with gradual transitions where it must change

  • Internal corners have generous radii, not sharp 90-degree edges

  • Vertical walls have adequate draft angle, especially any textured surfaces

  • Every undercut is identified and noted (snap-fits, side holes, angled bosses)

  • Ribs are thinner than the walls they attach to

  • Bosses have adequate wall support and are positioned with enough clearance from outer walls

  • 2D drawings and 3D CAD files are both included

  • Material spec or performance requirement is stated

  • Expected annual volume is stated

  • Surface finish/texture requirement is specified

  • Tolerance-critical dimensions are explicitly called out, not left implicit

  • Any assembly or fastener requirements are described

If you can check most of these boxes before submitting, you'll get a faster, more accurate quote — and a much smoother path from drawing to working mold.

Get in Touch

If you'd like a free DFM review of your part before you commit to tooling, or want to talk through a specific design question, our engineering team is glad to look at your drawings.

Written by Tonney Shao, CEO of Abery Mold. Tonney has spent 16 years helping overseas buyers source injection molds and plastic parts from China, and has personally overseen mold projects for clients including Schneider Electric and Honda's supply chain. Contact: tonney@a-mold.com | WhatsApp: +86 139 2521 4356
