SMC Compression Molds for Automotive, Electrical & Industrial Applications

Product Overview

SMC (Sheet Molding Compound) compression molding produces fiber-reinforced thermoset composite parts with performance characteristics unavailable in conventional injection-molded thermoplastics. ABERY designs and manufactures the precision steel tooling required for high-pressure, high-temperature SMC molding — then supports customers through prototype validation to full-scale production.

This product page covers tooling and molded parts for:

• Electrical distribution boxes and switchgear enclosures

• Automotive underhood covers, engine protective housings, and exhaust shrouds

• Industrial structural panels and load-bearing covers

• New energy vehicle (NEV) battery compartment covers and structural lids

• Rail transit and construction equipment composite components

Product Specifications

The Engineering Challenge — Why SMC Tooling Demands Different Expertise

"SMC behaves fundamentally differently from thermoplastic injection molding. The material does not flow under injection pressure — it spreads and compresses. Getting cavity fill right requires a completely different approach to gate location, charge placement, and pressure distribution. If you design the tool the same way you would an injection mold, you will get incomplete fill, fiber orientation problems, or surface voids."
— ABERY Tooling Engineering Team

SMC compression molds operate under conditions that standard plastic toolmakers are not equipped to handle:

1. Charge Placement Precision

Unlike injection molding, where resin is injected into a closed mold, SMC requires the material charge (pre-cut sheets) to be positioned manually or robotically before mold closure. Charge coverage area and stack height must be engineered to within specific percentages of cavity volume — typically 60–70% of cavity area — to ensure proper flow without fiber washing or knit lines.

2. Thermal Management Across Large Tool Faces

SMC molds for large parts (battery covers, body panels) can span 800mm × 1000mm or larger. Uniform heating across the entire mold face is critical: temperature deviation greater than ±5°C results in uneven cure, visible surface sink, or warped parts after demolding. ABERY uses strategically routed heating channels and temperature mapping during T1 qualification to verify uniform cure.

3. Ejection Without Part Damage

Thermoset parts cannot flex during ejection the way thermoplastic parts can. With complex geometries — ribs, embossed patterns, molded-in clips — ejector pin placement requires careful FEA analysis to avoid stress fractures at thin wall sections during demold.

4. Dimensional Stability Across the Production Run

Because thermoset materials cure through a chemical crosslinking reaction (not solidification), shrinkage behavior differs from cycle to cycle as ambient humidity, material batch, and charge temperature vary. ABERY pre-compensates tooling dimensions based on process simulation data, and conducts 3D CMM measurement at T1 and T2 stages before approving tools for production.

Product Gallery — Application Examples

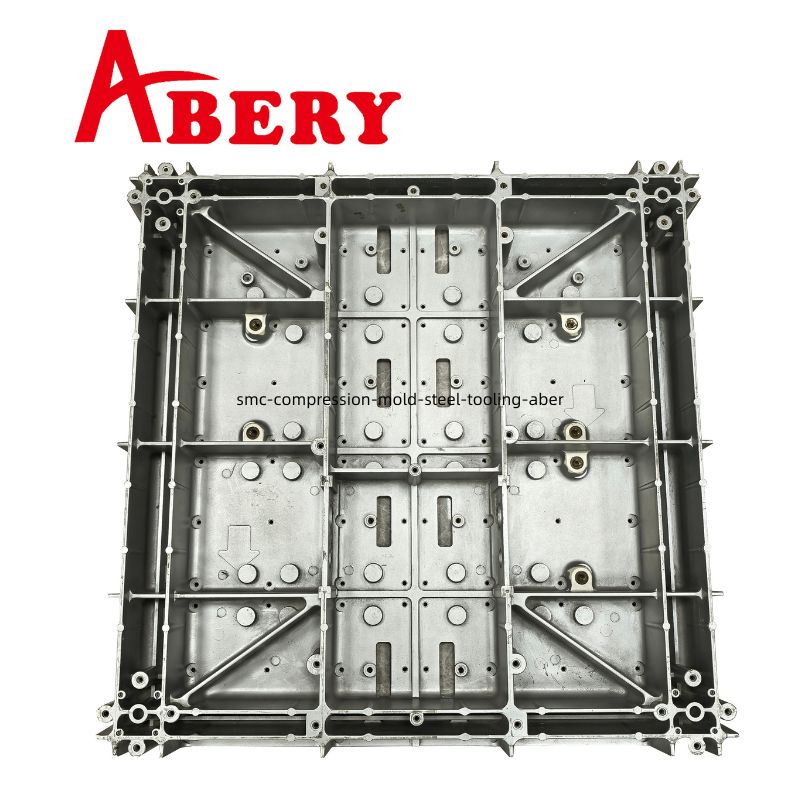

Caption: Multi-cavity SMC compression mold — hardened steel tooling with precision-machined cavity surfaces and integrated heating system. Designed for high-cycle production.

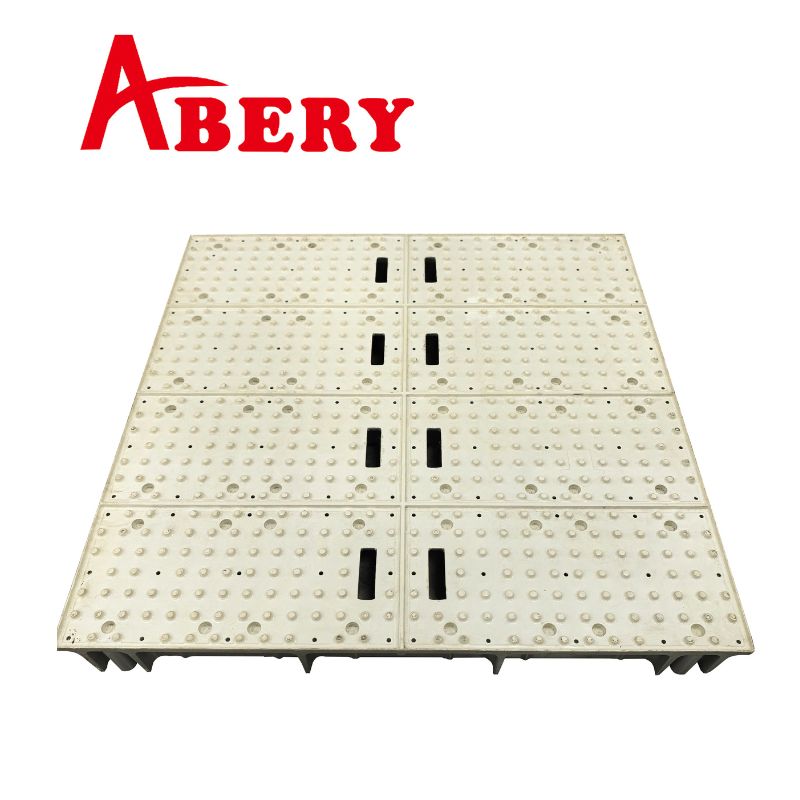

Caption: Large-format SMC structural panel produced from this tooling. 6-zone grid geometry with uniform raised-dot surface texture. Applications: construction site flooring, industrial access panels, rail transit flooring.

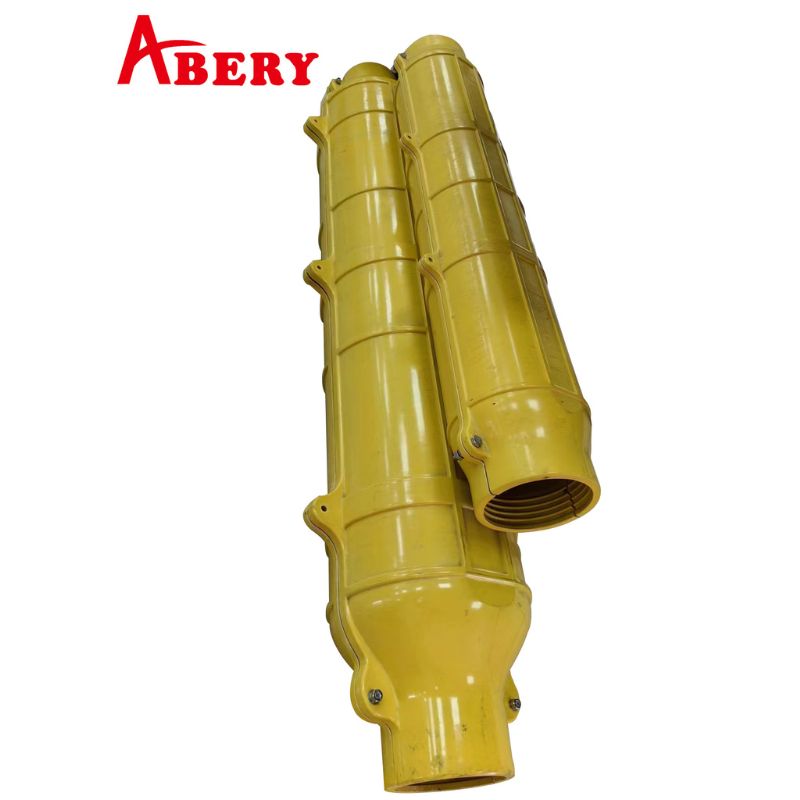

Caption: SMC-molded industrial exhaust housing / heat shield — dual-tube configuration with ribbed reinforcement. Produced for heavy equipment applications requiring heat resistance and structural rigidity without metallic weight.

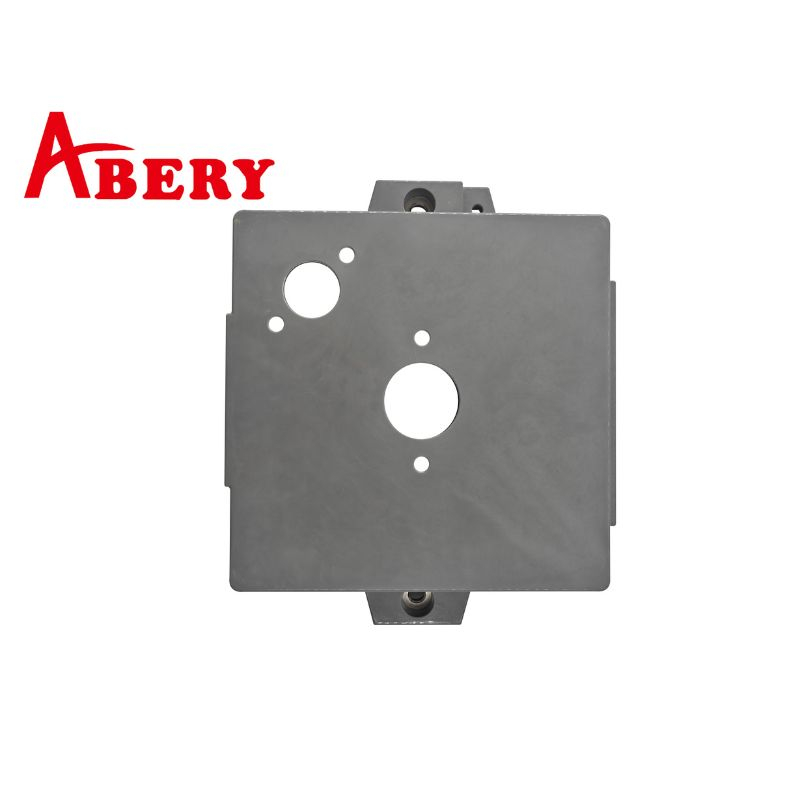

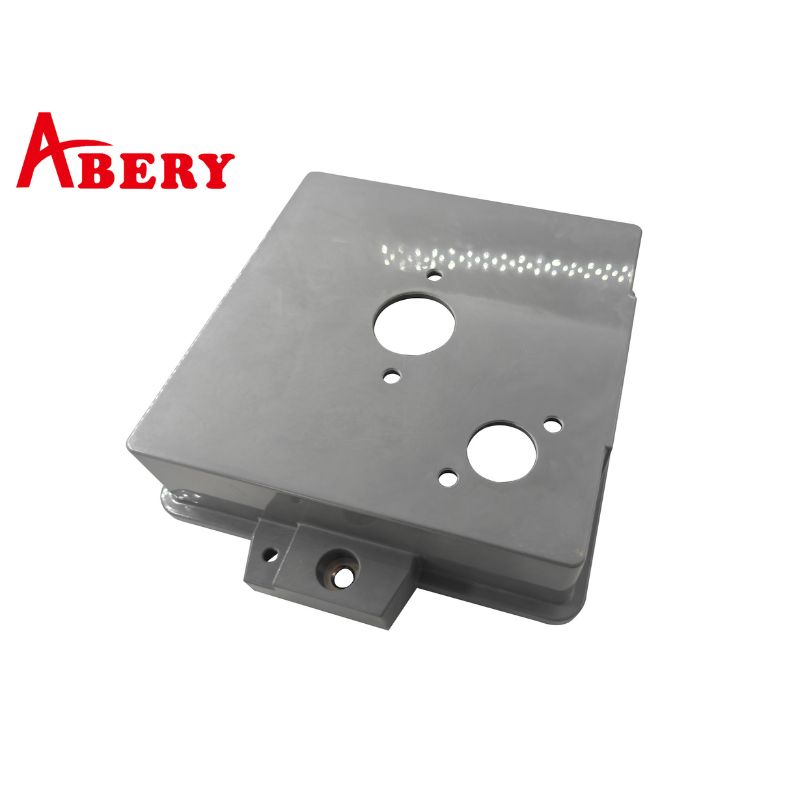

Caption: SMC electrical switch box / distribution panel — gray, precision-molded with CNC-ready knockout holes, mounting bosses, and a Class B2 smooth surface finish. Designed for electrical insulation applications requiring UL94 V-0 flame retardancy and dimensional consistency across large production runs.

Material Advantages: Why SMC for These Applications?

Recommended when: The part requires electrical insulation + flame retardancy + structural load-bearing + corrosion resistance — a combination that no single thermoplastic or metal option delivers cost-effectively.

Industries We Serve with SMC Tooling

Electrical & Power Distribution

Switchgear enclosures, meter boxes, distribution board housings, bus bar covers. SMC's inherent electrical insulation and UL94 flame retardancy make it the material of choice for equipment that must meet IEC and NEMA enclosure standards.

New Energy Vehicles (NEV)

Battery top covers, charging system housings, high-voltage connector surrounds. Automotive OEM and Tier 1 suppliers use SMC where dimensional stability under thermal cycling is required and where metal replacement offers significant weight reduction.

Industrial & Construction Equipment

Engine covers, exhaust shrouds, underbody protective panels. The yellow dual-tube exhaust housing shown above is a representative example: complex curvature, high heat resistance, and structural integrity in a single molded unit — replacing a 4-piece welded metal assembly.

Rail Transit

Floor panels, seat supports, partition structures. SMC's ability to produce large-format, lightweight structural panels with repeatable geometry makes it the standard material for high-speed rail interior applications.

From Mold Design to Mass Production — ABERY's Project Flow

Week 1–2    DFM Analysis
            · Charge placement simulation
            · Gate / parting line review
            · Wall thickness and rib geometry check
            · Customer DFM report issued within 48 hours

Week 3–6    Mold Fabrication
            · CNC roughing and finishing of steel cavities
            · EDM for fine features and texture
            · Heating system installation and leak test
            · Dimensional inspection report

Week 7      T1 Sample
            · Full SMC press trial
            · Charge weight and placement optimization
            · 3D CMM dimensional report vs. nominal
            · Surface finish and fiber distribution review

Week 8      T2 / Customer Approval
            · Corrections applied
            · Customer sample approval
            · PPAP documentation (if required)

Week 9+     Mass Production
            · Mold handed to production team
            · First 500 parts dimensional audit
            · Ongoing cycle time and reject rate monitoring

Frequently Asked Questions

Q1: What is the typical lead time for an SMC compression mold?

For a single-cavity tool producing a mid-complexity part (e.g., an electrical enclosure), our standard lead time is 5–7 weeks from confirmed design to T1 samples. Multi-cavity or large-format molds (800mm+) typically require 7–10 weeks. We provide a project-specific timeline with each quotation.

Q2: Can ABERY supply both the mold and the molded parts?

Yes. We operate as a full-service partner: mold design, mold fabrication, compression molding production, and post-processing (trimming, drilling, painting, assembly) are all available in-house. Most customers start with tooling validation and transition to ongoing part supply through us.

Q3: What tolerances can you hold on SMC compression-molded parts?

General dimensional tolerance for SMC parts is ±0.3–0.5mm for overall dimensions, with tighter tolerances achievable (±0.1mm) at critical feature locations through tooling compensation and process control. We confirm achievable tolerances during DFM review before tooling starts.

Q4: How does SMC molding differ from plastic injection molding, and why does it matter for tooling design?

Injection molding uses pressure to push liquid resin into a closed mold; SMC compression molding uses heat and pressure to cure pre-placed semi-solid sheets. The tooling implications are significant: SMC molds require larger pressing areas, different parting line strategies, and precise heating systems rather than cooling channels. A toolmaker experienced only in injection molding is not equipped to design SMC tooling correctly — this is a specialization. ABERY has dedicated experience in both processes.

Q5: Can you match an existing mold standard (DME, HASCO) for the mold base?

Yes. We build to DME, HASCO, or LKM mold base standards depending on customer preference. For customers who already operate SMC presses with specific platen dimensions, we engineer tooling to fit your existing equipment.

Q6: Do you work with non-standard SMC formulations (flame retardant, anti-static, food-grade)?

We work with material suppliers to source SMC formulations meeting UL94 V-0, anti-static, low-smoke halogen-free, and food-contact specifications. We recommend sharing your end-product compliance requirements at the DFM stage so material selection can be confirmed before tooling is finalized.

Why ABERY for SMC Compression Molds?

Request a Quote

Ready to start your SMC tooling project?

Send us your 2D/3D files and we will return a DFM report and tooling quotation within 3 hours.

→ Request a Free DFM Analysis

Don't have a final design yet? Our engineers are available for a 30-minute technical consultation to review your requirements.
