In one sentence: Since 2012, Abery Mold has built more than 100 injection molds across 10+ product series for one American stud finder brand, and today we ship one 20-foot container of finished plastic parts to them every month — a partnership that started when we solved the overmolding problem a Zhejiang tooling supplier could not.
Item | Detail |
Customer | A leading North American brand of stud finders and wall scanners (name withheld under NDA) |
Customer market | USA, Canada — sold on Amazon, The Home Depot, Lowe's, Canadian Tire, True Value, ACME Tools |
How they found us | Alibaba, 2012 — after another Chinese supplier in Zhejiang failed the project |
Core technical challenge | Overmolded soft-grip zones on rigid ABS housings, tight cosmetic tolerances, snap-fit accuracy |
Our solution | DFM redesign of the overmold interface, revised gate and shot sequence, mechanical interlock instead of adhesion-only bonding |
Business outcome (2012 → today) | 100+ molds built, 10+ product series, one 20FT container of parts shipped monthly, zero switching in 13 years |
Services used | Overmolding, 2K Injection Mold, Precise Injection Mold, OEM/Manufacturing Partnership |
I do not usually publish customer case studies. Most of our long-term American and European customers ask us to stay quiet — their competitors would love to know who makes their tooling, and we respect that.
But this partnership taught our whole team something I want every buyer who lands on this page to understand: the cheapest quote is not the same thing as a project that ships. Our customer learned that the hard way in 2011–2012, and the lesson they took away is the reason we have worked together every month for the last 13 years.
If you are a product owner, sourcing manager, or engineering director evaluating a Chinese mold maker for an overmolded electronic hand tool — a stud finder, wall scanner, laser level, moisture meter, cable tracer, or any similar handheld device — this is the story I would want you to read first.
In late 2011, our future customer — an American brand that today is one of the most recognized names in stud finders worldwide — had already invested in tooling with a supplier in Zhejiang Province. On paper, everything looked fine: the supplier had quoted aggressively, promised the timeline, and had built simpler molds before.

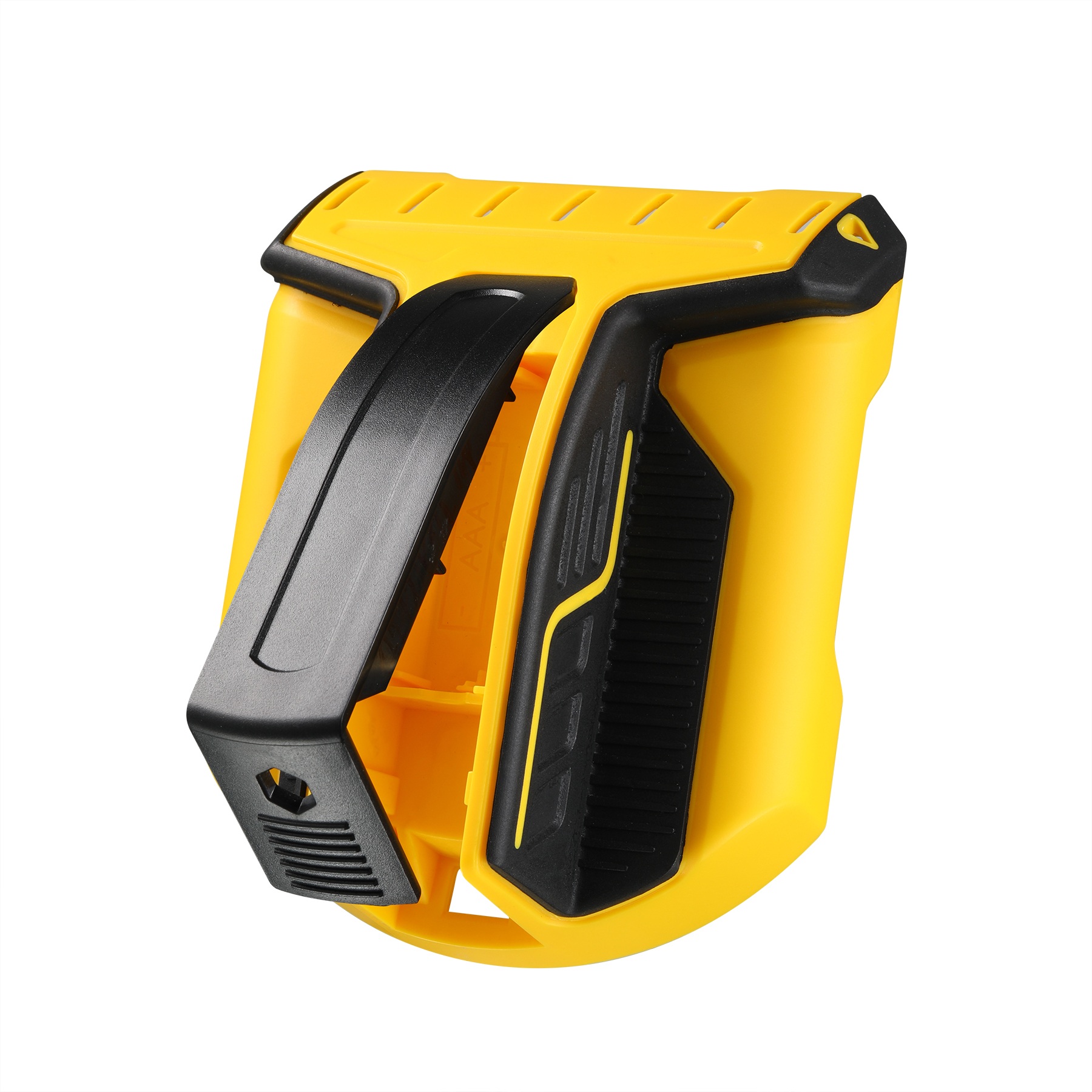

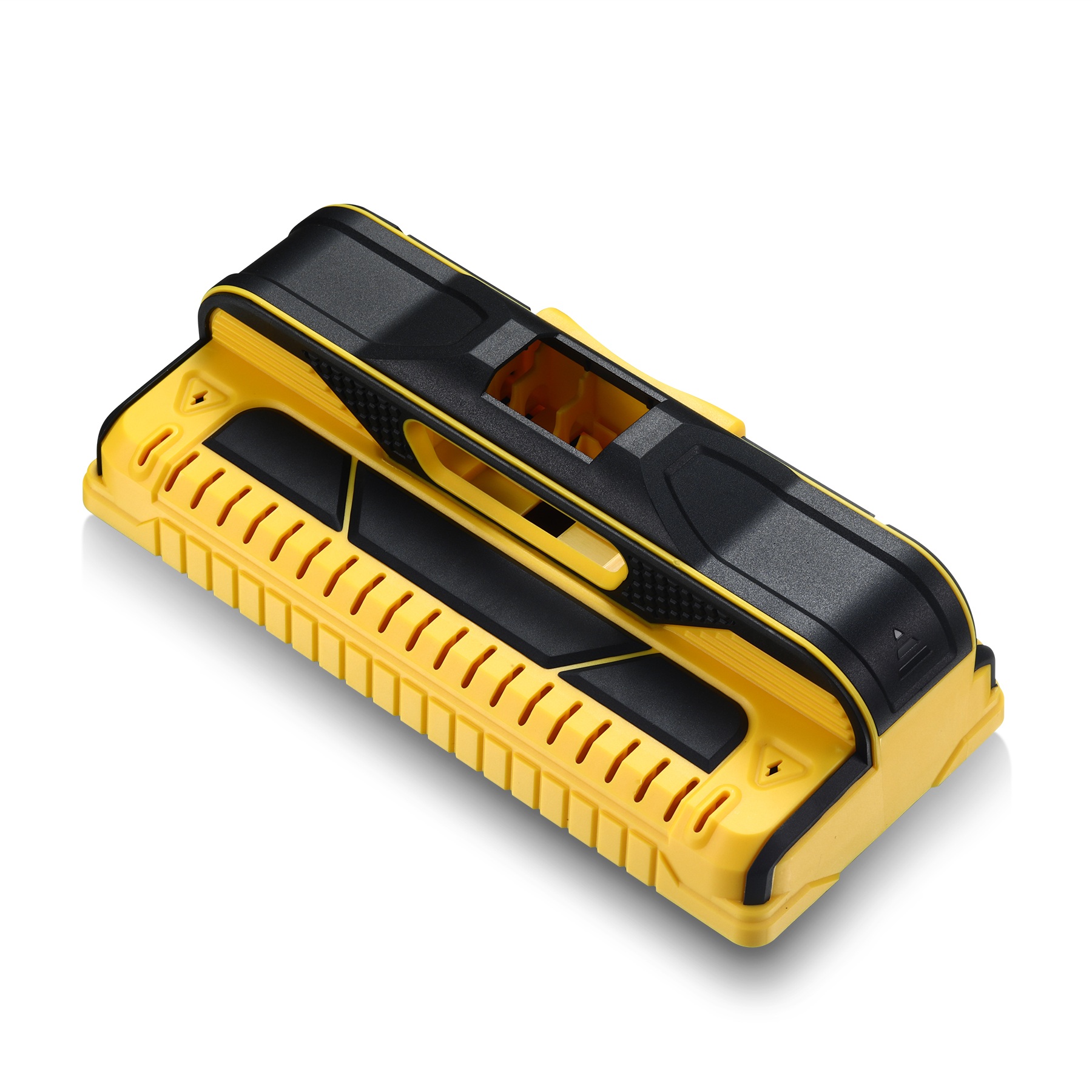

The product itself was not simple. It was an electronic stud finder with:
A rigid ABS structural housing (front and rear cases, battery door, sensor window)

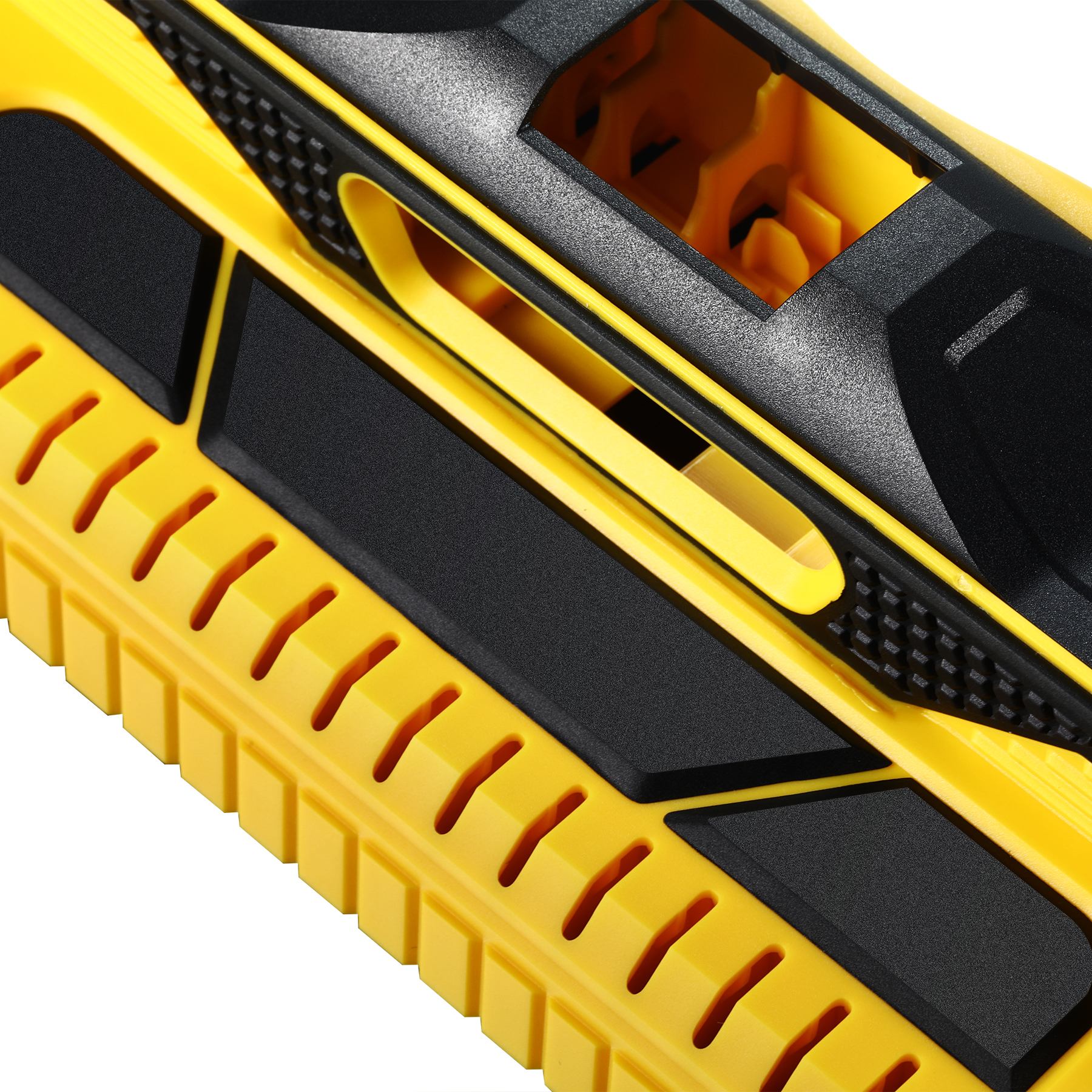

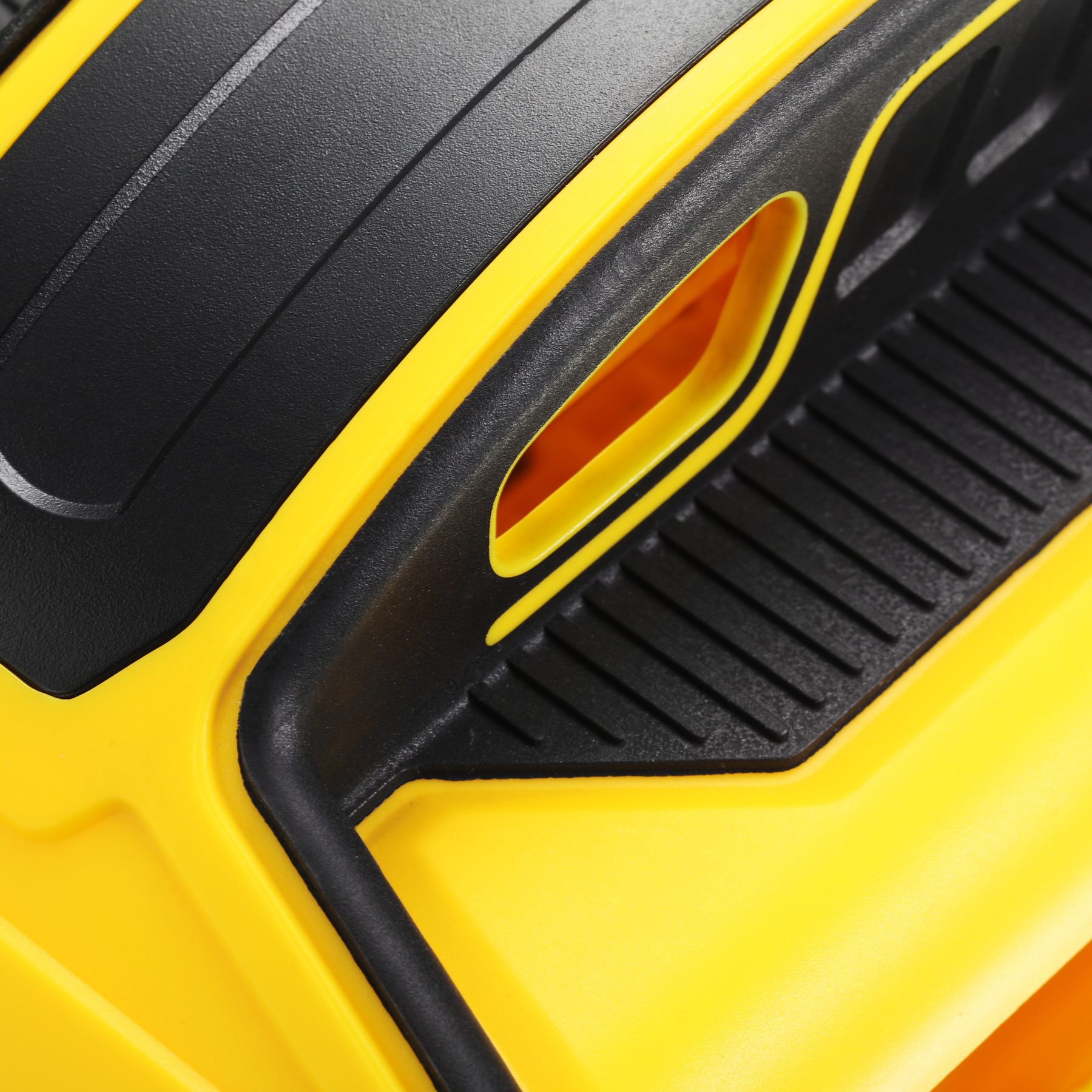

Overmolded TPE soft-grip zones covering the sides and the trigger area — for ergonomics, drop protection, and brand feel
Snap-fit assembly with tight cosmetic tolerances (no visible parting lines on the grip)
Sensor windows and LED light pipes that had to sit flush with the overmold

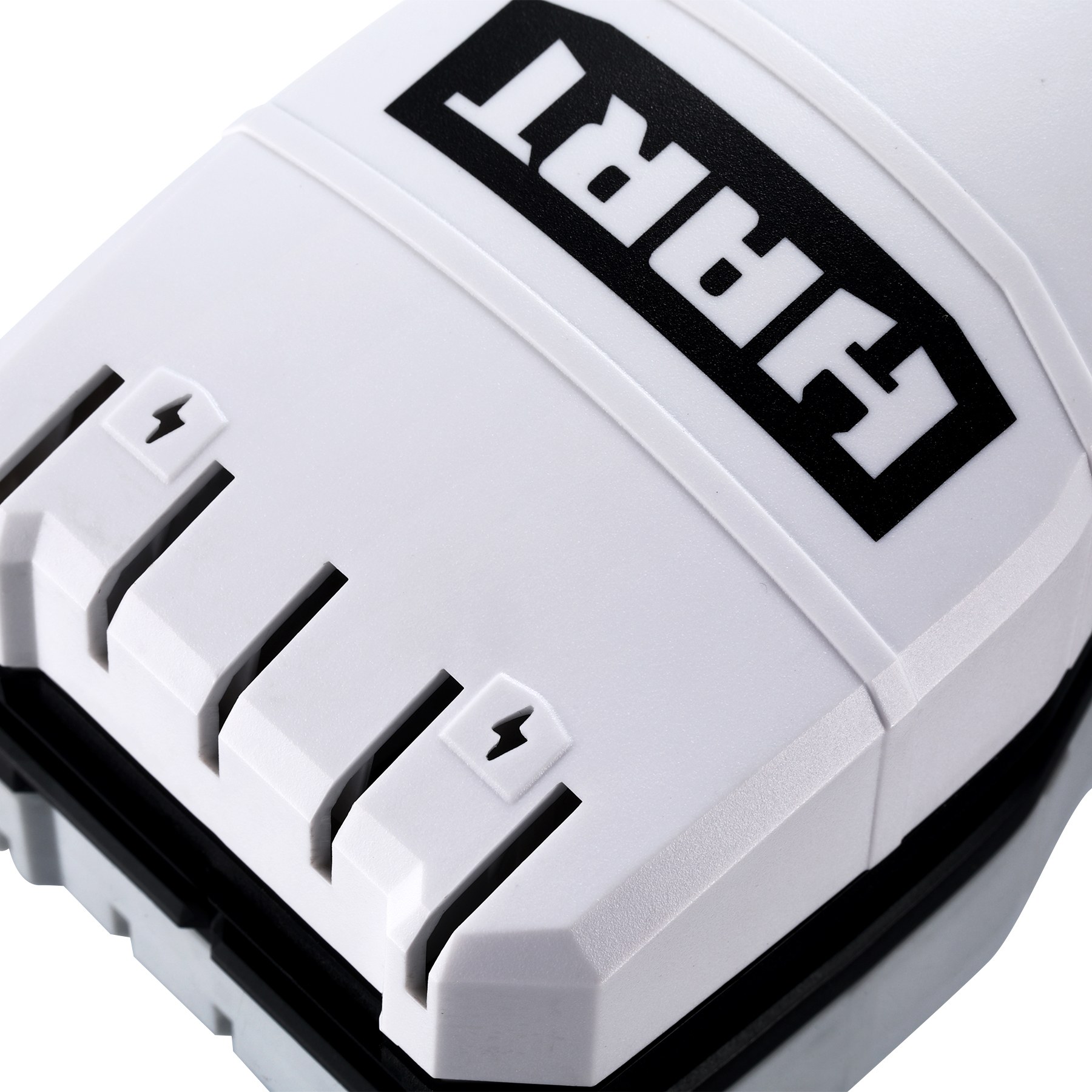

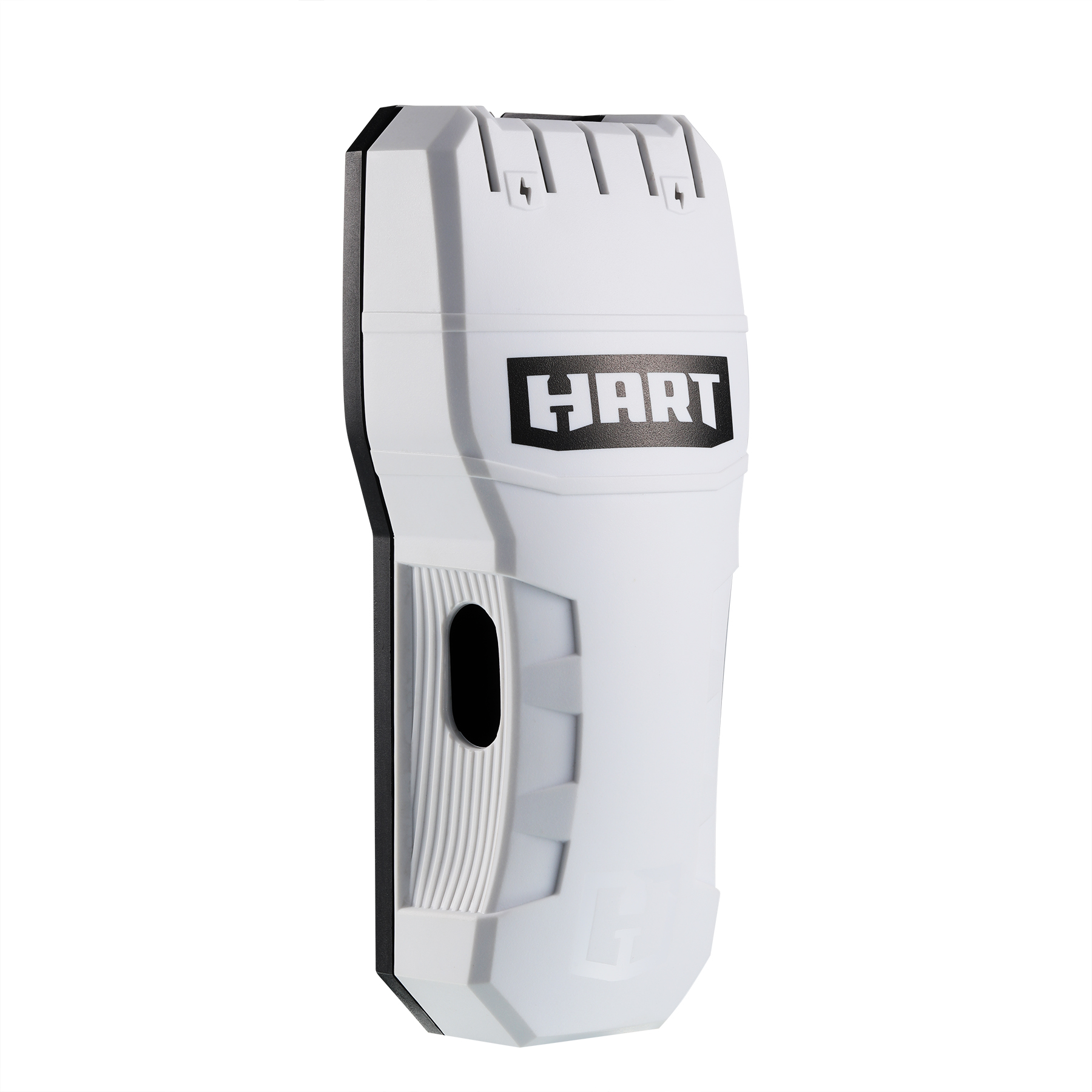

Screen-printed and pad-printed branding on the finished cases
The Zhejiang supplier could make the rigid housing. What they could not make — after several failed T1 and T2 trials — was the overmolded interface between the hard ABS substrate and the soft TPE grip. The bond kept peeling. The gate location left visible marks on the ergonomic surface. The overmold flashed into the sensor window. Every rework of the mold made another problem worse.
By early 2012 the customer had a choice: sink more money into a supplier who did not understand overmold engineering, or find a partner who did. They opened Alibaba, searched for overmold specialists in Shenzhen, and sent us an inquiry.
Before we quoted, our chief mold designer and I spent three days reviewing the customer's 3D files, the failed T2 samples from the Zhejiang supplier, and the intended assembly sequence. Three days is a lot of unpaid engineering time on a project we had not won yet — and I want to be honest that this is exactly the kind of upfront work that separates a real overmolding partner from a shop that just quotes tonnage and steel.
Here is what we found, and what we changed. I am simplifying for a general audience — the full engineering package we delivered to the customer was 40+ pages of DFM.
The Zhejiang supplier had relied on chemical adhesion between TPE and ABS. In theory this can work if the TPE grade, ABS grade, and process window are perfectly matched. In practice, on a hand tool that gets dropped, twisted, and squeezed thousands of times, adhesion alone will fail at the edges within months.
Our solution: we redesigned the substrate to give the TPE mechanical interlocks — undercuts, through-holes, and dovetail grooves at the perimeter of every overmolded zone. The TPE flows through and around these features, so even if adhesion degrades the grip cannot peel off. This is the single most important principle in electronic-tool overmolding, and it is the one non-specialist tool shops most often skip.
The original tool gated the TPE directly into the visible grip surface, which left witness marks that no amount of polishing could hide. We moved the TPE gates to the inside face of the substrate, feeding through the mechanical interlock holes we had just designed in. Two problems solved with one geometry change.
The Zhejiang mold ran the substrate and the overmold in two separate machines, with manual transfer in between. Every transfer introduced dust, misalignment, and cycle-time variability. We rebuilt the tool as a proper rotary 2K injection mold on a two-shot machine: shot one forms the ABS substrate, the platen rotates, shot two forms the TPE overmold directly onto the still-warm substrate, and the finished part ejects in one cycle.
Result: better bond (warm substrate = better molecular entanglement at the interface), no manual handling contamination, cycle-time down by roughly 40% compared with the two-machine approach, and — crucially — repeatable cosmetic quality shot after shot.
The original mold let TPE flash into the sensor cavity. We added precision shutoff surfaces in the second-shot tool so the overmold physically cannot enter the sensor window, LED light pipe, or battery contact area — regardless of process drift.
Before we shipped the first production mold, we molded 500 sets of parts, assembled them into full stud finders, and drop-tested, twist-tested, and thermal-cycled them ourselves. Only after the assembled product passed did we call the mold "approved." This is now our standard process for every overmolded hand-tool project.
The first mold from our shop shipped stud finders to Amazon within four months of the customer's first inquiry. That first product line is still selling today.
Since 2012 we have built for this customer:
100+ injection molds — including single-shot ABS structural tools, 2K overmold tools, metal-inserted battery-contact tools, and IML-decorated cosmetic tools
10+ complete product series — covering entry-level magnetic stud finders, mid-range electronic stud finders, deep-scan multi-sensor wall scanners, and pro-grade combination detectors
Ongoing mass production — we ship one 20-foot container of finished plastic parts to their US warehouse every month, on a rolling forecast, with zero missed containers in 13 years
Their products are now sold on Amazon, The Home Depot, Lowe's, Canadian Tire, True Value, ACME Tools, and other major North American retailers. Their brand has become one of the most recognized names in the global stud-finder category.
We are proud of that. We are prouder that they have never once put the tooling back out to bid.
Every week we get inquiries from product owners who have been burned the same way our 2012 customer was — a "cheap" mold from a supplier who quoted the steel and the tonnage but who had never actually engineered an overmold interface. The pattern is always the same: T1 looks fine, T2 shows peeling or flash, T3 makes it worse, and by T4 the tool is scrap and the launch date is dead.
If your product involves any of the following, please have a real conversation with a real overmold engineer before you cut steel:
Soft-grip TPE / TPR / TPU zones over a rigid ABS, PC, PC-ABS, or nylon substrate
Sealed electronics (IP54 or higher) where the overmold has to double as a gasket
Sensor windows, light pipes, or display lenses that must stay clear of the overmold
Multi-color or two-shot cosmetic branding
Metal inserts — battery contacts, magnets, threaded bosses — that need to be captured in the substrate before overmold
These are exactly the projects Abery Mold was built for, and they are the reason we have kept one customer for 13 years and counting.
I will end with the sentence I say to every new engineer we hire at Abery:
"Help our customers be more successful, and our business will be more profitable."
We did not chase this customer with a lower price in 2012. We chased them with a better answer to the problem their previous supplier could not solve. Thirteen years, 100+ molds, and 156+ containers of parts later, that is still the only strategy I know that works.
If you have an overmolded hand-tool project that a previous supplier could not finish, or a new product where you want to get the overmold right the first time, I would like to look at it personally. Send the 3D files and a short brief to tonney@a-mold.com or open an inquiry through the button below. We reply to every serious RFQ within 24 hours, and the DFM review is free.
Yes. We sign a mutual NDA before any file review, and we do not display customer names, product photos, or tooling images on our website without written permission. The customer in this case study is anonymized for that reason.
For a two-shot overmold tool of typical stud finder size (single cavity, hardened P20 or 718H steel), our standard lead time is 35–42 days from PO to T1 samples, including DFM, mold flow, and steel cutting. Multi-cavity and 2K rotary tools take 45–55 days.
For overmolded electronic tool housings we accept production runs from 1,000 sets per month. Our current stud-finder customer runs at roughly one 20-foot container of finished parts per month, and we scale mold cavitation to that volume.
For this customer we mold the plastic parts, print the branding, and ship kitted sets. Final PCB assembly and packaging happen in the customer's own facility. For customers who want a fully assembled product shipped from Shenzhen, we offer that under our OEM/Manufacturing Partnership solution.
Overmolding can be done in one machine (2K rotary or shuttle mold) or in two machines with a manual insert step. 2K injection molding specifically refers to a two-shot process on a single two-color machine where both materials are injected in one cycle. For stud finders and similar high-volume electronic hand tools we almost always recommend 2K, because it delivers better bond, better cosmetics, and lower unit cost at production scale.
