Single-Cavity SMC Compression Mold for Rail Transit Electronic Housings

Product Overview

SMC (Sheet Molding Compound) compression molds for electronic housings represent one of the most technically demanding categories in thermoset tooling. The part must meet tight dimensional tolerances for component fit, deliver a Class A surface finish to support direct-use assembly, and maintain consistent geometry across a 100,000-shot production run — all under the elevated temperatures that SMC molding requires.

ABERY manufactured this single-cavity compression mold in 8407 full hardened steel for a USA customer supplying electronic enclosures to the rail transit sector. The tooling incorporates self-lubricating guide bushings specifically to address the thermal expansion challenges inherent in high-temperature SMC molding.

Product Specifications

The Engineering Challenge — What Makes This Mold Technically Demanding

"SMC molds for electronic housings require a level of surface polish that most toolmakers underestimate. Because SMC material is semi-solid and compressed rather than injected, the part cannot 'push off' from texture or grain the way an injection-molded part can. If the cavity polish is below Grade A, the part bonds to the steel surface and tears during ejection — causing surface damage that makes the part unusable. Every cavity surface in this mold was finished to mirror grade before the first trial."
— ABERY Tooling Engineering Team

Challenge 1: Surface Polish for Clean Part Release

SMC parts do not release the same way thermoplastic injection-molded parts do. Under compression at 130–155°C, the thermoset resin crosslinks and adheres to the steel surface. A mirror-grade cavity polish (Ra ≤ 0.05μm) is required to ensure the cured part releases cleanly without tearing, streaking, or surface damage.

For an electronic housing in a rail transit application, surface quality directly affects assembly fit and downstream coating adhesion. We treat polishing as a critical process step — not a finishing detail — and verify surface roughness with profilometer measurement before any trial pressing.

Challenge 2: Self-Lubricating Guide Bushings for Thermal Stability

SMC molding runs continuously at 130–155°C. Standard bronze or steel guide bushings expand and contract with each cycle, progressively increasing guide play and degrading mold alignment over the production run. For a precision housing with ±0.01mm tolerance requirements, misalignment of even 0.03mm at the parting line will cause visible flash and may cause critical dimensional failure at connector or mounting features.

This mold uses self-lubricating guide bushings — which maintain consistent friction coefficients across the full temperature range without requiring external lubrication — to preserve mold alignment and protect the 100,000-shot lifetime specification.

Challenge 3: Parting Line Flash Control on Electronic Housings

Electronic housings require precise parting line placement to avoid flash at connector openings, mounting boss faces, and sealing surfaces. We engineer parting line geometry during DFM review specifically to place parting lines away from these functional surfaces, then control parting line clearance to ≤0.02mm to suppress flash generation at process pressure.

Product Gallery

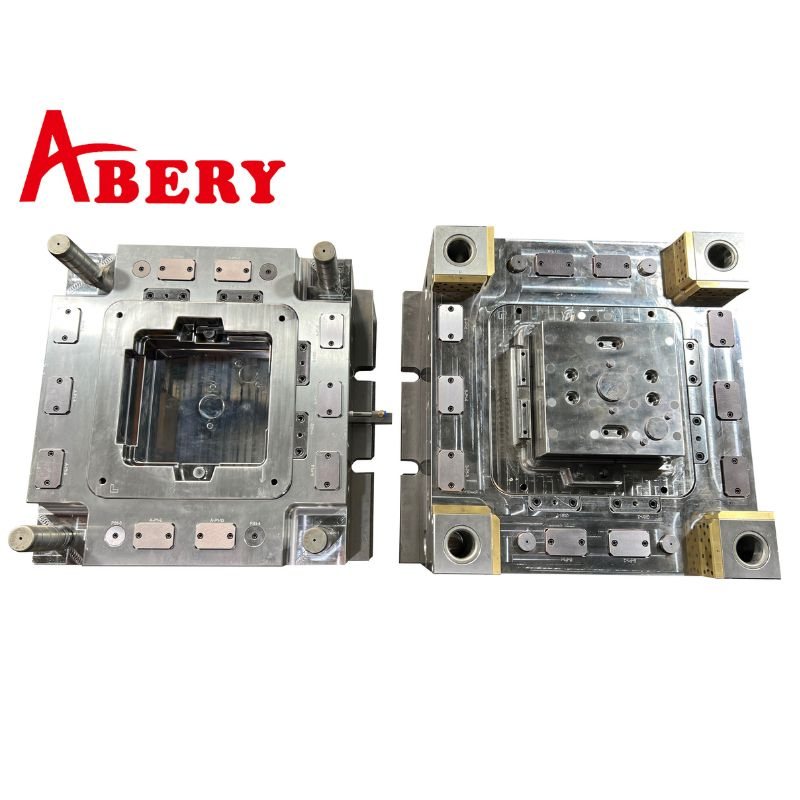

Caption: SMC compression mold, cavity half (left) and core half (right) — 8407 full hardened steel. Cavity surface finished to mirror grade for clean part release. Precision guide pillar and self-lubricating bushing system visible on core half. Manufactured by ABERY for USA rail transit electronic housing application.

Caption: Second SMC compression mold set — cavity half showing 3×3 grid geometry for the electronic housing base, with precision corner radii and full perimeter parting surface. Core half showing deep box geometry with polished draw surfaces. Self-lubricating guide bushings installed at all four corners.

Material Selection: Why 8407 Steel for SMC Compression Molds?

8407 (equivalent to AISI H13) is a hot-work tool steel specifically designed for elevated-temperature cyclic applications. For SMC compression molding, its properties address every critical failure mode:

Alternative steels (P20, 718) are softer and less wear-resistant when used at SMC molding temperatures. For a 100,000-shot production tool in an abrasive glass-fiber material, 8407 full hardened is the correct specification.

Industry Context: SMC in Rail Transit Electronics

Rail transit electronic housings are among the most demanding applications for molded enclosures. Specifications commonly include:

• UL94 V-0 flame retardancy — required for any component in a passenger rail environment

• Electrical insulation — housings protect control electronics from EMI and short-circuit risk

• Dimensional stability across temperature range — rail environments expose components to -40°C to +85°C ambient cycling; thermoset SMC maintains geometry where thermoplastics creep

• Vibration resistance — rail transit vibration profiles require parts with no internal stress concentrations; SMC's glass fiber reinforcement distributes stress uniformly

• Long service life — rail transit components are expected to remain in service for 20–30 years; thermoset material does not degrade or creep under sustained mechanical load

ABERY's SMC tooling experience covers these performance requirements. Our DFM process reviews material formulation, wall thickness, and surface finish specifications against the end-use environment before tooling starts.

From Order to Approved Tooling — Project Timeline

Week 1–2    DFM Analysis
            · Wall thickness and draft angle review
            · Parting line placement for electronic features
            · Surface finish specification confirmation
            · Guide system selection (self-lubricating confirmed)

Week 3–6    Mold Fabrication
            · CNC roughing of 8407 steel cavities
            · EDM for fine radii, ribs, and insert pockets
            · Mirror polishing of all draw surfaces (Ra ≤ 0.05μm)
            · Self-lubricating bushing installation
            · Mold base assembly and alignment check

Week 7      T1 Trial
            · First press trial with SMC charge
            · Part release quality inspection
            · Dimensional CMM measurement vs. nominal
            · Flash assessment at all parting line zones

Week 8      T2 / Customer Approval
            · Corrections applied
            · Customer sample review and sign-off
            · PPAP / FAI documentation issued (if required)

Week 9+     Production Handover
            · Mold commissioned for production
            · First-article inspection at 500 parts
            · Mold maintenance schedule documented

Frequently Asked Questions

Q1: Why use 8407 full hardened steel instead of P20 for an SMC mold?

P20 is a pre-hardened steel optimized for thermoplastic injection molds that run at 20–80°C. SMC compression molds cycle at 130–155°C, which is above P20's effective hardness range — the steel softens progressively, causing dimensional drift and accelerated surface wear from the abrasive glass fiber in SMC. 8407 full hardened maintains HRC 48–52 at molding temperature, providing the dimensional stability and wear resistance that a 100,000-shot SMC tool requires.

Q2: What does "self-lubricating guide bushings" mean, and why does it matter?

Standard guide bushings require periodic manual lubrication to reduce friction and wear. At SMC molding temperatures, standard lubricants vaporize or carbonize, leaving the bushings dry and accelerating wear. Self-lubricating bushings contain embedded solid lubricant (typically graphite or bronze-PTFE composite) that releases continuously during operation, maintaining consistent friction regardless of temperature. This directly protects mold alignment accuracy over the production run — critical for a housing with ±0.01mm dimensional requirements.

Q3: How do you achieve ±0.01mm tolerance on a compression-molded part?

Compression molding tolerances depend on three factors: tooling dimensional accuracy, material shrinkage consistency, and process parameter control. We machine cavity steel to ±0.005mm, characterize SMC shrinkage rates from the specific material batch, and compensate tooling dimensions accordingly. Process parameters (temperature, pressure, hold time) are locked and monitored via digital press controls. CMM measurement at T1 and T2 validates that dimensional targets are met before production approval.

Q4: How many shots does this mold support, and what happens at 100,000 shots?

This tooling is specified for a 100,000-shot production life. At that milestone, cavity surface wear and guide system play are assessed. Depending on wear measurements, the mold may continue in production, receive cavity resurfacing, or be retired and replaced. ABERY maintains dimensional records from T1 through the production run, so wear trends can be identified before they affect part quality.

Q5: Can this mold be used for BMC (Bulk Molding Compound) as well as SMC?

The tooling geometry is compatible with BMC compression molding. Material and process parameters differ (BMC has lower viscosity and shorter fiber length), and process temperature and pressure settings would require re-qualification. We recommend a brief process validation trial before switching materials on an existing tool.

Q6: Do you supply the molded parts as well as the tooling?

Yes. ABERY operates both toolmaking and production molding under one roof. After tooling approval, we can supply ongoing SMC compression-molded parts with full dimensional and visual inspection documentation. This eliminates the handoff risk of separating mold supplier from molder.
