ABS+TPE Overmolded Housing for Decoration Smart Tools — USA Customer Project

Product Overview

Overmolding replaces multi-part assembly with a single integrated component. In this project, ABERY injection-molded the yellow ABS substrate first, then overmolded the black TPE grip layer in a second operation — producing a finished housing with molded-in honeycomb texture zones, parallel ribbing, and diagonal color-blocking lines, all held to ±0.05mm dimensional tolerance.

The result is a part that looks premium, feels secure in hand, and arrives from the factory ready for final assembly — no gluing, no secondary texture application, no risk of grip delamination in the field.

Product Specifications

Design Breakdown — What Makes This Part Technically Interesting

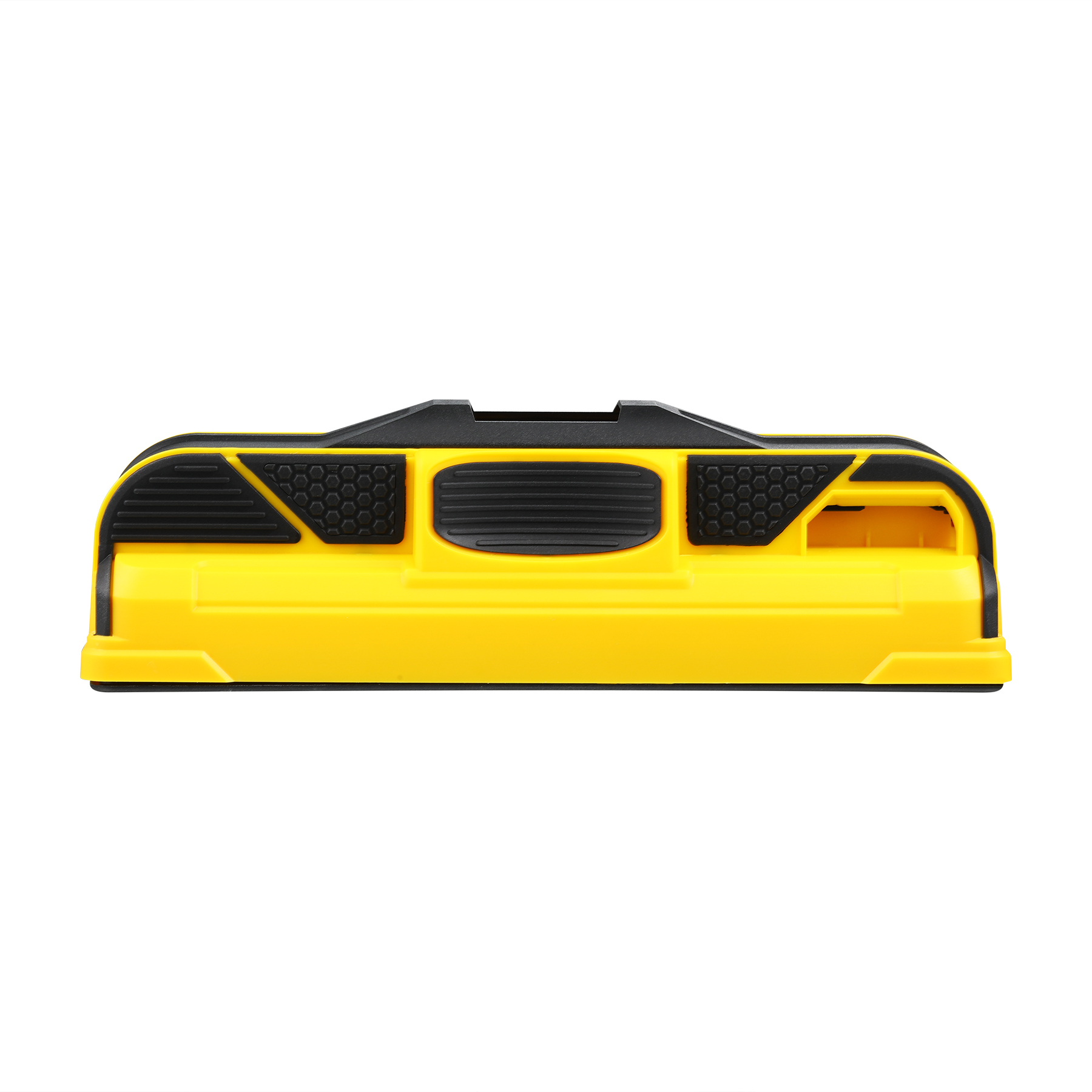

The front face shows three TPE zones separated by the yellow ABS frame. The center pad features raised parallel ribs for thumb grip; the flanking zones use a honeycomb cell pattern that provides tactile feedback while maintaining a premium visual. The angular cut between yellow and black — a diagonal geometry running the full width of the housing — requires the overmold tool to hold a sharp interface line. Any flash or misregistration at this boundary is immediately visible and makes the part unacceptable.

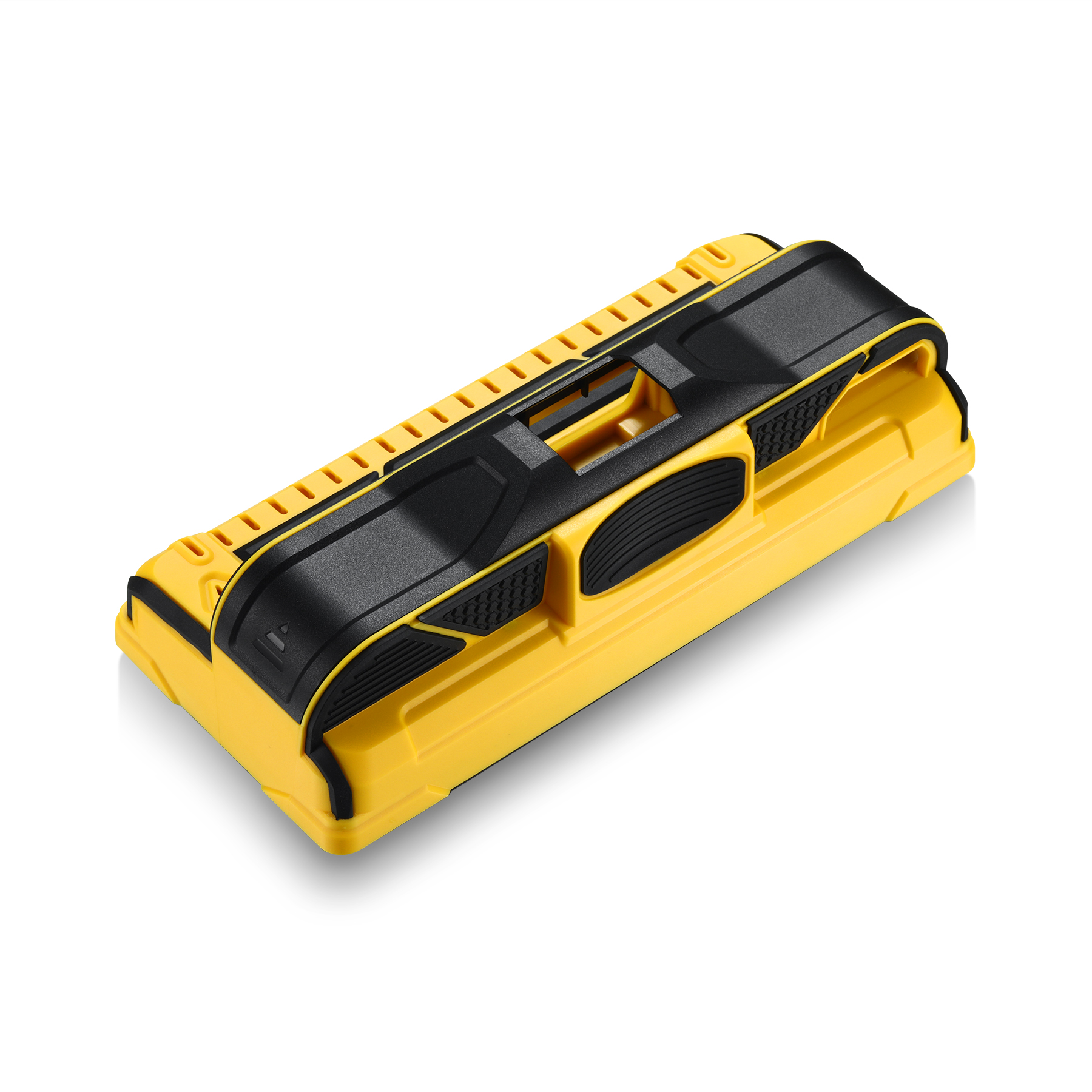

The angled view reveals the full 3D geometry: the yellow ABS body has longitudinal ribbing molded into the lower face, an open slot at center exposing the internal orange structure, and TPE wrap-around coverage at both ends. The black TPE terminates cleanly at the yellow-black boundary on all surfaces — no bleed, no underfill.

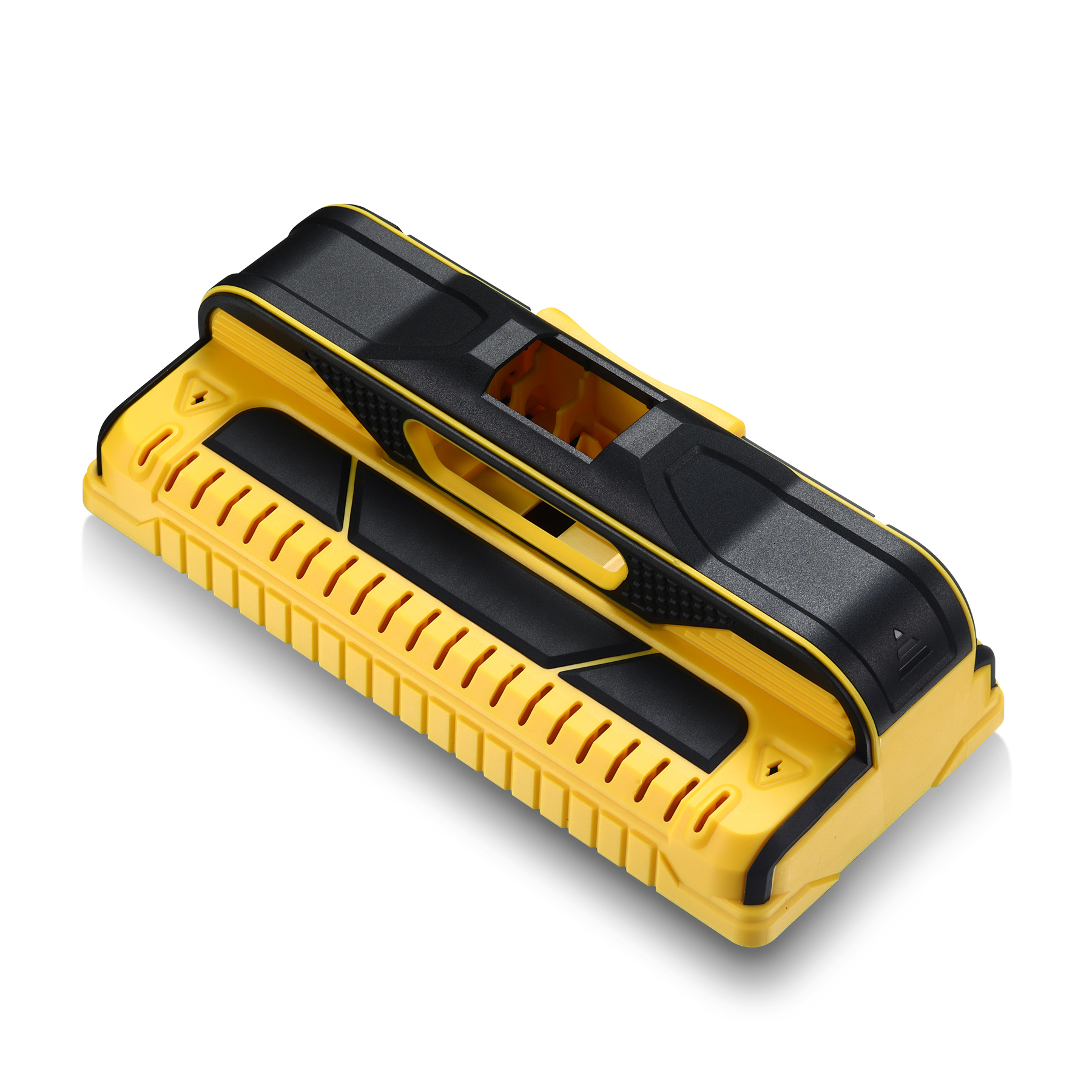

Three large oval TPE grip pads are overmolded onto the underside. These pads serve a functional purpose — they prevent the tool from sliding on flat surfaces during use — while continuing the color-block aesthetic from the topside. The pad geometry requires the overmold tool to allow TPE to flow through ports in the ABS substrate and bond to the underside cavity, a design detail that must be engineered into the substrate tooling before overmolding begins.

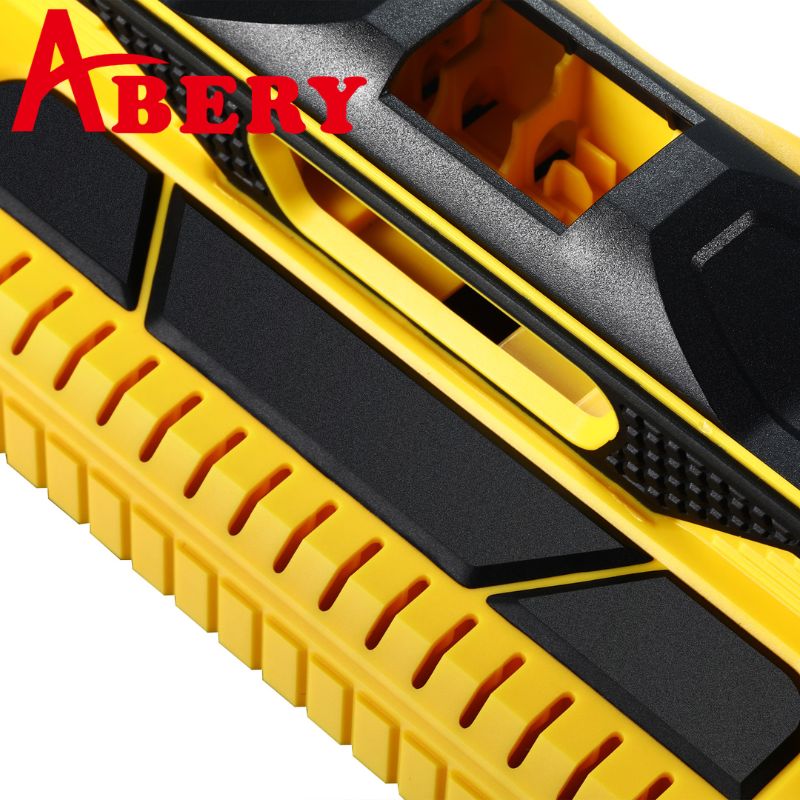

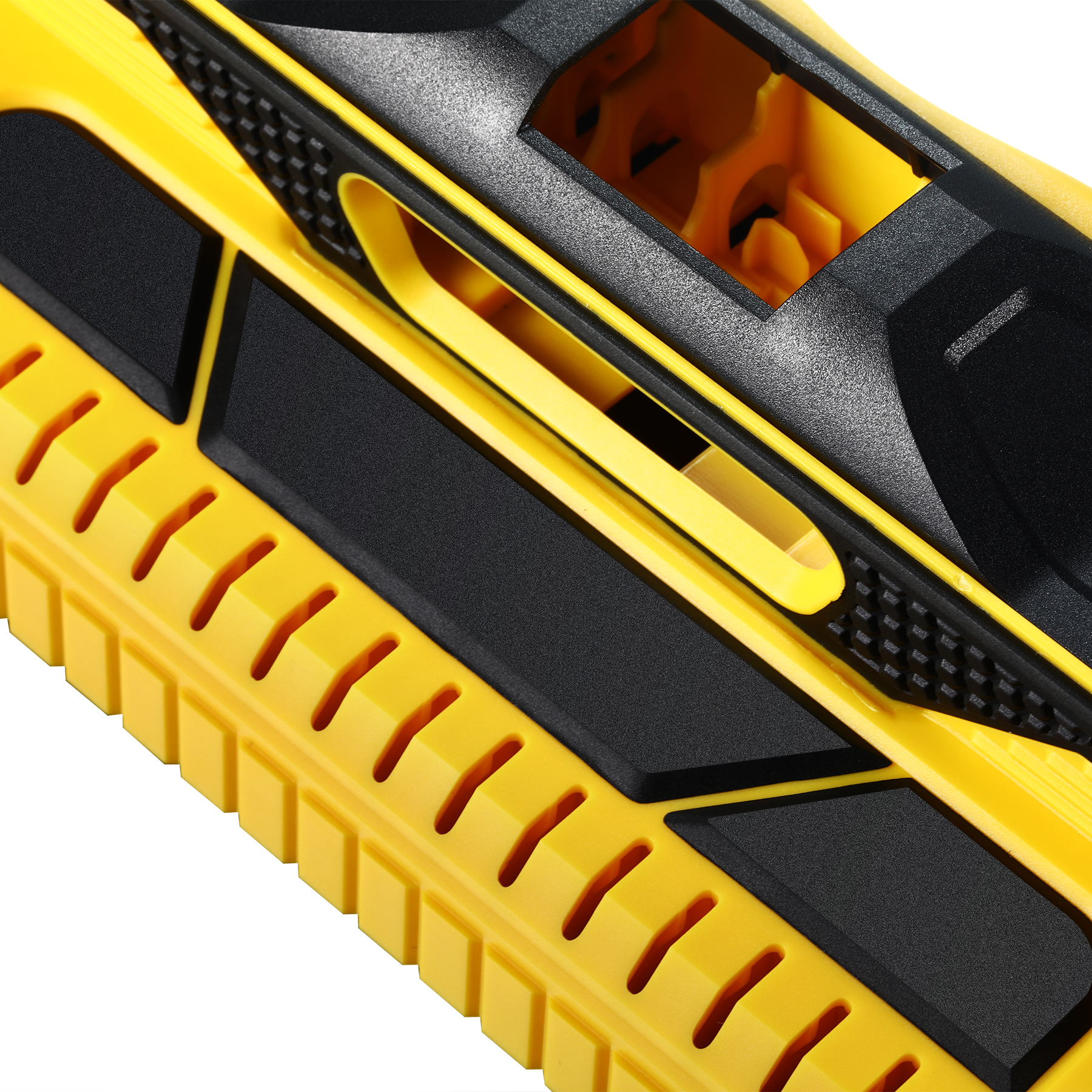

The macro detail shot shows the quality of the yellow-black interface line, the honeycomb cell depth and uniformity, and the orange ABS internal structure visible through the center slot. At this magnification, the parting line between ABS and TPE is clean — no flash, no gap, no color bleed. This is the result of tight mold fitting tolerance at the overmold interface.

The Engineering Insight — Why Clean Color-Block Lines Are Hard to Achieve

"In ABS+TPE overmolding, the visual quality of the color boundary line is entirely determined by mold fitting at the interface. The overmold cavity presses against the ABS substrate surface to seal the TPE. If that sealing surface has a gap — even 0.02mm — TPE will bleed through and create a visible smear across the yellow ABS. There is no post-process fix for this. You have to get the mold fit right from T1."
— ABERY Tooling Engineering Team

Three specific engineering decisions controlled color-block quality on this part:

1. Substrate Surface as Overmold Seal

The yellow ABS part's outer surface serves as the sealing wall for the overmold cavity. ABERY machines the overmold cavity to contact the substrate surface with controlled interference — enough to seal TPE, not enough to deform the substrate. This requires dimensional consistency on the ABS substrate that is tighter than the ±0.05mm part tolerance.

2. TPE Flow Path Through Substrate Gates

The underside TPE pads are not accessible from the top cavity. TPE flows from the top overmold cavity, through gates molded into the ABS substrate (designed into the substrate tooling before overmolding), and fills the underside pad cavities. Gate size, location, and TPE injection speed must be calibrated together to ensure full fill without short shots or weld lines at pad centers.

3. Cooling Sequence After Overmolding

ABS and TPE have different thermal expansion coefficients. Rapid or uneven cooling after the overmolding step causes differential shrinkage that warps the part or creates stress at the ABS–TPE interface. ABERY uses a controlled cooling hold phase and validated mold temperature settings specific to this material combination to produce flat, stress-free parts.

ABS + TPE: Why This Material Combination Works

ABS and TPE form a chemical (molecular) bond during overmolding — not a mechanical interlock. This means the grip layer cannot be peeled off in normal use. For tools that spend their life being gripped, dropped, and exposed to workshop conditions, chemical bonding is the only reliable long-term solution.

Applications Beyond This Project

The ABS+TPE overmolding process used in this housing applies directly to:

• Handheld measuring tools — laser levels, stud finders, voltage detectors

• Power tool accessories — auxiliary handles, battery grip covers, tool holders

• Smart home device housings — remote controls, smart switches, control panels

• Consumer electronics accessories — phone stands, cable organizers, charging dock bases

• Sporting goods — grip handles, equipment housings, protective cases

If your product needs the same yellow+black color-block aesthetic, or any soft-over-hard overmolding configuration, ABERY can develop tooling and produce parts from prototype quantities through mass production.

From CAD to Mass Production

Stage 1 — DFM Review (Week 1)
   · Substrate geometry review: draft angles, wall thickness, gate location
   · Overmold interface design: seal surface geometry, TPE flow paths
   · Color boundary line feasibility: can the mold achieve clean interface?
   · DFM report issued within 48 hours of file receipt

Stage 2 — Substrate Tooling (Weeks 2–5)
   · ABS substrate mold manufactured
   · T1 substrate sample — dimensional check, gate mark location, surface quality
   · Approval before overmold tooling begins

Stage 3 — Overmold Tooling (Weeks 4–7, overlapping)
   · Overmold cavity machined to interface with approved substrate sample
   · Fitting trial: substrate loaded into overmold tool, sealing surface checked
   · Adjustment until interface gap ≤ 0.02mm

Stage 4 — First Overmold Trial (Week 8)
   · Full two-shot production trial
   · Color boundary line inspection (10× magnification)
   · Dimensional check of finished part
   · TPE adhesion test (peel test)

Stage 5 — Mass Production (Week 9+)
   · Production line established
   · First-article inspection report
   · Ongoing visual and dimensional sampling

Frequently Asked Questions

Q1: Can you match a specific yellow color for the ABS substrate?

Yes. We work with Pantone or RAL color references and produce color-matched test shots for customer approval before committing to production. For brand-specific yellows, we request a physical color standard or Pantone number at the DFM stage.

Q2: How do you prevent TPE from bleeding across the yellow-black boundary line?

The overmold cavity seals against the ABS substrate surface under clamping pressure. We control the interface geometry and clamping fit to produce a seal that stops TPE at the design boundary. This requires the substrate mold and overmold mold to be designed and adjusted together — it is not something that can be corrected after the tools are built independently.

Q3: Is the TPE grip layer permanent? Can it be pulled off?

Under normal use conditions, no. ABS and TPE form a chemical molecular bond during the molding process at elevated temperature and pressure. This bond is stronger than a mechanical interlock (snap fit, undercut) and does not rely on adhesive. TPE separation requires sustained mechanical peel force beyond typical product use.

Q4: What is the minimum order quantity for this type of overmolded part?

We support prototype quantities (50–500 pieces) through a prototype mold, and full production quantities (10,000+ pieces) through a hardened production tool. For the USA market, we typically recommend starting with a prototype run to validate the design before committing to production tooling investment.

Q5: Can you add the internal components (orange structural parts visible in the photos) to the assembly?

Yes. ABERY offers sub-assembly and final assembly services. If your product has internal components that need to be inserted before or after overmolding, we can integrate this into the production flow and ship finished assemblies.

Q6: What is the lead time for a project like this?

From DFM sign-off to first production samples: approximately 6–8 weeks for a two-tool project (substrate mold + overmold). This includes both mold builds and two rounds of sample approval. A project timeline is provided with every quotation.

Request a Quote

Have a handheld tool, smart device, or consumer product that needs overmolding?

Send us your 3D files (STEP or IGES) and we will return a DFM analysis — covering interface design, color boundary feasibility, and material recommendation — plus a tooling and parts quotation within 3 hours.

→ Start Your Overmolding Project
