PBT GF33 Insert-Molded ECU Connector Housing for Truck GPS/GSM Systems — UK Automotive Project

Product Overview

Automotive ECU connectors face demands that no consumer electronics connector encounters: temperature cycling from arctic cold starts to engine bay heat, continuous vibration across road surfaces, exposure to fuel, oils, and cleaning chemicals, and mandatory electrical reliability over 10–15 year vehicle service life.

ABERY produced this multi-pin ECU connector housing in PBT GF33 (polybutylene terephthalate, 33% glass fiber reinforced) for a UK customer supplying GPS/GSM telematics modules to the commercial truck market. The housing integrates three connection zones — a high-density PCB-edge pin array, two large-bore wiring harness receptacles, and a GPS/GSM antenna module mounting area — all within a single injection-molded body with insert-molded metal contacts.

The part carries the material marking PBT GF30GF / HDWT584, confirming the connector series specification and material grade. The orange secondary lock indicators visible on the housing exterior confirm locking status — a required feature for automotive harness connectors to enable visual assembly verification.

Product Specifications

Product Gallery

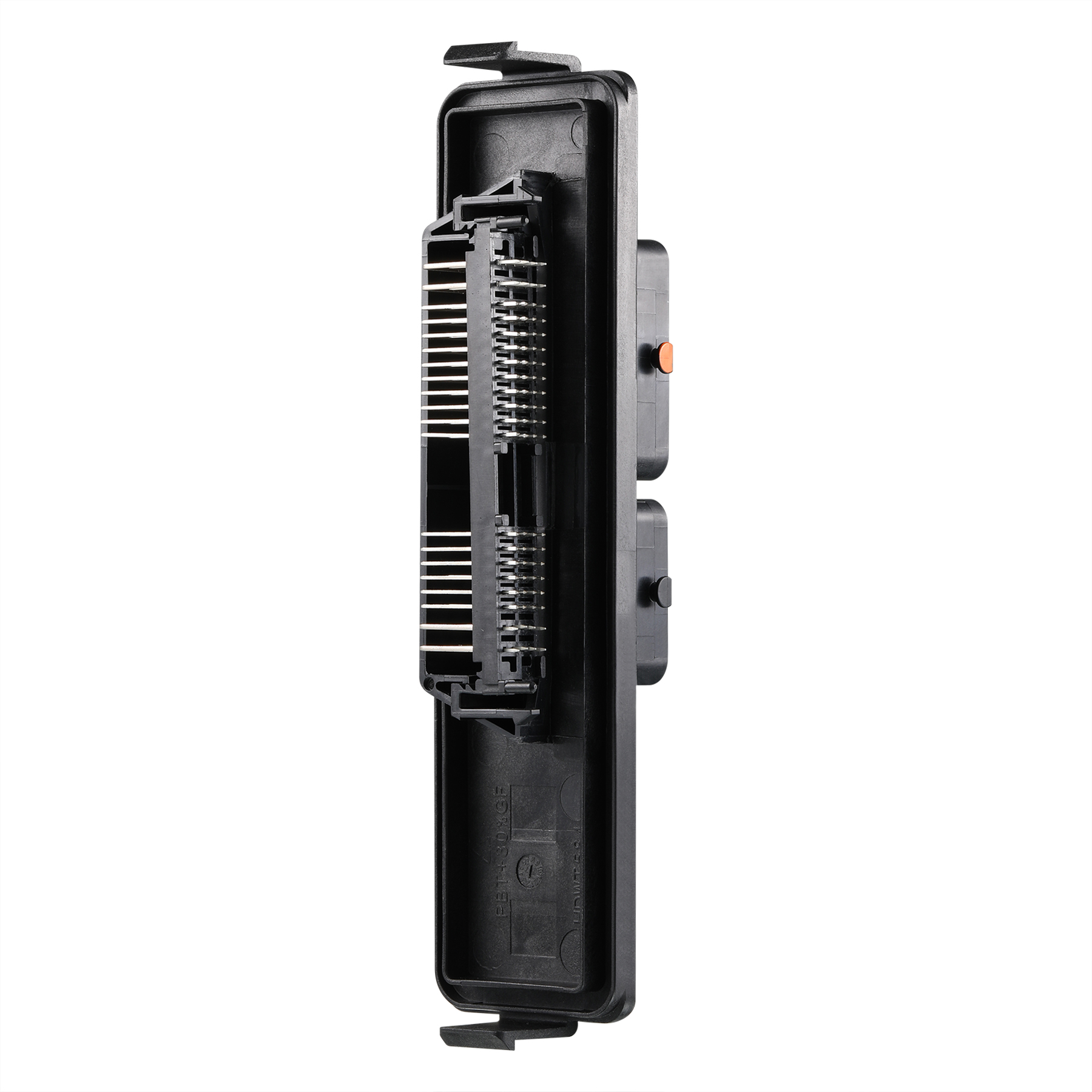

Caption: PBT GF33 ECU connector housing — side view showing the high-density PCB-edge metal pin array insert-molded into the housing body, two wiring harness entry bays on the lateral face, and clip/latch geometry at both ends for panel mounting. Orange secondary lock indicator visible. Material: PBT GF33, black. Manufactured by ABERY for UK truck telematics customer.

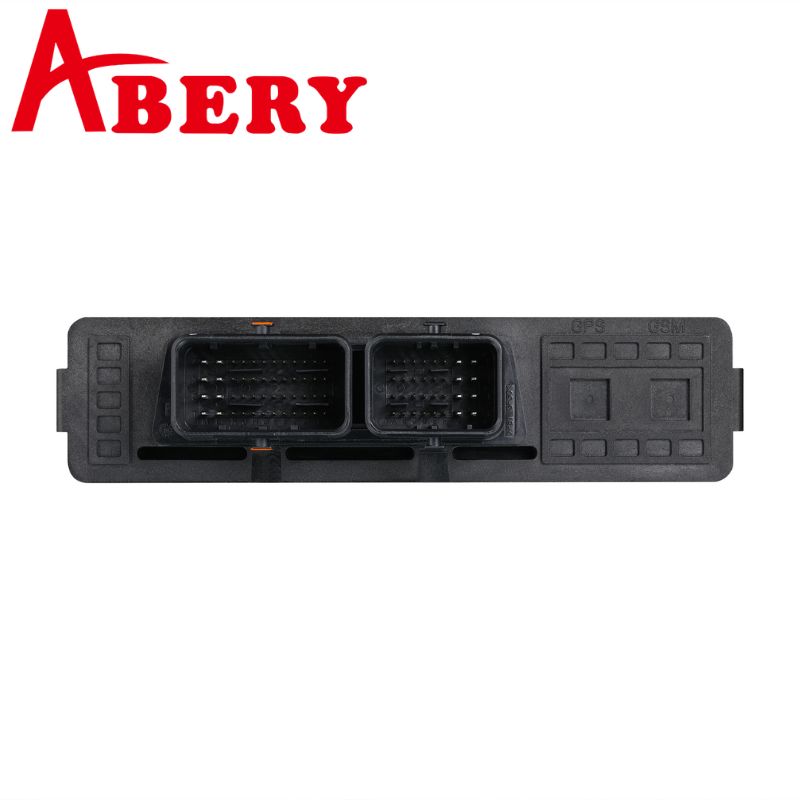

Caption: Front face of the ECU connector housing showing dual wiring harness receptacle bays (left: GPS, right: GSM), pin contact arrays within each bay, and GPS/GSM module mounting area (right panel with recessed retention geometry). All contact bay walls are flash-free with consistent wall thickness. Orange secondary lock indicators confirm locked position.

Caption: Rear face of the housing showing molded-in material identification "PBT GF30GF / HDWT584" and the PCB-edge connector insert — dual-row metal pin array fully encapsulated in PBT GF33, with pin tips protruding uniformly for PCB through-hole or surface mount engagement. Panel mounting tabs visible at both ends.

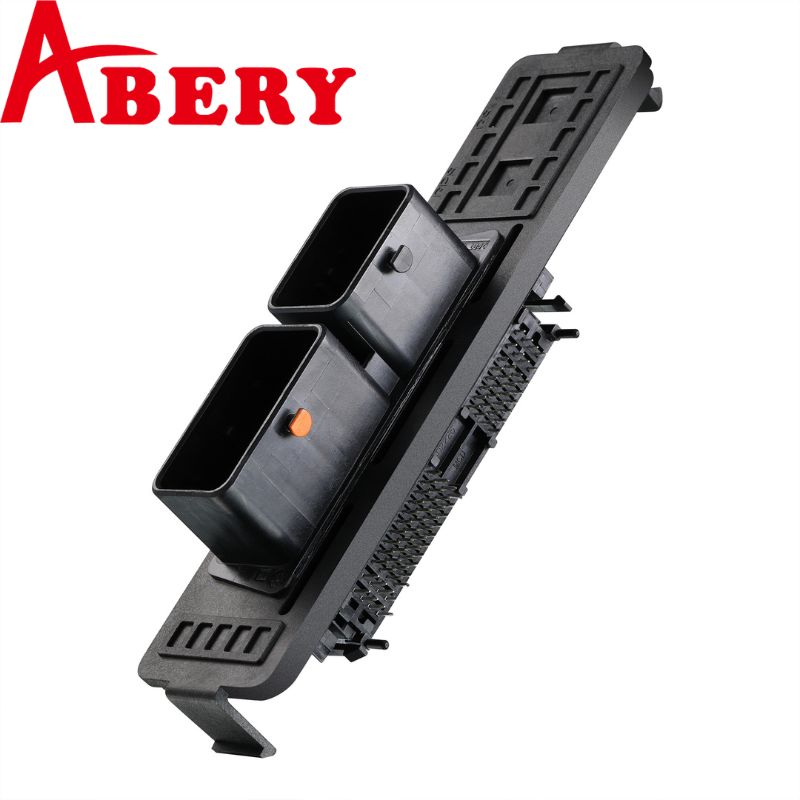

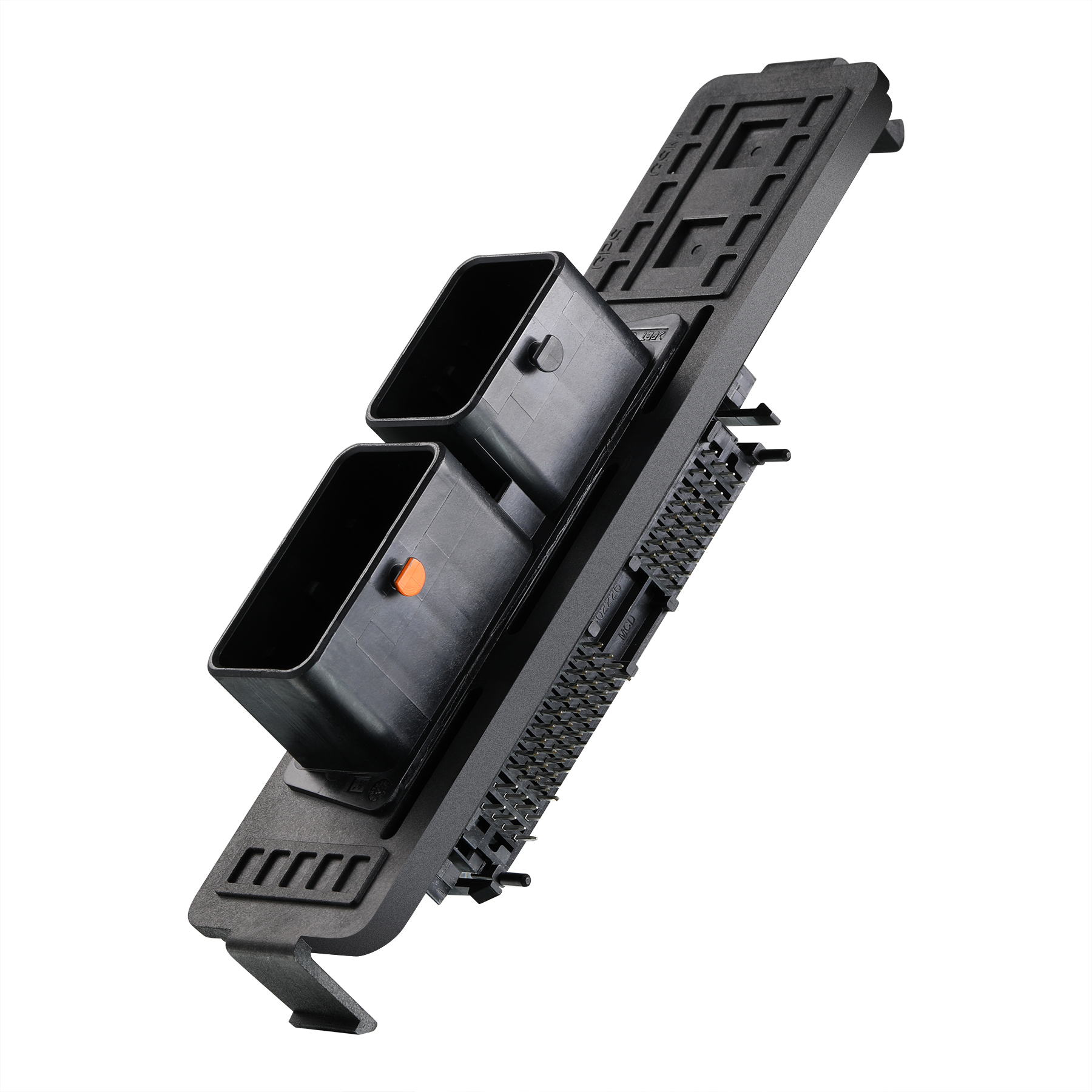

Caption: Isometric view of the full ECU connector housing assembly — PBT GF33 body with insert-molded metal pin array on the PCB-edge face (right), dual wiring harness receptacle bays (center left), and GPS/GSM module area (top right). Orange secondary lock indicators visible on both harness bays. This view demonstrates the geometric complexity of the housing: three distinct functional zones integrated into a single molded component.

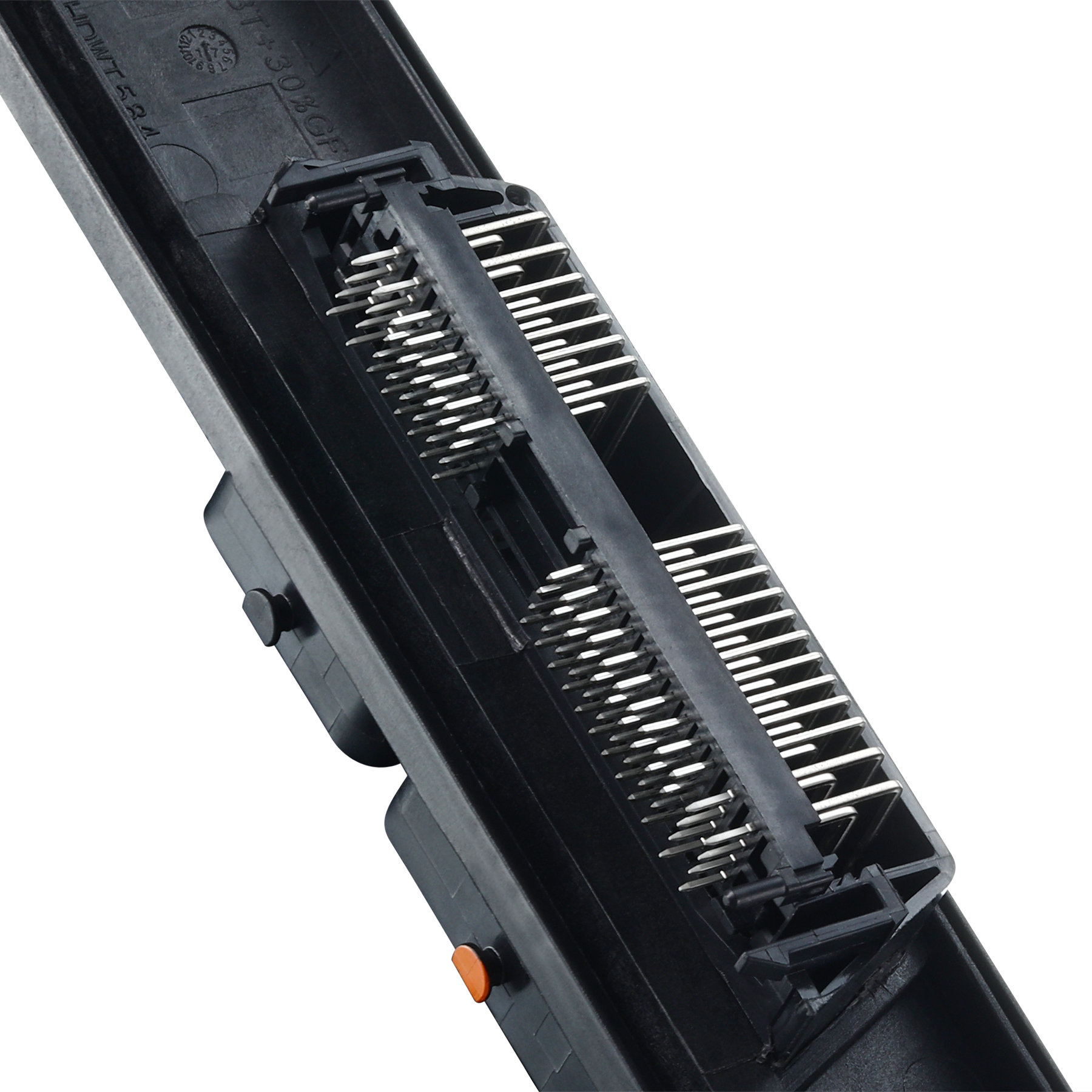

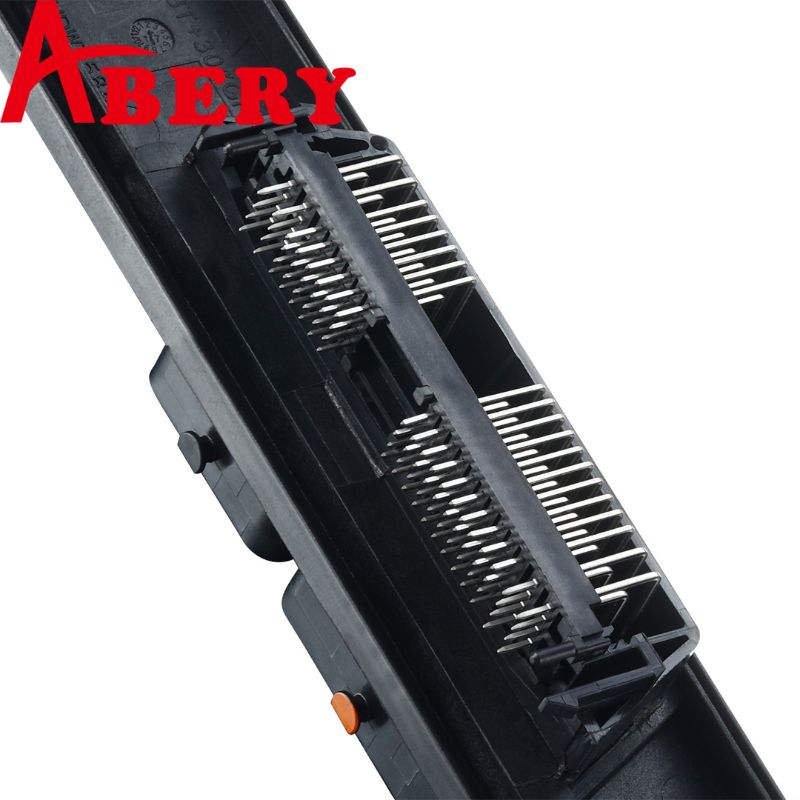

Caption: Close-up of the insert-molded metal pin array — showing individual pin alignment, consistent pitch, and the PBT GF33 housing walls between pin rows. At this magnification, pin-to-pin parallelism and perpendicularity to the housing mating face are visible. No resin flash at pin bases; no pin tilt or shift from the insert molding process. This precision is required for reliable PCB assembly — a single tilted pin causes misalignment during board insertion.

The Engineering Challenge — Insert Molding Metal Pins into Automotive-Grade PBT

"The critical failure mode in metal pin insert molding is pin shift — the pins move during the injection event because the molten PBT at 250°C hits the pin array at high velocity and deflects individual pins from their nominal position. A pin that shifts by 0.05mm may still function in laboratory testing, but will cause intermittent contact or board insertion failure after thermal cycling. The fix is a combination of precision pin fixture design, gate location away from the pin array, and injection speed profiling to reduce first-fill velocity impact. We simulate the fill pattern before cutting the tool, because correcting pin shift after the mold is built is extremely difficult."
— ABERY Tooling Engineering Team

Challenge 1: Pin Shift During Injection

When molten PBT GF33 enters the mold cavity at 240–260°C and 80–130 MPa injection pressure, it exerts lateral force on the pre-placed metal pins. Thin, closely-spaced pins (typical pitch: 1.0–2.5mm) deflect under this force unless:

• The mold fixture holds each pin at two or more contact points during fill

• The gate location directs melt flow parallel to (not across) the pin rows

• Injection speed is profiled to reduce velocity at the moment melt contacts the pin array

ABERY uses Moldflow simulation to validate gate location and fill sequence before cutting the mold, specifically checking for transverse flow velocity at the pin zone. Pin position is CMM-verified at T1 before production approval.

Challenge 2: Thermal Expansion Mismatch Between Metal and PBT

Metal pins (copper alloy or stainless) and PBT GF33 have different thermal expansion coefficients. Over -40°C to 125°C cycling, this differential expansion creates interfacial stress at the pin-to-housing bond. If the housing geometry does not accommodate this stress, the PBT cracks at the pin base over time — creating a moisture ingress path and compromising electrical isolation.

ABERY addresses this through:

• Wall thickness around each pin sized to allow controlled elastic deformation without cracking

• GF33 loading (versus GF20) chosen specifically for its lower CTE (closer to metal) compared to unfilled PBT

• Annular groove geometry at pin base where specified, providing a stress relief feature

Challenge 3: GF33 Weld Line Strength at Pin Locations

When melt flows around each metal pin and rejoins on the downstream side, it forms a weld line — a plane of reduced mechanical strength in the molded part. In a high-density pin array with 100+ pins, weld lines are unavoidable. The engineering task is to control weld line orientation and minimize their impact on housing structural integrity.

ABERY uses gate location and melt temperature optimization to maximize weld line temperature (higher temperature = better molecular interdiffusion = stronger weld line). For critical automotive housings, we conduct weld line strength validation pull tests at T1.

Challenge 4: PBT GF33 Dimensional Stability Under Automotive Thermal Cycling

PBT has very low moisture absorption (unlike PA6) but is sensitive to annealing effects during the first thermal cycles above its service temperature. If the part is not post-molded annealed, dimensions drift during early thermal cycling as residual stress relaxes. For automotive connectors where pin-to-PCB alignment must be maintained across the vehicle's service life, ABERY includes a thermal annealing step after molding for automotive-grade parts, stabilizing dimensions before shipment.

Why PBT GF33 for Automotive ECU Connectors?

PBT GF33 is the industry-standard material for automotive connector housings, specified by all major OEM connector manufacturers (Molex, TE Connectivity, Amphenol, JAE) for good reason:

Why GF33 Over GF20?

For truck applications — heavier connectors, larger pin arrays, more aggressive vibration profiles — GF33 provides additional stiffness and dimensional stability that GF20 cannot match. The increased fiber loading also reduces CTE closer to metal, directly improving the pin-to-housing thermal expansion compatibility.

Applications: Where This Capability Applies

Commercial Vehicle Telematics

GPS/GSM modules, fleet management ECUs, driver behavior monitoring units, tachograph connectors. UK and EU commercial vehicle regulations increasingly mandate telematics systems — creating growing demand for automotive-grade connector housings.

Automotive Powertrain and Safety Systems

Engine control unit (ECU) connectors, ABS/ESP module connectors, transmission control unit (TCU) housings. Same PBT GF33 insert molding capability, higher pin density.

EV and Hybrid Vehicle Electronics

Battery management system (BMS) connectors, on-board charger (OBC) connectors, high-voltage distribution unit housings. PBT GF33 with UL94 V-0 flame retardancy is a standard material for EV electronics enclosures.

Industrial and Agricultural Equipment

Off-road vehicle ECU connectors, agricultural machinery sensor housings, construction equipment control modules. Similar temperature and vibration requirements to truck applications.

Project Timeline

Week 1      DFM Analysis
            · Pin array geometry review (pitch, diameter, length)
            · Gate location simulation (fill direction vs. pin array)
            · Pin fixture design for insert placement
            · Thermal cycling stress analysis at pin-housing interface
            · DFM report within 48 hours

Weeks 2–5   Mold Fabrication
            · Cavity and core machining
            · Pin fixture precision machining (±0.005mm pin location)
            · Insert loading validation (dry trial with pin array)

Week 6      T1 Sample
            · First insert-molded shots
            · CMM measurement of pin positions (shift from nominal)
            · Housing dimensional check (overall envelope, mounting features)
            · Orange secondary lock function test
            · Visual inspection: weld lines, sink marks, flash at pin bases

Week 7      T2 / Customer Approval
            · Pin shift corrections applied if needed
            · Thermal cycling qualification sample (customer performs -40°C/+125°C cycle test)
            · PPAP Level 3 documentation prepared

Week 8+     Mass Production
            · Closed-loop insert loading process (100% pin count verification)
            · Automated optical inspection for pin tilt
            · Dimensional sampling per automotive PPAP control plan

Frequently Asked Questions

Q1: What is insert molding, and why is it used for this ECU connector instead of press-fitting the pins after molding?

Insert molding places the metal pins in the mold before injection. Molten PBT flows around and encapsulates each pin, creating a molecular-level bond at the pin-housing interface. Press-fitting pins into post-molded holes creates a mechanical interference fit only — which loosens under thermal cycling as the plastic creeps. For automotive connectors rated to 125°C with 10+ year service life, insert molding is the only reliable pin retention method.

Q2: How do you prevent pin shift during the injection molding process?

Pin shift is controlled through three mechanisms: (1) precision fixtures in the mold that grip each pin at two contact points during injection, (2) gate location selected to direct melt flow parallel to the pin rows rather than across them, and (3) injection speed profiling to reduce melt velocity at the moment it contacts the pin array. We validate gate location using Moldflow simulation before cutting the mold, and measure pin position by CMM at T1. A single tilted pin fails PCB insertion — we treat this as a zero-defect requirement.

Q3: Can you meet IATF 16949 automotive quality requirements?

ABERY operates under ISO 9001:2015 and follows automotive quality practices including PPAP, FMEA, control plans, and dimensional reporting per AIAG standards. We are a direct supplier to UK and European automotive Tier 1 and Tier 2 customers. For customers requiring IATF 16949 certification, please discuss requirements at the project kick-off stage.

Q4: What is the operating temperature range, and how is it validated?

The PBT GF33 material grade used in this housing is rated for -40°C to +125°C continuous operation. Thermal cycling validation (typically 500–1000 cycles per automotive connector qualification protocols) is performed by the customer on T2 samples before production approval. ABERY provides material datasheets and DSC thermal analysis data to support customer qualification documentation.

Q5: Can you supply the metal pin inserts, or do we supply them?

Both approaches work. For standard copper alloy or stainless pin specifications, ABERY can source inserts from qualified suppliers and provide a complete turnkey part (molded housing with pins). For customer-specified proprietary pin geometries, customers supply pins and ABERY handles insertion and molding. We discuss preferred approach at the quotation stage.

Q6: What is the lead time for this type of complex insert-molded automotive part?

For a single-cavity tool with pin insert fixture: 6–8 weeks from DFM sign-off to T1 samples. The additional time versus a standard injection mold reflects pin fixture precision machining and insert loading validation. A detailed timeline is provided with every quotation.

Why ABERY for Automotive Insert-Molded Connectors?

Request a Quote

Developing an automotive ECU connector, sensor housing, or insert-molded electrical component?

Send us your 3D files and pin specification (material, pitch, diameter, length), and we will return a DFM analysis — covering gate location, pin shift risk assessment, and material grade confirmation — plus a tooling and production quotation within 3 hours.

→ Start Your Automotive Connector Project
