PA6 GF30 Insert-Molded Water Pump Housing with Brass & Stainless Steel Inserts — Russia Market Project

Product Overview

PA6 reinforced with 30% short glass fiber is one of the engineering workhorses for fluid-handling components. The material offers a tensile strength above 150 MPa, a heat deflection temperature around 200 °C (under 1.82 MPa load), and excellent resistance to oils, greases, and weakly alkaline pump fluids — making it the default choice for European and Russian-market water pump OEMs who need structural integrity across seasonal temperature swings from −20 °C to +90 °C.

This housing integrates six metallic inserts in a single injection molding cycle: four brass hex-flanged threaded inserts for structural mounting, one brass male-threaded pipe port insert carrying pressurized water inlet/outlet connections, and one stainless steel center hub insert that simultaneously transmits torque from the pump shaft and seals the impeller chamber. The stainless hub is the most critical insert in the assembly — its axial position must be held to ±0.05 mm during the injection stroke to ensure the impeller disc seats correctly and the mechanical seal engages without bypass leakage.

ABERY manufactures this housing for a Russia-based pump OEM. Our Russian after-sales office supports local field installation verification and provides spare-part coordination — a supply-chain advantage that significantly shortens response time for the customer's service teams in Eastern European markets.

Product Specifications

Product Gallery

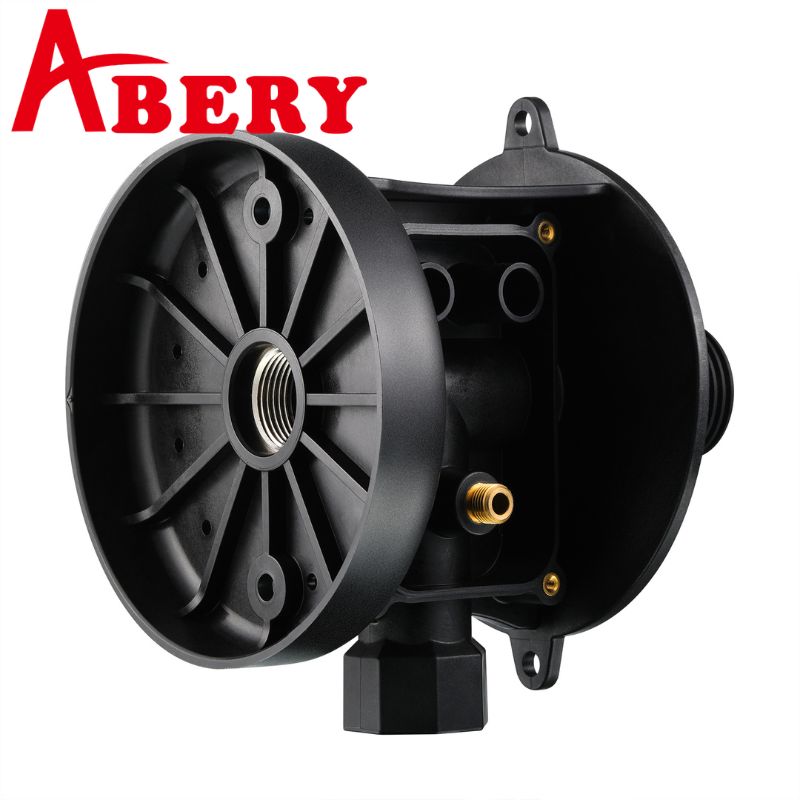

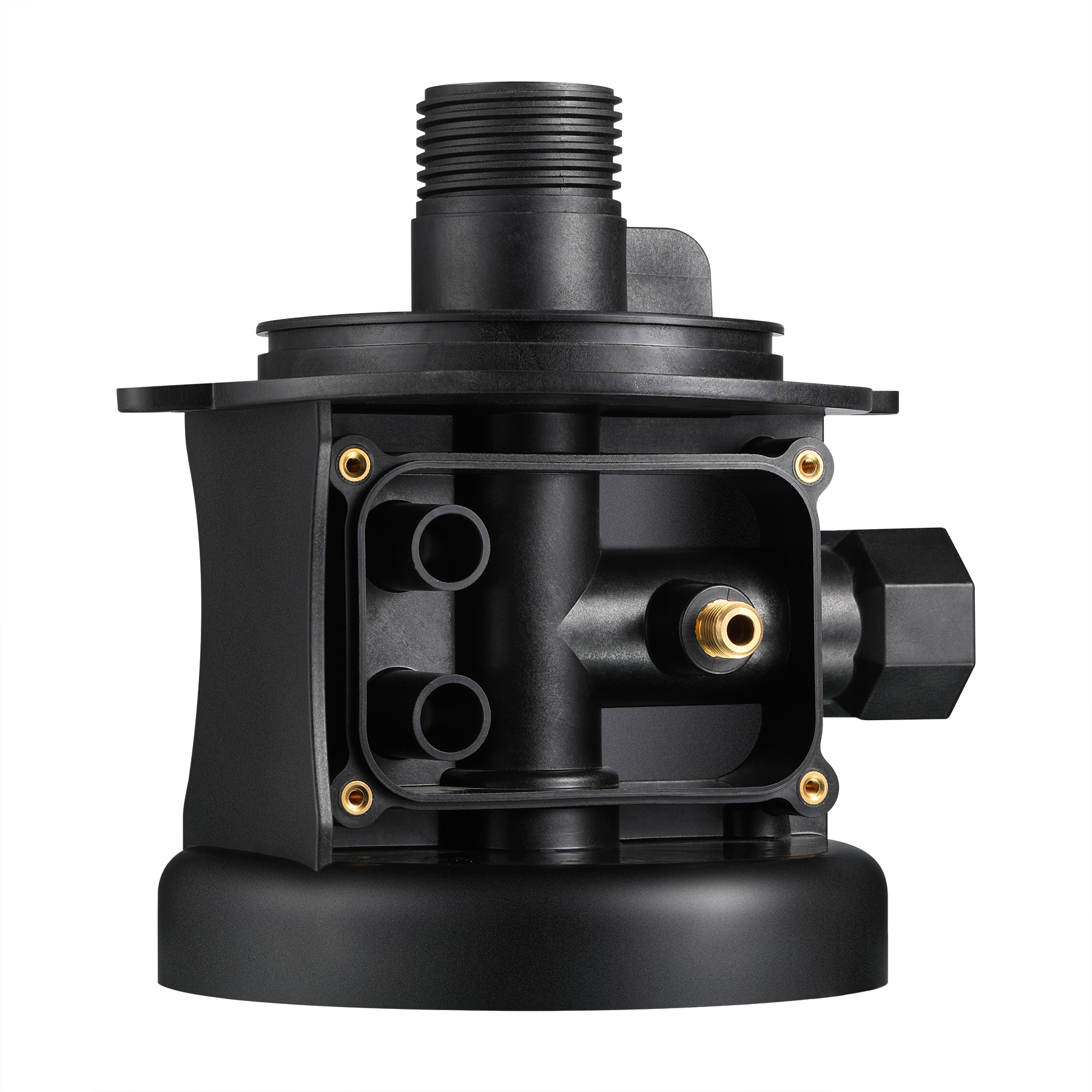

Front face of the water pump housing showing the open impeller cavity. Four brass hex-flanged mounting inserts are clearly seated at the four cardinal mounting bosses. The central cavity geometry is designed to direct fluid flow around the impeller disc. Knurled flanges on the brass inserts are fully encapsulated — no visible gaps at the plastic-metal interface.

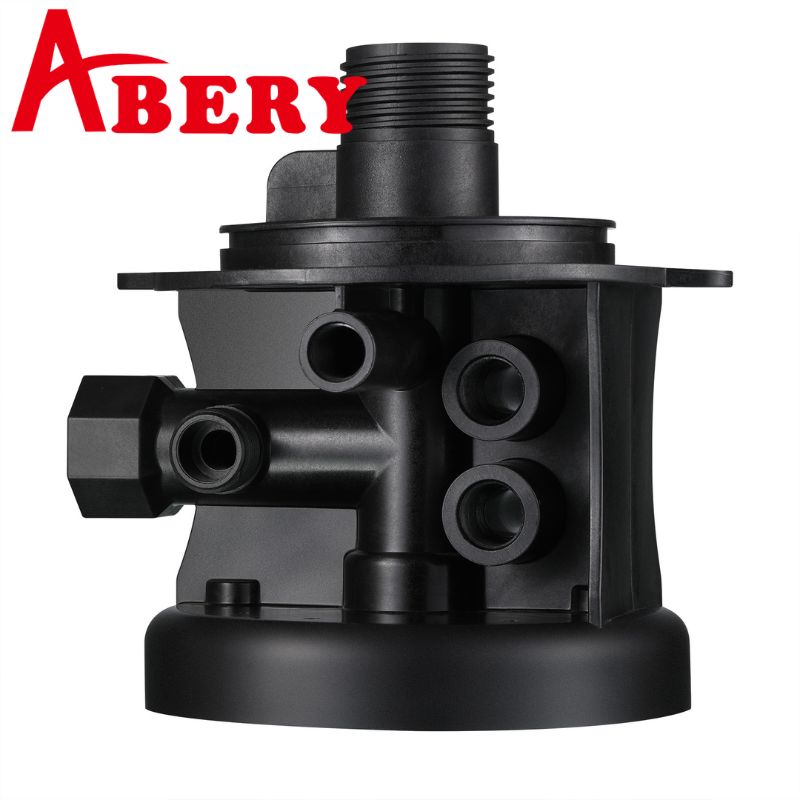

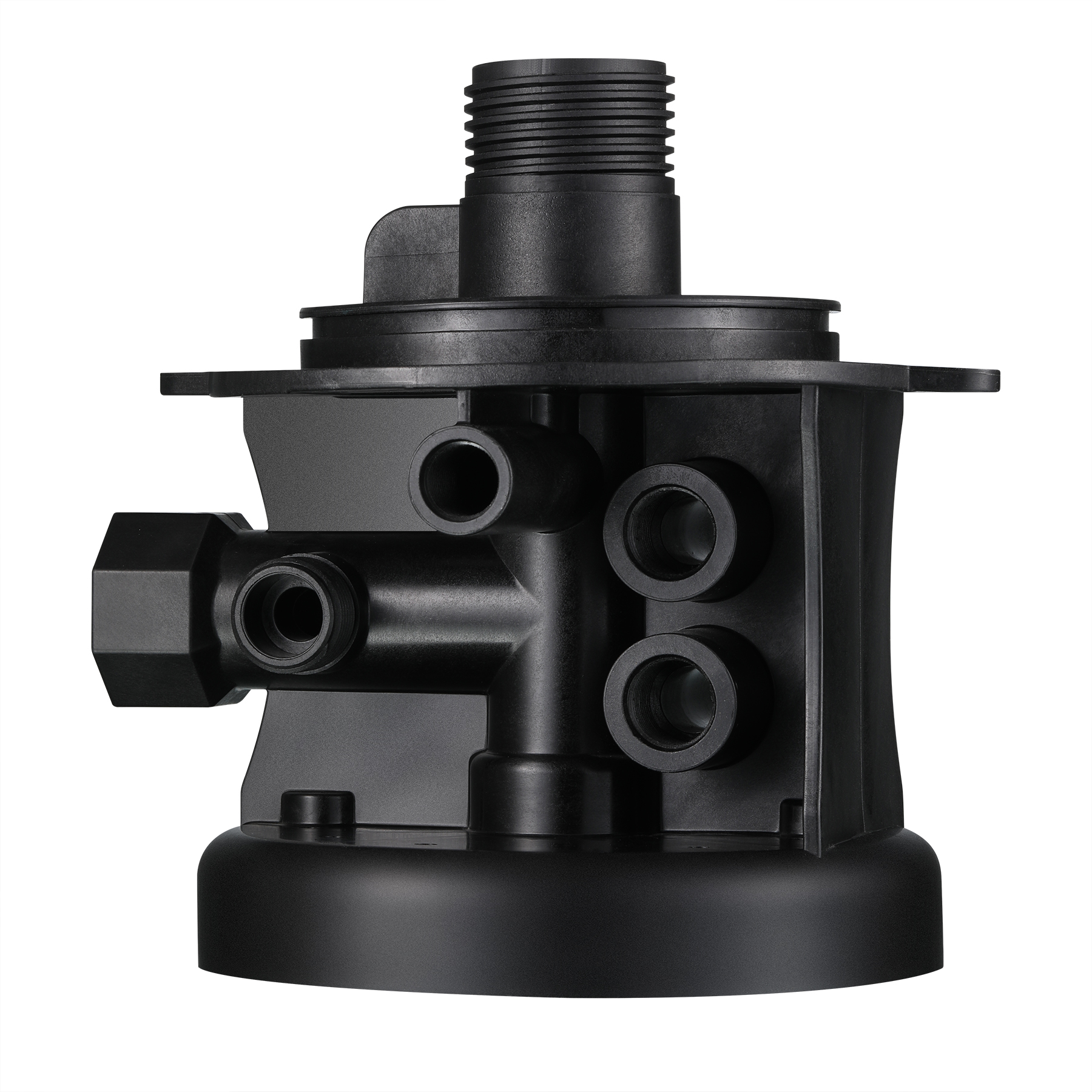

Reverse (pipe-port) face of the housing. The brass male-threaded pipe fitting insert protrudes cleanly from the housing wall — this is the water inlet/outlet connection point. Additional fluid passage channels are visible across the face, confirming the complex internal geometry that requires careful gate location planning to avoid weld lines at insert-proximate areas.

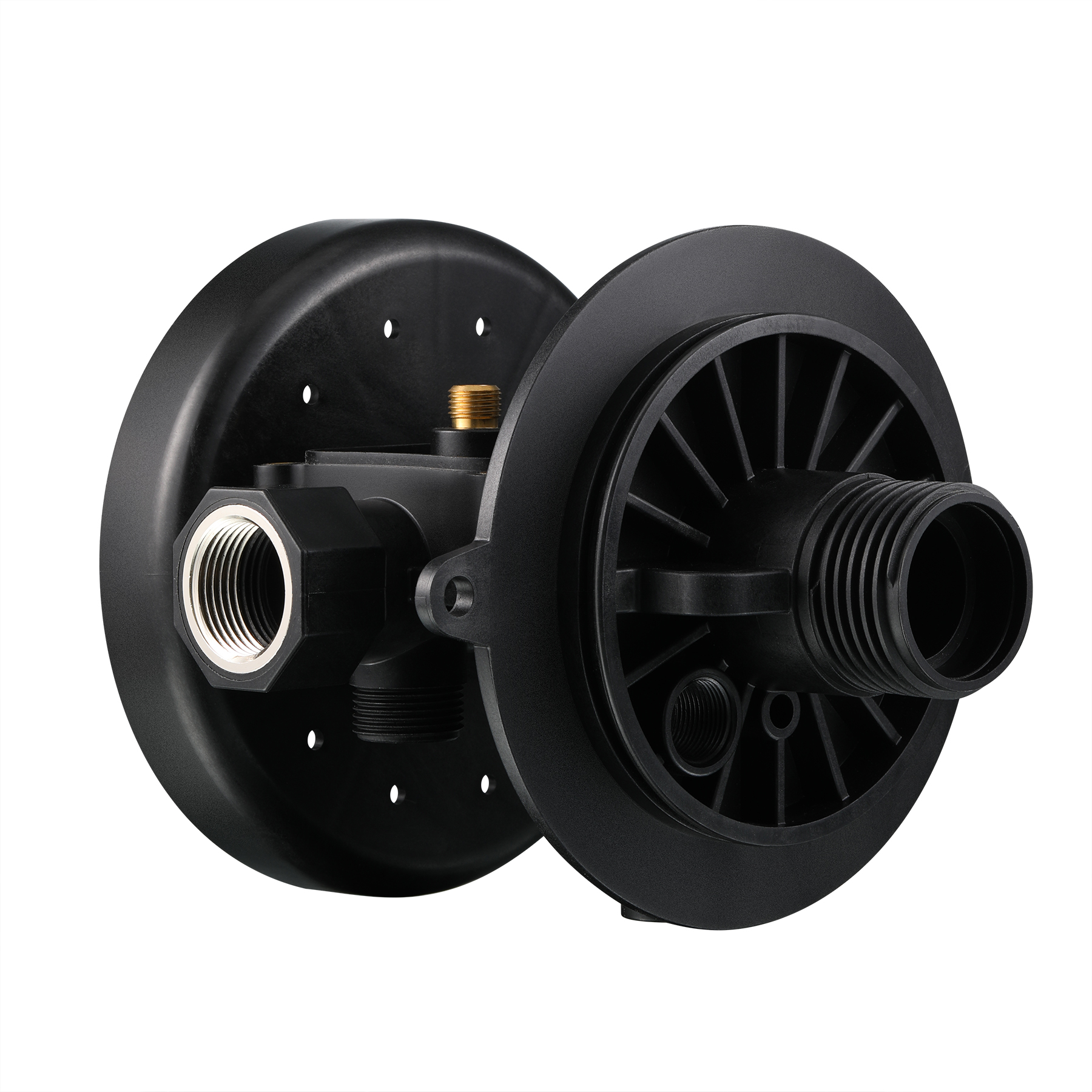

Exploded view showing the two primary sub-components: the ribbed impeller disc (foreground, with stainless steel center hub insert seated at its axis) and the pump body (background, showing the brass pipe port insert and internal fluid ports). The spoke-pattern ribbed disc design minimizes material weight while maintaining structural stiffness under centrifugal load.

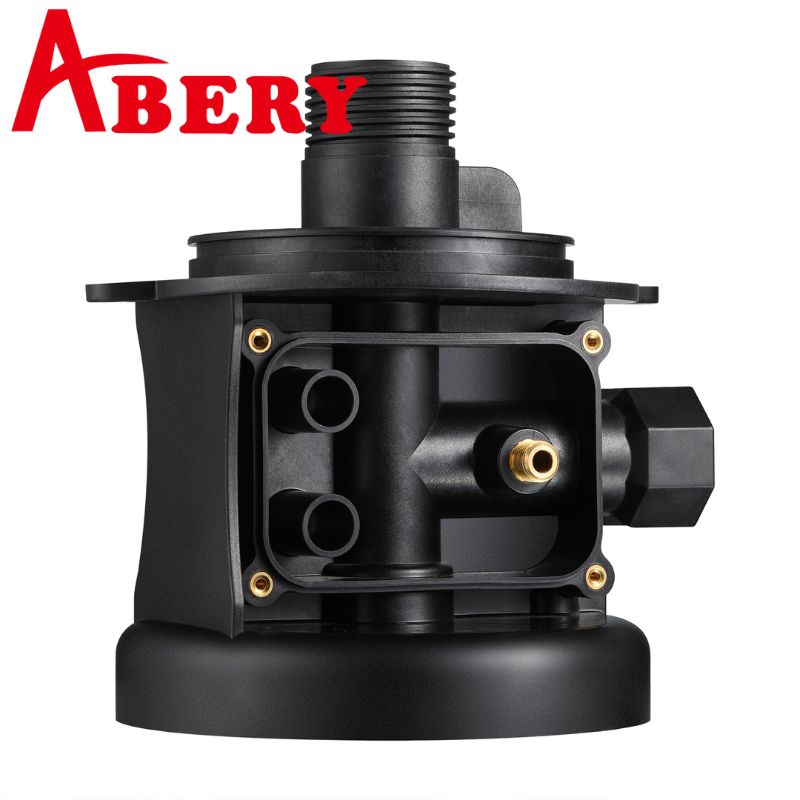

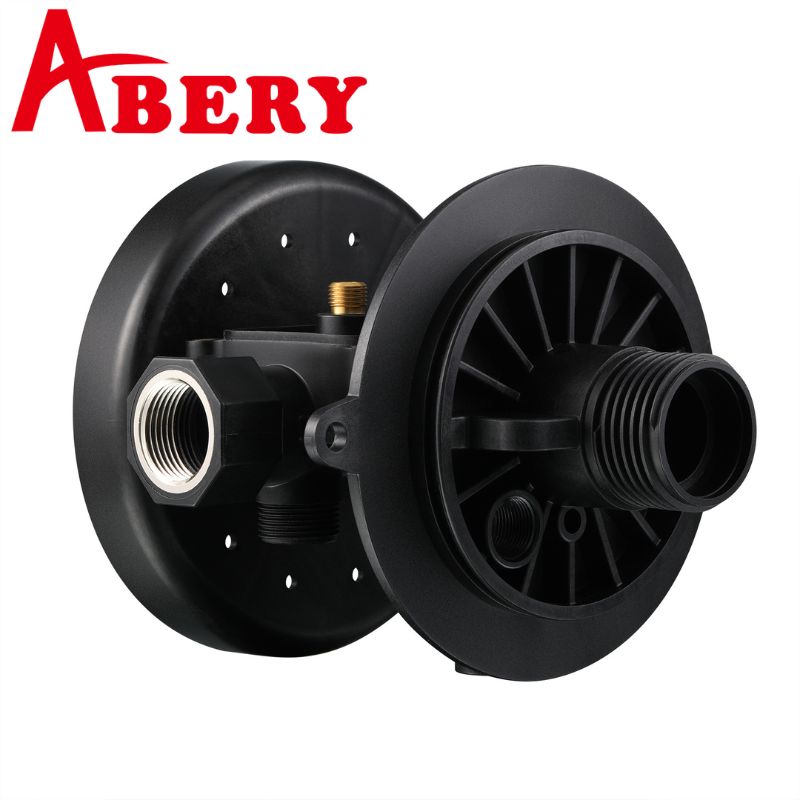

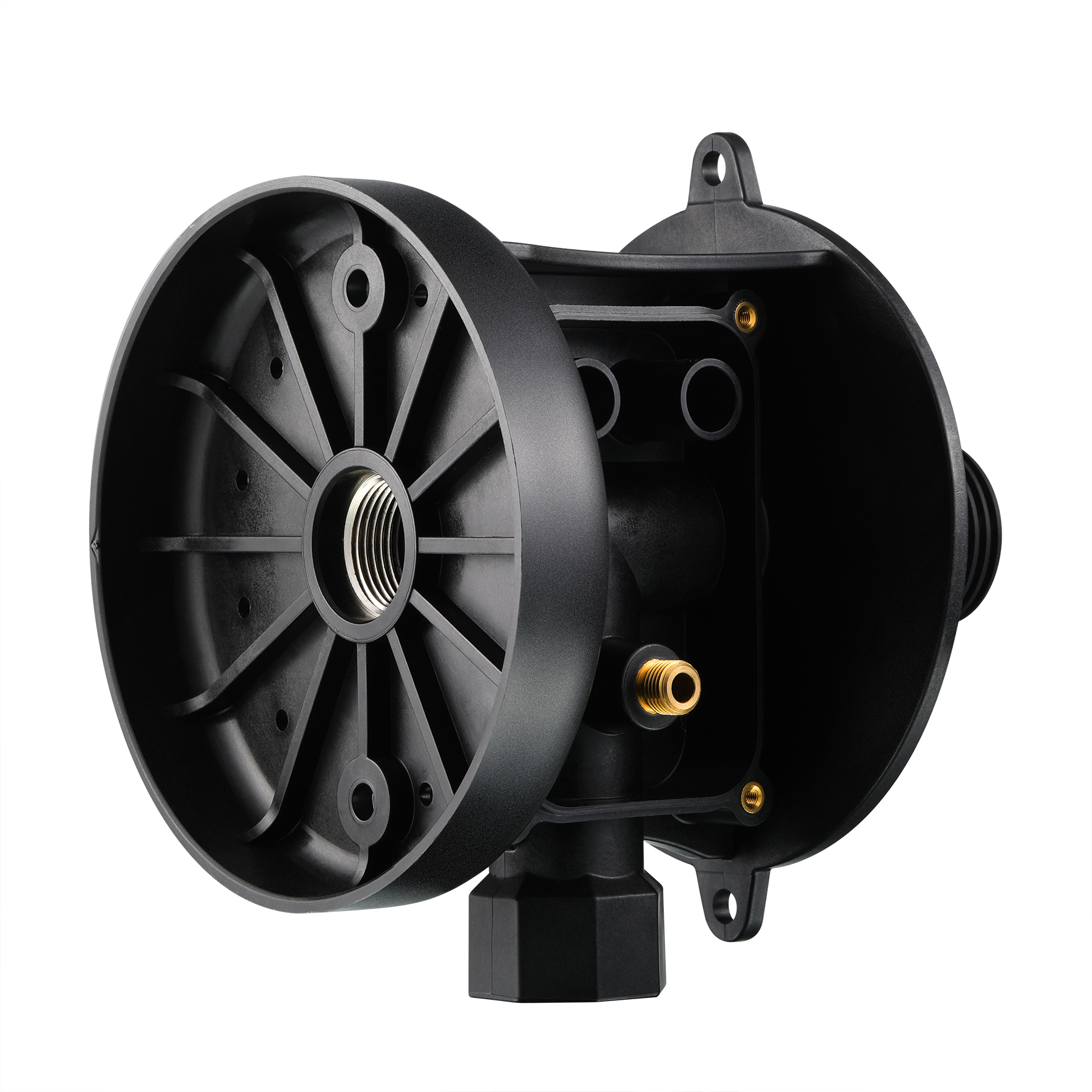

Isometric assembled view of the complete housing. The full geometry is visible: four mounting tabs with brass inserts, the ribbed impeller disc face, the brass pipe port on the lateral wall, and the uniform PA6 GF30 black surface finish. Part geometry demonstrates the need for insert-position fixtures that hold all six inserts simultaneously under the injection flow pressure.

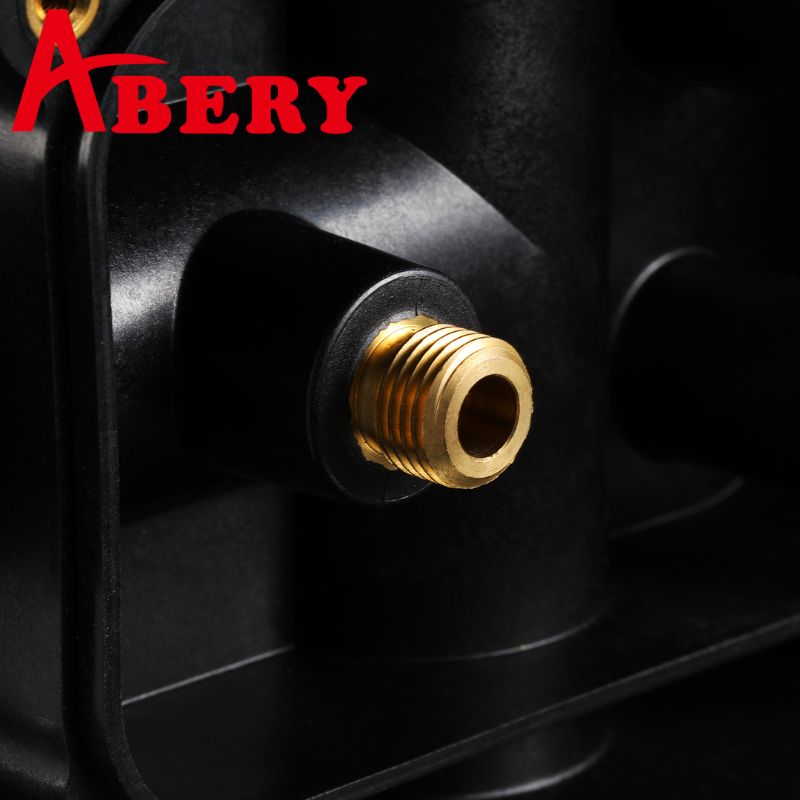

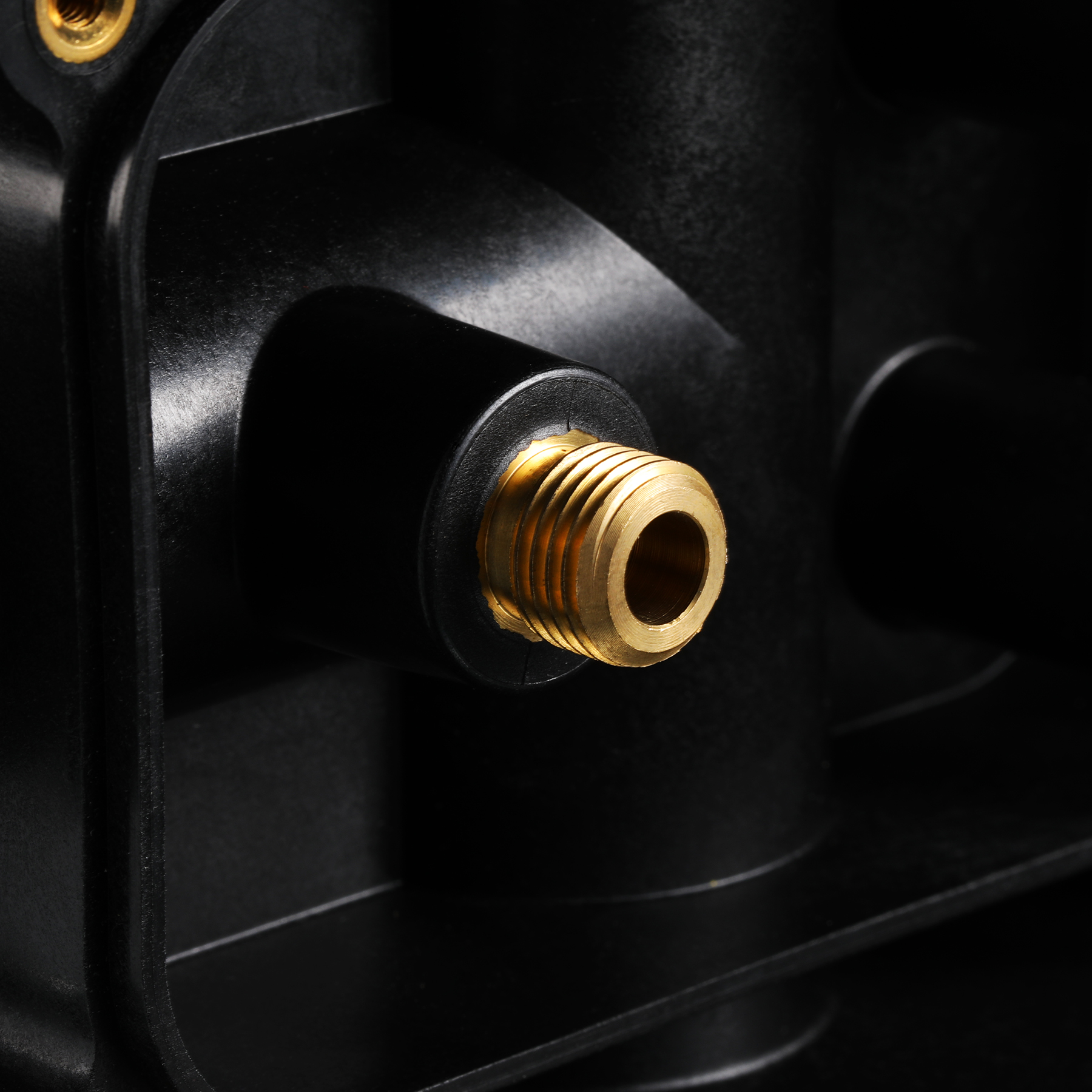

Macro close-up of a brass hex-flanged insert in the PA6 GF30 substrate. The knurled band on the insert barrel is fully encapsulated. The plastic-metal interface shows zero flash, zero sink marks, and no visible stress-whitening — confirming correct mold temperature (70–90 °C for PA6 GF30), appropriate injection hold pressure, and proper pre-heating of brass inserts to ≥90 °C before loading.

Engineering Challenge — E-E-A-T Section

From ABERY's Process Engineering Team:
"The biggest failure mode we see on insert-molded pump housings is micro-cracking at the brass-to-PA6 interface — not immediately after molding, but after 500–1,000 thermal cycles in service. The root cause is CTE (coefficient of thermal expansion) mismatch: brass expands at ~19 μm/m·°C, PA6 GF30 at ~25–30 μm/m·°C perpendicular to fiber orientation. When the part sees −20 °C in Russian winters and +90 °C from pump operating heat, the interface undergoes cumulative micro-fatigue. Our solution is threefold: first, we pre-heat all brass inserts to 90–110 °C before loading into the mold — this reduces the thermal shock differential during injection and improves initial bonding; second, all inserts use knurled + flanged geometry (not smooth shanks) so the interlock is mechanical, not just thermal shrink-grip; third, we orient fiber flow in the mold so the GF30 reinforcement runs circumferentially around the insert boss, maximizing hoop stress resistance at the interface. We validate every tool with a 200-cycle thermal shock test (−20 °C to +95 °C) before production release."

Key Engineering Sub-Challenges

Challenge 1 — Multi-Insert Simultaneous Loading

Six inserts of two different materials (brass and stainless) must be loaded into the mold in every cycle. ABERY uses a custom insert-positioning fixture that seats all six inserts simultaneously, reducing cycle-time overhead and eliminating the human error of missing or misaligning a single insert. Insert position verification (optical sensor) is integrated into the mold safety circuit — the press cannot close if any insert is absent or misseated.

Challenge 2 — Stainless Hub: Dual-Function Critical Insert

The stainless steel center hub serves two simultaneous functions: it transmits rotational torque from the pump shaft to the impeller disc, and it provides the primary sealing surface for the impeller chamber. This dual-function requirement means positional tolerance is tighter here (±0.02 mm axial) than at the mounting inserts (±0.05 mm). ABERY uses EDM-machined insert seats in the mold core to achieve repeatable positioning cycle after cycle.

Challenge 3 — Gate Location Around Insert Bosses

With six inserts distributed across the cavity, gate placement must avoid generating weld lines at or near any insert boss. Weld lines at insert interfaces are a structural weak point — the two flow fronts meeting at a weld line have low molecular entanglement and are the first failure point under pull-out load. ABERY's mold flow simulation (Moldex3D) was used to optimize a hot-runner gate layout that ensures all weld lines form in low-stress, non-sealing zones.

Challenge 4 — IP67 Interface Without Gaskets

The customer spec requires IP67 water ingress protection at the pipe-port insert interface without additional sealing gaskets (to simplify field assembly). Achieving this requires: consistent hold pressure to fully pack the plastic around the brass pipe port insert, insert pre-heat to reduce shrinkage gaps, and a deliberate "encapsulation shoulder" on the pipe port insert design — a micro-flange that the plastic flows over and locks against, creating a labyrinth-seal geometry purely from the molding process.

Material Selection — PA6 GF30

Why PA6 GF30 for Water Pump Housings

PA6 GF30 is the standard material choice for mid-size structural water pump components in European and Russian OEM specifications. The glass fiber reinforcement reduces the base PA6's water absorption from ~2.5% (unfilled) to ~1.2% (GF30), which is critical for dimensional stability in a constantly wet operating environment. Key property drivers for this application:

Why not PBT GF30? PBT GF30 offers lower water absorption and excellent dimensional stability but has lower notched impact resistance — a critical weakness for a pump housing that must survive shipping, drop events, and thermal cycling. PA6 GF30's superior toughness (60 kJ/m² vs. 45 kJ/m²) makes it the preferred choice when the housing must survive mechanical shock in field conditions.

Why not PA66 GF30? PA66 GF30 offers slightly higher heat resistance but processes at higher melt temperatures (~280 °C vs. ~250 °C), increasing thermal stress on brass inserts and raising the risk of insert-interface microcracking during molding. For this application's operating temperature (max 90 °C continuous), PA6 GF30's thermal performance is fully adequate at lower process risk.

Industry Applications

Water & Fluid Management

Residential and commercial circulator pumps, hot-water heating system pumps, pool and spa circulation pumps, industrial process pumps. The insert-molded housing integrates structural mounting, fluid sealing, and shaft support in a single molded part — replacing what would otherwise be a multi-piece metal assembly.

Industrial HVAC & Building Services

Hydronic heating/cooling systems, fan coil unit pumps, underfloor heating system circulators. The PA6 GF30 material's resistance to glycol-based antifreeze fluids (common in Russian-market HVAC systems) is a key qualification requirement that ABERY's material selection satisfies.

Agricultural & Rural Infrastructure

Irrigation pump systems, agricultural water distribution equipment, rural water supply stations. Eastern European and Russian agricultural sectors increasingly adopt polymer pump housings over cast iron for corrosion resistance and weight reduction — a market driver for ABERY's Russia-office presence.

Automotive Cooling Systems

Engine coolant circulation pumps, EV battery thermal management cooling pumps. Insert-molded PA6 GF30 housings are displacing aluminum die-cast housings in lower-flow automotive cooling applications due to weight savings and elimination of gasket sealing requirements.

Project Timeline

Week 1
├── DFM Review & Insert Specification Confirmation
│   ├── Customer provides 3D files + insert drawings
│   ├── ABERY performs DFM analysis (free of charge)
│   ├── Confirm insert types: brass hex-flange (×4), brass pipe port (×1), SS hub (×1)
│   ├── Optimize gate locations via Moldex3D flow simulation
│   └── Finalize mold design & quotation

Week 2–4

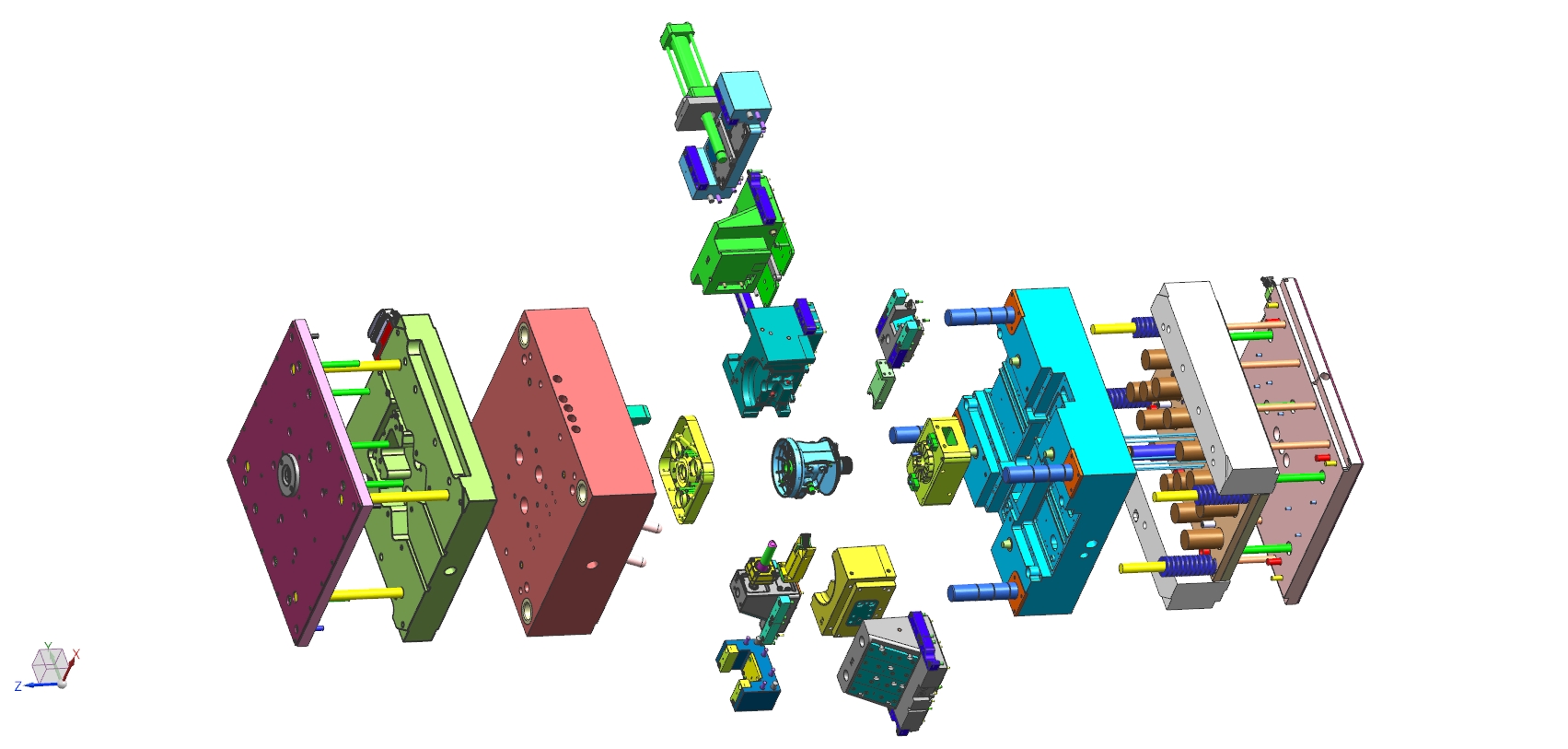

├── Mold Fabrication
│   ├── P20 / H13 steel procurement and rough machining
│   ├── MAKINO high-speed CNC milling (cavity & core)
│   ├── SODICK wire EDM (insert seat precision features ±0.005 mm)
│   ├── AG Charmilles sinker EDM (undercut geometry)
│   └── Mold assembly & bench fitting

Week 5
├── T1 Sample Production
│   ├── First shots with all 6 inserts loaded
│   ├── CMM dimensional report (all critical features, ±0.01 mm)
│   ├── Insert pull-out force test (≥800 N per insert)
│   ├── IP67 leak test at pipe-port insert interface
│   ├── Thermal shock test (20 cycles rapid, full 200-cycle for release)
│   └── T1 sample shipment to customer

Week 6
├── T1 Review & Mold Revision (if required)
│   ├── Customer feedback integration
│   ├── Mold corrections (if dimensional or cosmetic adjustments needed)
│   └── T2 samples if revisions required (ABERY guarantees T2 approval)

Week 7+
└── Mass Production
    ├── Production order scheduling (2-cavity mold, cycle time ~45–55 sec)
    ├── 100% insert-presence optical verification per cycle
    ├── AQL 1.0 dimensional sampling (per batch)
    └── Delivery: sea/air to Russia direct or via ABERY's Russia office

FAQ

Q1: Can you mold brass and stainless steel inserts in the same tool in the same cycle?

Yes. ABERY routinely molds multi-material insert combinations (brass + stainless, brass + steel, brass + aluminum) in a single cycle. The key process consideration is managing different pre-heat requirements: brass inserts are heated to 90–110 °C; stainless inserts require higher pre-heat (~120 °C) due to stainless steel's lower thermal conductivity. ABERY uses a multi-zone insert pre-heater station integrated into the cell that conditions all inserts to their respective target temperatures simultaneously before each cycle.

Q2: What is the minimum pull-out force you can guarantee for the brass inserts?

Our standard production QC protocol requires ≥800 N axial pull-out force per brass insert for this housing geometry. This is verified on a sample-basis using a calibrated tensile pull fixture at 23 °C. For critical inserts (such as the pipe-port brass fitting under hydraulic pressure), we also perform an in-house hydraulic pressure test at 1.5× the rated working pressure of the pump system.

Q3: How do you hold insert position during high-pressure injection?

Insert position is maintained by precision-machined insert seats in the mold core (EDM to ±0.005 mm), combined with a custom insert-positioning fixture that loads all six inserts simultaneously. The insert seats provide three-point mechanical registration — the insert cannot move axially or radially during injection. A spring-loaded retention mechanism in the mold holds each insert during mold close. We also monitor injection pressure profiles cycle-by-cycle; any pressure anomaly (indicating an insert shifted or a runner is blocked) triggers automatic part rejection.

Q4: What surface preparation do the inserts require for optimal bonding?

For this application, ABERY specifies inserts with knurled + hex-flanged geometry (for the brass mounting inserts) and knurled + grooved geometry (for the pipe-port and stainless hub inserts). Knurling provides ~3–5× the pull-out resistance compared to smooth shanks of the same diameter. We do not rely on adhesive bonding or chemical surface treatment — the mechanical interlock from knurling plus thermal shrink-grip from PA6 GF30 cooling is sufficient for ≥800 N pull-out and IP67 sealing. All inserts are ultrasonically cleaned and dried prior to loading.

Q5: Can ABERY handle the logistics of shipping to Russia, and does IP67 water-tightness degrade during shipping?

ABERY has an after-sales and logistics support office in Russia, which coordinates customs clearance, local quality verification, and delivery to our Russian-market customers. Regarding part integrity: IP67 performance is an intrinsic material/design property of the molded interface and does not degrade during shipping if parts are packed without impact damage. All shipments include protective packaging for insert-boss areas. ABERY provides a CoC (Certificate of Conformance) with each production lot.

Q6: What is the minimum order quantity (MOQ) for this type of insert-molded housing?

For custom insert-molded structural housings, ABERY's standard MOQ is 1,000 pcs per order. Lower quantities (500 pcs) are available for new projects during initial production qualification phases, at a slightly higher unit price. There is no MOQ on prototype/T1 samples — DFM and T1 services are quoted as a tool development package separate from production pricing.
