Optical-Grade PC Transparent Lens Housing & 2K ABS/PC Shell for Medical LED Lamp — Russia Market Project

Product Overview

This project comprises two injection-molded components that together form the complete housing of a handheld medical LED phototherapy device (also known as a beauty lamp or light therapy device):

Component 1 — Optical-Grade Transparent PC Lens Base

The lower housing is a disc-shaped transparent polycarbonate part featuring three oval LED transmission windows and a full-face Fresnel-pattern radiating rib structure on the outer base. The Fresnel ribbing serves a dual purpose: it acts as a light diffusion structure that manages the angular distribution of emitted LED light, and it provides structural stiffness to the thin-wall disc geometry without adding material thickness. The three lens windows must maintain optical clarity (haze ≤ 1.5% per ASTM D1003) and dimensional uniformity — any wall thickness variation in the window zones causes visible light distribution irregularities in clinical use.

Component 2 — 2K ABS/PC Gloss-Matte Upper Shell

The upper housing is a premium consumer-aesthetic shell with a distinctive dual-texture surface: a deep navy-blue high-gloss domed top (polished Class A surface, Ra ≤ 0.4 μm) surrounded by a satin-finish silver ABS frame. This dual-surface finish is achieved through a 2K (two-component) injection molding process — the ABS frame forms in the first shot, followed by the PC body forming in the second shot within the same mold cycle. A small tactile button/interface port is integrated on the lateral face of the shell. The overall aesthetic language positions this device as a premium medical appliance rather than a commodity consumer product.

Both components are produced under medical cleanliness protocols: ISO Class 8 (equivalent to GMP Class D) cleanroom environment, alcohol and hydrogen peroxide wipe-down of molds and equipment per cycle, and silicone-free mold release agents to prevent leachable contamination.

Product Specifications

Product Gallery

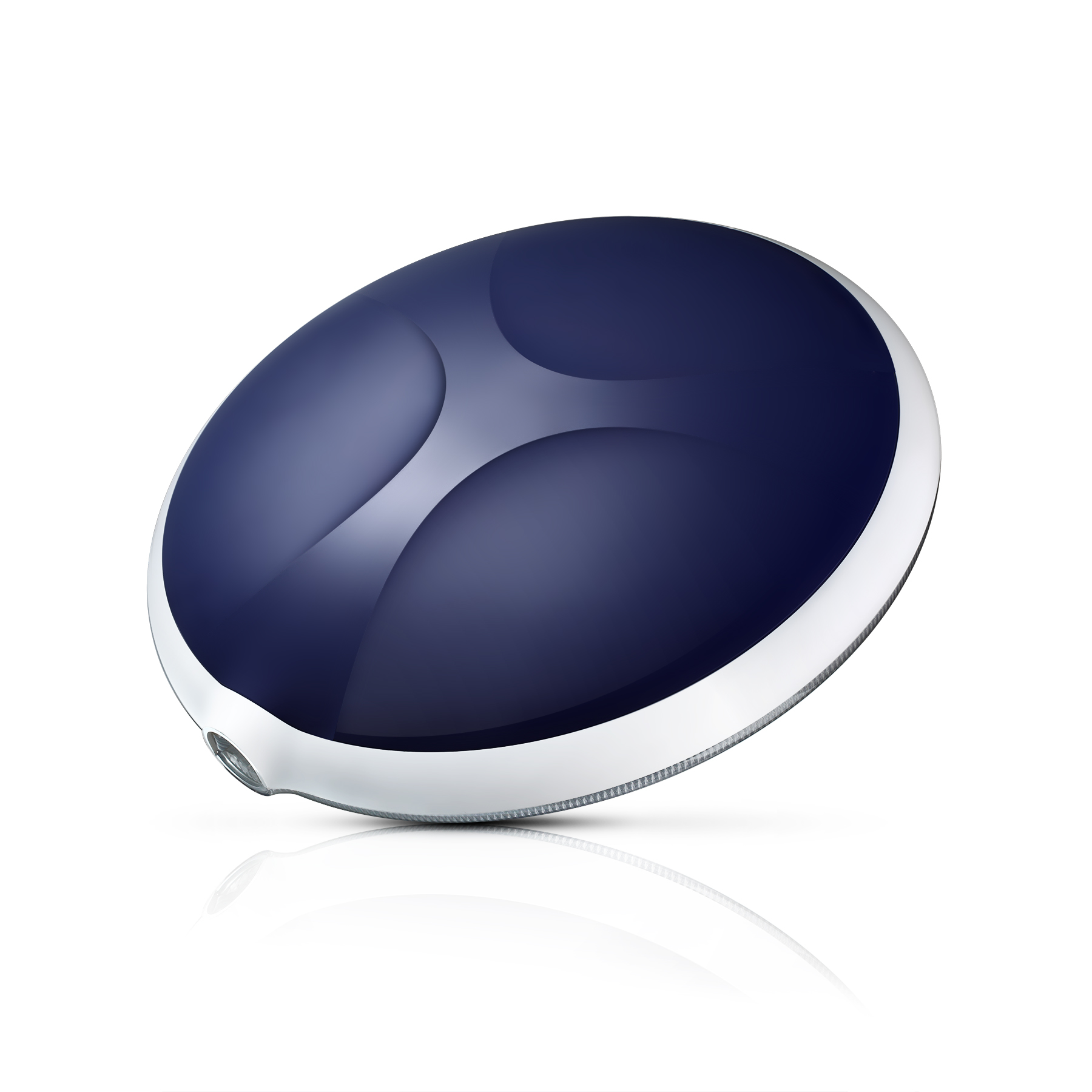

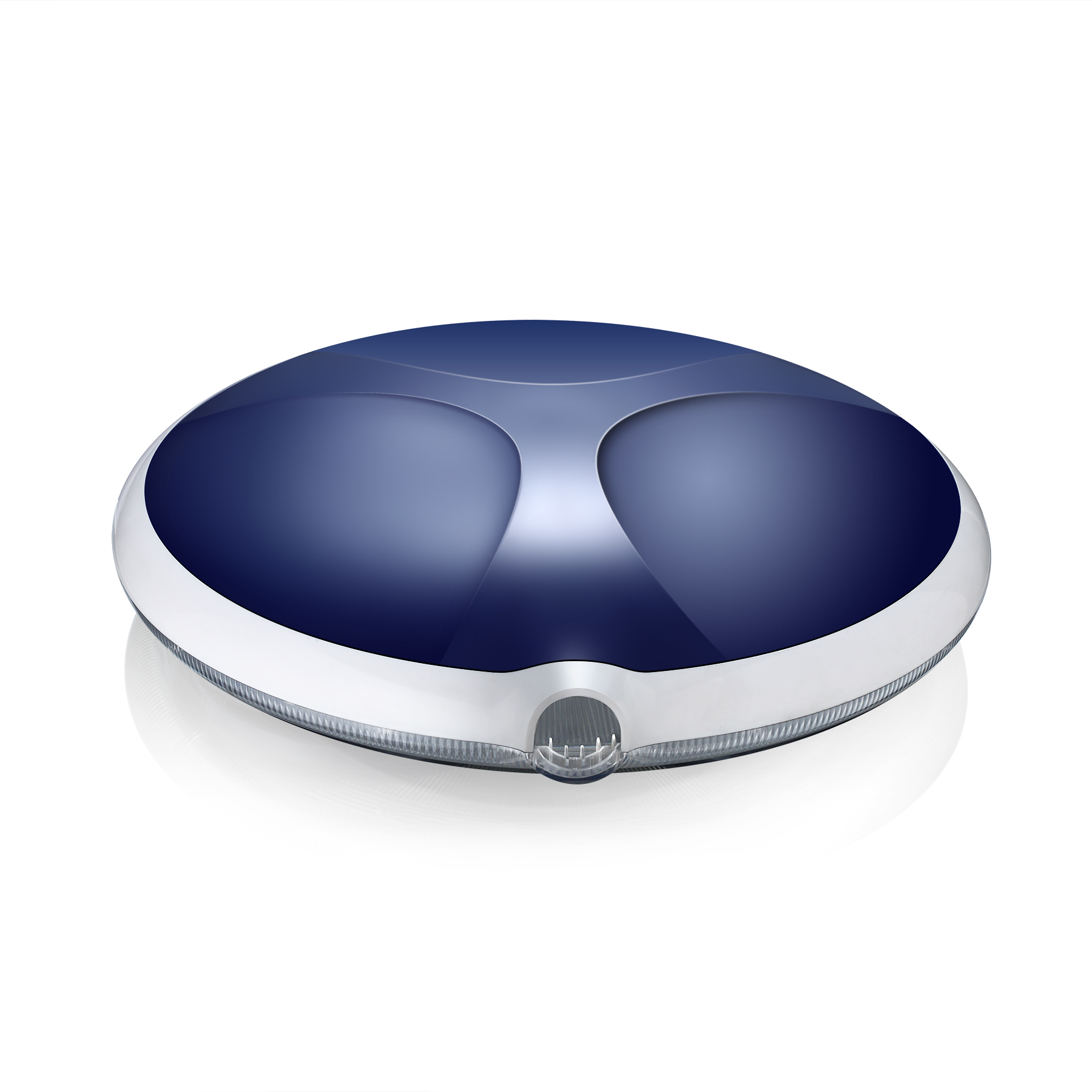

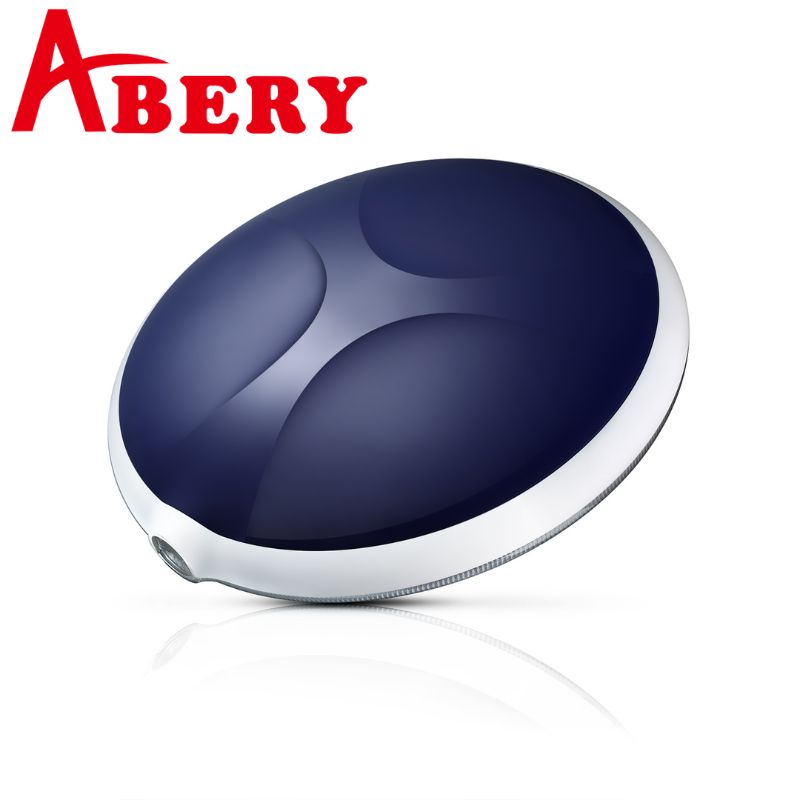

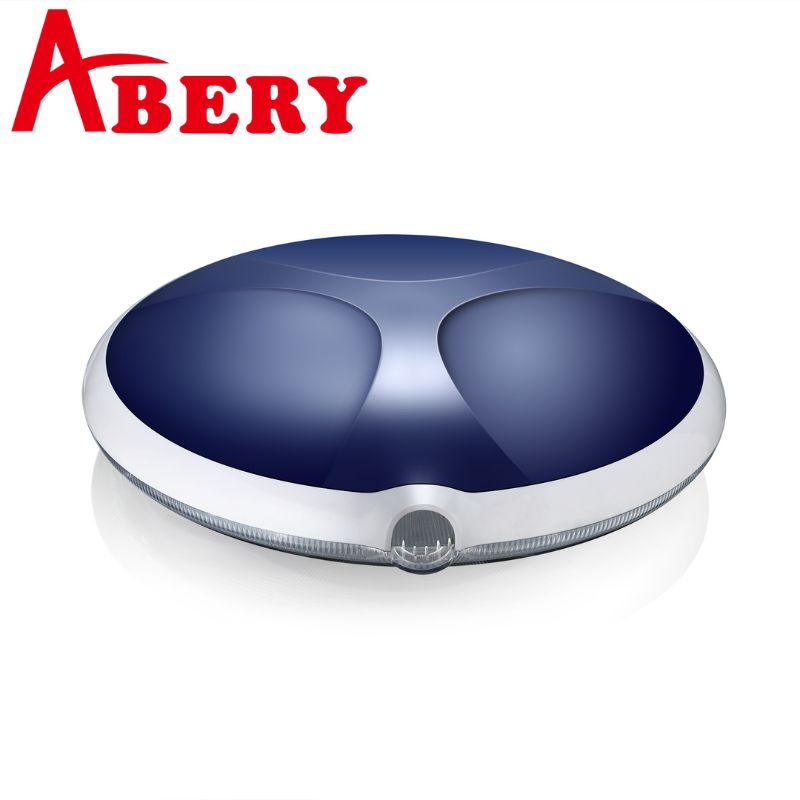

Top-view isometric of the 2K ABS/PC upper shell. The deep navy-blue PC dome displays a flawless Class A high-gloss surface with subtle three-lobe convex geometry — a sophisticated ergonomic form that references the three LED zones beneath. The silver ABS frame shows a distinct satin finish, confirming the 2K dual-material boundary. A small control button is visible on the lateral face, molded integrally in the ABS substrate. No visible parting lines, sink marks, or color bleed at the 2K interface.

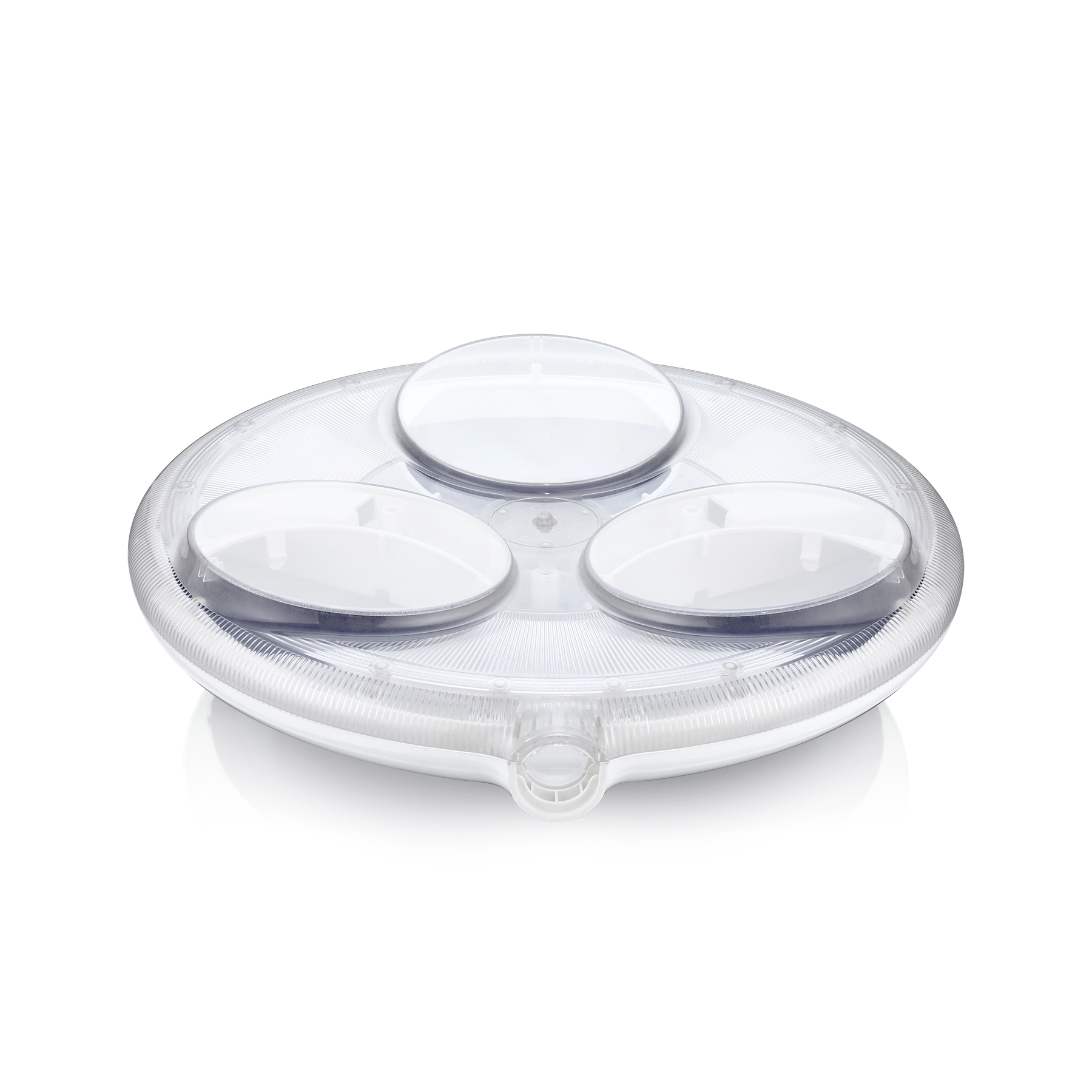

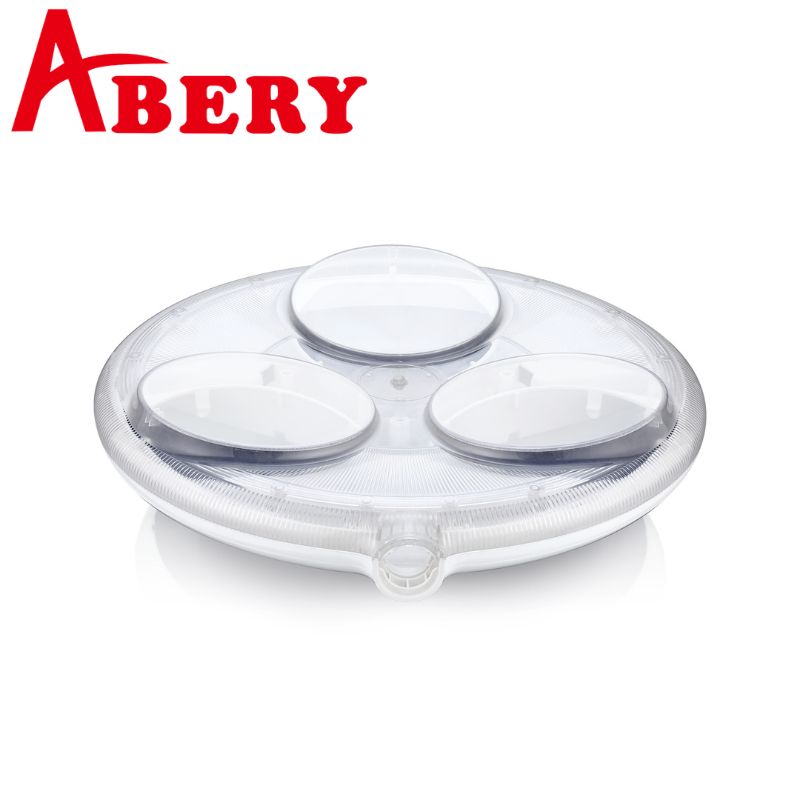

Top-down view of the transparent PC lens base with all three LED transmission windows clearly visible. The three oval windows are symmetrically arranged in a trefoil pattern on a shared central hub structure. The full-face Fresnel radial rib pattern is visible across the disc base. The transparent PC material shows water-clear optical quality — no yellowing, no haze, no visible gate blush marks.

Three-quarter isometric view of the transparent PC lens base tilted to show both the top face (three lens windows) and the Fresnel-ribbed base simultaneously. The disc edge shows a fine-pitch serrated circumferential rib — both decorative and functional (provides grip and masks any minor parting-line artifacts at the tool split). The snap-fit latch tab on the side edge is visible, confirming a tool-free assembly design.

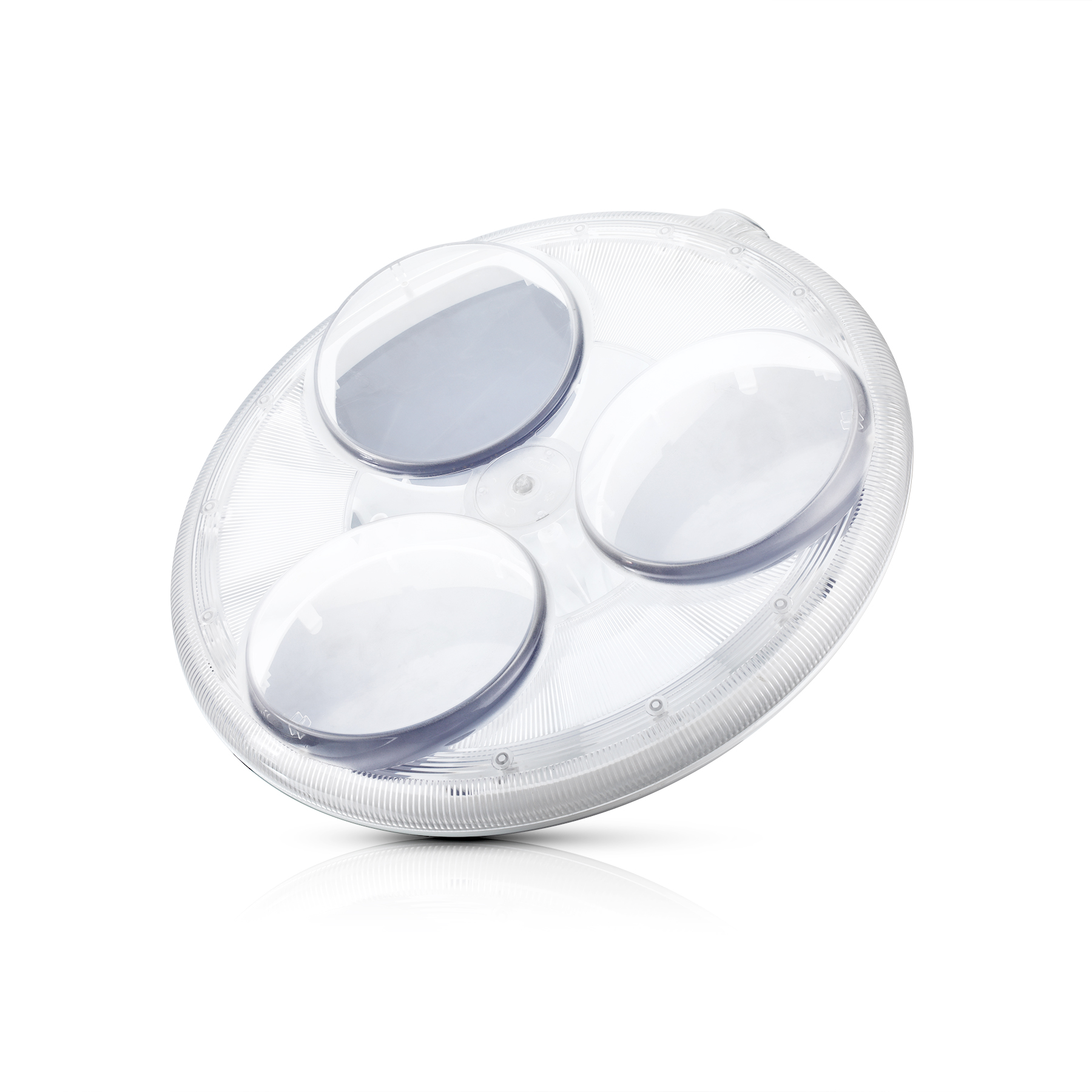

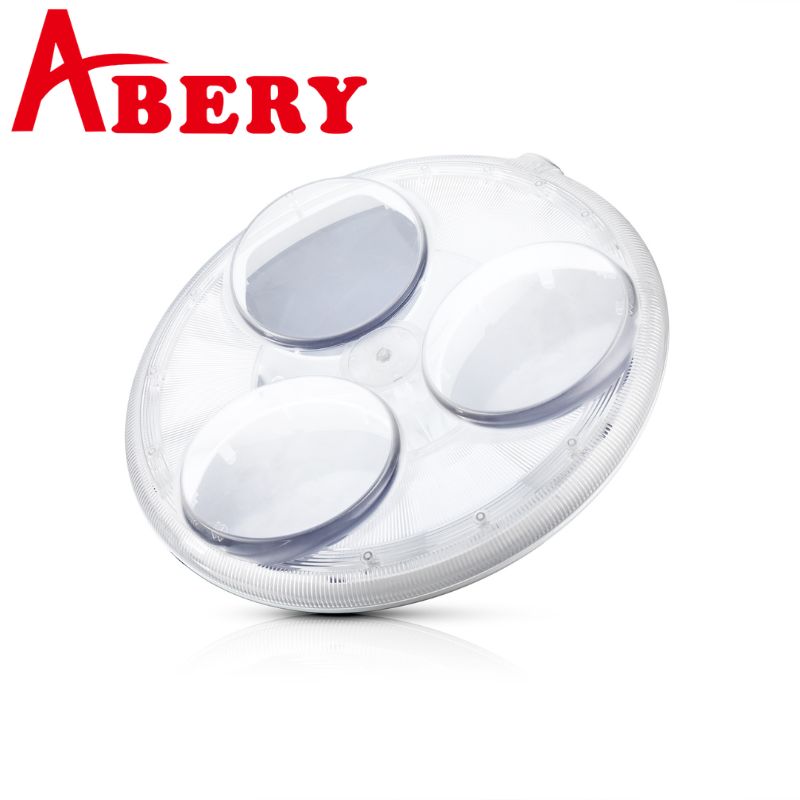

Elevated oblique view of the transparent PC lens base in near-assembly orientation. The three oval lens windows each show consistent wall thickness and identical surface quality — critical for uniform LED light distribution across all three therapeutic zones. The radial Fresnel structure on the outer disc face is sharply defined, confirming mold steel polishing quality (S136H, mirror finish) and precise mold temperature control during filling.

Engineering Challenge — E-E-A-T Section

From ABERY's Medical Molding Engineering Team:
"Transparent polycarbonate for optical medical applications is one of the most demanding materials to process correctly. PC has extremely high melt viscosity and is highly sensitive to moisture — if you don't dry it to below 0.02% moisture content before processing, you get silver streaks and micro-bubbles that destroy optical clarity. More importantly, for a medical light therapy device, any residual stress in the lens windows creates birefringence — stress-induced optical distortion that the user sees as uneven light intensity patterns or color fringing. The way we control residual stress is through a combination of elevated mold temperature (100–120 °C for optical PC, versus 60–80 °C for standard PC) and extended low-pressure packing profiles. High mold temperature slows the skin freeze-off layer formation, allowing polymer chains to relax before solidification. The result is a lens window with ≤ 1.5% haze and virtually zero visible birefringence under a crossed polarizer test — the industry standard check for optical-grade PC parts."

Key Engineering Sub-Challenges

Challenge 1 — Optical Clarity Versus Moldability: The PC Dilemma

Optical-grade PC grades have higher molecular weight than standard injection-grade PC, which means higher melt viscosity and greater sensitivity to shear stress. Thin-wall LED window sections (1.5–2.0 mm) require sufficient injection velocity to fill before freeze-off, but excessive velocity creates shear heating that yellows the material and generates stress. ABERY's engineers establish a narrow injection velocity window for each shot via decoupled molding: velocity-controlled fill stage → transfer at 95–98% fill → pressure-controlled packing stage. This decoupled profile prevents both short-shots and over-packing stress.

Challenge 2 — Fresnel Rib Structure: Mold Steel Precision and Venting

The Fresnel radial rib pattern on the disc base consists of fine triangular cross-section ribs (rib width ~0.3–0.5 mm, included angle ~30°) extending in a radial pattern. Molding sharp Fresnel geometry in PC requires: mirror-polish of the rib cavities (S136H steel, Ra ≤ 0.02 μm) to eliminate drag marks on the rib faces; precise venting at rib tips to prevent diesel effect burn marks; and mold temperature uniformity of ±3 °C across the disc face to ensure consistent rib fill.

Challenge 3 — 2K Interface Adhesion Between PC and ABS

For the upper shell, PC and ABS are chemically compatible (PC/ABS alloys are common), but in 2K molding the interface bond relies on thermal fusion — the second-shot material must partially re-melt the first-shot surface to create a polymer entanglement bond. The key process variable is the temperature of the first-shot substrate when the second shot begins. Too cold → no bond, delamination risk. Too hot → first shot distorts, flash at the 2K interface. ABERY's 2K rotary platen tool manages this by optimizing rotary dwell time and first-shot cooling time to arrive at the second station with the substrate at exactly the target bonding temperature (typically 80–100 °C for ABS-to-PC bond).

Challenge 4 — Cleanroom Protocol for Medical Device Components

Standard injection molding environments are unsuitable for medical device housings that contact patients or sterile fields. For this project, ABERY maintains ISO Class 8 cleanroom production: HEPA-filtered air supply, positive pressure cleanroom enclosure around the injection press, gowned and gloved operators, alcohol wipe-down of the mold (not just the part) per production batch, and silicone-free release agents throughout. All production materials — PC, ABS, release agents, packaging — carry medical-grade or food-grade certificates to support the customer's ISO 13485 documentation package.

Material Selection — Optical PC + ABS/PC

Why Optical-Grade PC for the Lens Base

Polycarbonate is the dominant material for medical optical applications due to its unique combination of optical clarity (transmittance ~89–90%), high impact resistance, and wide sterilization compatibility. For this LED phototherapy application, the key selection drivers are:

Why not PMMA? PMMA offers slightly better baseline transmittance (~92%) but has very low impact resistance — a medical device dropped from a treatment table height will crack a PMMA housing, potentially creating sharp fragments that are a clinical hazard. PC's impact resistance (~850 J/m) is 40× higher than PMMA, making it the standard choice for any medical device housing that must survive clinical handling.

Why ABS for the Outer Shell Frame in 2K

ABS is selected for the silver satin frame because of its excellent secondary finishing compatibility (painting, plating) and superior UV stability compared to standard PC. ABS also processes at lower melt temperature (~230 °C vs. ~280 °C for PC), reducing cycle time on the first-shot station in the 2K tool. The PC/ABS combination exploits the chemical affinity between the two polymers for a robust thermal fusion bond at the 2K interface.

Industry Applications

Medical LED Phototherapy Devices

Dermatological light therapy (acne treatment, psoriasis, anti-aging photobiomodulation), dental curing light housings, wound care LED therapy devices, and physiotherapy light applicators. The combination of optical-grade transparent PC (for light transmission) and premium-finish ABS/PC shell (for clinical aesthetics) is the standard construction for this category of consumer medical devices.

Aesthetic Medicine & Dermatology Clinic Equipment

Professional clinic-grade LED facial treatment devices, IPL handpiece housings, and photodynamic therapy (PDT) applicator heads. These applications are expanding rapidly in Russian and Eastern European aesthetics markets, where clinic-grade imported devices have high demand and limited domestic supply — positioning this housing project as a direct supply-chain advantage for the Russian OEM customer.

Diagnostic & Monitoring Equipment Housings

Optical sensor housings for pulse oximeters, blood glucose meter optics windows, and diagnostic imaging probe covers. The optical PC lens molding process developed for this project is transferable to any application requiring medical-grade transparent polymer optical windows with ±0.01 mm dimensional precision.

Consumer Wellness Devices

Home-use LED beauty devices, red-light therapy panels, and photobiomodulation consumer products sold through medical retail channels. The dual-aesthetic finish (premium gloss + satin frame) targets the premium consumer tier where device appearance directly influences purchase decisions and perceived clinical credibility.

Project Timeline

Week 1
├── DFM Review & Optical Design Confirmation
│   ├── Customer provides 3D files + LED optical simulation data
│   ├── ABERY reviews wall thickness uniformity in lens window zones
│   ├── Confirm Fresnel rib geometry, LED window dimensions, snap-fit design
│   ├── 2K mold design for ABS/PC interface — rotary platen layout confirmed
│   ├── Gate location optimization (avoid weld lines in lens windows)
│   └── Quotation & DFM report delivered (free of charge)

Week 2–4
├── Mold Fabrication (2 tools: lens base + 2K shell)
│   ├── S136H mirror-polish steel procurement
│   ├── MAKINO high-speed CNC: disc geometry + Fresnel rib pre-machining
│   ├── SODICK wire EDM: precise lens window apertures
│   ├── Manual polishing to Ra ≤ 0.02 μm (Fresnel rib faces, lens windows)
│   ├── 2K rotary platen mold assembly (ABS first-shot + PC second-shot)
│   └── Mold assembly, bench fit, hot runner commissioning

Week 5
├── T1 Sample Production (cleanroom environment)
│   ├── Optical PC mold temperature qualification (100–120 °C target)
│   ├── Decoupled molding profile setup (velocity/pressure transition)
│   ├── T1 transparent lens parts: haze measurement, transmittance test
│   ├── Crossed polarizer birefringence check
│   ├── 2K shell T1: ABS/PC bond pull test, surface finish inspection
│   ├── CMM dimensional report (all critical features, ±0.01 mm)
│   └── T1 sample shipment to customer

Week 6
├── T1 Review & Optical Qualification
│   ├── Customer LED light distribution test with T1 lens parts
│   ├── Visual aesthetic approval of 2K shell (gloss/matte boundary)
│   └── Mold corrections if required (ABERY T2 guarantee)

Week 7+
└── Mass Production
    ├── 100% haze spot-check (optical comparator) per production batch
    ├── Cleanroom protocol maintained throughout production run
    ├── AQL 1.0 dimensional sampling
    └── Delivery: sea/air to Russia or via ABERY Russia after-sales office

FAQ

Q1: What is the difference between optical-grade PC and standard injection-grade PC, and why does it matter for medical LED devices?

Optical-grade PC is produced with tighter molecular weight distribution control and undergoes additional filtration steps to remove sub-micron particles that would scatter light. The key differences in a medical LED application are: standard PC has bulk haze of 2–4% in molded thin-wall parts; optical-grade PC achieves ≤ 1.5% haze. This difference may sound small, but in an LED phototherapy device where light output uniformity is a therapeutic parameter, reducing haze from 3% to 1.5% increases effective irradiance by roughly 1.5% and eliminates visible "cloudy" zones in the light pattern that would reduce patient confidence in the device.

Q2: How do you prevent silver streaks and bubbles in transparent PC molding?

The root cause of silver streaks in PC is moisture: PC is hygroscopic and must be dried to ≤ 0.02% moisture content before processing (compared to ≤ 0.2% for standard PC grades). ABERY uses a desiccant dryer set to 120 °C for a minimum 4-hour drying cycle, followed by a moisture content check using a Karl Fischer titration instrument. If moisture content is above spec, the material is not processed — batch drying failure is a quality hold point, not a process adjustment. In addition, hot runner manifold temperatures are profiled to maintain PC melt above 280 °C throughout the runner system to prevent localized cold spots where degradation and off-gassing can occur.

Q3: Can you provide ISO 13485 documentation support for this product?

ABERY operates under ISO 9001:2015 and supports medical device customers in building their ISO 13485 supplier qualification packages. We provide: material certificates (resin lot traceability), process parameter records (injection log data per batch), dimensional inspection reports (CMM), environment monitoring records (cleanroom class verification), and mold maintenance logs. For customers requiring full ISO 13485 supplier certification, ABERY can be included as a raw-material and sub-component supplier in the customer's supply chain documentation.

Q4: What sterilization methods are compatible with these PC components?

The transparent PC lens base is compatible with: EO (ethylene oxide) gas sterilization, gamma radiation sterilization (up to 50 kGy with minimal yellowing), and cold liquid sterilization (IPA wipe, dilute hydrogen peroxide). It is NOT compatible with steam autoclave (steam at 121 °C exceeds PC's heat deflection temperature of ~130 °C under load — risk of deformation with clamping pressure). The 2K ABS/PC shell is designed as the external device housing and does not require sterilization — it is cleaned by surface wiping with IPA or hospital-grade disinfectants.

Q5: How do you control the aesthetics quality of the 2K gloss-matte interface?

The boundary between the deep navy-blue gloss PC dome and the silver satin ABS frame is defined by the 2K mold parting surface — not by painting or coating. This means the boundary is dimensionally consistent (±0.1 mm) and cannot peel, chip, or delaminate in service. The gloss quality of the PC dome is controlled by mold temperature (>100 °C for Class A gloss on PC) and mold steel polishing (Ra ≤ 0.02 μm on the dome cavity). ABERY inspects Class A surfaces under a standardized lighting rig at 45° reflection angle to check for any sink marks, gate blush, orange peel, or flow marks before shipping.

Q6: What is ABERY's minimum order quantity for medical device injection molding?

For precision medical device housing components requiring cleanroom production and specialized optical tooling, ABERY's standard MOQ is 1,000 sets (both components per set) per production order. Prototypes and T1 tooling samples are provided as part of the mold development package. For initial market launches or clinical trial batches, smaller production runs (500 sets) are available at a higher unit price with an agreed development timeline. ABERY's Russia after-sales office can support local product registration and documentation for medical device approvals in the Russian market.
