PA6 GF20 Precision Injection Molded Connectors for Telecom Devices — Germany Project

Product Overview

Connectors for telecom and electronics applications are among the most dimensionally demanding plastic components in precision injection molding. A single housing may contain 80–120+ individual pin slots, each requiring consistent width, depth, and pitch to ensure reliable pin insertion and mating. A dimensional deviation of 0.02mm across the slot array causes misalignment at the pin tips — leading to intermittent contact, connector failure, and costly field returns.

ABERY produced this multi-variant connector housing series in PA6 GF20 for a German customer in the telecom device sector. The project required ±0.01mm tolerance across the full housing body, controlled warpage of the long-axis geometry (slender housings are particularly susceptible to bow), and consistent batch-to-batch dimensional performance across high-volume production.

Product Specifications

Product Gallery — Series Overview

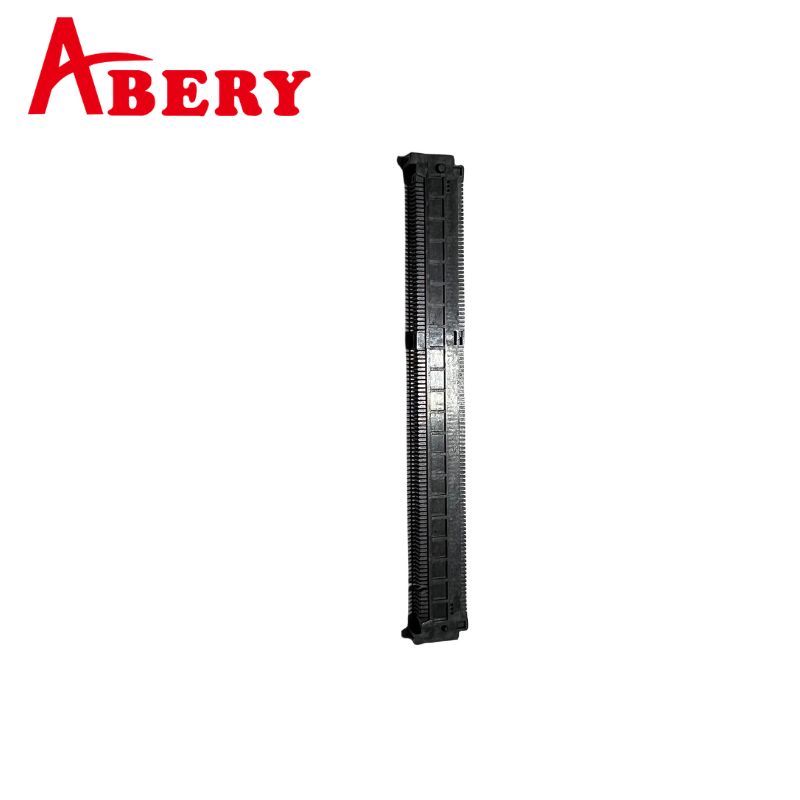

Caption: PA6 GF20 precision connector housing — black, high-density dual-row pin slot configuration. Part marking "JAE 1.5V REV" confirms connector series compliance. Slot walls are uniform with no visible flash or sink. Manufactured by ABERY for German telecom customer.

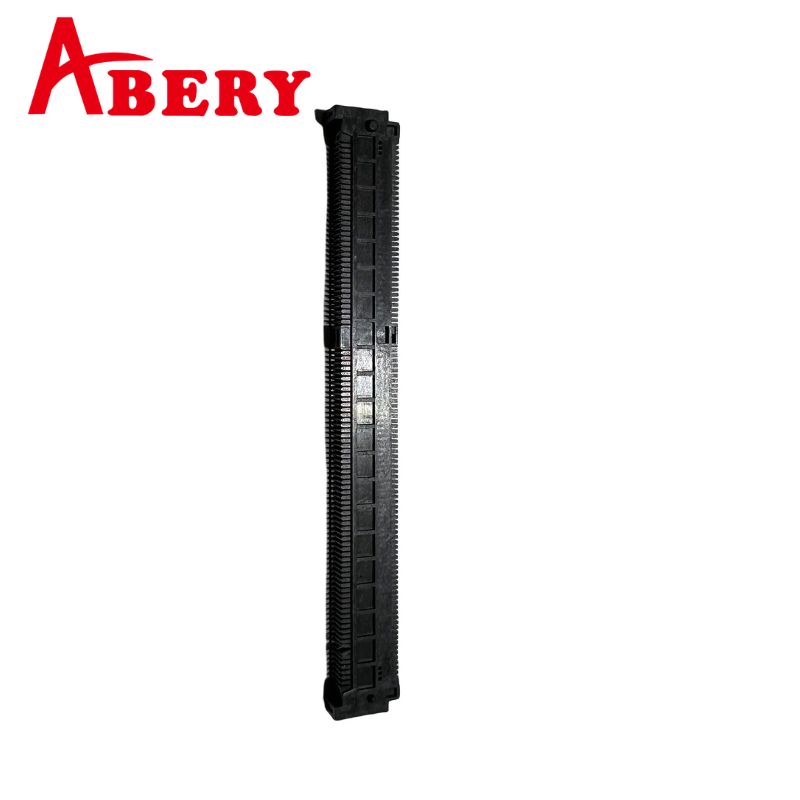

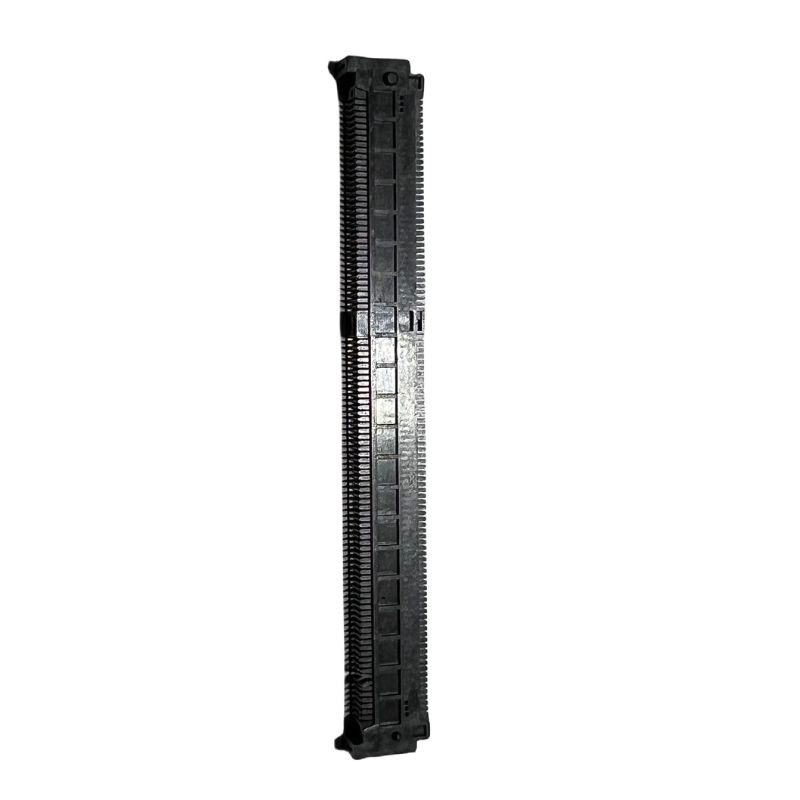

Caption: Reverse face of the same black PA6 GF20 connector housing showing continuous slot array, flat back surface, and mounting tab geometry. Slot pitch uniformity is consistent from top to bottom — verified by CMM measurement across the full array.

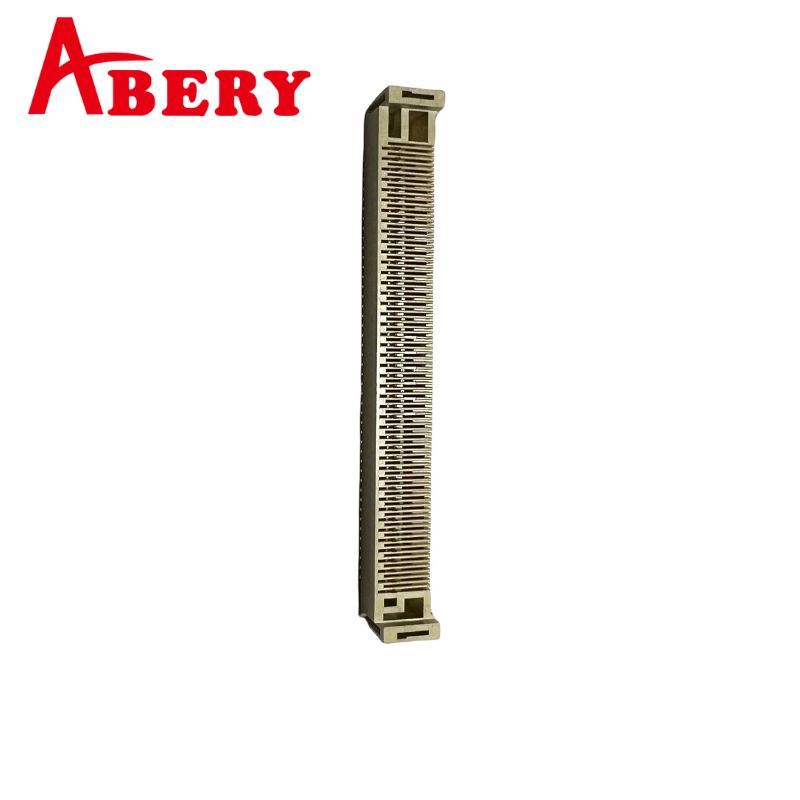

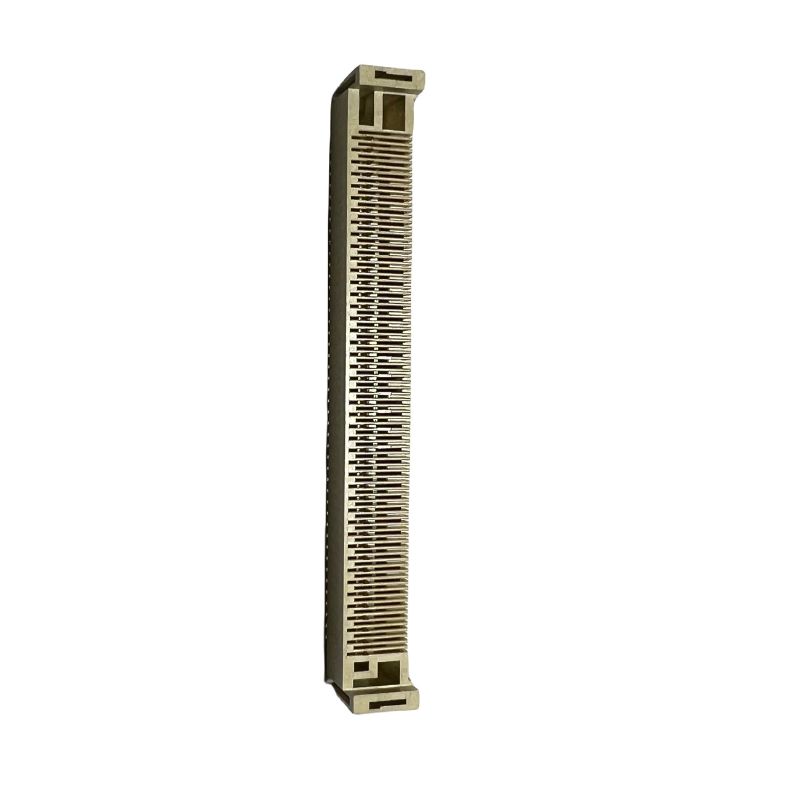

Caption: PA6 GF20 connector housing in natural color (beige-gray). Same slot geometry as the black variant, demonstrating that dimensional specifications are maintained across color variants without mold modification. Natural PA6 GF20 is used when part visibility inside equipment is required.

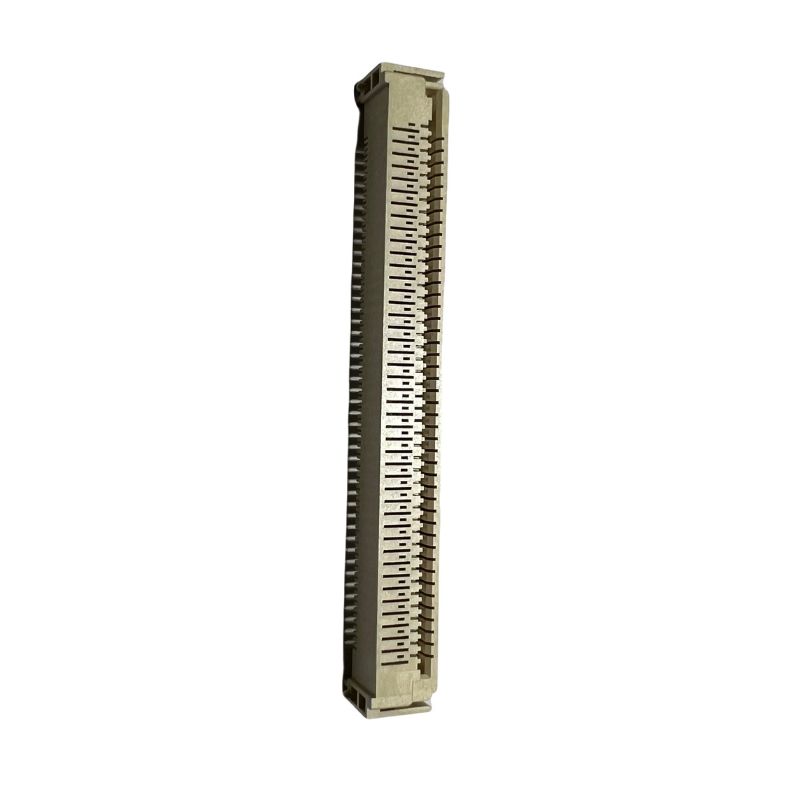

Caption: Angled view of natural PA6 GF20 connector housing showing the depth of the pin slot array and the uniform slot wall thickness. Thin walls between slots (typically 0.3–0.6mm for this pitch class) require precise cavity steel machining and controlled injection parameters to fill without short shots.

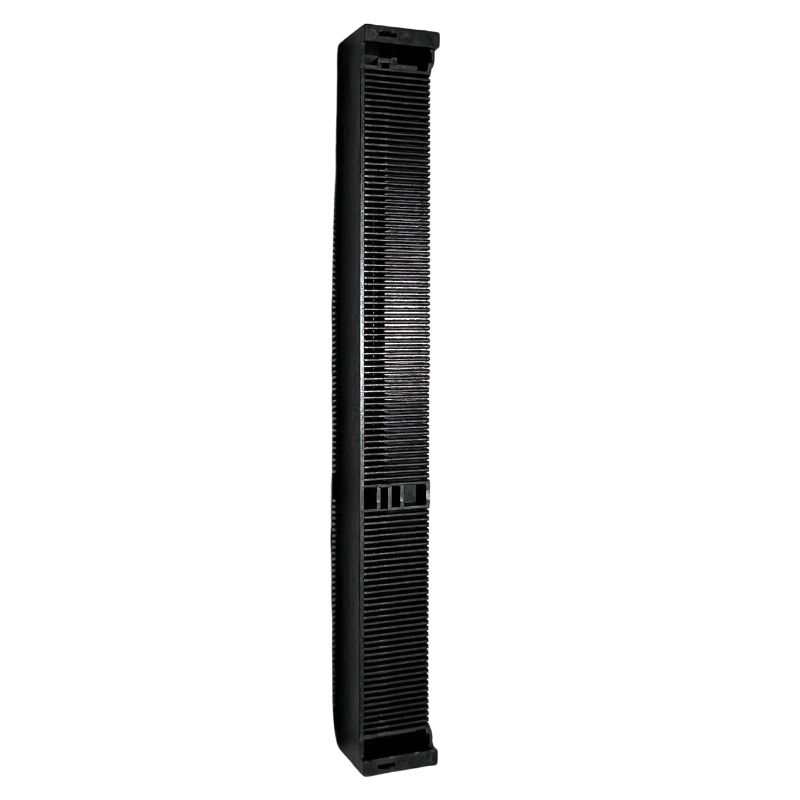

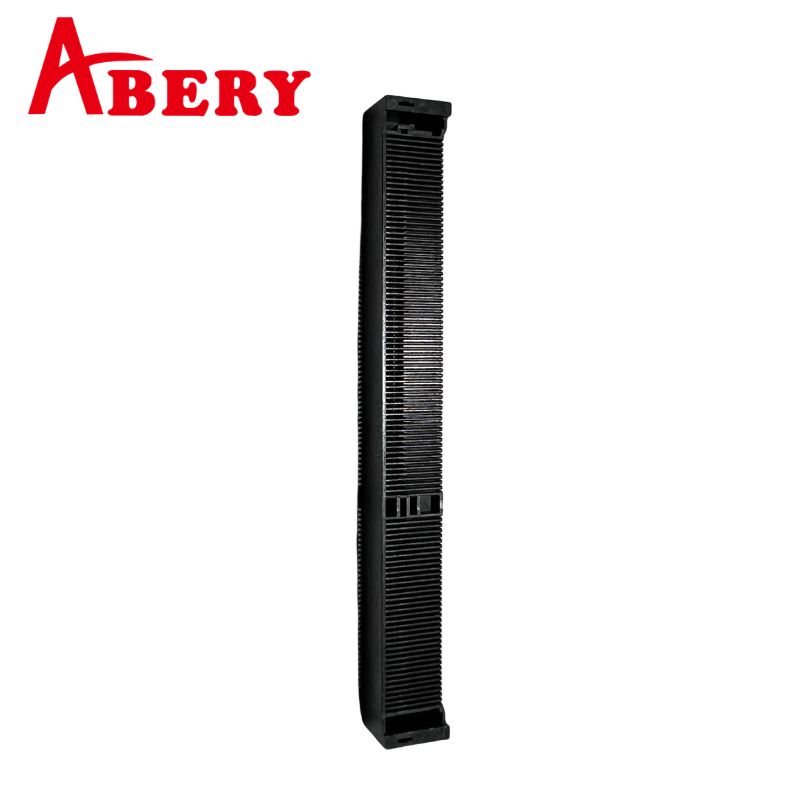

Caption: Extended-length PA6 GF20 connector housing — black. Longer housings present additional warpage challenge: glass fiber orientation in GF20 creates differential shrinkage along the flow direction, causing the long axis to bow if gate location and cooling are not optimized. This part demonstrates controlled flat geometry across full length.

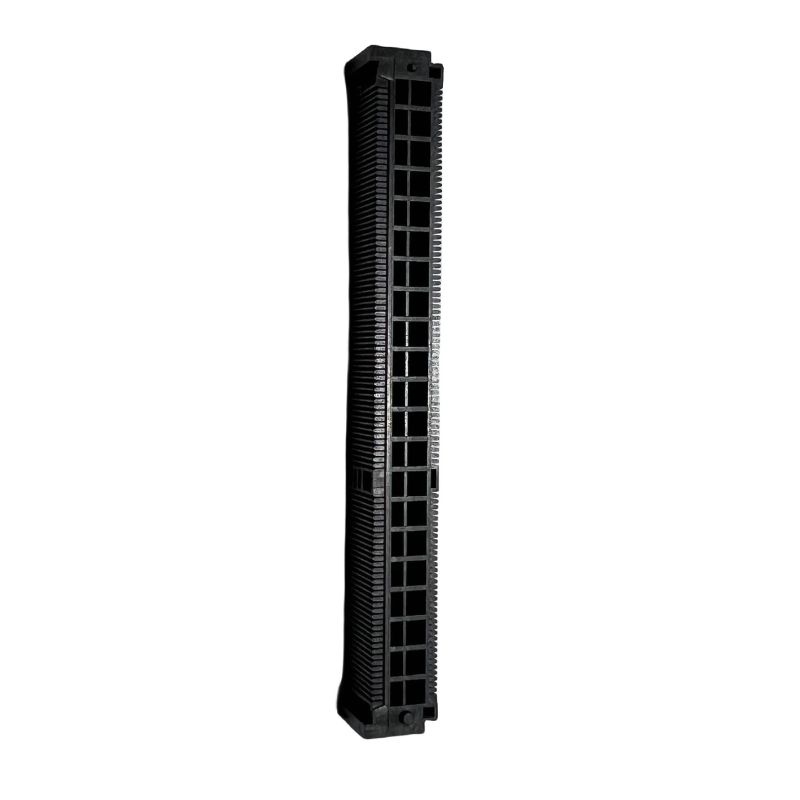

Caption: PA6 GF20 connector housing with wider slot pitch — black. Wider pitch variants allow larger pin cross-sections for higher current capacity. Same ±0.01mm tolerance specification, same PA6 GF20 material.

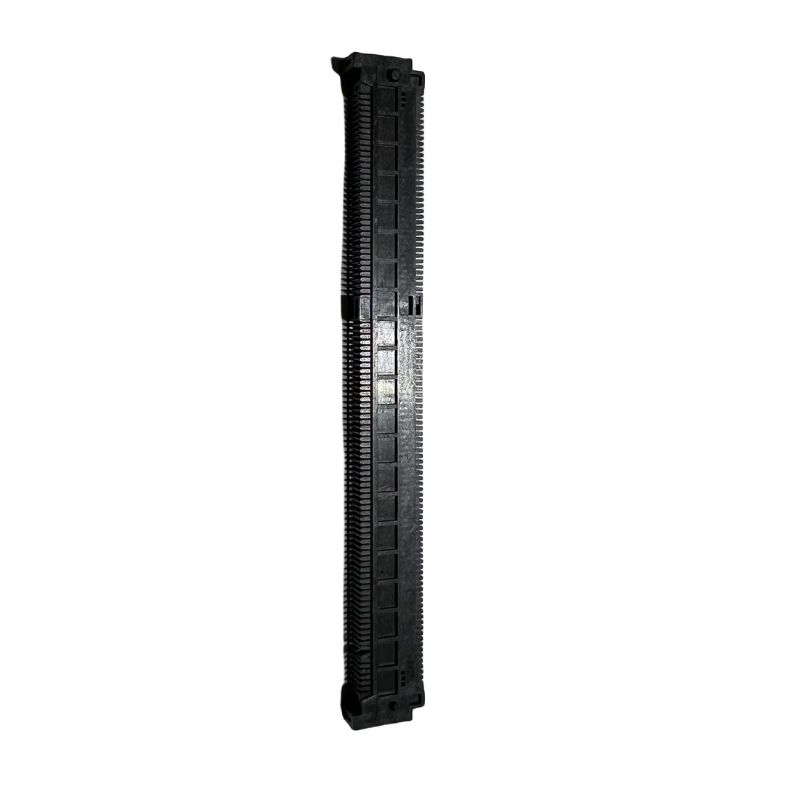

Caption: Fine-pitch PA6 GF20 connector housing showing the densest slot configuration in the series. At fine pitch (≤1.0mm center-to-center), individual slot walls are extremely thin. Any dimensional variation in wall thickness creates asymmetric pin retention force — leading to pins that feel loose on one side of the connector and tight on the other. Controlled by mold steel tolerance and optimized hold pressure profile.

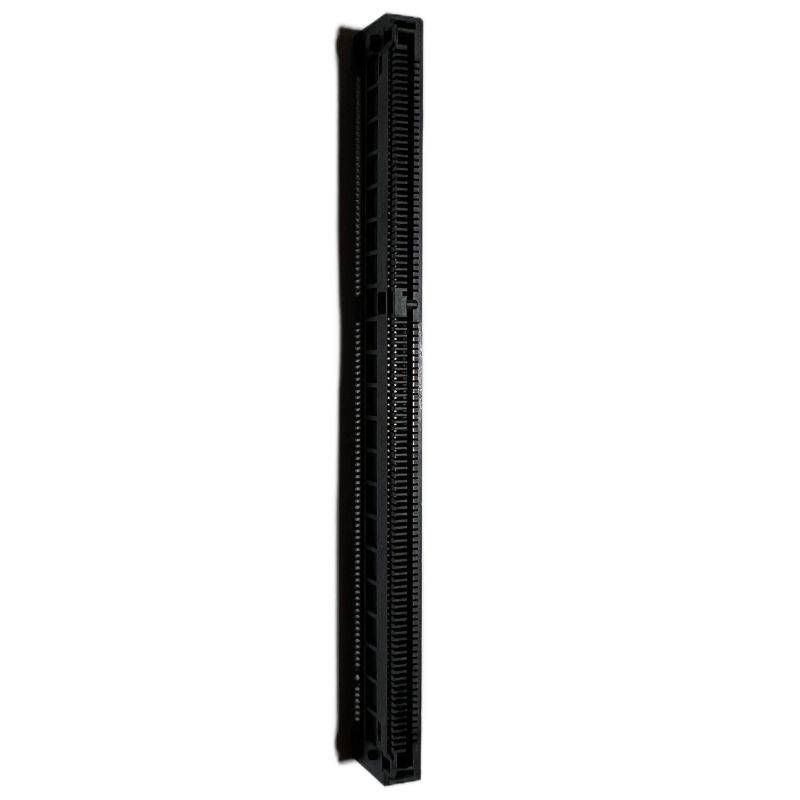

Caption: Narrow-profile PA6 GF20 connector housing — black, slim form factor for board-edge applications. Demonstrates ABERY's range within this connector family: all variants produced on shared tooling infrastructure with consistent material and process parameters.

The Engineering Challenge — Precision Molding of GF-Reinforced Nylon Connectors

"PA6 GF20 is not a forgiving material for connector housings. The glass fibers align with the flow direction during injection, which means the material shrinks differently along the flow axis versus across it. In a long, slender connector housing, this anisotropic shrinkage bows the part — and a bowed connector won't seat flat on the PCB. The fix is not in post-processing; it's in gate location, runner balance, mold temperature uniformity, and packing pressure profile. You have to simulate it, validate it at T1, and lock the process before mass production. Shortcuts at T1 become field failures at 500,000 units."
— ABERY Tooling Engineering Team

Challenge 1: Anisotropic Shrinkage in GF-Reinforced Nylon

Glass fiber reinforcement dramatically increases PA6's stiffness, temperature resistance, and dimensional stability — but introduces directional shrinkage behavior. Fibers align with the melt flow direction, causing:

• Lower shrinkage parallel to flow (~0.3–0.5% for PA6 GF20)

• Higher shrinkage perpendicular to flow (~0.7–1.0%)

In a long connector housing where the melt flows the length of the part, differential shrinkage across the width and length causes bow (long-axis curvature). ABERY addresses this through:

• Gate placement analysis to balance flow direction across the housing width

• Mold temperature differential between cavity and core sides to counteract bow tendency

• Packing pressure profile tuned to compensate for differential shrinkage without inducing internal stress

Challenge 2: Thin-Wall Pin Slot Filling at ±0.01mm

A 100-pin connector housing with 1.0mm pitch contains slot walls as thin as 0.4–0.5mm. At ±0.01mm tolerance, each wall must be identical in thickness — a requirement that demands:

• EDM machining of slot geometry to ±0.005mm in tool steel

• Injection speed and pressure profile designed to fill all slots simultaneously (uneven fill creates differential shrinkage between early-fill and late-fill slots)

• Melt temperature tightly controlled (±2°C) to maintain consistent viscosity across the shot

Challenge 3: Moisture Sensitivity of PA6

Polyamide 6 absorbs moisture aggressively — up to 9% at equilibrium in humid conditions. Moisture in the resin during molding causes splay, bubbles, reduced mechanical properties, and dimensional instability. ABERY operates a closed-loop material drying system (dehumidifying dryer at 80°C, 4+ hours dwell time before molding) and verifies moisture content before every production run. For precision connector parts, this is not optional — it is the difference between consistent ±0.01mm production and random dimensional drift.

Challenge 4: Color Consistency Across Variants

Black PA6 GF20 requires carbon black masterbatch. Natural PA6 GF20 uses uncolored base resin. Both variants must meet identical dimensional specifications — but carbon black affects viscosity and thermal behavior, requiring independent process parameter qualification for each color variant. ABERY maintains separate process parameter sets for black and natural variants, validated independently at T1.

Material Profile: PA6 GF20 for Telecom Connector Housings

PA6 GF20 is the dominant material for precision connector housings in telecom and industrial electronics because it uniquely combines:

Why 20% Glass Fiber?

GF20 represents the optimum balance for connector housings: enough fiber to achieve dimensional stability and heat resistance, not so much that the material becomes brittle at the snap-fit latch geometry or causes excessive mold wear. Higher fiber loading (GF30, GF50) is used for structural brackets; GF20 is the connector housing standard.

Connector Housing Applications in Telecom and Electronics

This PA6 GF20 precision molding capability applies to:

Telecom Infrastructure

• Server rack connector housings (backplane, card edge)

• Fiber optic transceiver housings

• Network switch internal bus connectors

• Base station RF connector bodies

Industrial Electronics

• PLC I/O module connector housings

• Sensor and actuator connector bodies

• Power distribution bus connectors

• Industrial Ethernet connector housings

Consumer Electronics

• High-speed data connector housings (USB, DisplayPort, PCIe)

• Board-to-board connector bodies

• Flex cable connectors for display and camera modules

All applications share the same fundamental requirement: dimensional precision that enables reliable mating across the product lifetime, at production volumes where manual inspection is not feasible.

From DFM to Production

Week 1      DFM Analysis
            · Slot pitch and wall thickness review
            · Gate location simulation (warpage prediction)
            · Moisture sensitivity protocol review
            · DFM report within 48 hours

Weeks 2–5   Mold Fabrication
            · EDM machining of pin slot geometry (±0.005mm)
            · Cavity temperature zone layout for warpage control
            · Multi-cavity runner balance verification
            · Dry-run mold test before first shot

Week 6      T1 Sample
            · First shots with pre-dried PA6 GF20
            · CMM full-array slot measurement
            · Long-axis bow measurement
            · Color and surface quality review
            · Process parameter documentation

Week 7      T2 / Customer Approval
            · Dimensional corrections applied
            · Production parameter set locked
            · Customer sample sign-off + PPAP (if required)

Week 8+     Mass Production
            · Closed-loop material drying protocol active
            · Batch dimensional sampling (slot pitch, bow, housing length)
            · CPK tracking for critical dimensions

Frequently Asked Questions

Q1: Why does PA6 GF20 require special drying before molding, and how do you manage this?

PA6 absorbs atmospheric moisture rapidly — even 0.2% moisture content causes visible splay, voids, and reduced mechanical properties in the molded part. At ±0.01mm tolerance, moisture-induced variation in viscosity also causes dimensional drift between shots. ABERY uses dehumidifying dryers set to 80°C with a minimum 4-hour dwell time, and verifies moisture content with a moisture analyzer before each production run. Material left in a standard hopper dryer overnight without humidity control will absorb moisture — this is a common cause of quality problems in PA6 connector molding that we systematically eliminate.

Q2: How do you prevent warpage (bow) in long connector housings?

Warpage in glass-fiber reinforced nylon is caused by differential shrinkage between the flow direction and the cross-flow direction. We address it through gate placement analysis (using Moldflow simulation), mold temperature differential between cavity and core sides, and optimized packing pressure profile. At T1, we measure bow with a flatness gauge across the full housing length and adjust cooling channel temperatures if needed before approving the mold for production.

Q3: Can you hold ±0.01mm across 100+ pin slots?

Yes — this is demonstrated by the parts shown. ±0.01mm at individual slot dimensions is achieved through EDM-machined tooling (±0.005mm cavity accuracy), precise injection speed control to fill all slots simultaneously, and a melt temperature tolerance of ±2°C maintained through closed-loop barrel temperature control. CMM measurement of the full slot array at T1 validates that the dimensional target is met before production approval.

Q4: Do you produce multiple connector variants on the same mold, or separate molds for each?

For a connector family (same pitch, different lengths), we typically produce separate molds for each variant to maintain dimensional independence. Family tooling (multiple cavities with different geometries) is possible but introduces runner balance complexity that can compromise tolerance consistency. We recommend per-variant tooling for precision connector housings and provide cost comparison at the quotation stage.

Q5: What certifications can you provide for EU telecom market compliance?

We provide ISO 9001:2015 quality system certification, RoHS 3 / REACH material compliance documentation, UL94 V-0 flame retardancy test reports (for FR-grade PA6 GF20), and dimensional inspection reports (CMM) for each production batch. PPAP Level 3 documentation is available for customers requiring it.

Q6: Can you source PA6 GF20 from approved European suppliers (e.g., BASF Ultramid, DSM Akulon)?

Yes. We work with leading PA6 material suppliers including BASF (Ultramid), DSM (Akulon), Lanxess (Durethan), and Toray (Amilan). For German customers with approved material lists, we source from the specified supplier and maintain traceability documentation from material batch to finished parts.

Why ABERY for Precision Connector Housings?

Request a Quote

Designing a connector housing that needs ±0.01mm tolerance and zero warp?

Send us your 3D file and connector specification (pitch, pin count, mating standard), and we will return a DFM analysis covering gate location recommendation, warpage risk assessment, and material grade confirmation — plus a tooling and production quotation within 3 hours.

→ Start Your Precision Connector Project
