PP Threaded Bottle Cap with Automatic Unscrewing Mold — Italy Packaging Project

Product Overview

Internal threads on plastic parts cannot be demoulded by simply pulling a core straight out — the thread geometry locks the part onto the core. The standard solutions are: split sliders (which leave parting lines across the thread), collapsible cores (limited to shallow threads), or automatic unscrewing — a rotating core mechanism that spins the core out of the part like unscrewing a bolt.

ABERY produced this multi-cavity unscrewing mold for an Italian customer manufacturing PP bottle caps and threaded connectors for the packaging industry. Each part features both an internal thread (upper bore) and an external thread (lower barrel), requiring the unscrewing mechanism to release the internal thread without damaging the external geometry — a precision synchronization challenge that the tooling handles fully automatically, cycle after cycle.

Product Specifications

Product Gallery

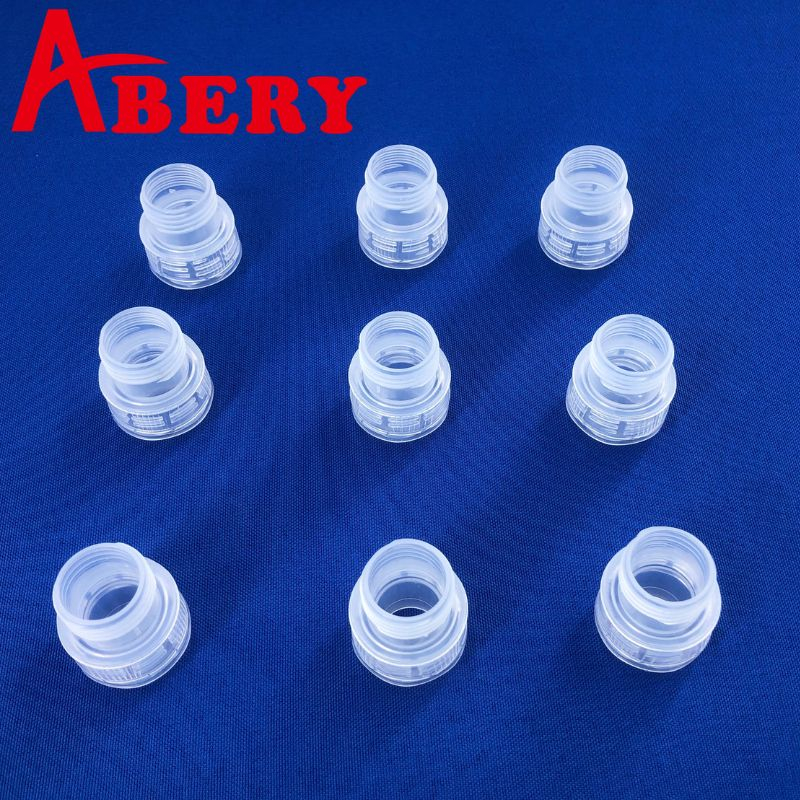

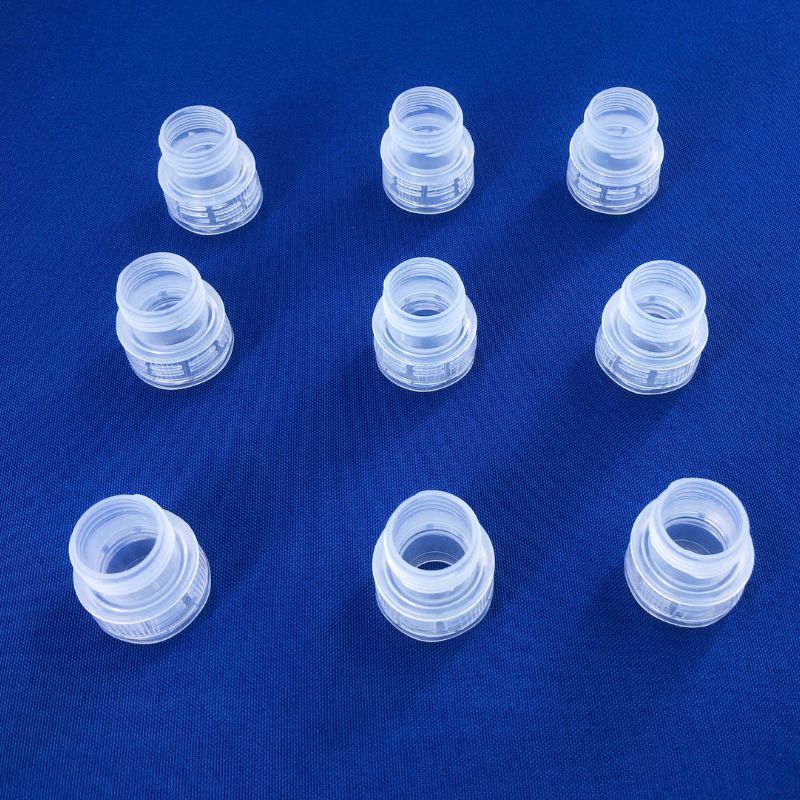

Caption: Eight PP threaded bottle caps from a single production run — top view. Consistent thread profile, uniform transparency, and identical geometry across all parts demonstrate multi-cavity mold performance. No parting line marks visible on any thread surface. Manufactured by ABERY using automatic unscrewing mold technology, for Italian packaging customer.

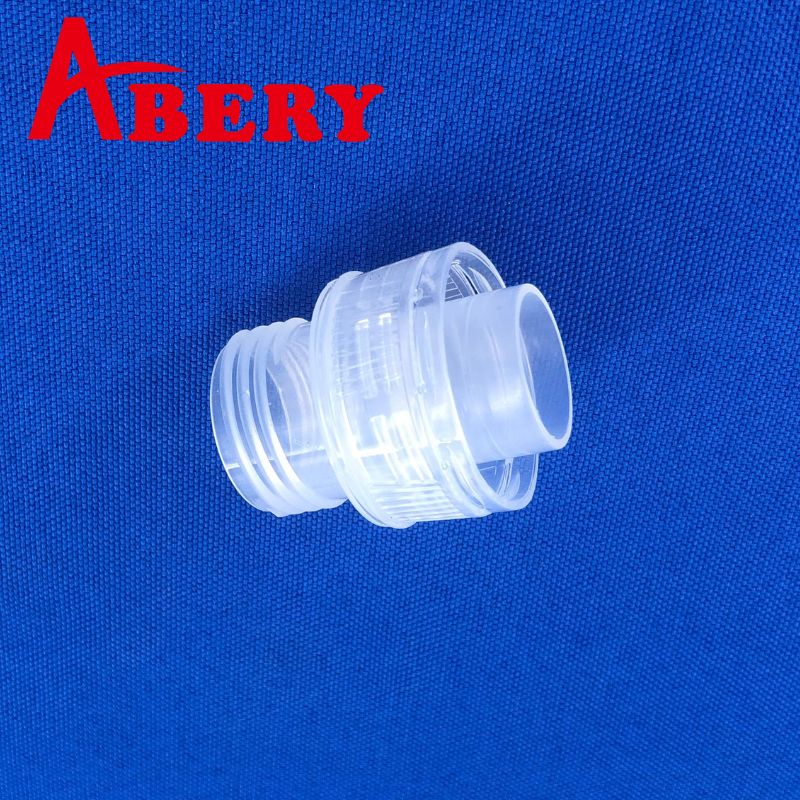

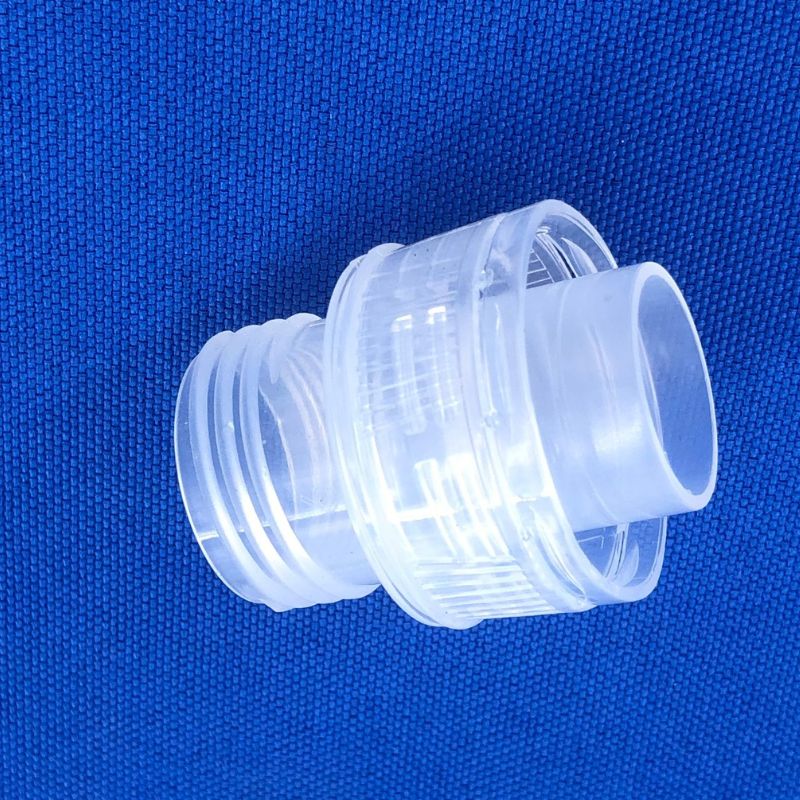

Caption: Single PP threaded connector showing upper internal thread bore and lower external thread barrel. The internal thread is formed by the rotating core — complete thread profile, no split line, no flash at thread root. External thread is formed by the outer cavity and ejected cleanly after core rotation. Part material: natural PP (translucent).

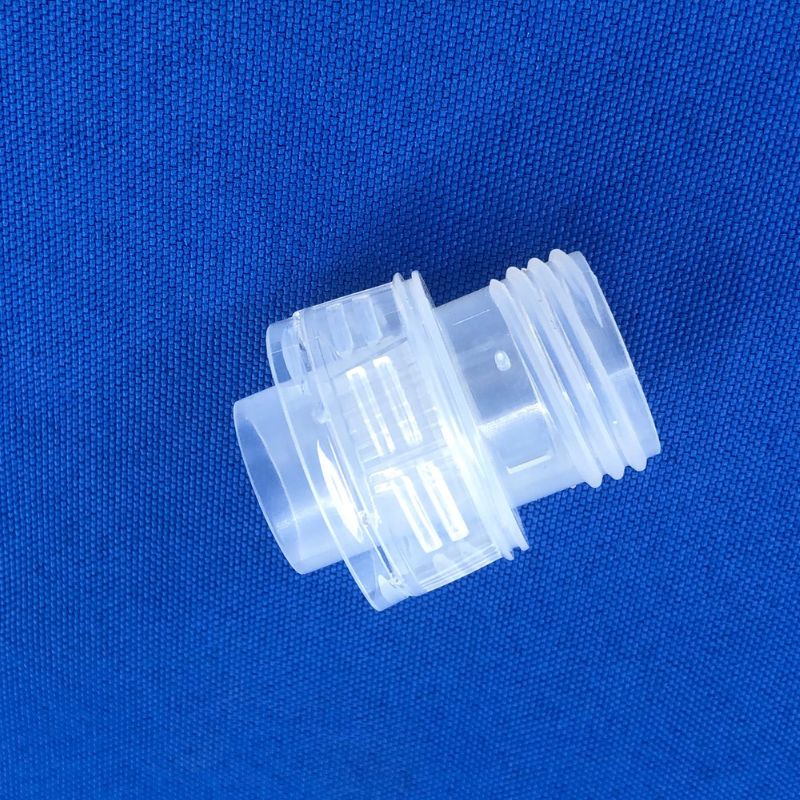

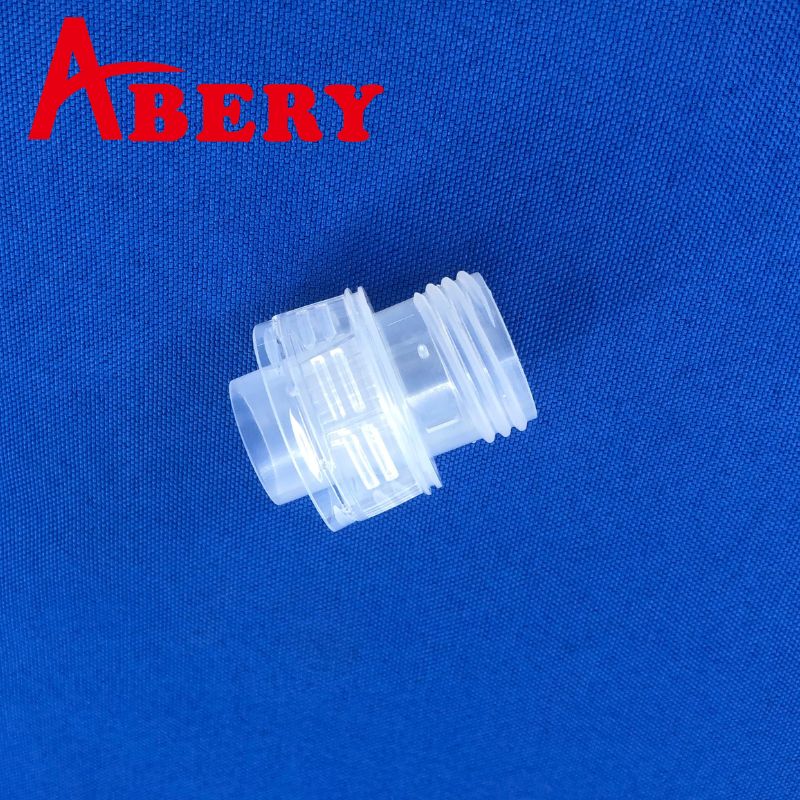

Caption: Underside view of the same PP connector showing the full external thread profile. Thread geometry is uniform and continuous — no slider witness marks, no parting line running across thread crests. This surface quality is only achievable through the unscrewing process; slider-formed threads always show a visible parting line at the thread start and finish.

The Engineering Challenge — Why Automatic Unscrewing Is the Right Process for This Part

"When a part has both internal and external threads, the mold must release both simultaneously or in a controlled sequence — and the anti-rotation feature is critical. If the part rotates with the core during the unscrewing cycle, the thread strips instead of releases. The external thread geometry, the hex flat, or a rib on the part must provide enough resistance to hold the part stationary while the core rotates free. Getting this geometry right during DFM review is what separates a smooth-running unscrewing mold from one that damages parts every cycle."
— ABERY Tooling Engineering Team

Why Not Use Sliders for This Thread?

Sliders can produce external threads and shallow internal threads by splitting the thread form across two or more side-action cores that retract horizontally. The problem: every slider leaves a parting line across the thread profile — a visible line running along the thread crest where the slider halves meet. For a bottle cap or connector where thread engagement must be smooth and leak-proof, this parting line creates:

• Micro-gaps at the parting line that reduce sealing performance

• Thread roughness that causes cap cross-threading or galling over many cycles

• Visual defects unacceptable for premium or transparent packaging

Automatic unscrewing forms the complete thread as a single continuous helix — no splits, no parting lines, no sealing gaps.

The Anti-Rotation Requirement

During the unscrewing cycle, the rotating core exerts torque on the part. If the part is free to rotate, it turns with the core instead of releasing from it. ABERY's DFM review for every unscrewing project identifies the anti-rotation geometry: in this case, the hexagonal outer profile of the lower barrel provides sufficient flat surfaces for the cavity to grip the part during core rotation.

Thread Pitch Tolerance at ±0.05mm

Thread pitch accuracy determines whether the cap engages the bottle neck smoothly or requires excessive force to thread and unthread. At ±0.05mm, the thread engagement is consistent across the production run — no over-tight caps that cause consumer complaints, no loose caps that leak. Pitch accuracy is verified by thread gauge measurement at T1 and periodically during production.

Material Selection: Why PP for Packaging Threads?

PP (Polypropylene) is the dominant material for plastic bottle caps and threaded packaging components, for well-documented reasons:

For European packaging customers, PP caps are typically specified against EN and ISO thread standards (commonly PCO, GL, or DIN threads). ABERY works to customer-specified thread standards or reverse-engineers from bottle neck samples.

Applications Beyond This Project

The automatic unscrewing process used for these caps applies to any plastic part with:

• Threaded bottle caps and closures — beverage, pharmaceutical, personal care, household chemical

• Threaded pipe fittings and connectors — plumbing, irrigation, fluid transfer

• Medical device threaded components — syringe caps, vial closures, sample tube caps

• Industrial connectors — pneumatic fittings, hydraulic port plugs, cable glands

• Cosmetic packaging — pump dispensers, jar lids, airless bottle caps

Any part where thread quality directly affects sealing, consumer experience, or regulatory compliance is a candidate for unscrewing mold production.

Project Timeline

Week 1      DFM Analysis
            · Thread specification review (pitch, profile, tolerance)
            · Anti-rotation geometry confirmation
            · Cavity count recommendation based on annual volume
            · DFM report within 48 hours

Weeks 2–5   Mold Fabrication
            · Core machining (threading and rotating mechanism)
            · Gear / motor / hydraulic drive system integration
            · Cavity and core assembly
            · Dry-run unscrewing cycle test (no material)

Week 6      T1 Sample
            · First shot with PP material
            · Thread gauge measurement (pitch, minor/major diameter)
            · Anti-rotation performance check
            · Transparency and surface quality inspection
            · Batch of 50 parts for customer dimensional review

Week 7      T2 / Customer Approval
            · Adjustments applied
            · Customer sample sign-off
            · Cycle time optimization for production rate

Week 8+     Mass Production
            · Multi-cavity production commissioned
            · First-article inspection report
            · Ongoing thread gauge sampling

Frequently Asked Questions

Q1: What is an automatic unscrewing mold, and why does it cost more than a standard injection mold?

An automatic unscrewing mold includes a motorized or hydraulic rotating mechanism that spins the threaded core out of the part during each cycle. This mechanism — gears, drive shaft, motor or hydraulic actuator — adds significant tooling complexity compared to a straight-pull or slider mold. The trade-off is fully automated production with no manual unscrewing, no post-processing, and superior thread quality. For high volumes, the tooling premium pays back quickly through labor savings and yield improvements.

Q2: Can you produce both internal and external threads on the same part?

Yes — this project demonstrates exactly that. The upper bore has an internal thread released by the rotating core; the lower barrel has an external thread released by the outer cavity halves separating. Coordinating both release mechanisms without damaging either thread geometry is an engineering challenge that requires careful sequence control in the mold. ABERY has production experience with dual-thread parts.

Q3: What thread standards can you work to?

We work to customer-specified thread standards including ISO metric, PCO (28mm, 38mm, 1881), GL (DIN), NPT, BSP, and custom proprietary threads. For caps and closures, we typically request a bottle neck sample or 3D scan to verify mating geometry before tooling starts.

Q4: Is food-grade PP available for caps that contact food or beverages?

Yes. We source PP grades compliant with FDA 21 CFR and EU Regulation 10/2011 for food-contact applications. Compliance documentation is available upon request. For pharmaceutical applications, USP Class VI grades are also available.

Q5: What cavity count would you recommend for 5 million caps per year?

For 5 million caps/year at a typical cycle time of 15–20 seconds, we would recommend a 16- or 24-cavity tool running on a 250–350-ton press. Final recommendation depends on part weight, wall thickness, and acceptable cycle time. We provide a cavity count and tonnage recommendation with every quotation.

Q6: Can you match a specific bottle neck thread for an existing product?

Yes. If you have an existing bottle, we can measure the neck thread geometry (using a thread gauge or CMM scan) and design the cap tooling to match. We can also work from a 2D thread drawing or DXF file if you have one.
