2K Two-Color Injection Molded Housings for Industrial Gas Detection Devices — USA Customer Project

Product Overview

Industrial gas detection equipment operates in demanding environments: chemical plants, refineries, confined spaces, and construction sites where exposure to solvents, fuels, and mechanical shock is constant. The housing must perform multiple functions simultaneously — structural enclosure, ergonomic grip, chemical resistance, impact protection, and visual identification through safety-standard color coding — all without adhesives, assembly steps, or risk of component separation in the field.

ABERY produced this series of 2K injection molded housings for a USA customer supplying portable gas detectors, sampling probes, and handheld analyzers to the industrial safety market. Each product in the series uses two-shot molding to integrate structural and functional material zones in a single manufacturing step, eliminating the assembly failure points that multi-part bonded or clipped housings introduce.

Product Specifications

Product Gallery — Three Variants

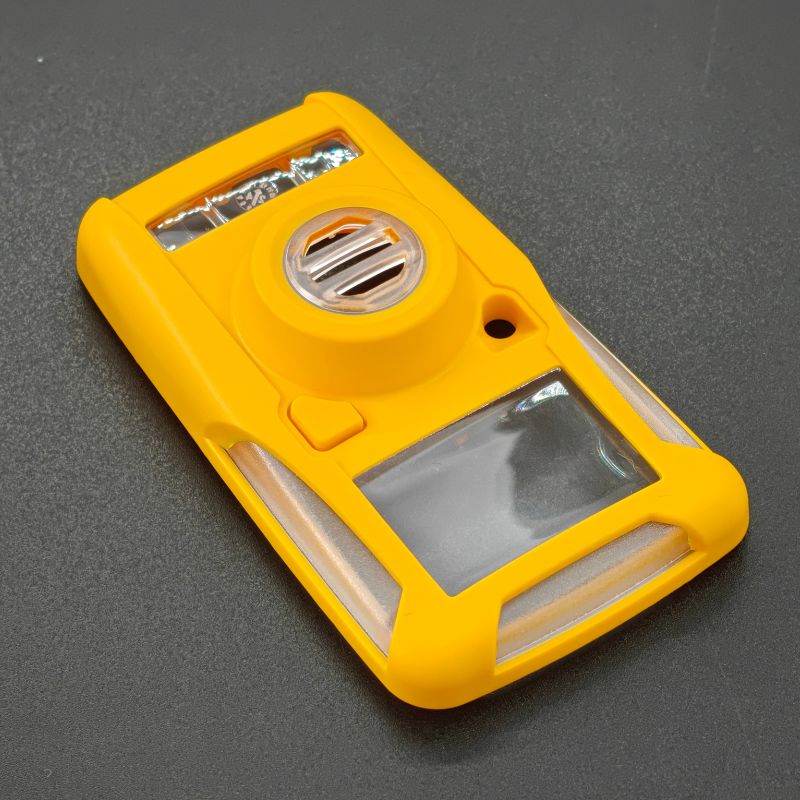

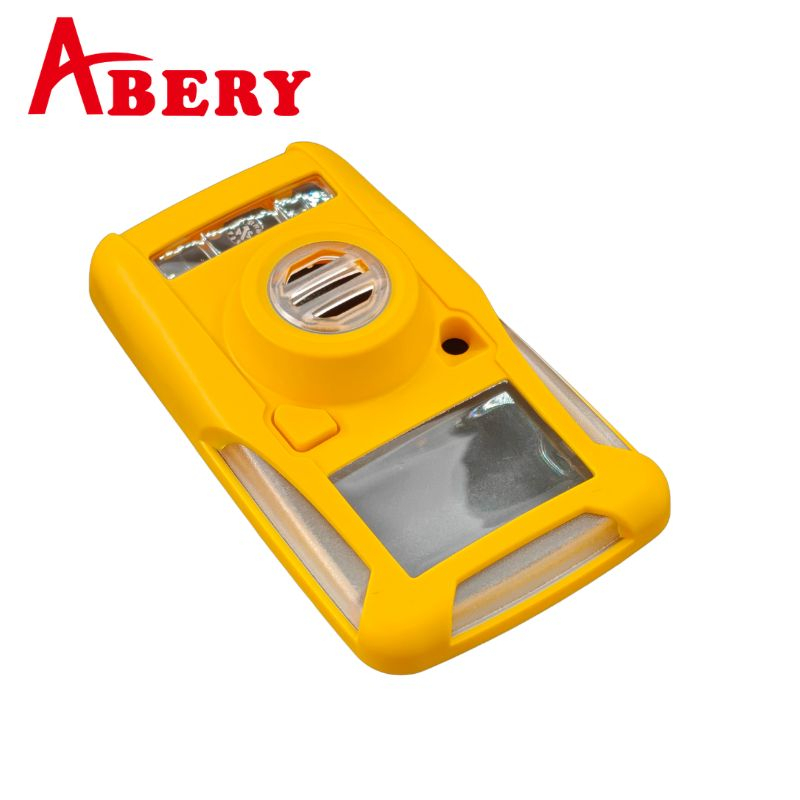

Caption: Portable gas detector front housing — safety yellow ABS body with integrated clear sensor/display window openings, circular sensor port with orange indicator ring, and a bottom display window. Safety yellow color conforms to industrial gas detection device color standards for high-visibility field identification. 2K molding integrates the yellow ABS frame and window sealing interfaces in a single cycle. Manufactured by ABERY for USA industrial safety customer.

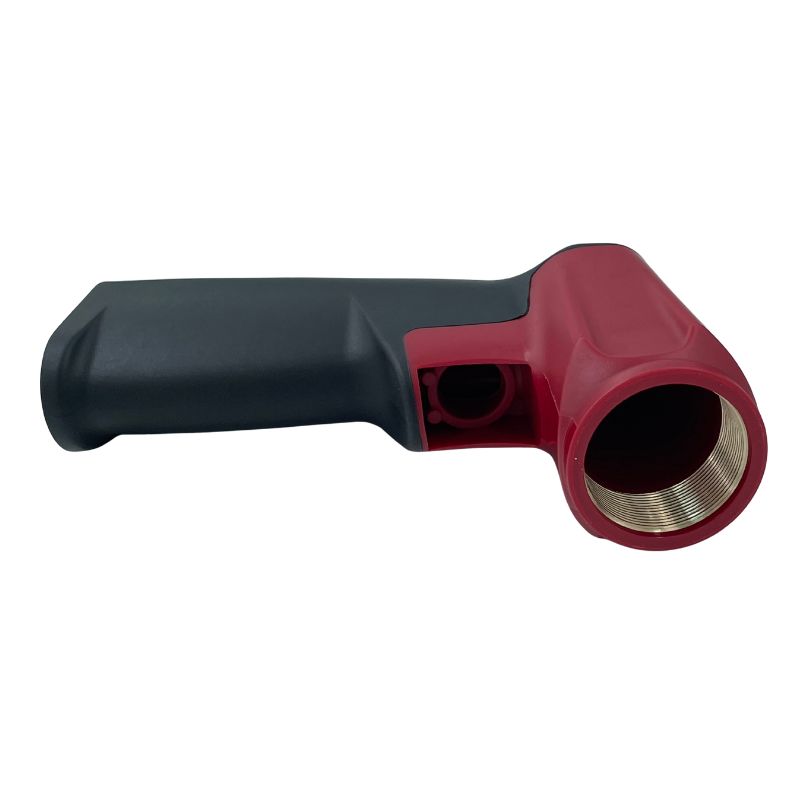

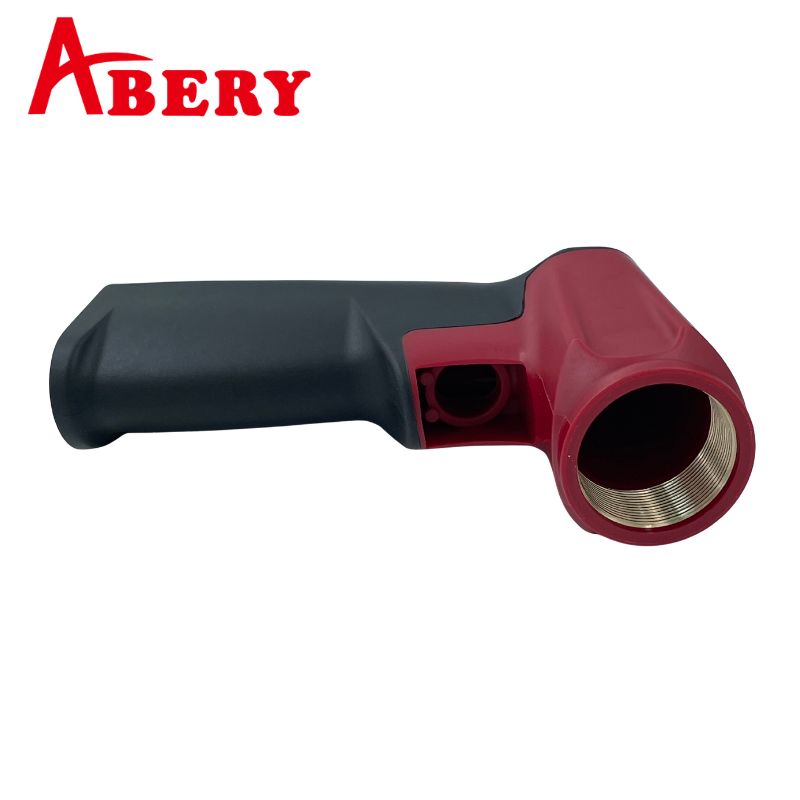

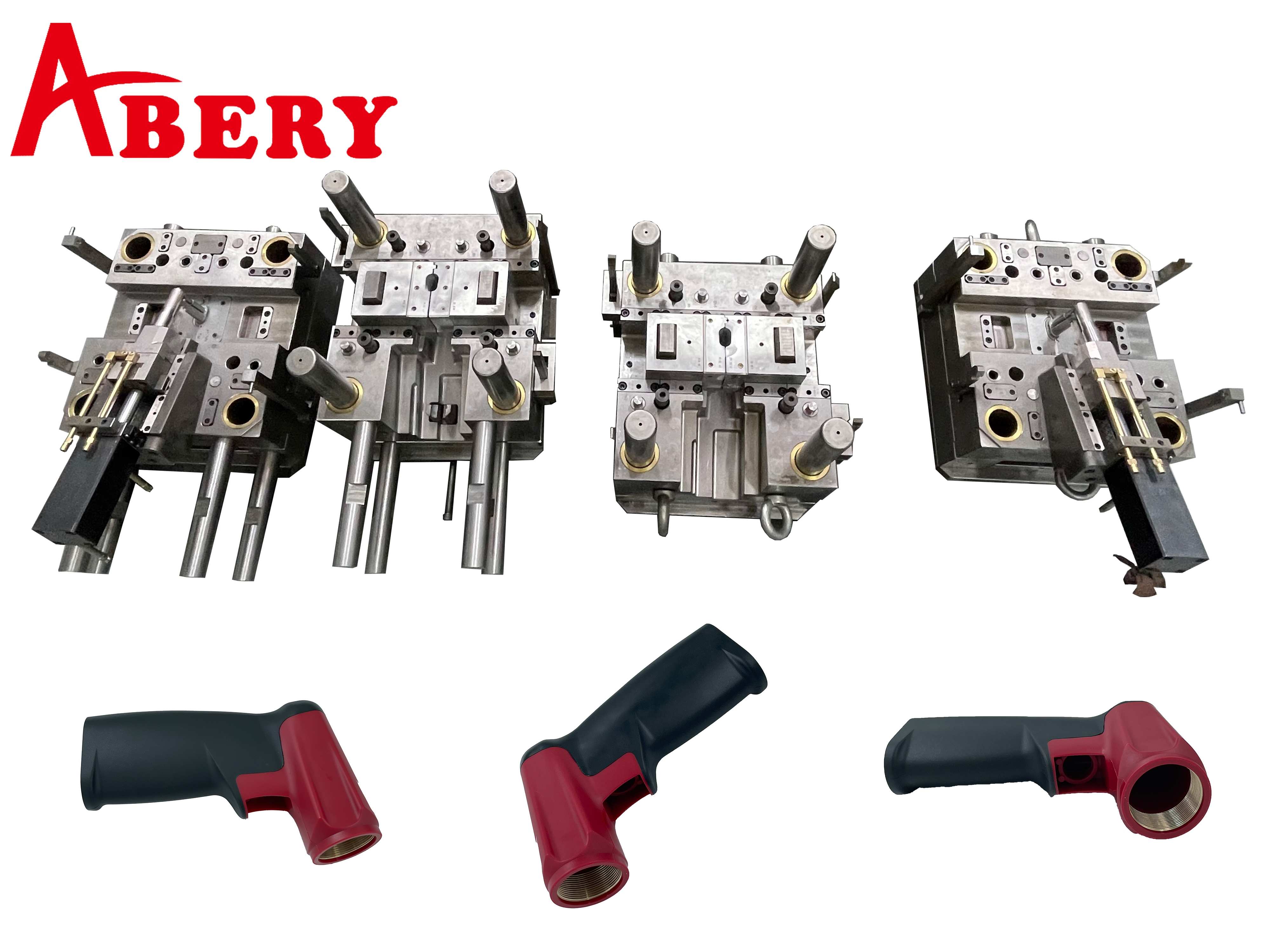

Caption: Industrial gas sampling probe / detector gun handle — 2K molded in red ABS (head/nozzle body) and black ABS (grip body), with brass insert-molded threaded nozzle for gas sampling attachment. The ergonomic L-shaped grip geometry is produced as a single integrated part — no joint line between red and black material zones except at the designed two-color boundary. Brass threaded insert provides durable gas connection without thread wear on the plastic housing.

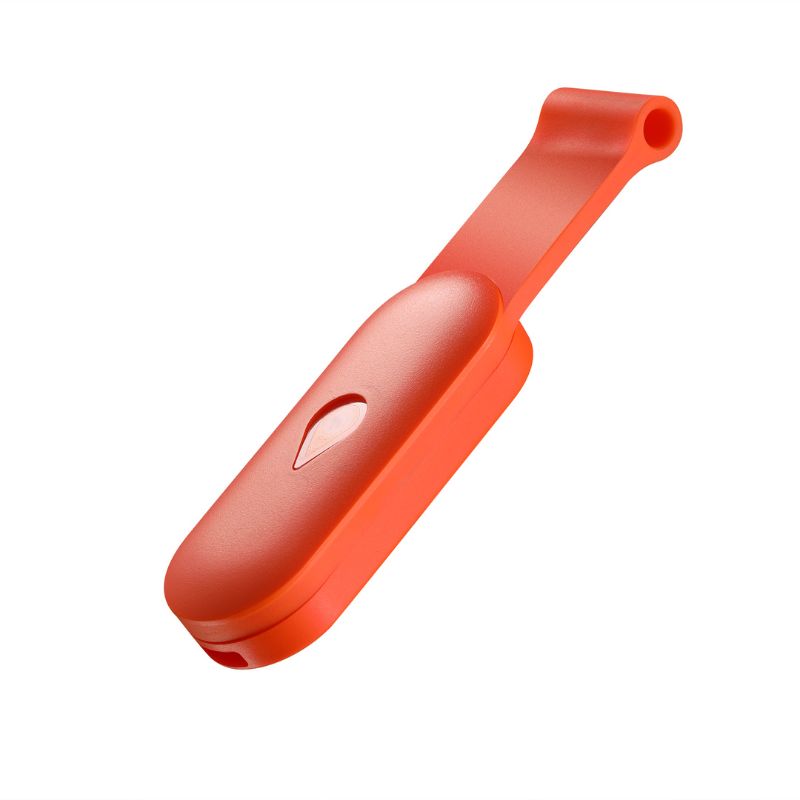

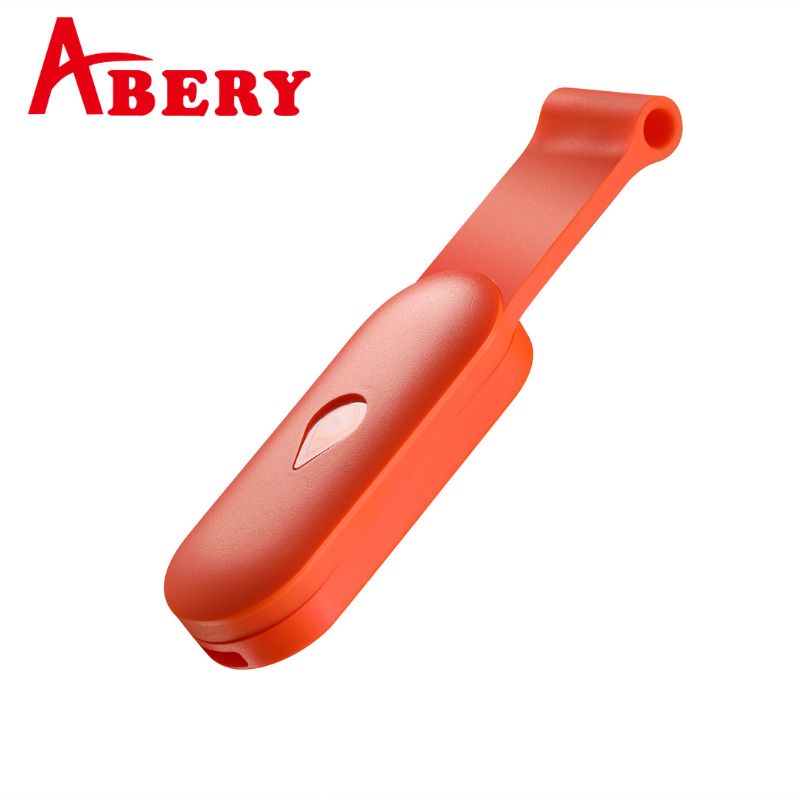

Caption: Portable gas analyzer body — safety orange ABS, single-color 2K design with two-material functional zoning. Ergonomic contoured grip with integrated clip/lanyard loop and trigger-style button opening. The teardrop-shaped button aperture and flowing handle geometry require precise tool parting line placement to avoid witness marks on grip surfaces. This housing demonstrates ABERY's capability for organic, ergonomic forms in industrial safety color specifications.

The Engineering Challenge — 2K Molding for Industrial Gas Detection

"The hardest thing about 2K molding for industrial safety devices is not the two-material bonding — that's solved by material selection. The hardest thing is the color boundary. In a gas detector, the yellow-to-black or red-to-black boundary line is not just aesthetic: it communicates which zone is the sensor end and which is the grip end. If that boundary is inconsistent — if the second shot bleeds 0.5mm across the line, or if there's a gap — it fails both aesthetically and as a safety communication tool. We control this by designing the parting geometry between first and second shot cavities with the same precision we'd apply to a mating connector interface."
— ABERY Tooling Engineering Team

Challenge 1: Material Bonding — ABS to TPE in a Single Cycle

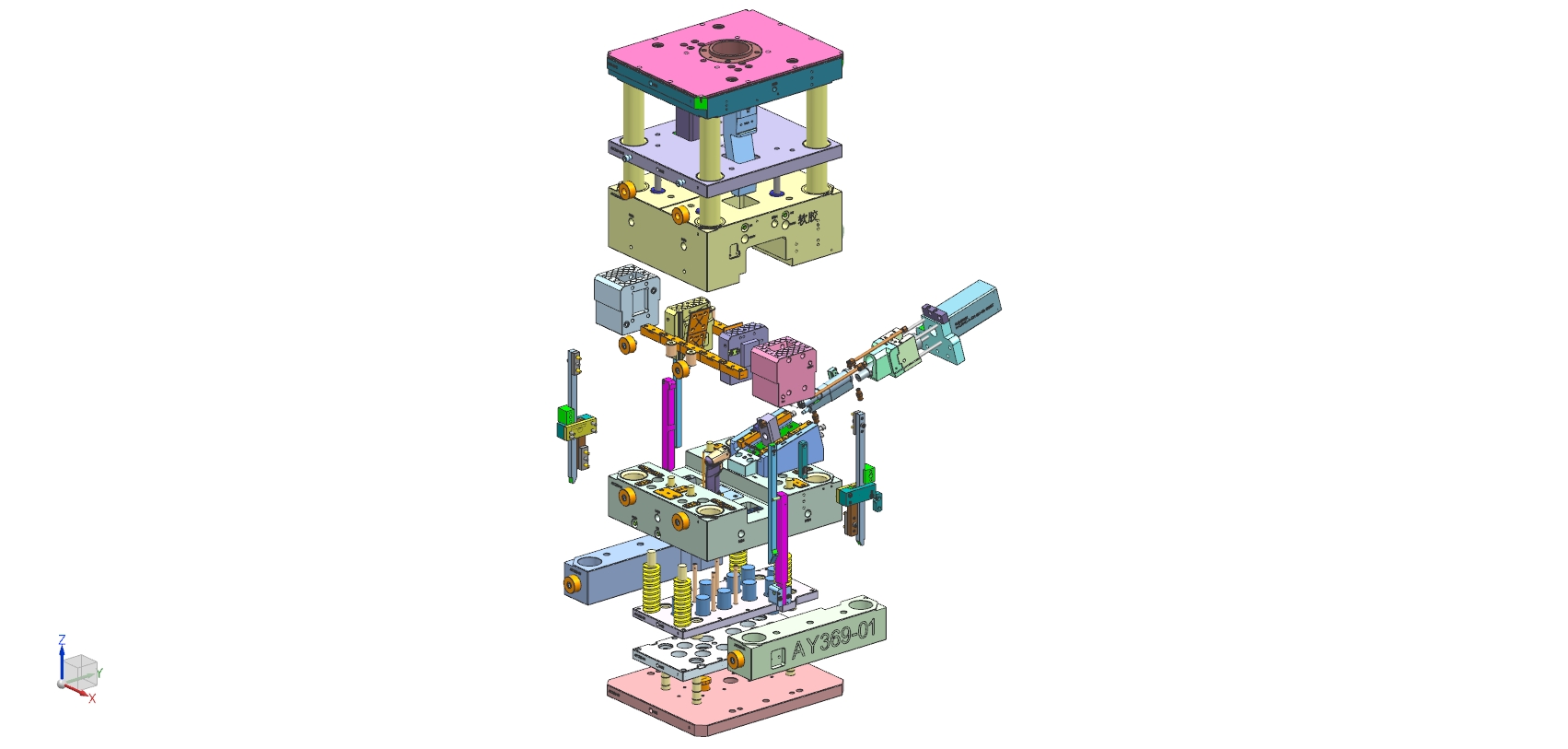

Unlike overmolding (two separate molds, two machines), 2K molding uses a specialized dual-barrel machine that injects both materials in a single automated cycle. The first shot (ABS substrate) solidifies partially, then the mold rotates and the second shot (TPE or second-color ABS) is injected against it.

For ABS-to-TPE bonding, successful adhesion requires:

• First shot surface temperature at second shot injection: must be above the TPE bonding temperature threshold (typically >60°C) — too cold and the bond is mechanical only, prone to delamination under flex

• Gate location for second shot: positioned to achieve uniform TPE fill over the full bonding area, preventing cold-bond zones at remote fill areas

• Residence time control: first shot cannot be fully cooled before second shot injection — the mold rotation timing is engineered to maintain substrate surface temperature

ABERY uses closed-loop mold temperature control and monitored rotation timing to consistently achieve chemical bonding between ABS and TPE across the full part interface.

Challenge 2: Precision Color Boundary for Safety-Critical Applications

Industrial gas detection devices use color as a functional communication system: safety yellow for the active sensor zone, black for grip, orange for high-visibility portable units. The color boundary between materials is not decorative — it must be positioned accurately and held consistently across mass production.

The mold divides first and second shot cavities at the color boundary location. Any gap or mismatch between the first-shot part and the second-shot cavity creates:

• Flash of second material crossing into first-shot area (color bleed)

• Gap at the boundary exposing the substrate edge (visual defect and potential ingress point)

ABERY machines the first-shot / second-shot mold interface to ≤0.02mm gap tolerance — the same standard we apply to overmold sealing surfaces.

Challenge 3: Insert + 2K Combination (Sampling Probe Handle)

The red/black sampling probe handle (Image 2) combines two processes: brass insert molding (for the threaded nozzle attachment) and 2K two-color molding (for the red/black housing geometry). The brass insert must be placed in the mold before the first shot, held in position during injection of the red ABS body, then the mold rotates for the black grip second shot — all without moving the insert.

This requires a three-stage process design: insert fixture → first shot → rotation → second shot. The insert fixture holds the brass insert at three contact points to prevent shift during first-shot injection pressure. ABERY has production experience with insert + 2K combined tooling for industrial device housings.

Challenge 4: Industrial Color Compliance (Safety Yellow, Safety Orange)

Safety yellow (per ISO 3864, ANSI Z535) and safety orange are specified colorimetrically, not just visually. The ABS masterbatch must be formulated to the correct Lab* color values to meet industrial safety product standards. ABERY works with color-matched ABS masterbatch suppliers and validates color against customer color standards using a spectrophotometer at material qualification and periodically during production.

Why 2K Molding for Industrial Safety Devices?

For industrial gas detectors that may be dropped on concrete floors, exposed to fuel vapors, and used in conditions where a grip separating from the housing creates a dangerous situation, 2K molding is the correct manufacturing choice.

Applications: Industrial Safety Device Housing Capabilities

ABERY produces 2K housings for the full range of portable industrial safety and measurement equipment:

Gas Detection and Monitoring

• Single-gas and multi-gas portable detectors (H₂S, CO, O₂, LEL)

• Fixed gas detector heads and transmitter housings

• Gas sampling probes and pump handles

• Confined space entry monitor housings

Industrial Measurement Tools

• Portable infrared thermometers (same yellow/black aesthetic as this project)

• Clamp meters and multimeter housings

• Vibration analyzer probe handles

• Ultrasonic thickness gauge housings

Safety and Emergency Equipment

• Personal protective equipment (PPE) indicator housings

• Emergency beacon device bodies

• Handheld radiation monitor housings

• Fire gas analyzer probe handles

All applications require the same fundamental capability: safety-standard color compliance, chemical resistance, ergonomic grip, and impact durability — all delivered from a single automated molding operation.

Project Timeline

Week 1      DFM Analysis
            · Two-shot sequence design (first shot / second shot boundary)
            · Insert placement review (for insert + 2K variants)
            · Color standard confirmation (safety yellow / orange L*a*b* values)
            · TPE bonding compatibility check with ABS grade
            · DFM report within 48 hours

Weeks 2–6   Mold Fabrication
            · First-shot cavity + rotating core machining
            · Second-shot cavity machining
            · Mold rotation mechanism assembly and testing
            · Insert fixture machining (for probe handle variant)
            · Color boundary interface tolerance verification

Week 7      T1 Sample
            · Full 2K production trial
            · Color boundary inspection (all faces)
            · TPE bonding peel test
            · Insert retention pull test (probe handle)
            · Color spectrophotometer measurement vs. customer standard

Week 8      T2 / Customer Approval
            · Corrections applied
            · Customer sample sign-off
            · Production parameter set locked

Week 9+     Mass Production
            · Automated 2K cycle (no manual overmolding step)
            · Inline color boundary visual inspection
            · Periodic peel test sampling for bond strength monitoring

Frequently Asked Questions

Q1: What is the difference between 2K (two-shot) molding and overmolding, and which is better for gas detector housings?

In overmolding, two separate injection machines and two separate molds are used: the first part is molded, cooled, removed, and then placed into a second mold on a second machine for the second material. In 2K two-shot molding, both materials are injected in a single machine with a rotating mold — the part never leaves the molding cell. 2K produces more consistent bonding (the substrate is still warm when the second shot is injected), tighter color boundary control, and higher production throughput. For safety device housings where color boundary precision and bond reliability are critical, 2K molding is the preferred process.

Q2: How durable is the ABS-TPE bond in an industrial field environment?

The ABS-TPE interface in 2K molding is a chemical (molecular) bond formed at the interface temperature during second-shot injection. Under standard peel test conditions, the TPE layer tears cohesively (the TPE itself tears before the interface fails). For industrial gas detectors — where repeated drops, temperature cycling, and exposure to petroleum products are normal — this bond performance exceeds the service life of the device. We validate bond strength with a 180° peel test at T1 and sample periodically during production.

Q3: Can you match safety yellow and safety orange to ISO 3864 / ANSI Z535 specifications?

Yes. We work with ABS masterbatch suppliers to produce color-matched formulations certified to ISO 3864 (safety yellow: chromaticity coordinates specified) and ANSI Z535.1 safety orange. Color is verified by spectrophotometer measurement (Lab* color space) against customer-provided color standards or Pantone references at T1 and periodically during production.

Q4: Can the housing be made IP54 or IP65 rated through 2K molding design?

Yes. 2K molding can integrate TPE sealing interfaces that provide IP-rated water and dust ingress protection when the housing is assembled and closed. The sealing geometry (compressed TPE gasket around the display window, around sensor ports, at the housing split line) is designed into the 2K mold. IP54 and IP65 are achievable for this class of housing with proper TPE geometry design. We review IP requirements during DFM.

Q5: The probe handle (Image 2) appears to combine insert molding and 2K — is that possible?

Yes — this is exactly what was produced. The brass threaded insert is placed in the mold before the first shot (red ABS body). After first-shot injection and partial cooling, the mold rotates and the second shot (black ABS grip) is injected. The result is a single part with a molded-in brass insert, two-color ABS construction, and no secondary assembly. This insert + 2K combination is a specialization that requires careful fixture design and process sequencing — ABERY has production experience with this configuration.

Q6: What is the minimum order quantity and lead time?

For 2K molding, we support prototype quantities (200–500 pieces) from a prototype tool and full production from a hardened 2K tool. Prototype tooling lead time is approximately 3–4 weeks; production tool lead time is 6–8 weeks. Minimum production quantities depend on part size and cycle time — we provide specific recommendations with each quotation.
