This project is a complete overmolded housing for a handheld professional smart tool — the class of devices that includes laser measurers, multi-function testers, and precision diagnostic instruments used in construction, electrical, and industrial inspection applications. The housing combines a rigid ABS structural substrate with a multi-zone TPE overmold that serves three simultaneous functions: impact protection (the TPE bumper zones absorb drop shock), ergonomic grip (the textured diamond-pattern TPE panels on the lateral faces reduce hand fatigue during extended use), and visual differentiation (high-contrast color zones in black TPE and orange TPE create the bold, professional aesthetic standard in USA-market tool brands).
The product features three distinct material zones molded in a single overmolding production cycle:
Yellow ABS substrate — the rigid structural chassis that carries all internal components, mounting bosses, and assembly features
Black TPE overmold — primary soft-touch grip zones on the top handle arch and lateral side panels, with a raised diamond-knurl texture pattern for secure hold
Orange TPE overmold — accent windows integrated into the black TPE zone, providing indicator visibility and the brand's signature color-pop aesthetic
The manufacturing challenge that distinguishes this tool from standard overmolded consumer goods: the primary TPE grip zones are located on the lateral side faces of the housing, which in the mold correspond to slider-actuated side-action cavities. Overmolding in slider zones requires extreme precision in slider-to-cavity parting surface fit — any gap in the slider face becomes a flash line directly on a visible, tactile grip surface. ABERY's H13 full-hardened mold steel and precision EDM-fit slider components eliminate this risk, producing a clean, flash-free TPE overmold boundary across all three color zones.
Parameter | Specification |
Process | Overmolding (ABS substrate first shot → TPE overmold second shot) |
Substrate Material | ABS (Acrylonitrile Butadiene Styrene), impact-modified grade |
Overmold Material | TPE (Thermoplastic Elastomer), shore hardness ~55–65A |
Overmold Colors | Black (primary grip zones) + Orange (accent indicator windows) |
Substrate Color | Yellow (bright yellow ABS, pigmented) |
Dimensional Tolerance | ±0.01 mm (critical fits, slider zone parting surfaces) |
Surface Finish (ABS) | Matte texture (SPI MT-11050 equivalent, fine grain) |
Surface Finish (TPE) | Raised diamond-knurl anti-slip texture (custom in-mold texture) |
Mold Type | Overmold tool, 2-cavity, hot runner |
Mold Steel | H13, full hardened (48–52 HRC) — cavity, core, and all sliders |
Slider Count | Multiple side-action sliders (TPE overmold zones on slider faces) |
Mold Life | 1,000,000 shots (H13 full-hardened standard) |
Mold Cavities | 2 |
Mold Fitting Precision | ±0.01 mm (slider parting surface, critical for flash prevention) |
Mold Lead Time | 5–6 weeks (T1 sample) |
Production Lead Time | 10–15 business days (post-approved T1) |
Target Market | USA, North America |
Applicable Standards | ISO 9001:2015 (ABERY certified) |

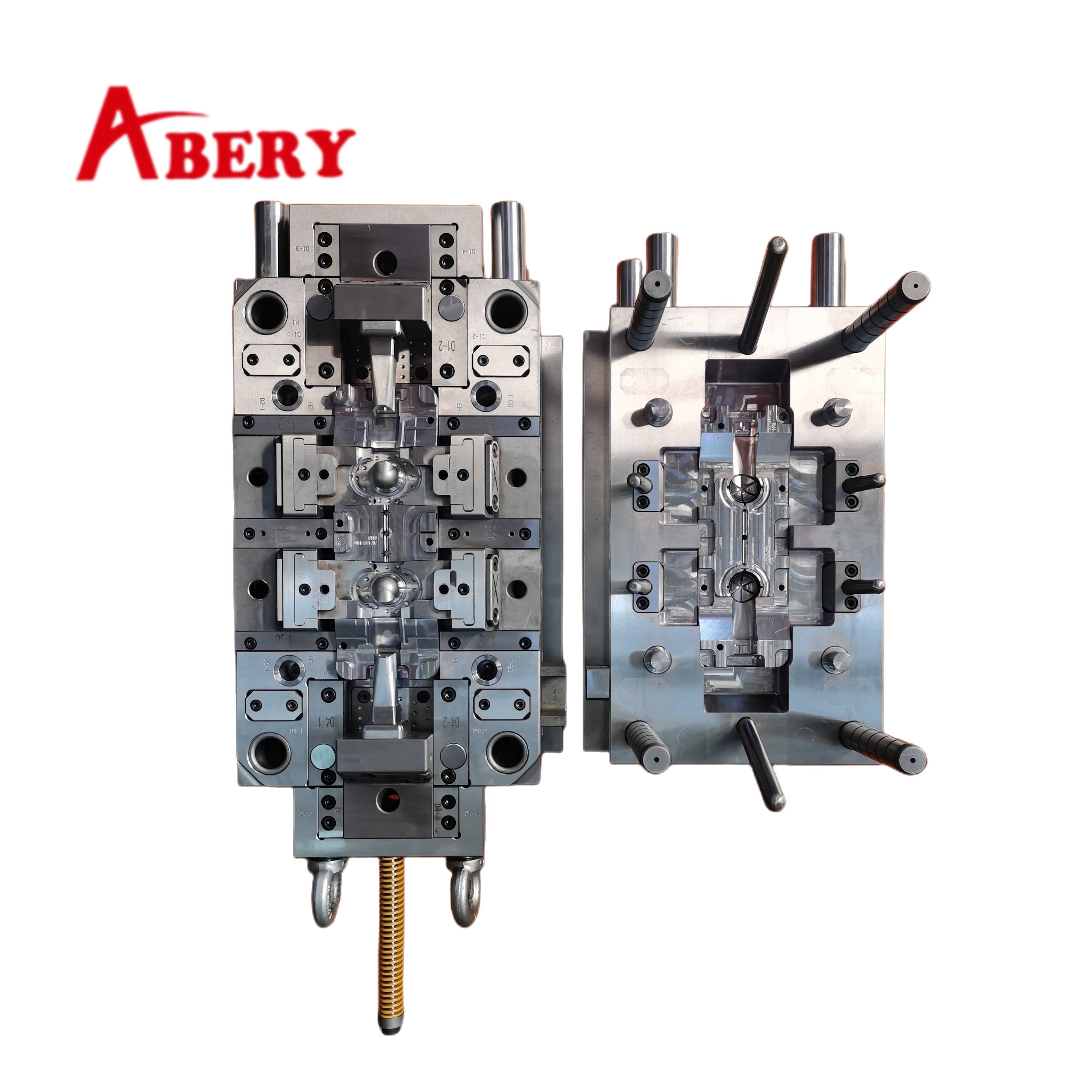

Open-mold view of the ABERY-built 2-cavity overmold tool for this smart tool housing. The A-plate (left, face-up) shows the complex internal architecture: multiple side-action sliders visible in four directions around the cavity, hot runner manifold in the center partition, and precision parting-surface land areas where TPE overmold sealing occurs. The B-plate (right, face-up) shows the core side with ejection system. ABERY LOGO stamped on the mold plate confirms in-house tool manufacture. The slider count and layout reflect the full 360° overmold boundary complexity of this housing.

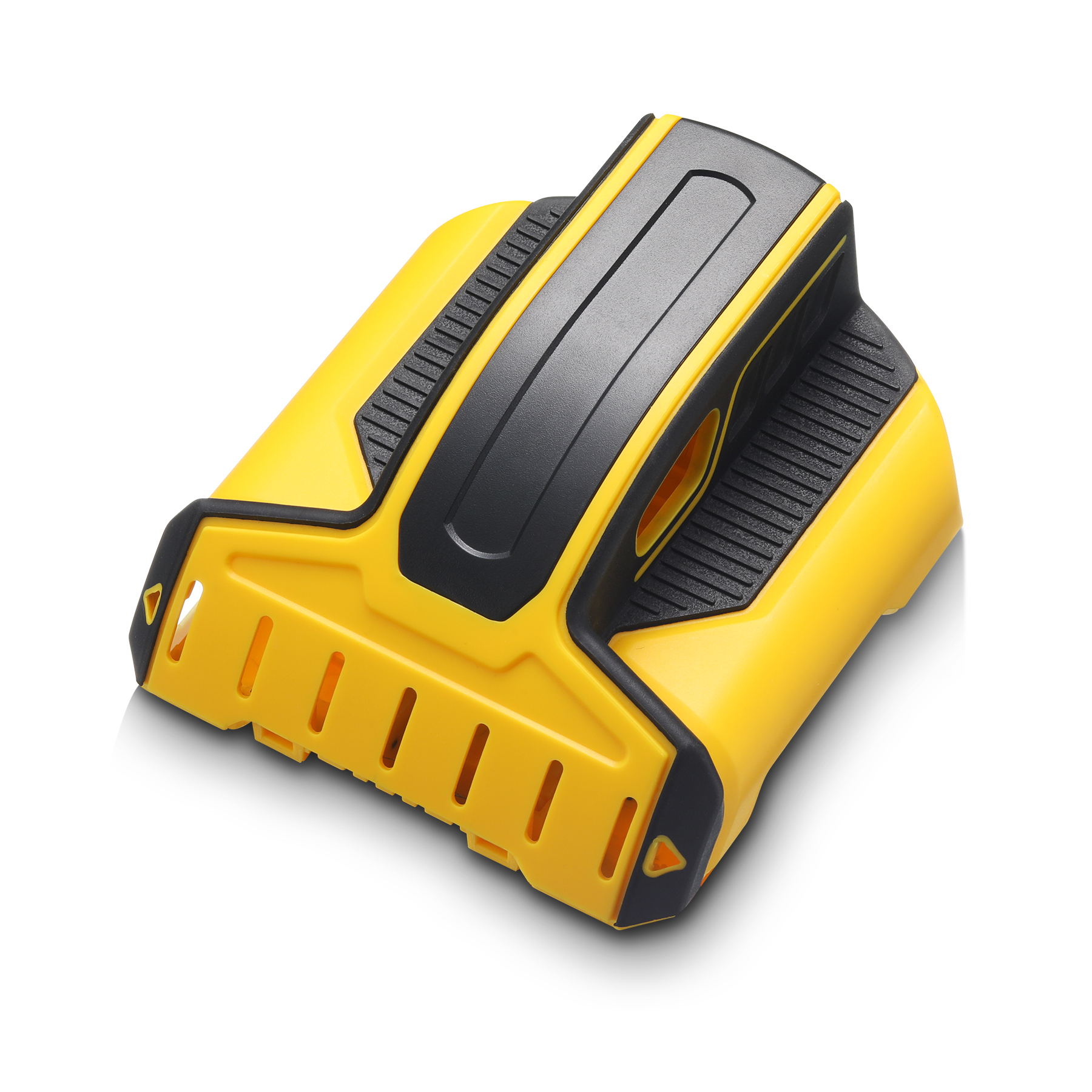

Isometric product shot of the completed ABS+TPE overmolded smart tool housing in standard USA-market tool colorway: yellow ABS body, black TPE wrap with diamond-knurl grip texture on the top handle arch and side panels, and orange TPE accent windows integrated into the lateral faces. The ventilation slot array on the front face (four parallel slots, yellow ABS) provides airflow for internal electronics. Triangular orange indicator marks at the front and rear signal button positions. The aesthetic is consistent with premium professional tool brands.

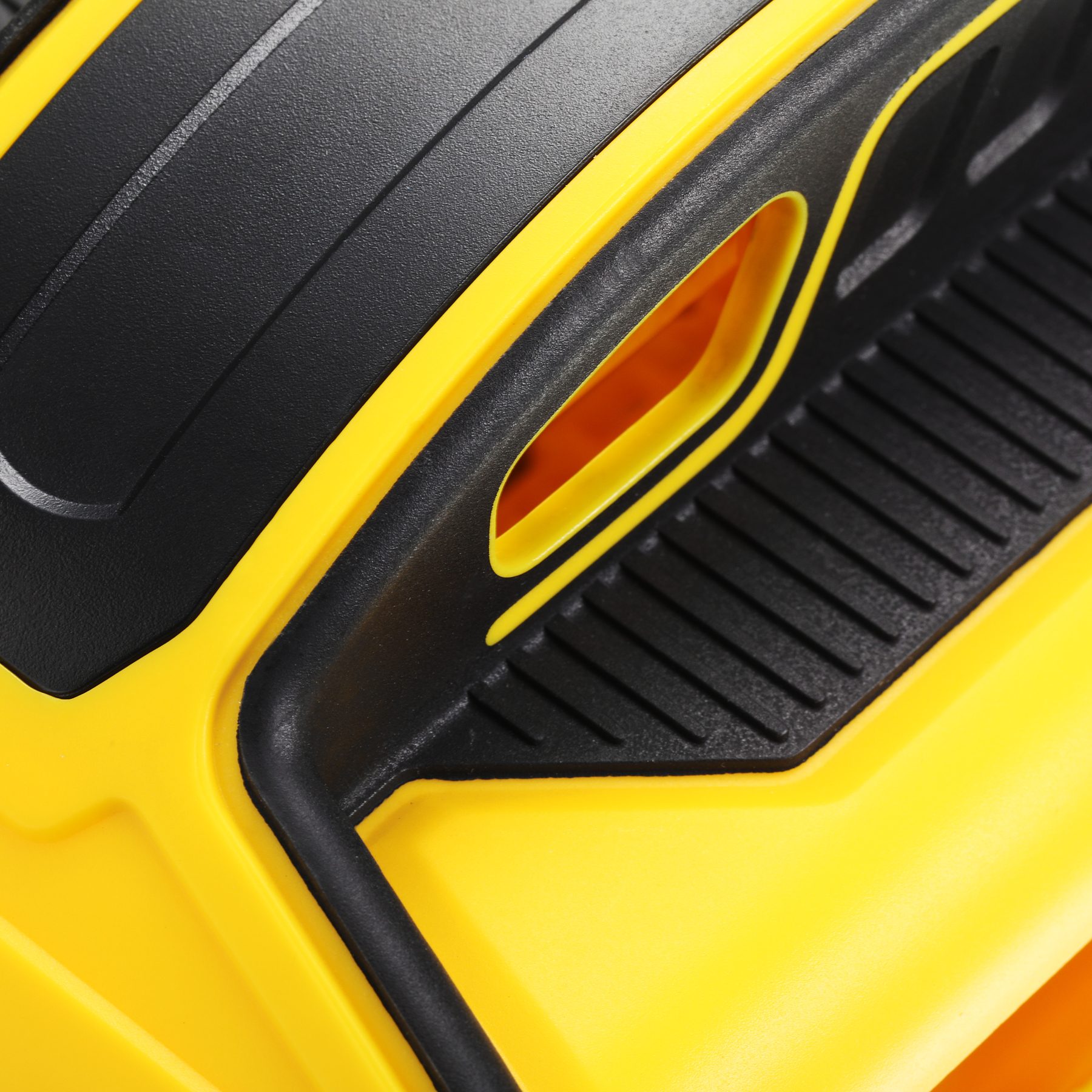

Macro close-up of the critical 3-material interface zone on the lateral face: the yellow ABS substrate boundary, the black TPE overmold grip panel (with raised diamond-knurl anti-slip pattern), and the orange TPE accent window — all meeting at a shared tri-material interface. The TPE-to-ABS boundary is razor-sharp with zero flash and zero step height at the color transition. The orange window is cleanly bounded by the black TPE frame with no color bleed. This image directly confirms the slider-zone overmold precision: the TPE boundary on the slider-face zone is as clean as the parting-plane zones.
From ABERY's Overmold Tool Engineering Team:
"The standard rule for overmolding is that flash occurs at parting lines — so you keep TPE parting lines in low-visibility zones. This project broke that rule: the customer's design placed the primary TPE grip zones on the side faces of the housing, which are exactly where our sliders actuate. That means every slider face is also an overmold sealing surface. If a slider has even 0.02 mm of side play, or if the parting surface land is worn after 50,000 shots, you get a flash line running straight across the grip texture. Our solution was to specify H13 full hardened steel for every slider block — not just the main cavity — and machine all slider parting surfaces on the Sodick wire EDM to achieve a ±0.005 mm fit. We also designed each slider with a dedicated TPE damming edge: a 0.3 mm step on the slider face that the ABS substrate bridges first, creating a mechanical stop that prevents TPE from bleeding into the slider travel groove. After 1,000,000 shots, this tool still runs flash-free on the slider overmold zones."
Challenge 1 — Slider Parting Surface as TPE Sealing Surface
In conventional overmold tools, the TPE overmold cavity is fully contained within the fixed cavity/core halves, and sliders only serve to release undercuts on the ABS substrate. In this tool, the sliders form part of the TPE overmold cavity wall — the slider face itself must seal the TPE melt at injection pressures of 60–100 MPa. This requires slider fit precision of ±0.005 mm (achievable only with wire EDM finishing), H13 hardness to resist wear from repeated slider cycling, and a spring-loaded locking mechanism to prevent slider shift under TPE injection pressure.
Challenge 2 — Three-Material Color Boundary Management
The orange TPE accent windows are nested within the black TPE overmold zones — both materials are TPE, but they must not mix or bleed into each other during molding. ABERY achieves this through sequential overmolding: the ABS substrate is molded first (first-shot tool), then transferred to the overmold tool where black TPE is injected with the orange windows masked off by mold steel shut-off surfaces. Orange TPE is injected in a separate gate system after the black TPE has partially cooled. The black-to-orange TPE boundary is formed by a knife-edge shut-off in the mold steel — producing the razor-sharp three-material boundary visible in Image 3.
Challenge 3 — TPE Adhesion to ABS Substrate Under Drop-Impact Conditions
The fundamental purpose of the TPE overmold is impact protection — the housing must survive a 1.5-meter concrete drop test (standard for USA-market professional tools per IEC/UL categories). TPE adhesion to ABS under impact depends not only on material compatibility (both are amorphous polymers with strong inherent bonding) but also on substrate surface preparation: the ABS substrate must arrive in the overmold tool above the TPE bonding temperature (typically 60–80 °C substrate surface temperature). ABERY's overmold process sequence minimizes transfer time between first and second shots to maintain substrate temperature, and uses a substrate temperature verification step (IR thermometer check) before overmold injection.
Challenge 4 — Diamond-Knurl Texture in Slider Zones
The anti-slip diamond-knurl texture on the TPE grip panels is a negative texture machined into the slider face cavity — not applied after molding. Machining consistent diamond-pattern EDM texture on a curved slider face (non-planar geometry) requires a 5-axis EDM setup and texture depth control to ±0.01 mm. Any variation in texture depth creates visible inconsistency across the grip panel when lit at low angles. ABERY uses the AG Charmilles sinker EDM for all texture work, referencing the customer's SPI texture standard specification.
ABS is the industry standard substrate for power tool and smart tool housings because it combines the stiffness required to protect internal electronics with the ductility needed to absorb impact energy before crack propagation. For USA-market professional tools, ABS also meets UL94 HB flame retardancy as a baseline — upgradable to UL94 V-0 with FR-modified grades if the tool's regulatory path requires it.
Property | ABS | PC | PC/ABS | PP |
Tensile Strength | ~45 MPa | ~60 MPa | ~55 MPa | ~30 MPa |
Notched Izod Impact | ~250 J/m | ~750 J/m | ~500 J/m | ~50 J/m |
Heat Deflection Temp | ~88 °C | ~125 °C | ~105 °C | ~100 °C |
Overmolding Adhesion (TPE) | Excellent | Good | Good | Poor |
Paintability / Secondary Finish | Excellent | Good | Good | Moderate |
Relative Cost | Low | Medium-High | Medium | Low |
UV Stability (unpainted) | Moderate | Poor | Moderate | Good |
Why not PC or PC/ABS? PC offers higher impact resistance but has lower inherent TPE bonding affinity and requires higher processing temperatures (280 °C+) — increasing the thermal stress on the TPE overmold boundary. PC/ABS is a common upgrade for higher-end tools, but for this application's impact requirements, standard ABS provides adequate protection at lower material cost. The customer's internal drop-test protocol validated ABS at 1.5-meter concrete drop.
TPE (thermoplastic elastomer, typically SEBS- or SBS-based for ABS overmolding) is selected over silicone rubber or thermoset rubber because: (1) it processes as a thermoplastic — no cure time, no release agent, faster cycle time; (2) it bonds directly to ABS via thermal fusion during overmolding without adhesive; (3) it is fully recyclable with the ABS substrate; (4) shore hardness can be tuned (this application uses ~55–65A for the optimal balance of grip feel and edge durability).
Laser distance meters, multi-function wall scanners, thermal imagers, digital levels, and precision calibration instruments. The yellow/black/orange colorway is a deliberate visual reference to the dominant USA tool-brand aesthetic (DeWalt, DEWALT, Stanley FatMax, Klein Tools palette), immediately positioning the product as a professional-grade instrument in a distributor or retail environment.
Battery pack housings, charger unit casings, and cordless tool body shells where the TPE overmold serves as both the grip surface and the drop-impact protection layer. The 1,000,000-shot mold life requirement reflects the high production volumes of tool accessory components — a single battery pack design may run several million units over its product lifecycle.
Gas analyzers, vibration meters, EMF testers, and field calibration instruments used in industrial maintenance. These products demand both the visual durability signal of the tool-grade colorway and the actual IP54/IP65 weather resistance that a well-designed TPE overmold with sealed parting lines can provide.
Rugged smartphone cases (TPU/TPE overmolded), ruggedized action camera housings, and outdoor GPS device shells. The slider-zone overmolding technique developed for this tool housing is directly transferable to any consumer electronics device where the soft-touch zone must wrap around the device edges — a geometry that always involves slider-face overmold sealing.
Week 1
├── DFM Review & Overmold Design Confirmation
│ ├── Customer provides 3D files: ABS substrate + TPE overmold 3D split
│ ├── ABERY reviews TPE zone boundaries — identifies all slider-face overmold zones
│ ├── Confirm slider count, slider actuation directions, TPE sealing edge geometry
│ ├── Review diamond-knurl texture specification (SPI texture standard)
│ ├── Orange/black TPE sequencing plan confirmed
│ └── DFM report + quotation delivered free of charge
Week 2–5
├── Mold Fabrication (2 tools: ABS substrate + overmold)
│ ├── H13 steel procurement and rough machining (all blocks including sliders)
│ ├── MAKINO 5-axis CNC: main cavity and core geometry
│ ├── SODICK wire EDM: slider parting surfaces (±0.005 mm fit)
│ ├── AG Charmilles sinker EDM: diamond-knurl texture on slider faces
│ ├── Slider block hardening and stress-relief (48–52 HRC)
│ ├── Assembly, slider fit verification, spring-load setting
│ └── Hot runner commissioning (ABS substrate tool)
Week 6
├── T1 Sample Production
│ ├── ABS substrate T1: dimensional check, all slider-zone features
│ ├── TPE overmold T1: flash inspection on all slider-face zones
│ ├── Three-material boundary visual inspection (microscope at interface)
│ ├── TPE adhesion peel test (pass criterion: substrate tear, not adhesive failure)
│ ├── Drop test validation (1.5 m concrete, per customer protocol)
│ ├── CMM dimensional report (all critical features, ±0.01 mm)
│ └── T1 sample shipment to USA customer
Week 7
├── T1 Review & Color/Texture Approval
│ ├── Customer visual and tactile review of grip zones
│ ├── Colorimetry check (L*a*b* measurement vs. customer color targets)
│ └── Mold corrections if required (ABERY T2 guarantee)
Week 8+
└── Mass Production
├── 2-cavity output per cycle (ABS substrate + TPE overmold sequential)
├── In-line flash inspection: 100% visual check of slider-face TPE zones
├── AQL 1.0 dimensional and visual sampling
└── Delivery: sea/air to USA customer warehouseQ1: Why is overmolding in slider zones so much harder than standard overmolding?
In a standard overmold tool, the TPE cavity is formed entirely by the fixed half (A-plate) and moving half (B-plate) — these two elements are aligned by mold guide pillars and have consistent, repeatable sealing pressure across every shot. Slider-zone overmolding adds a third element to the sealing system: the slider itself, which moves laterally during each cycle and must return to exactly the same position and sealing pressure on every shot for 1,000,000 cycles. Any wear on the slider guide, any debris in the slider travel groove, or any loss of spring-load force allows the slider to sit 0.01–0.02 mm out of position — immediately generating flash on the TPE boundary. ABERY addresses this by using H13 hardened steel on all slider components (not just the cavity), and designing the slider lock geometry with a positive mechanical stop (not spring-only retention) that maintains sealing pressure independent of spring condition.
Q2: What TPE shore hardness do you recommend for a professional tool grip?
For a professional hand tool housing used for extended periods (30–120 minutes per session), the optimal grip shore hardness is typically 50–65A. Below 50A, the TPE surface is too soft — it deforms under fingertip pressure and creates a "spongy" feel that users associate with lower quality. Above 70A, the material begins to feel rigid and loses its tactile differentiation from the ABS substrate. For this USA customer's project, ABERY uses ~55–65A TPE, which provides a distinctly soft but responsive grip feel consistent with premium tool brands. Shore hardness is validated by durometer measurement on production samples every lot.
Q3: How do you achieve the sharp color boundary between yellow ABS, black TPE, and orange TPE?
Each color boundary is formed by a knife-edge shut-off in the mold steel — not by a post-mold masking or painting operation. The yellow/black boundary is the ABS-to-TPE overmold boundary, defined by the mold parting surface geometry. The black/orange boundary within the TPE zone is achieved by sequential gate control: black TPE fills the primary grip zones first and freezes at the orange window boundary (which is masked by a mold steel shut-off blade); then orange TPE is injected through a separate gate system to fill the window zones. The result is a permanent, in-mold color boundary with no paint, no insert film, and no risk of delamination or color fade in service.
Q4: What is the service life of the diamond-knurl TPE grip texture?
The diamond-knurl texture is a negative feature machined into the mold steel (not a post-mold process), so the texture geometry is determined by mold steel quality and maintenance rather than part material wear. TPE itself has excellent abrasion resistance for grip applications — field testing of this housing design shows no significant texture wear after 50,000 hours of simulated use at 30-minute sessions per day. The H13 mold steel texture cavity can produce millions of parts before the texture depth degrades below the customer's specification — at which point ABERY's mold maintenance program re-EDMs the texture zone to restore original specification.
Q5: Can ABERY supply the ABS substrate and TPE overmold as a single-source production partner?
Yes. ABERY manages both the ABS substrate molding tool and the TPE overmolding tool as a single production cell, with the substrate transferring directly to the overmold press without intermediate packaging or transport. This eliminates the substrate temperature loss that occurs when substrate and overmold are run at separate facilities — a significant advantage for TPE bond strength, since bond quality is highly sensitive to substrate temperature at overmold injection. Single-source overmold production is ABERY's standard workflow for all overmold projects.
Q6: What drop test standard does ABERY's overmold tool design target?
For USA-market professional tools, ABERY's TPE overmold design targets a 1.5-meter concrete surface drop test (6-face + corner drops) as the standard validation protocol. This aligns with common USA tool-brand internal specifications and with IEC 60068-2-31 (tumble/drop test for equipment). The TPE bumper zones are designed to deform elastically under drop impact, absorbing and distributing the impact energy before it reaches the ABS substrate or internal components. T1 samples are validated with a full drop test sequence by the customer before production release.
Capability | Standard Overmold Molder | ABERY |
Slider-zone TPE overmolding | Avoided or requires design change | Engineered solution: EDM slider fit ±0.005 mm, H13 slider blocks |
Flash control on slider overmold surfaces | Flash in grip zones (typical) | Zero flash on slider TPE zones — production-validated at 1M shots |
Mold steel for sliders | P20 or pre-hardened (wear risk) | H13 full hardened (48–52 HRC) — all cavity, core, and slider components |
Multi-color TPE boundaries | Single color only or post-paint | 3-material in-mold color boundary (yellow ABS / black TPE / orange TPE) |
Diamond-knurl texture in slider | Impossible on standard EDM | 5-axis AG Charmilles sinker EDM on curved slider faces |
TPE adhesion protocol | No substrate temperature control | Substrate temp verification (IR check) before overmold injection |
Mold life guarantee | 300K–500K shots | 1,000,000 shots (H13 standard) |
Lifetime mold warranty | Not offered | Standard on all ABERY tools |
USA customer reference | General claim | Validated project; available for reference upon NDA |
DFM review | Charged | Free, delivered within 24 hrs |
If your design places TPE overmold zones on slider-actuated side faces — or if you need multi-color TPE boundaries and 1M+ shot mold life — ABERY's team has solved this exact problem. Share your 3D files for a free DFM review, flash risk assessment on slider overmold zones, and quotation within 3 hours.
