Compressed-air (pneumatic) tools — angle grinders, impact wrenches, air ratchets, die grinders — are the workhorses of Russian industrial maintenance shops, automotive repair workshops, and manufacturing floor assembly lines. The tool handle is the component that endures the most mechanical abuse: it must withstand the full torque reaction load when a fastener is tightened, the continuous high-frequency vibration of the air motor (typically 10,000–25,000 RPM transmitted as handle vibration), and the operator's grip force over multi-hour shifts. In a Russian market context, where tools are expected to operate in ambient temperatures down to −30 °C (workshop environments without full climate control), the handle material must also remain non-brittle and grippy at sub-zero temperatures.
This project produces a 2K (two-component) injection-molded pistol-grip handle for a compressed-air tool OEM, in three color variants (black/red, red/black, black/black — all with the same tool), using:
First-shot material: PA (Nylon) — the rigid structural substrate forming the internal chassis, air channel geometry, and brass insert housing boss
Second-shot material: TPE — the soft-grip overmold covering the grip zone and front wrap, providing vibration damping, tactile comfort, and drop-impact protection
Pre-loaded insert: Brass threaded nut — installed in the mold before each cycle, forming the female threaded air fitting connection at the handle base
The three-component assembly (PA substrate + TPE overmold + brass insert) is completed in a single production cycle on a 2K rotary platen press — no secondary assembly required. The product ships from ABERY as a complete handle assembly ready for the customer's tool body installation.

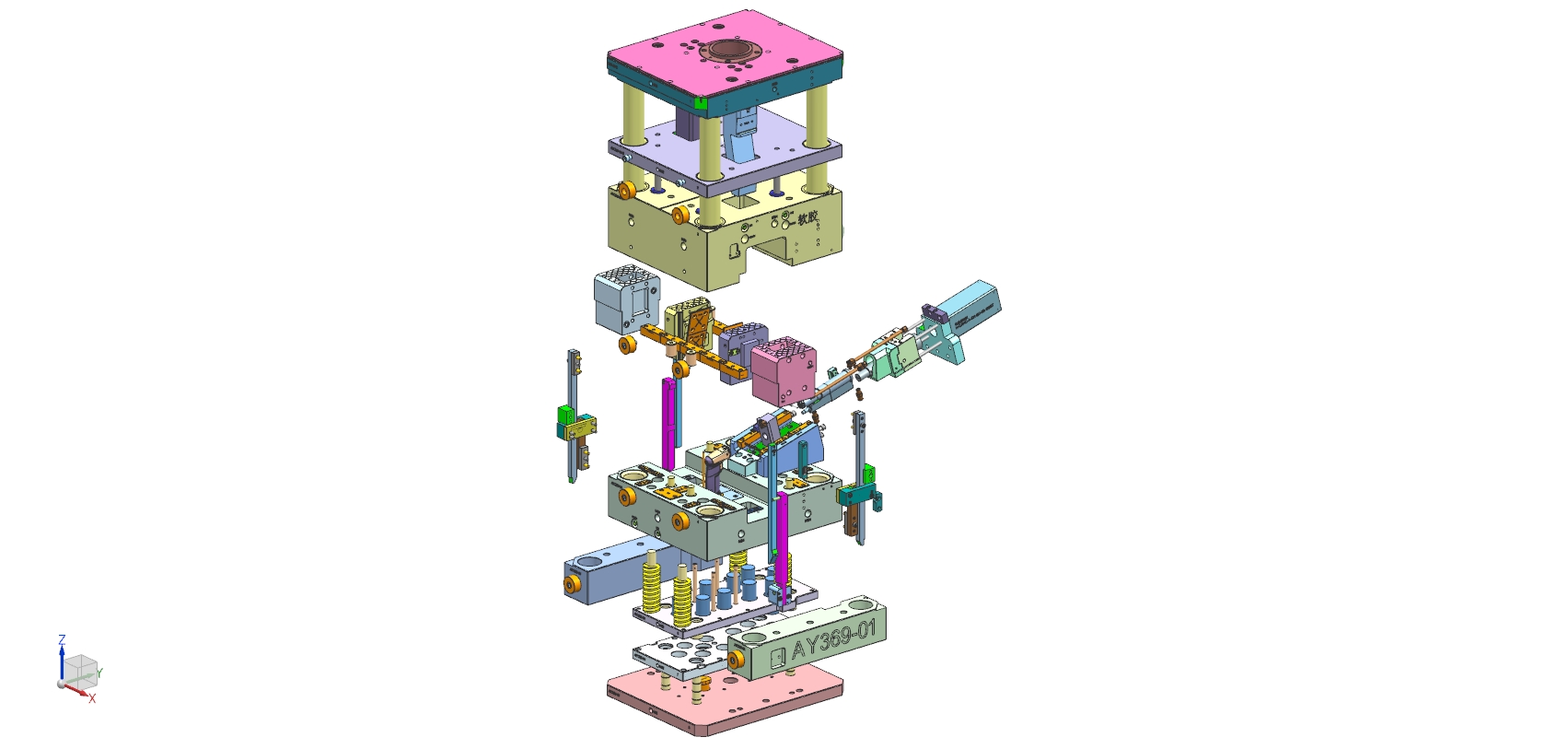

What distinguishes this tool from a standard 2K handle project is the mold's internal complexity: the part's geometry requires a deep slider (actuated by a hydraulic cylinder) to form the internal air passage and insert housing cavity, plus two additional side-action sliders for the external handle geometry — and all three sliders must actuate in a specific sequence (not simultaneously) to prevent steel-on-steel collision during mold opening and closing. Managing this three-slider timing sequence reliably for 1,000,000 cycles requires a precision hydraulic control circuit integrated into the mold body.
Parameter | Specification |
Process | 2K (Two-Component) Injection Molding with Pre-Loaded Metal Insert |
First-Shot Material | PA (Nylon, glass-fiber reinforced or unfilled per customer spec) |
Second-Shot Material | TPE (Thermoplastic Elastomer), shore ~55–65A |
Insert | Brass threaded nut (female thread, air fitting connection standard) |
Insert Loading | Pre-loaded per cycle before first shot |
Color Variants | Black PA + Red TPE / Red PA + Black TPE / Black PA + Black TPE |
Dimensional Tolerance | ±0.01 mm (insert positioning, threaded bore alignment) |
Mold Type | 2K single-cavity, rotary platen, hydraulic deep slider |
Mold Cavities | 1 (single cavity) |
Mold Steel | 1.2083 full hardened (European standard — equivalent to S136 stainless mirror steel) |
Steel Corrosion Resistance | 1.2083: 13% Cr stainless — resists TPE organic-acid corrosion on mold surfaces |
Slider Configuration | 1× deep slider (hydraulic cylinder drive) + 2× side sliders (sequential actuation) |
Slider Sequence Control | Hydraulic sequential circuit — sliders actuate in defined order, not simultaneously |
Mold Life | 1,000,000 shots |
Mold Lead Time | 6–7 weeks (T1 sample, due to hydraulic circuit integration) |
Production Lead Time | 10–15 business days (post-approved T1) |
Operating Temperature Range | −30 °C to +80 °C continuous (TPE grip performance maintained) |
Target Market | Russia, CIS, Eastern Europe |
Applicable Standards | ISO 9001:2015 (ABERY certified) |

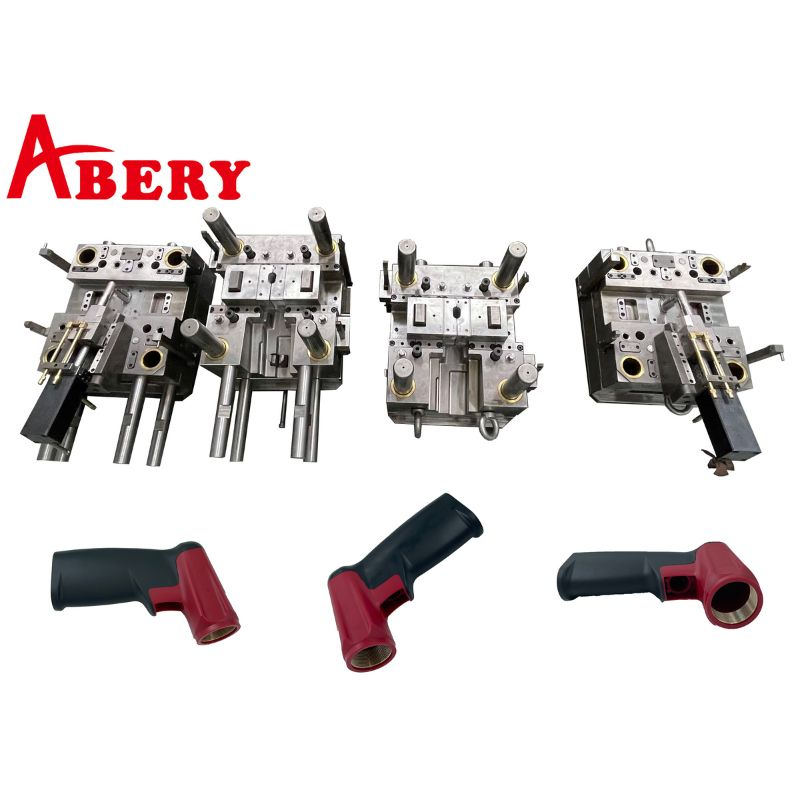

Combined mold-and-part display image. Upper half: three ABERY-built 2K mold assemblies displayed in open/offset configuration — A-plates visible at rear showing the rotary platen face; B-plates in foreground showing the cavity and core side with hydraulic cylinder units (gold-colored brass fittings and hydraulic port blocks visible on mold side faces), multiple guide pillars, and sequential slider mechanism housings. Lower half: three PA+TPE 2K molded pneumatic tool handles in three color combinations — left: black PA body with red TPE front grip wrap and brass threaded insert visible at base; center: red PA body with black TPE grip; right: black PA body with red TPE and visible square side-port opening (tool body engagement feature). All three samples show clean 2K material boundaries with zero color bleed, and clean brass insert seating with no flash over the threaded bore. ABERY brand logo at top left.
From ABERY's 2K Mold Engineering Team:
"This handle has three sliders, and the order in which they move matters absolutely. The deep slider forms the brass insert housing cavity and the internal air passage — it must retract first during mold opening, before the two side sliders, because if a side slider moves before the deep slider clears its travel path, the deep slider ram will collide with the side slider body and destroy both. On closing, the sequence reverses: side sliders close first to form the external handle profile, then the deep slider advances last to form the internal cavity and seat the brass insert. We control this sequence with a hydraulic circuit that has interlocked pressure-release valves — slider 1 (deep) cannot receive hydraulic pressure to advance until sliders 2 and 3 (side) have confirmed their closed positions via limit switches. In 1,000,000 cycles, this interlock has never failed — and if it did fail, the limit switch circuit prevents press close, stopping the cycle before any damage occurs. The 1.2083 stainless mold steel choice is driven by the TPE chemistry: some TPE formulations release low-level organic acids at processing temperatures, which cause pitting corrosion on P20 or H13 steel over time. 1.2083's 13% chromium content makes it essentially immune to this corrosion, eliminating the mold surface degradation that would otherwise appear as surface finish defects on the TPE grip zone after 300,000–500,000 cycles."
Challenge 1 — Brass Insert Registration in a 2K Cycle
The brass threaded nut must be loaded into the mold insert seat every cycle, before the first shot (PA). In a 2K rotary-platen mold, the insert loading happens at the first-station (PA) side of the tool — the operator loads the brass nut into the insert seat on the B-plate, the press closes, PA is injected around and over the insert, and the rotary platen carries the PA substrate (with captured insert) to the second station for TPE injection. The brass insert must remain perfectly seated during the high-pressure PA injection stroke (injection pressure 80–100 MPa) — any insert movement at this stage misaligns the threaded bore relative to the handle body, creating a non-functional thread engagement. ABERY uses a spring-loaded insert seat with a 0.5 mm mechanical retention lip that holds the brass nut in position under injection pressure, releasing cleanly during ejection.
Challenge 2 — PA-to-TPE 2K Bond at the Curved Grip Boundary
The 2K material boundary on this handle is a curved three-dimensional surface — not a simple flat parting plane. The TPE must bond to the PA substrate along this curved interface and maintain that bond through repeated thermal cycling (Russian workshop temperature swings from −30 °C cold start to +80 °C operating heat) and vibration (continuous during pneumatic tool operation). Bond quality depends on substrate temperature at the TPE injection station: ABERY's rotary platen dwell time is set to arrive at the second station with the PA substrate surface at 80–100 °C — warm enough for TPE thermal fusion but below the temperature that would distort the PA geometry. An infrared temperature check is performed on PA substrates at the second station during T1 validation to confirm the target temperature window.
Challenge 3 — Deep Slider Hydraulic Cylinder Integration
The deep slider forms the internal air passage bore (a narrow, high-aspect-ratio cavity feature) and the brass insert housing pocket. This slider must travel 35–50 mm of deep stroke — far beyond the 10–20 mm stroke achievable by spring or cam-actuated sliders. Hydraulic cylinders provide the force and stroke required, but integrating hydraulic lines into the mold body adds complexity: the hydraulic ports must be routed without interfering with the cooling water circuits, and the cylinder mounting must withstand the injection packing pressure acting on the deep slider face without allowing slider retraction under load. ABERY designs a positive mechanical lock into the deep slider that engages at the fully-advanced (closed) position, preventing any hydraulic pressure loss from causing slider retraction during injection.
Challenge 4 — Three-Color Variant Production from a Single Tool
The customer requires three color combinations (black/red, red/black, black/black) — all produced from the same mold. Color changes are achieved by changing the first-shot (PA) colorant and the second-shot (TPE) colorant independently between production batches. The mold itself is color-agnostic — all cavity surfaces are polished to eliminate any pigment retention that would contaminate the next color. Between color changes, ABERY runs a purge sequence (typically 30–50 shots with virgin unfilled resin) to flush the hot runner and nozzle system before the first production shot of the new color.
Nylon (Polyamide) is the preferred substrate for pneumatic tool handles because it combines the structural stiffness needed to transmit torque and impact loads with excellent fatigue resistance under cyclic mechanical stress — a critical requirement for a component that experiences 25,000 RPM vibration during operation.
Property | PA (GF-reinforced) | ABS | PC | PP |
Tensile Strength (GF grade) | ~130–150 MPa | ~45 MPa | ~60 MPa | ~70 MPa |
Fatigue Resistance | Excellent | Moderate | Good | Good |
Impact Resistance (sub-zero) | Good (PA6 > PA66 at −30 °C) | Poor at −30 °C | Good | Moderate |
Chemical Resistance (oils, lubricants) | Good | Poor | Moderate | Good |
2K Bonding with TPE | Excellent | Excellent | Good | Poor |
HDT (1.82 MPa) | ~200 °C (GF) | ~88 °C | ~125 °C | ~120 °C |
Relative Cost | Medium | Low | Medium-High | Low |
Why PA over ABS for this application? The −30 °C operating requirement is the decisive factor. ABS loses significant impact resistance below 0 °C — a tool handle dropped in a cold Russian workshop from a work bench (1.5 m drop) can shatter an ABS substrate at −30 °C. PA (particularly PA6) maintains adequate impact resistance at −30 °C due to its semi-crystalline morphology. PA also provides better long-term fatigue life under continuous vibration loading.
1.2083 (European standard, equivalent to AISI 420 modified + additional Cr, comparable to S136) is selected over H13 or P20 for this TPE application because TPE formulations — particularly SEBS-based TPEs used for soft grip applications — can release trace amounts of organic acid byproducts at processing temperatures (250–280 °C). Over 300,000–500,000 cycles, these acids cause visible pitting corrosion on P20 and H13 cavity surfaces, which telegraphs through to the part as surface defects on the TPE grip zone. 1.2083's ~13% chromium content provides stainless-level corrosion resistance that eliminates this failure mode entirely, protecting the mold surface quality for the full 1,000,000-shot tool life.
Air-powered impact wrenches, angle grinders, die grinders, reciprocating saws, air ratchets, and paint spray gun handles. The Russia-market industrial and automotive repair sector is a major consumer of pneumatic tools — Russian workshops and industrial maintenance operations favor pneumatic over electric tools due to their robustness in harsh environments and lower fire-risk in fuel-adjacent applications. The ABERY-produced handle combines the structural rigidity of PA with the vibration-damping comfort of TPE specifically for extended-use pneumatic tool applications.
Maintenance, Repair, and Operations (MRO) compressed-air tool handles for factory floor assembly operations in automotive plants, aerospace maintenance, and heavy industrial facilities. These applications demand the same combination of structural integrity and grip comfort as hand tools but at even higher daily-use cycles.
Pneumatic pruning shears, air-powered nail guns for agricultural fencing applications, and compressed-air sprayer gun handles. Agricultural pneumatic tools operate outdoors across wide seasonal temperature ranges — the PA+TPE combination's cold-weather performance and UV stability are advantages over ABS+TPE alternatives.
Cordless drill grip sleeves (retrofitted), jigsaw secondary handle grips, circular saw guide handle overmolds. The 2K PA+TPE process developed for pneumatic tool handles is transferable to any power tool accessory application where a rigid PA chassis is combined with a soft ergonomic grip surface.
Week 1
├── DFM Review & 2K Design Confirmation
│ ├── Customer provides 3D files: PA substrate + TPE overmold split
│ ├── ABERY reviews deep slider geometry: stroke length, undercut depth
│ ├── Hydraulic cylinder sizing: force requirement calculation
│ ├── Sequential slider timing design: interlock circuit layout
│ ├── Brass insert seat design: spring-retention lip, registration accuracy
│ ├── 1.2083 steel selection confirmed (TPE chemistry review)
│ └── DFM report + quotation delivered free of charge
Week 2–6
├── Mold Fabrication (extended: hydraulic circuit integration)
│ ├── 1.2083 stainless steel procurement and rough machining (cavity/core)
│ ├── MAKINO 5-axis CNC: main cavity geometry, deep slider cavity bore
│ ├── SODICK wire EDM: slider parting surfaces, insert seat retention lip
│ ├── AG Charmilles sinker EDM: grip texture zones, decorative features
│ ├── 1.2083 hardening + stainless annealing treatment (48–52 HRC)
│ ├── Hydraulic cylinder procurement and mounting block machining
│ ├── Hydraulic sequential circuit: pressure-release valve installation
│ ├── Limit switch installation (3 positions: deep slider + 2 side sliders)
│ ├── 2K rotary platen interface: alignment verification, station-to-station
│ └── Hot runner commissioning (PA first-shot station)
Week 7
├── T1 Sample Production
│ ├── Dry-run slider sequence test (100 cycles, no plastic, hydraulic only)
│ ├── Insert loading drill: brass nut loading, spring-retention verification
│ ├── PA first-shot T1: fill study, insert encapsulation check
│ ├── PA+TPE 2K T1: bond interface check (peel test), color boundary inspection
│ ├── Brass insert thread gauge test: go/no-go check on threaded bore
│ ├── CMM dimensional: all critical fits, ±0.01 mm
│ ├── Cold temperature test: part impact test at −30 °C (PA substrate)
│ └── T1 sample shipment to Russia customer
Week 8
├── T1 Review & Color Variant Validation
│ ├── Customer grip comfort review (all 3 color variants)
│ ├── Air fitting thread engagement test (brass insert)
│ └── Mold corrections if required (ABERY T2 guarantee)
Week 9+
└── Mass Production
├── Single-cavity output; cycle time ~45–55 sec (2K + insert + hydraulic sequence)
├── Insert presence optical sensor: 100% verification per cycle
├── Thread gauge go/no-go: AQL 1.0 per batch
├── Color boundary visual: 100% inspection at line speed
└── Delivery: sea/air to Russia customer or via ABERY Russia after-sales officeQ1: Why does the brass insert need to be loaded before the first shot (PA), not after?
The brass insert must be placed in the PA cavity before the first shot because the PA substrate is molded around and over the insert — the PA encapsulates the upper flange of the brass nut, mechanically locking it in place as the PA cools and shrinks. This creates a mechanical interlock (not just adhesive bonding) that can withstand the torque loads from repeated thread engagement. If the insert were placed after PA molding (post-assembly press-in), the retention force would rely entirely on interference fit in the PA boss — which is subject to creep under sustained torque load. Pre-mold insert loading produces pull-out forces 3–5× higher than post-assembly press-in for the same boss diameter.
Q2: How does the sequential slider system prevent collision damage?
The sequential slider system uses a hydraulic interlocking circuit with pressure-sequenced valves and mechanical limit switches. The deep slider has a limit switch that signals its "fully retracted" position. The two side sliders are hydraulically interlocked so they cannot receive mold-open pressure until the deep slider's limit switch confirms full retraction. On mold close, the sequence reverses: side sliders cannot complete their close stroke until a pressure sensor confirms their final positions, then the deep slider advances to closed position — at which point it engages its mechanical lock to resist injection packing pressure. The entire sequence is monitored by the press PLC — any deviation from expected switch timing triggers a cycle stop before press close, preventing any steel-on-steel contact. This system has operated for over 1,000,000 cycles on this tool without a collision event.
Q3: What air fitting thread standard does the brass insert use?
The brass insert is specified to the customer's air fitting connection standard — common options for Russian-market pneumatic tools include BSP (British Standard Pipe, used for JIS/European pneumatic tools), NPT (American National Pipe Thread, used for US-standard air fittings), and metric (M thread, used in Russian and Eastern European standards). ABERY sources brass nuts to the customer's specified thread standard and pitch; the mold's insert seat is designed to the specific insert geometry supplied. Thread gauge is validated on T1 samples using calibrated thread ring gauges.
Q4: Can the same mold produce all three color variants (black/red, red/black, black/black)?
Yes. The mold cavity is material and color agnostic — it produces identical geometry regardless of which PA color is used in the first station and which TPE color is used in the second station. Color changes require: (1) purging the first-shot hot runner with the new PA colorant (typically 30–50 shots to clear the previous color from the runner system); (2) purging the second-shot nozzle with the new TPE colorant; (3) visual confirmation of color consistency on the first 5–10 production shots before resuming full inspection cadence. Color change time is approximately 15–20 minutes per station. ABERY produces color-differentiated batches for the customer in agreed lot sequences to minimize total color change time per production run.
Q5: How does the TPE grip perform at −30 °C for Russian market requirements?
TPE grip performance at sub-zero temperatures depends primarily on the TPE formulation's glass transition temperature (Tg). Standard SEBS-based TPEs used for tool grips have Tg well below −50 °C, meaning they remain soft, pliable, and non-brittle at −30 °C. This is a significant advantage over vulcanized rubber (which can stiffen significantly below −20 °C) and over silicone-based alternatives (which maintain softness but have lower abrasion resistance for tool grip applications). ABERY validates cold-temperature TPE performance at T1 by conditioning samples at −30 °C for 4 hours and then performing a flex test and tactile assessment — confirming grip flexibility meets the customer's Russian-climate specification.
Q6: What is ABERY's minimum order quantity for this type of 2K insert-molded handle?
For single-cavity 2K tools with insert loading, ABERY's standard production MOQ is 2,000 pieces per batch due to the setup time for insert loading verification and color change preparation. Lower quantities (500–1,000 pieces) are available for initial market launch or sample batches at a higher unit price. The single-cavity configuration means throughput is lower than a multi-cavity tool — for high-volume programs (>500K units/year), ABERY recommends scaling to a 2-cavity 2K tool at the point where the volume justifies the incremental tooling investment.
Capability | Standard 2K Molder | ABERY |
2K + Insert combined in one cycle | Separate operations (add-on assembly) | Single-cycle 2K with pre-loaded brass insert — no secondary assembly |
Deep slider actuation | Spring or cam only (limited stroke) | Hydraulic cylinder — 35–50 mm stroke, full force control |
Multi-slider sequence control | Manual timing (collision risk) | Hydraulic interlock circuit + limit switches — PLC-controlled sequence |
Mold steel for TPE applications | P20 or H13 (corrosion risk from TPE) | 1.2083 stainless (13% Cr) — immune to TPE organic-acid corrosion |
Color variant production (1 tool) | Tool limited to 1 color set | 3 color variants from same tool — purge protocol, zero cross-contamination |
Cold temperature validation | Not standard | −30 °C TPE flex test + PA impact test at T1 (Russia market spec) |
Russia market logistics | Shipping only | After-sales office in Russia — delivery coordination, local QV support |
Insert thread gauge verification | Not standard | Go/no-go thread ring gauge check per AQL 1.0 batch |
DFM for hydraulic slider 2K | Charged separately | Free, includes hydraulic sizing calc + sequential timing design |
Mold life warranty | Limited | Lifetime warranty, standard on all ABERY tools |
If your 2K design involves deep sliders, hydraulic actuation, metal inserts, or multi-material boundaries that require precise sequential mold timing — ABERY has the engineering infrastructure to make it work in production. Share your 3D files for a free DFM review covering slider sequence design, insert retention analysis, and 2K bond study.
Request 2K Molding Quote →
Upload CAD files · Specify insert type & thread standard · Receive DFM + quote in 3 hrs
Accepted formats: STEP, IGES, SolidWorks, CATIA, Pro/E, PDF 2D drawings.
