JCB construction equipment — excavators, backhoe loaders, telehandlers — operates in environments that are among the most electrically hostile in the commercial vehicle world: constant vibration from hydraulic and diesel systems, temperature swings from −20 °C overnight parking to +85 °C engine-bay heat soak, high-pressure water and mud ingress during washdowns, and occasional mechanical impact from debris. The electrical connectors that serve the truck's ECU, hydraulic control valves, and sensor networks must maintain contact integrity across all of these conditions — which is why JCB's electrical supply chain routinely specifies overmolded connector assemblies rather than bare connector housings.
This project produces a PBT GF20 overmolded connector assembly in which a standard MOLEX automotive connector (a pre-manufactured connector body with multiple precision metal terminal pins already installed) is placed in the injection mold as an insert, and PBT reinforced with 20% glass fiber is injected around it. The overmold serves three functions: mechanical strain relief (anchoring the wiring harness to the connector body and preventing wire pull-out from vibration), environmental sealing (the PBT overmold encapsulates the connector-to-harness interface and provides IP54/IP67 ingress protection), and structural mounting (the PBT shell forms the bracket features that attach the connector assembly to the truck chassis or ECU enclosure).
The defining manufacturing challenge of this project is the interaction between the MOLEX connector's metal terminal pins and the injection mold's shut-off surfaces. Each metal pin must protrude through a corresponding precision bore in the mold steel — these bores form the shut-off that prevents molten PBT from flowing onto the pin contact zone. With PBT GF20 at injection pressures of 80–120 MPa and melt viscosity significantly lower than unfilled PBT (glass fibers reduce viscosity by reducing polymer chain entanglement), any shut-off clearance greater than 0.005–0.008 mm allows PBT to flash onto the pin surface. Flash on a connector pin in a truck application means either a field electrical failure or a costly manual de-flashing operation — neither is acceptable to a JCB supply chain partner.
Parameter | Specification |
Process | Insert Molding (PBT GF20 overmold on pre-assembled MOLEX connector) |
Overmold Material | PBT (Polybutylene Terephthalate), 20% Short Glass Fiber (PBT GF20) |
Insert Type | MOLEX standard automotive connector body with precision metal terminal pins |
Pin Count | Multiple (per MOLEX connector series specification) |
Dimensional Tolerance | ±0.01 mm (pin shut-off bore diameter, mating face geometry) |
Pin Shut-Off Clearance | ≤ 0.005 mm (per-pin bore-to-pin diameter clearance) |
Environmental Sealing | IP54 minimum; IP67 achievable with gasket-assist design |
Operating Temperature | −40 °C to +130 °C (PBT GF20 standard automotive range) |
Vibration Resistance | Per JCB electrical specification (construction equipment duty cycle) |
Mold Type | 4-cavity, insert-loaded, hot runner |
Mold Steel | SKD61 (Japanese standard, equivalent to H13), full hardened (48–52 HRC) |
Mold Life | 1,000,000 shots |
Mold Cavities | 4 |
Mold Lead Time | 5–6 weeks (T1 sample) |
Production Lead Time | 10–15 business days (post-approved T1) |
Target Market | UK, Western Europe (JCB construction equipment supply chain) |
Applicable Standards | ISO 9001:2015 (ABERY certified); AEC-Q200 material-level (PBT GF20 automotive grade) |

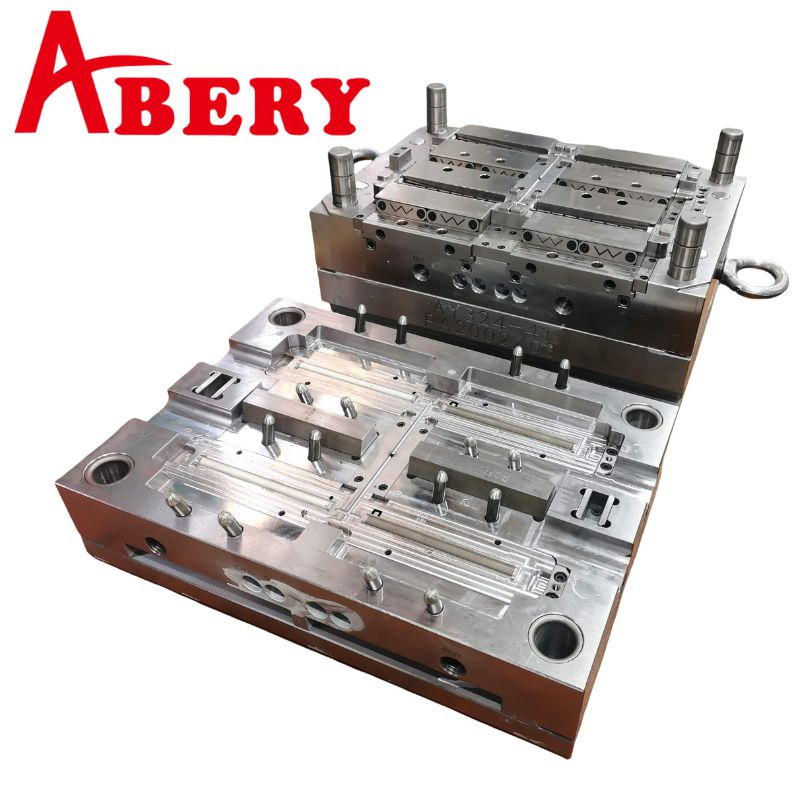

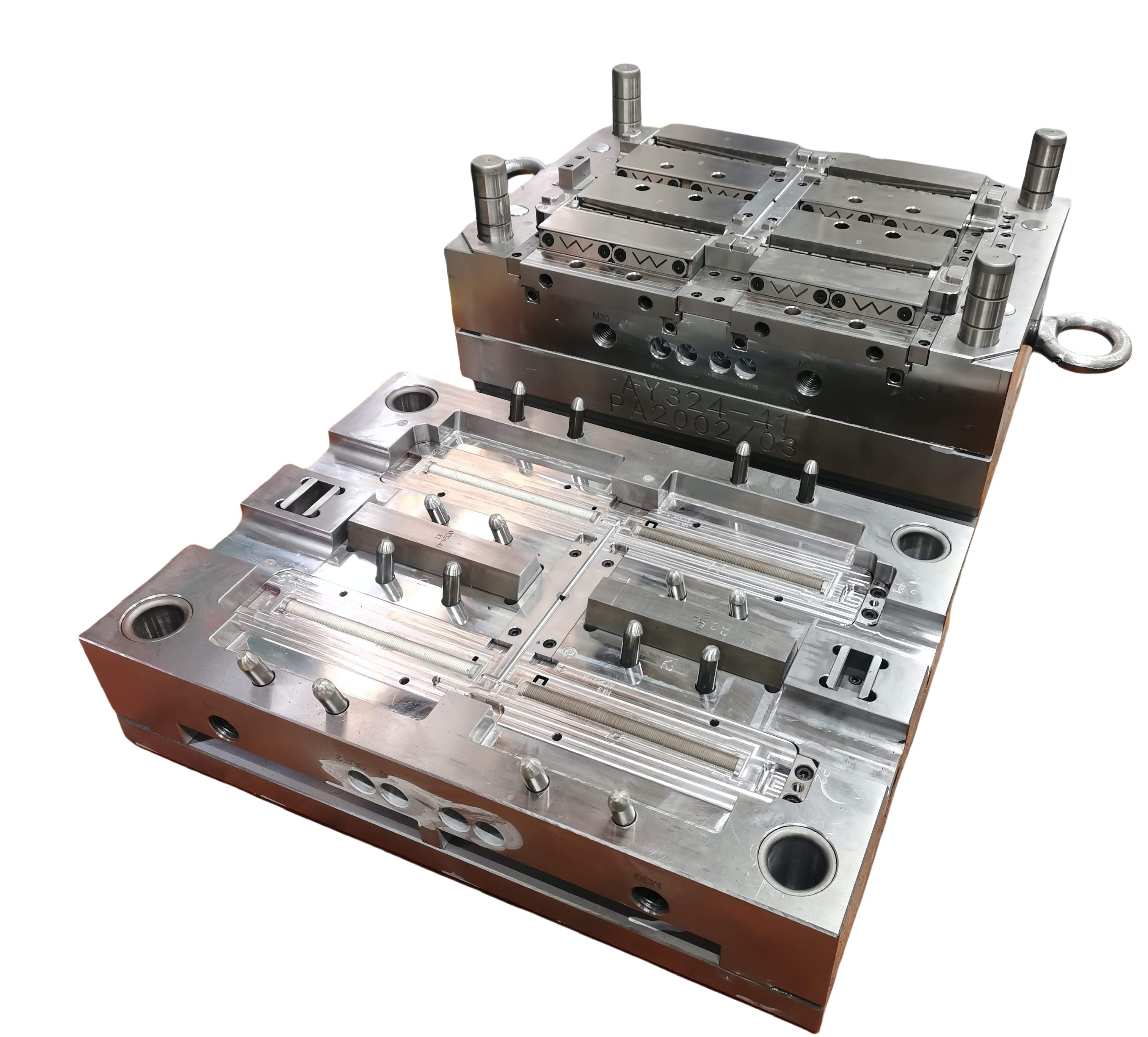

Isometric open-mold view of ABERY-built 4-cavity SKD61 tool (tool number AY324-41, material code PA2002/703 on mold plate). A-plate (upper, background): the top face reveals the cooling circuit layout — W-form serpentine cooling channels are visible across the full cavity footprint, indicating conformal-zone cooling designed to maintain uniform mold temperature across all four cavities simultaneously. Multiple precision pin-bore shut-off positions are visible as small circular features in the cavity face. B-plate (lower, foreground): the core side shows four elongated cavity impressions with transparent/clear T1 sample parts still seated in the cavities — confirming these are the MOLEX connector overmold bodies. Fine needle-type ejector pins are distributed across the cavity face. The mold stamp AY324-41 is clearly engraved on the B-plate face.
From ABERY's Insert Mold Engineering Team:
"Overmolding onto a MOLEX connector with live metal pins is one of the most unforgiving insert molding setups you can run. The MOLEX connector is a pre-manufactured precision part — the pin positions, pin diameters, and pin heights are all fixed by MOLEX's own tolerances, which are typically ±0.05 mm on pin position. Our mold's pin-bore shut-off positions must match those pin positions within ±0.005 mm to achieve leak-free shut-off. That means we have to account for the MOLEX part tolerance stack-up in our pin-bore layout design — we can't simply copy the nominal pin position from the connector drawing, because a MOLEX part at the +0.05 mm extreme of its tolerance band will mis-register against shut-off bores at nominal position by 0.05 mm. Our solution is to measure 50 MOLEX connector samples before cutting the mold, establish the actual pin position distribution, and cut our pin bores to the center of that distribution with a clearance of 0.003–0.005 mm per side. We also use SKD61 (equivalent to H13) for the shut-off zones rather than P20, because PBT GF20 under pressure is highly abrasive — glass fibers at the pin-bore entrance erode softer steels within 50,000 cycles, gradually opening the shut-off clearance and eventually producing flash. SKD61 at 48 HRC resists this erosion 4–5× longer than P20."
Challenge 1 — MOLEX Part-to-Part Tolerance Variation
The MOLEX connector supplied as the insert is a standard commercial part — it is not a precision-machined custom insert. Commercial connector parts have relatively wide tolerances (~±0.05 mm on pin position) by precision injection molding standards. This means that the pin shut-off bores in the mold must accommodate the full range of MOLEX part variation without opening to flash-producing clearance on the tight end, or closing to insertion-blocking interference on the loose end. ABERY addresses this by incoming inspection of MOLEX connector batches (pin position measured on CMM, 10 parts per incoming lot) and by designing pin-bore diameters to a clearance that accommodates the full ±0.05 mm MOLEX tolerance range while remaining below the 0.008 mm flash threshold.
Challenge 2 — PBT GF20 Flash Propagation at High Injection Pressure
PBT GF20 at processing conditions (melt temperature ~250–270 °C, injection pressure 80–120 MPa) has a low effective melt viscosity compared to unfilled PBT — the glass fibers disrupt the polymer chain network, reducing resistance to flow in thin-gap geometries. This is the opposite of what is usually assumed about filled materials: GF fills are not thicker in thin sections, they are thinner. At a pin shut-off clearance of 0.01 mm, unfilled PBT may not flash (too viscous to penetrate), but PBT GF20 at the same clearance can develop a thin PBT skin flash (glass fibers bridge the gap, PBT matrix flows through). ABERY's process control response is to use a fill velocity ramp-down profile: high velocity for the main cavity body, slowing to low velocity as fill approaches the pin shut-off zones — reducing injection pressure at the shut-off boundary.
Challenge 3 — Insert Positioning Repeatability in a 4-Cavity Tool
All four MOLEX inserts must be loaded into the mold simultaneously and reach their seated positions with pin registration accuracy better than ±0.01 mm, every cycle, for 1,000,000 cycles. ABERY uses a custom insert positioning fixture that cradles each MOLEX connector in a kinematic nest — three-point registration against the connector body locating features, not against the pins. This prevents pin damage during loading while achieving repeatable registration. An optical fiber sensor per cavity (integrated into the mold body) confirms insert presence and seating before the press closes. If any cavity shows an absent or mis-seated insert, the machine cannot close — preventing tool damage and insert-crush events.
Challenge 4 — Conformal Cooling for Multi-Cavity Uniform Shrinkage
PBT GF20 has relatively high crystalline shrinkage (~1.5–2.0% flow direction, ~2.0–2.5% cross-flow) — much higher than PA66 GF20. Differential shrinkage between the four cavities, if cooling is not uniform, causes warp in the connector bracket features and variation in the pin-emergence height above the PBT overmold face. ABERY uses a W-form serpentine cooling channel layout (visible in the mold photo) that snakes back and forth across all four cavities with a single continuous water circuit — ensuring that every cavity zone experiences the same water entry temperature, the same circuit length, and the same heat extraction rate. Cavity temperature is monitored by embedded thermocouples at T1 to confirm ±2 °C uniformity before production release.
PBT GF20 is the standard material for automotive connector overmold applications in European OEM specifications. The semi-crystalline PBT base provides chemical resistance to the hydraulic oils, diesel fuel, and cleaning solvents that JCB construction equipment connectors encounter in service. The GF20 reinforcement provides dimensional stability and stiffness for the strain-relief bracket features.
Property | PBT GF20 | PA66 GF20 | PP GF20 | PBT GF30 |
Tensile Strength | ~110 MPa | ~130 MPa | ~70 MPa | ~130 MPa |
Flexural Modulus | ~6,000 MPa | ~6,500 MPa | ~3,500 MPa | ~9,000 MPa |
Heat Deflection Temp (1.82 MPa) | ~210 °C | ~240 °C | ~120 °C | ~215 °C |
Water Absorption (23°C, sat.) | ~0.5% | ~2.5% | ~0.02% | ~0.4% |
Chemical Resistance (hydrocarbons) | Excellent | Moderate | Excellent | Excellent |
Dimensional Stability (wet/dry) | Excellent | Moderate | Good | Excellent |
UL94 V-0 (FR grade) | Available | Available | Available | Available |
Relative Material Cost | Medium | Medium | Low | Medium |
Why PBT over PA66 GF20 for this application? PA66 GF20 absorbs ~2.5% moisture at saturation — which on a dimensional basis means a 100 mm connector body can change size by 0.25 mm from dry-as-molded to fully saturated. For a connector overmold that must maintain pin-to-board registration over years of field exposure in wet construction environments, this dimensional change is unacceptable. PBT GF20's water absorption of ~0.5% reduces this dimensional drift 5× compared to PA66 GF20, making PBT the material of choice wherever connector dimensional stability in humid or water-contact environments is a specification requirement.
Why GF20 rather than GF30? GF30 would provide higher rigidity for the bracket features, but higher glass content increases melt abrasivity — accelerating wear at the precision pin shut-off bores. At GF30, the equivalent shut-off zone life would be approximately 60% of the GF20 case, requiring earlier mold maintenance intervals. For this production volume, GF20 provides adequate stiffness while maximizing pin shut-off zone service life between refurbishments.
JCB excavators, backhoe loaders, telescopic handlers, and compact tracked loaders — specifically the ECU connector harness assemblies, hydraulic valve solenoid connectors, and sensor interface connectors that operate in direct contact with hydraulic oil, mud, and high-pressure washer jets. The PBT GF20 overmold's hydrocarbon resistance directly addresses the hydraulic oil spray environment that undercarriage connectors face.
Heavy truck (HGV) chassis connectors, trailer interface connectors, and agricultural tractor harness strain relief assemblies. The UK commercial vehicle market — one of the largest in Europe — drives significant demand for MOLEX-compatible overmolded connector bodies built to automotive connector industry standards (ISO 20653 for weather resistance, USCAR-2 for electrical performance).
Combine harvester control system connectors, tractor ISOBUS connector assemblies, and construction crane load management system connectors. Off-highway equipment shares the JCB duty cycle: vibration, outdoor temperature extremes, and chemical exposure from agricultural pesticides/fertilizers that attack PA but not PBT.
M12 and M8 sensor connectors, servo drive feedback connector assemblies, and industrial Ethernet (EtherNet/IP, PROFINET) field device connectors. The MOLEX overmold process developed for this truck application is directly transferable to industrial connector formats where a standard connector body is overmolded with a protective PBT shell for IP67 field deployment.
Week 1
├── DFM Review & MOLEX Connector Registration Study
│ ├── Customer provides 3D files (MOLEX connector reference + PBT overmold body)
│ ├── ABERY measures 50× MOLEX connector samples: CMM pin position survey
│ ├── Establish pin position distribution → set pin-bore clearance design
│ ├── W-form cooling circuit layout design (uniform temperature all 4 cavities)
│ ├── Insert positioning fixture design (kinematic nest, 3-point registration)
│ ├── Gate location optimization: fill velocity ramp near pin shut-off zones
│ └── DFM report + quotation delivered free of charge
Week 2–5
├── Mold Fabrication
│ ├── SKD61 steel procurement and rough machining (all blocks)
│ ├── MAKINO 5-axis CNC: main cavity geometry, cooling circuit channels
│ ├── SODICK wire EDM: pin-bore shut-off features (clearance ±0.003 mm)
│ ├── AG Charmilles sinker EDM: connector body seating nest geometry
│ ├── SKD61 hardening + tempering (48–52 HRC) for all cavity and core blocks
│ ├── Insert positioning fixture fabrication and fit-test with MOLEX samples
│ ├── Optical sensor installation (cavity presence detection, 4 sensors)
│ └── Mold assembly, bench fit, hot runner commissioning
Week 6
├── T1 Sample Production
│ ├── Insert loading drill: 4× MOLEX inserts, fixture-loaded, sensor verification
│ ├── First shots: low-pressure fill study (check for premature flash at pin bores)
│ ├── Full-process T1 shots: flash inspection on all pin zones (microscope)
│ ├── CMM dimensional: pin emergence height, overmold bracket features
│ ├── Pull-out force test: wire harness pull-out force vs. customer spec
│ ├── IP rating test: IP54 air pressure leak test at overmold seal interface
│ └── T1 sample shipment to UK customer
Week 7
├── T1 Review & Field Validation
│ ├── Customer connector mating test (pin insertion, retention force)
│ ├── Vibration screening test per JCB supplier specification
│ └── Mold corrections if required (ABERY T2 guarantee)
Week 8+
└── Mass Production
├── 4-cavity output per cycle (cycle time ~25–35 sec for PBT GF20)
├── 100% optical sensor insert-presence verification per cycle
├── Flash inspection: AQL 1.0 microscope check on pin zones per batch
├── Pull-out force sampling: 5 parts per lot
└── Delivery: sea/air to UK customerQ1: What is the difference between overmolding onto a MOLEX connector versus standard insert molding with custom metal pins?
In standard insert molding (as in automotive ECU connector housings), the metal pins are custom-manufactured to match the mold's insert seats exactly — the mold designer controls pin diameter, pin position, and pin tolerance from the outset. Overmolding onto a pre-manufactured MOLEX connector is different: MOLEX is a commercial standard part with its own dimensional tolerances that the mold maker must accommodate without being able to change. This means the mold's pin shut-off bores must be designed around the observed variation in actual MOLEX parts — not around an ideal nominal drawing. ABERY's approach of measuring 50 MOLEX samples before mold design begins is the key step that most mold makers skip, and the step that determines whether the finished tool produces flash-free pins across the full range of MOLEX part variation.
Q2: How does ABERY prevent PBT from flashing onto the metal pin contact zones?
Three mechanisms work together: (1) pin-bore clearance is designed to ≤ 0.005 mm per side based on actual MOLEX pin diameter measurement — not the nominal drawing value; (2) SKD61 hardened steel is used for all pin shut-off zones — softer steels wear faster under abrasion from GF20 glass fibers and gradually open the clearance; (3) injection velocity is ramped down as the melt front approaches the pin shut-off zones — reducing the hydrostatic pressure at the shut-off boundary from ~100 MPa (peak filling pressure) to ~40–60 MPa (slower-fill pressure), which is below the threshold for PBT GF20 to penetrate a 0.005 mm clearance. All three mechanisms are necessary together — relying on only one or two typically results in flash on higher-than-nominal MOLEX parts.
Q3: Can ABERY handle MOLEX connector types other than the one in this project?
Yes. ABERY has the CMM capability and insert positioning fixture design process to accommodate any standard MOLEX automotive connector series, as well as other major connector brands (TE Connectivity/AMP, Delphi/Aptiv, Yazaki, Sumitomo). The pre-production sample measurement process is standard for any MOLEX overmold project. For connectors with tighter pin tolerances than MOLEX (e.g., high-pin-count HDR/HDMI connectors), the same process applies with tighter incoming inspection criteria.
Q4: What IP rating does the PBT GF20 overmold achieve?
The baseline overmold design achieves IP54 (dust protected + splash water resistant) through the PBT overmold encapsulation of the connector-to-harness interface. IP67 (dust tight + temporary immersion to 1 m) is achievable with the addition of a co-molded elastomeric gasket or a secondary silicone seal at the connector mating face — a design modification ABERY has implemented for customers requiring IP67 in underbody mounting locations. The IP rating is tested per ISO 20653 (connectors on road vehicles) using an air pressure leak test fixture built by ABERY for customer T1 approval.
Q5: How does the construction equipment operating environment affect connector specification?
JCB construction equipment electrical connectors face four primary environmental stressors not present in typical automotive (passenger car) applications: (1) Vibration: construction equipment experiences high-amplitude, low-frequency vibration from diesel engine harmonics and terrain driving — more severe than automotive powertrain vibration; (2) Pressure washing: JCB machines are cleaned with high-pressure water jets, requiring connectors to withstand 100 bar water jet impingement (per ISO 20653 test code 5K); (3) Chemical exposure: hydraulic oil, diesel fuel, and biodegradable hydraulic fluids in the European agricultural market are all in contact with harness connectors; (4) Temperature extremes: outdoor equipment parked overnight in UK winter at −20 °C, heating to +85 °C in engine bay during operation. PBT GF20 meets all four stressors; PA66 GF20 does not meet the hydrocarbon chemical resistance requirement reliably.
Q6: Can ABERY supply this assembly with the MOLEX connectors, or does the customer source them separately?
ABERY's standard model is for the customer to supply the MOLEX connectors as a customer-furnished component (CFI), and ABERY performs the overmolding. This preserves the customer's existing MOLEX sourcing relationship and supply chain. For customers who prefer a fully turnkey supply (MOLEX procurement + overmolding + shipping), ABERY can arrange MOLEX procurement through established distribution channels — subject to the customer's approval of ABERY as the MOLEX authorized ordering point. Turnkey supply is available but typically adds 2–4 weeks to lead time for initial MOLEX procurement qualification.
Capability | Standard Insert Molder | ABERY |
MOLEX part tolerance study | Uses nominal drawing only | CMM measures 50× MOLEX samples; designs pin-bore clearance to actual distribution |
Pin shut-off steel | P20 or pre-hardened (wear risk at GF20 abrasion) | SKD61 full hardened (48–52 HRC) — 4–5× longer shut-off life vs. P20 |
Flash prevention at pin zones | Visual inspection after the fact | Process-designed prevention: velocity ramp-down at pin shut-off boundary |
Insert presence verification | Operator visual check | 4× optical fiber sensors (in-mold, per cavity) — press cannot close without all inserts |
4-cavity cooling uniformity | Standard straight-drill water lines | W-form serpentine conformal cooling — ±2 °C cavity temperature uniformity |
IP rating validation | Not standard | IP54 air pressure leak test fixture built for T1 approval |
Vibration resistance validation | Not tested at mold maker | Wire pull-out + vibration screening per JCB supplier spec at T1 |
UK market reference | General claim | Validated JCB truck supply chain project; available for reference upon NDA |
DFM for MOLEX overmold | Generic | Includes MOLEX part measurement study + insert fixture design |
Mold life warranty | Limited | Lifetime warranty, standard on all ABERY tools |
ABERY's insert molding team specializes in precision shut-off around commercial connector pins — including the pre-production MOLEX sample measurement study that prevents flash from day one. Share your MOLEX part number and overmold body drawing for a free DFM review and 3-hour quotation.
