Water filter caps are among the most mechanically demanding threaded plastic parts in the fluid management industry. A residential water purifier filter cap is replaced every 3–6 months, is threaded and unthreaded by end users who may apply incorrect torque, and must maintain a leak-free seal at the filter cartridge interface across wide temperature variations (cold tap water in French winters, hot water in summer plumbing temperatures). The combination of these requirements — tight thread tolerance, high repetitive mechanical stress, dimensional stability in wet conditions — drives the material selection toward glass-fiber reinforced PP rather than unfilled PP.
This project produces a 2-cavity automatic unscrewing injection mold for a France-market water filter OEM, producing filter caps in PP reinforced with 20% short glass fiber (PP GF20). The glass fiber reinforcement addresses the two main weaknesses of unfilled PP in this application: creep resistance (unfilled PP creeps under sustained thread engagement stress, causing the cap to loosen over time) and dimensional stability in the presence of water (GF20 reduces moisture-induced dimensional change to negligible levels, maintaining thread gauge through the filter's service life).
The mold incorporates two breakthrough engineering features that together enable both superior part quality and competitive cycle time: a precision gear-rack automatic unscrewing system that rotates the threaded cores synchronously during mold opening — eliminating the stripped-thread and part-drag failures that plague manually-actuated or hydraulic unscrewing systems — and beryllium copper threaded cores that conduct heat away from the thread profile at 3× the rate of conventional P20 or H13 steel, solving the cooling limitation inherent in the narrow-diameter, deep-reach geometry of threaded mold cores.
Parameter | Specification |
Process | Injection Molding with Automatic Unscrewing Mechanism |
Material | PP (Polypropylene) + 20% Short Glass Fiber (PP GF20) |
Application | Water filter replacement cap (residential/commercial water purifiers) |
Dimensional Tolerance | ±0.01 mm (thread pitch diameter, sealing face) |
Thread Release Method | Automatic gear-rack drive — synchronized rotation during mold opening |
Mold Type | 2-cavity, automatic unscrewing, hot runner |
Mold Steel (Main Cavity/Core) | H13, full hardened (48–52 HRC) |
Threaded Core Material | Beryllium Copper (BeCu, CDA 172 equivalent) |
BeCu Core Thermal Conductivity | ~105–115 W/m·K (vs. ~30 W/m·K for H13 steel) |
Mold Life | 1,000,000 shots (H13 standard; BeCu cores periodic inspection) |
Mold Cavities | 2 |
Cycle Time Advantage | ~15–20% shorter than conventional steel-core unscrewing tool (BeCu cooling) |
Mold Lead Time | 5–6 weeks (T1 sample) |
Production Lead Time | 10–15 business days (post-approved T1) |
Target Market | France, Western Europe |
Applicable Standards | ISO 9001:2015 (ABERY certified); NSF/ANSI 61 material-level (PP GF20 food/water contact grade) |

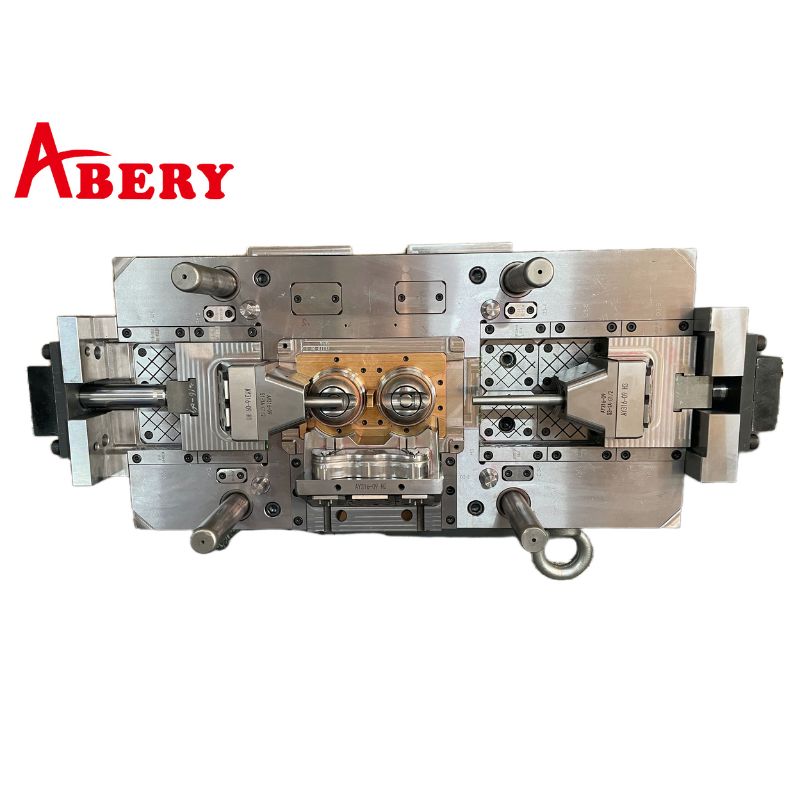

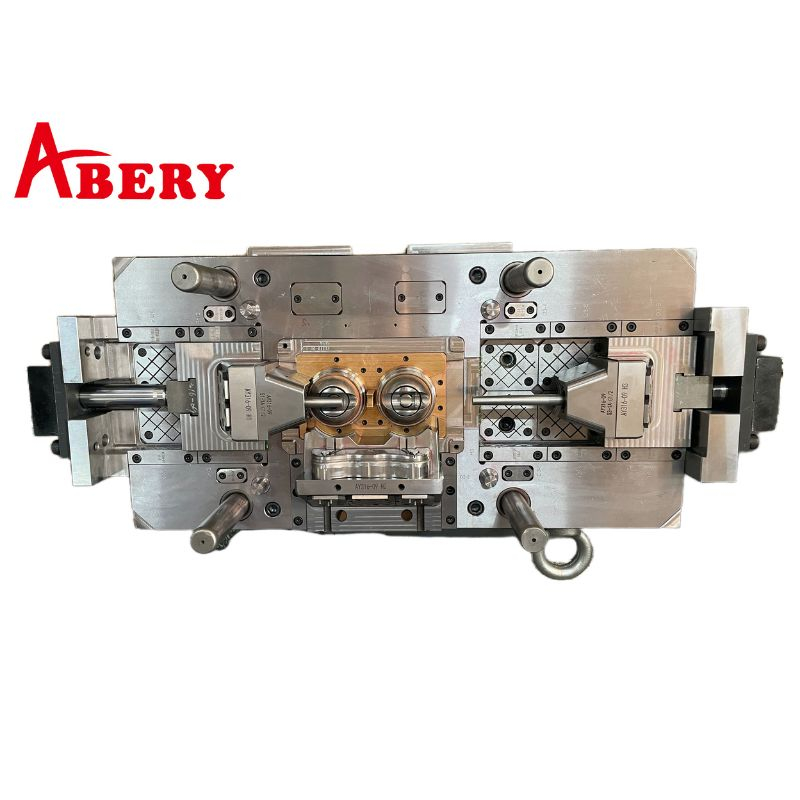

Top-down view of the ABERY-built 2-cavity automatic unscrewing mold (tool number AY316-09) in open/parted configuration. The two circular mirror-polished threaded cores are prominently visible at center — these are the beryllium copper cores that form the internal thread profile of each filter cap. The precision gear-rack drive system is visible in the center partition between the two cavities, with rack teeth and pinion gears that synchronously rotate both cores during mold opening. Four large side-action sliders (diamond-knurl faced, two per side) provide the external profile forming and are visible at the four lateral positions. ABERY tool numbering (AY316-09 H1/H2/H3/H4) is stamped on each component block. ABERY brand logo in the top-left confirms in-house tool manufacture.
From ABERY's Unscrewing Mold Engineering Team:
"The standard problem with automatic unscrewing molds for glass-fiber reinforced materials is cycle time. In a standard unscrewing tool, the threaded core is the last feature to cool — it's a solid cylinder of steel surrounded on all sides by hot plastic, and you can't run a cooling water channel through the center of a threaded core without compromising the thread geometry or creating a stress concentration that cracks the core during the unscrewing torque. So you end up waiting for the plastic thread to cool enough to release without stripping — which can easily add 8–12 seconds to your cycle time on a deep thread. The solution we use for this France customer's filter cap is beryllium copper cores. BeCu has roughly 3–4× the thermal conductivity of H13 steel — so even without an internal water channel, the BeCu core conducts heat outward into the surrounding mold steel much faster. The result is that the thread profile cools to release temperature 15–20% faster than a conventional steel core, cutting cycle time without changing the part or the process. The BeCu cores require more careful maintenance (they're softer than H13, so thread surface inspection every 50,000 cycles), but for the production volumes this customer runs, the cycle-time saving more than justifies the additional maintenance overhead."
Challenge 1 — Precision Gear Synchronization for Two-Cavity Unscrewing
Both threaded cores must rotate by exactly the same number of turns, at the same rate, during mold opening — otherwise one cap unscrews before the other, creating a torsional load imbalance that causes the faster-releasing part to drag laterally and potentially strip its thread. ABERY's gear-rack system uses a single rack (driven by the mold opening stroke) that simultaneously drives both pinion gears at the same linear displacement, guaranteeing synchronized rotation. The gear backlash is controlled to < 0.01 mm to prevent rotational lag between cores. Thread lead and gear ratio are matched so the core completes exactly the correct number of turns for full thread disengagement at the moment the mold reaches full open position.
Challenge 2 — PP GF20 Thread Stripping During Release
Glass fibers in PP GF20 are oriented by injection flow — in a cylindrical part like a filter cap, fibers tend to align circumferentially around the thread helix. This orientation actually improves hoop strength (resistance to the cap splitting under clamp torque) but can increase thread pull-out resistance during mold release, because the fiber-reinforced thread flanks are stiffer than unfilled PP. The automatic unscrewing system must generate sufficient rotational torque to overcome this resistance without stripping the thread or deflecting the core. ABERY's gear drive is designed with a torque safety margin of 2.5× the calculated thread release torque at worst-case part temperature.
Challenge 3 — Water Contact Compliance for Filter Cap Material
The filter cap contacts potable water — the PP GF20 material must comply with water contact standards applicable in the French market (French ACS certification, equivalent to NSF/ANSI 61 for plastics in contact with drinking water). This imposes constraints on the material formulation: pigments, stabilizers, and processing additives must all be from the approved list for water-contact plastics. ABERY specifies only water-contact-grade PP GF20 resins (with ACS/NSF certification documentation) and uses no mold release agents in production — relying entirely on the automatic unscrewing mechanism and correct draft angles for part release.
Challenge 4 — Sealing Face Flatness and Thread Gauge Maintenance
A water filter cap's primary sealing function depends on the flatness of the sealing face (the annular face that compresses the O-ring or gasket against the filter housing) and the accuracy of the thread pitch diameter. PP GF20 has lower shrinkage than unfilled PP (~0.4–0.6% vs. ~1.5–2.0% for unfilled PP), but shrinkage anisotropy (different shrinkage in flow direction vs. perpendicular to flow) still creates a risk of sealing-face warp. ABERY controls this through balanced gate location (single pin gate at the cap center, allowing symmetric radial flow), extended pack-and-hold time, and uniform water temperature across the mold platen (±2 °C differential from operator-side to machine-side cooling circuits).
Polypropylene with 20% glass fiber is the standard engineering material for industrial-grade water filter caps. Unfilled PP is widely used for low-cost residential filter caps, but for filter caps that must maintain thread integrity over repeated installation cycles and resist deformation under sustained clamping load, GF20 reinforcement is the standard upgrade:
Property | PP GF20 | PP (Unfilled) | PA6 GF20 | POM |
Tensile Strength | ~70 MPa | ~30 MPa | ~130 MPa | ~65 MPa |
Flexural Modulus | ~3,500 MPa | ~1,400 MPa | ~6,000 MPa | ~2,700 MPa |
Creep Resistance (sustained load) | Good | Poor | Excellent | Good |
Water Absorption (23°C, 24h) | ~0.02% | ~0.02% | ~1.0% | ~0.25% |
Chemical Resistance (chlorinated water) | Excellent | Excellent | Moderate | Good |
Water Contact Compliance (ACS/NSF 61) | Certifiable | Certifiable | Not standard | Certifiable |
Processing Shrinkage | ~0.4–0.6% | ~1.5–2.0% | ~0.4–0.6% | ~1.8–2.2% |
Relative Material Cost | Low | Very Low | Medium | Medium |
Why not PA6 GF20? PA6 GF20 offers higher tensile strength and rigidity, but PA6's water absorption (~1.0%) causes significant dimensional change in the thread zone when the cap is in continuous water contact — potentially causing thread gauge drift over the filter's 3–6 month service life. PP's near-zero water absorption (~0.02%) makes it the preferred material for water-contact threaded components.
Why not POM? POM is excellent for precision threaded parts but has lower chemical resistance to chlorinated water (common in European municipal water supplies) and requires more careful processing to avoid formaldehyde release during degradation — adding process monitoring overhead. PP GF20 provides adequate mechanical performance for this application at lower cost and with simpler process control.
Undersink filter cartridge caps, countertop water filter housing caps, refrigerator inline filter end caps. The France-market water purification industry is one of the most demanding in Europe for cap quality — French consumers replace filter cartridges frequently and expect smooth threading with no cross-thread risk, leak-free sealing over the full service life, and no taste/odor impact from the cap material (requiring water-contact-grade PP).
Whole-house filter housings, commercial foodservice water filtration systems, laboratory pure-water system filter caps, and industrial process water prefilter caps. PP GF20 is the standard material for commercial filter caps that must withstand higher cartridge change frequencies and higher system pressures than residential units.
Drip irrigation filter caps, agricultural water treatment module end caps, and horticulture fertigation filter heads. These applications require excellent UV resistance (outdoor exposure) — PP GF20's inherent UV resistance (better than PA or PC) is an advantage in outdoor agricultural deployments.
Cooling tower water filter caps, boiler pre-treatment filter housings, and chiller water conditioning system filter ends. These applications contact water with dissolved mineral treatment chemicals — PP GF20's chemical resistance to common scale inhibitors, biocides, and pH adjustment agents makes it suitable where PA or POM may experience chemical attack.
Week 1
├── DFM Review & Thread Specification Confirmation
│ ├── Customer provides 3D files + thread specification (pitch, lead, class)
│ ├── ABERY verifies thread geometry against PP GF20 shrinkage model
│ ├── Gear ratio calculation: mold-open stroke → core rotation turns → thread disengagement
│ ├── BeCu core thermal simulation: cycle time estimate vs. H13 baseline
│ ├── Sealing face flatness analysis: gate location optimization
│ └── DFM report + quotation delivered free of charge
Week 2–5
├── Mold Fabrication
│ ├── H13 steel procurement (cavity/core blocks + all sliders) — rough machining
│ ├── MAKINO 5-axis CNC: cavity profiles, slider geometry
│ ├── SODICK wire EDM: gear teeth profiles (backlash < 0.01 mm), slider fits
│ ├── BeCu core blanks procurement, precision turning of thread profile
│ │ └── Thread form ground to ±0.005 mm pitch accuracy
│ ├── H13 hardening and tempering (48–52 HRC), BeCu aging treatment
│ ├── Gear-rack assembly and synchronization test (dry-run, no plastic)
│ └── Hot runner commissioning, cooling circuit pressure test
Week 6
├── T1 Sample Production
│ ├── Gear drive synchronization verification (both cores, 50 dry cycles)
│ ├── First PP GF20 shots: fill study, gate blush check on sealing face
│ ├── Thread gauge measurement (pitch diameter, major diameter, minor diameter)
│ ├── Sealing face flatness: CMM measurement (target: ≤ 0.05 mm flatness error)
│ ├── Water contact compliance: material certificate, no mold release confirmation
│ ├── Torque test: thread engagement/disengagement torque vs. customer spec
│ └── T1 sample shipment to France customer
Week 7
├── T1 Review & Thread Qualification
│ ├── Customer thread fit test with filter housing mating part
│ ├── Seal integrity test (hydrostatic pressure, per customer spec)
│ └── Mold corrections if required (ABERY T2 guarantee)
Week 8+
└── Mass Production
├── 2-cavity output per cycle, cycle time ~30–35 sec (BeCu core advantage)
├── Thread gauge go/no-go check: AQL 1.0 per production batch
├── BeCu core surface inspection: every 50,000 cycles
└── Delivery: sea/air to France customer warehouseQ1: What is a beryllium copper threaded core, and why does it improve cycle time?
A beryllium copper (BeCu) core is a threaded mold insert machined from beryllium copper alloy (typically CDA 172, ~1.9% Be content) instead of conventional P20 or H13 tool steel. Beryllium copper has a thermal conductivity of ~105–115 W/m·K — approximately 3–4× higher than H13 steel (~30 W/m·K). In a threaded core, where the geometry prevents running internal water channels, this means BeCu conducts heat from the plastic thread profile outward to the surrounding cooled mold steel much faster than a conventional steel core can. The practical result is that the plastic thread reaches the ejection temperature 15–20% faster — directly reducing cycle time. For a 2-cavity tool running 3 million cycles annually, a 15% cycle time reduction translates to roughly 450,000 additional parts per year at no additional press-time cost.
Q2: Is beryllium copper safe for water-contact food applications?
In the ABERY manufacturing process, beryllium copper is used as the mold core material — it forms the mold cavity, not the final plastic part. The plastic part (PP GF20) never contains beryllium; it contacts only PP and glass fiber. The BeCu core is a tooling material, not a food-contact material. The PP GF20 resin ABERY uses for water filter caps is water-contact grade with ACS (France) and NSF/ANSI 61 (USA equivalent) documentation confirming suitability for potable water contact. BeCu as a mold material is an industry-standard practice and does not affect part safety.
Q3: How does the automatic gear-rack system prevent thread stripping during release?
Thread stripping during mold release occurs when the core is pulled axially before completing its full unscrewing rotation — the thread flanks shear instead of sliding. ABERY's gear-rack system prevents this by coupling the unscrewing rotation entirely to the mold-open linear stroke: the rack is mechanically connected to the mold platens, so the core cannot move axially until the rotational sequence (driven by the rack-and-pinion mechanism) has completed the correct number of turns for full thread disengagement. There is no independent hydraulic cylinder that might stroke before the rotation completes. The only way thread stripping can occur is if the gear system loses a tooth — which ABERY prevents with H13 gear teeth (not softer P20 or standard steel) and a gear backlash inspection at every 100,000-cycle maintenance interval.
Q4: How do you maintain thread gauge consistency across 1,000,000 shots?
Thread gauge consistency over the tool life depends primarily on: (1) mold steel hardness — H13 at 48–52 HRC resists thread profile wear far better than P20 at 30–35 HRC; (2) BeCu core maintenance — BeCu is softer than H13 (~35–40 HRC), so BeCu thread surfaces are inspected every 50,000 cycles under a calibrated optical comparator for wear on the thread flanks; (3) process stability — PP GF20 shrinkage is highly repeatable when melt temperature, mold temperature, and pack pressure are held within ±5% of nominal. ABERY's production logging records all three process variables per batch, allowing thread gauge drift to be correlated with any process excursion before it causes an out-of-spec batch.
Q5: Can ABERY supply this part with ACS water-contact certification documentation?
Yes. ABERY provides material-level documentation: the PP GF20 resin lot certificate from the resin manufacturer, confirming ACS (Attestation de Conformité Sanitaire, France) or NSF/ANSI 61 compliance. This documentation covers the base resin, colorants, and stabilizer package — all of which must be from the approved water-contact materials list. ABERY does not independently hold ACS certification (that is the end-product OEM's responsibility), but we provide the complete sub-component material traceability package needed for the customer's ACS product declaration.
Q6: What is ABERY's approach to glass fiber orientation and its effect on thread gauge?
In a rotationally symmetric part like a filter cap, injection from a central pin gate produces radially symmetric flow — glass fibers orient primarily in the radial direction in the base zone and circumferentially in the outer wall zone. Circumferential fiber orientation in the thread zone is beneficial for hoop strength (resistance to cap splitting) but may marginally increase thread engagement torque due to higher stiffness. ABERY accounts for this in the mold DFM by calculating thread release torque at the highest expected fiber orientation and setting the gear drive safety margin accordingly. Thread gauge is validated by CMM measurement on the T1 samples and compared to the nominal thread specification with GF20 shrinkage corrections applied.
Capability | Standard Unscrewing Mold Maker | ABERY |
Core material | P20 or H13 steel only | Beryllium copper cores for maximum cooling in thread zones |
Cycle time | Baseline (limited by steel core cooling) | 15–20% faster via BeCu thermal conductivity advantage |
Gear system precision | Standard machined gears (backlash ~0.05 mm) | SODICK EDM gear teeth, backlash < 0.01 mm |
Thread synchronization (2-cavity) | Manual adjustment or hydraulic (drift risk) | Single-rack mechanical drive: inherently synchronized, no drift |
Mold steel for cavity/core | P20 (typical for cost) | H13 full hardened (48–52 HRC) — 1M shot tool life |
Water-contact material compliance | Informal claim | ACS/NSF 61 material-level documentation package provided |
Mold release agent use | Silicone or spray release | Zero release agents — gear drive and BeCu surface finish eliminate need |
France market reference | General claim | Validated project; France after-sales office supports customer logistics |
DFM for thread geometry | Charged separately | Free, includes gear ratio calculation and BeCu vs. steel thermal analysis |
Mold life warranty | 1 year or limited shots | Lifetime warranty, standard on all ABERY tools |
ABERY specializes in automatic unscrewing molds for precision-threaded industrial components — including beryllium copper core solutions for short-cycle, high-volume production. Share your thread specification and part drawing for a free DFM review, gear ratio calculation, and cycle-time estimate.
