Water pump top housings in the residential and commercial building services sector must serve as structural frames, fluid manifolds, and sealing interfaces simultaneously. This Russia-market pump housing connects multiple pipe ports — for water inlet, outlet, pressure bypass, and sensor connections — in a single injection-molded part. Each port requires: a precisely positioned brass threaded insert to provide the metal-to-metal thread engagement that resists the torque of pipe fitting installation, structural geometry around the port boss to withstand the bending moment of a torqued fitting, and an internal fluid passage that must be formed by a deep mold core reaching in from the relevant pipe-port direction.
The result is a mold design of significant mechanical complexity: three separate deep-reach slider mechanisms, each actuated by its own hydraulic cylinder, operating in three non-parallel directions (left lateral, right lateral, and vertical — from the image geometry). The three sliders must actuate in a defined sequence during both mold opening and closing — a sequential hydraulic interlock is mandatory because simultaneous actuation would cause slider-to-slider interference in the tool parting zone. Additionally, six brass threaded nuts are pre-loaded into the mold at six different insert positions before each injection cycle, requiring a systematic insert loading protocol to ensure zero missing or mis-seated inserts.
The part is molded in PA (Nylon) GF20 — the combination of glass-fiber reinforced Polyamide that balances structural stiffness for the pipe port bosses, impact toughness for the housing body, and dimensional stability in continuous water contact for the pipe-thread zones. All six brass inserts use knurled + flanged geometry for mechanical interlock, with the PA GF20 gripping the knurled surface as it cools and shrinks — achieving pull-out resistance far superior to post-mold press-in inserts.
Parameter | Specification |
Process | Injection Molding with Pre-Loaded Brass Inserts |
Material | PA (Nylon), 20% Short Glass Fiber (PA GF20) |
Color | Black |
Dimensional Tolerance | ±0.01 mm (insert position, port boss geometry, mating face) |
Insert Type | Brass threaded nuts (×6) — knurled + flanged, multiple thread standards |
Insert Pull-Out Force | ≥ 800 N per insert (ABERY production QC protocol) |
Mold Type | Single-cavity, insert-loaded, H13 full hardened |
Slider Configuration | 3× hydraulic deep sliders (left lateral, right lateral, vertical-down) |
Slider Actuation | Independent hydraulic cylinders — sequential interlock, not simultaneous |
Mold Cavities | 1 |
Mold Steel | H13, full hardened (48–52 HRC) — all cavity, core, and slider blocks |
Mold Life | 1,000,000 shots |
Mold Lead Time | 7–8 weeks (T1 sample — extended for hydraulic circuit integration) |
Production Lead Time | 10–15 business days (post-approved T1) |
Operating Temperature | −20 °C to +90 °C continuous (pump operating range) |
Target Market | Russia, CIS, Eastern Europe |
Applicable Standards | ISO 9001:2015 (ABERY certified) |

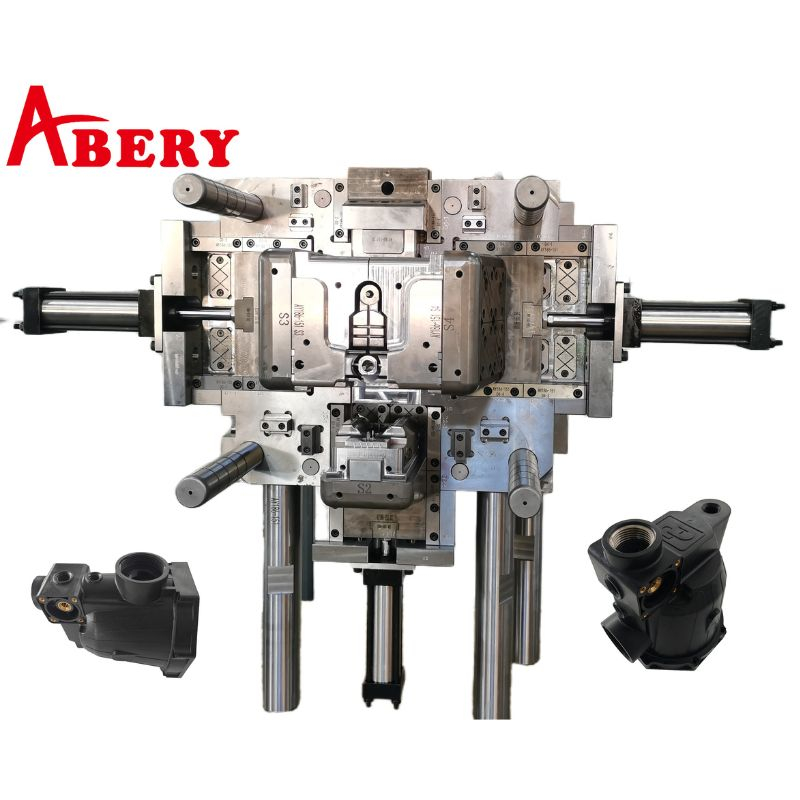

Combined mold-and-part display image. Center: ABERY single-cavity H13 mold (tool number AY186-151) in open B-plate-forward orientation. Three hydraulic cylinders are prominently visible — one protruding left, one protruding right (both horizontal, driving lateral deep sliders), and one projecting downward (driving the vertical slider). Slider blocks labeled S2, S3, S4 are visible in the central cavity face. The mold footprint is large relative to the ejector guide pillar diameter, reflecting the hydraulic cylinder envelope requirements. Lower left: black PA GF20 pump housing sample from the left-front angle — L-shaped manifold profile, brass threaded insert visible on the lateral pipe port face, multiple mounting boss holes. Lower right: same housing from the opposite rear angle — the large brass female-threaded pipe connection insert (upper port) is prominently visible, and the complex three-dimensional body geometry with multiple boss features is clear. ABERY brand logo top left.
From ABERY's Insert Mold Engineering Team:
"Six brass inserts in a single-cavity pump housing mold sounds straightforward until you lay out where they all go: three of them are on the faces of the three deep slider blocks — one insert per slider — and the other three are on the main cavity face. The slider-face inserts are the difficult ones. When you load a brass nut onto a slider face and the slider advances to close, the insert travels with the slider and must end up in exactly the right position relative to the main cavity, with the insert's threaded bore perfectly co-axial with the corresponding insert seat in the main core. If the insert position drifts 0.05 mm off-center during the slider advance stroke, the finished part has a pipe thread that's not concentric with the housing bore — and the customer's pipe fitting will not seal correctly. We control this by designing a kinematic registration nest directly into each slider face: the brass nut drops into a three-point nest that constrains all six degrees of freedom, and a spring-loaded retention pin holds the nut through the full slider advance stroke. On the main cavity side, we also use a quick-change insert loading tray that loads all three main-cavity brass nuts simultaneously — which cuts the insert loading time per cycle by 40% compared to loading them individually and eliminates the risk of a loading sequence error."
Challenge 1 — Three-Direction Sequential Hydraulic Actuation

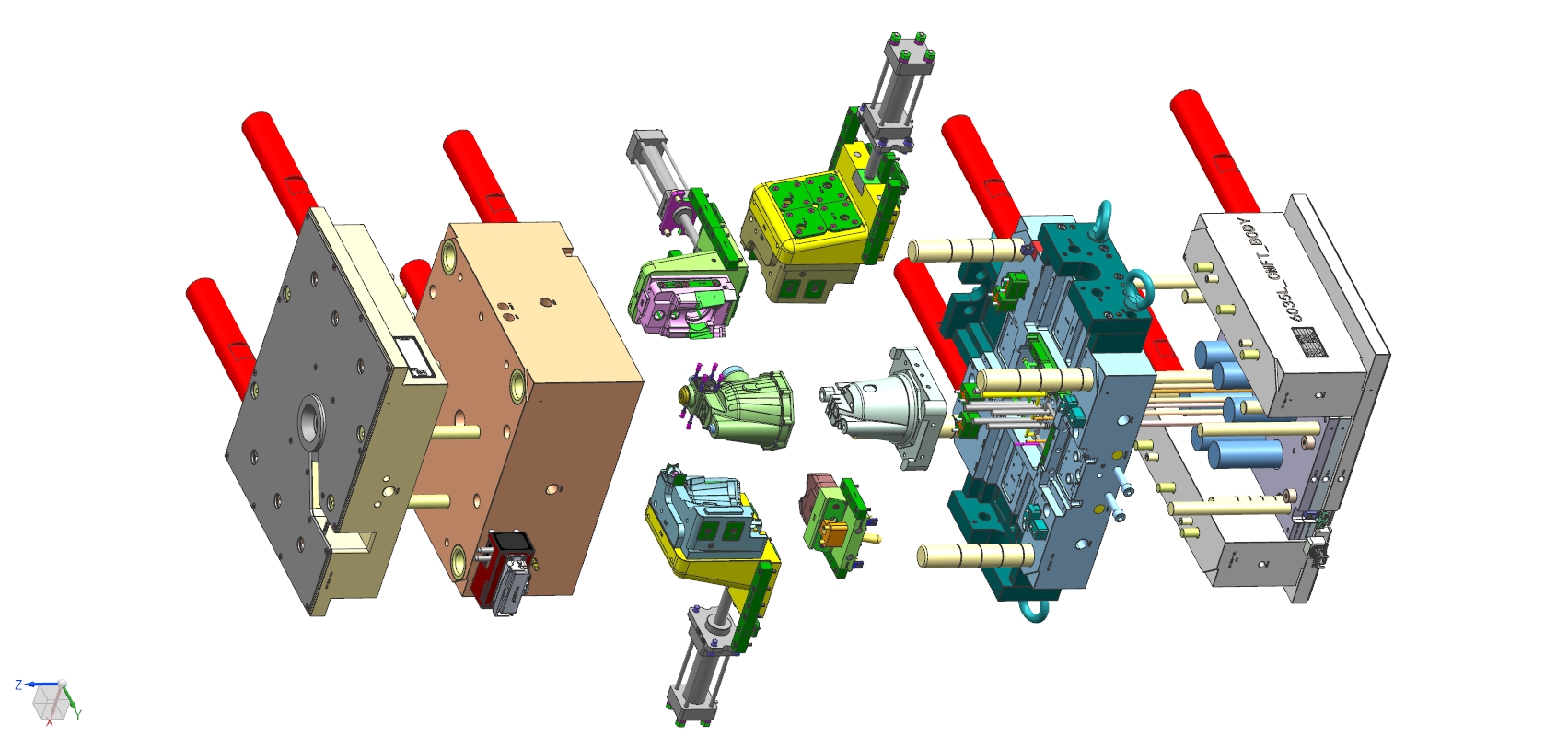

The three hydraulic deep sliders operate in three different spatial directions. During mold opening, they must retract in a specific sequence to avoid physical collision: the vertical (down) slider retracts first to clear the lower cavity zone; then the right lateral slider retracts to clear the right port zone; finally the left lateral slider retracts. On mold closing, the sequence reverses. ABERY's hydraulic control circuit uses a cascade valve arrangement — each slider's advance/retract hydraulic line is gated by a pressure-sensing signal from the preceding slider's "position confirmed" limit switch. If any slider fails to complete its stroke (due to a stuck insert, debris, or hydraulic fault), the cascade stops and the press cannot close — preventing steel-on-steel collision and providing a clear fault indicator on the press PLC.
Challenge 2 — Six-Insert Per Cycle Loading Reliability

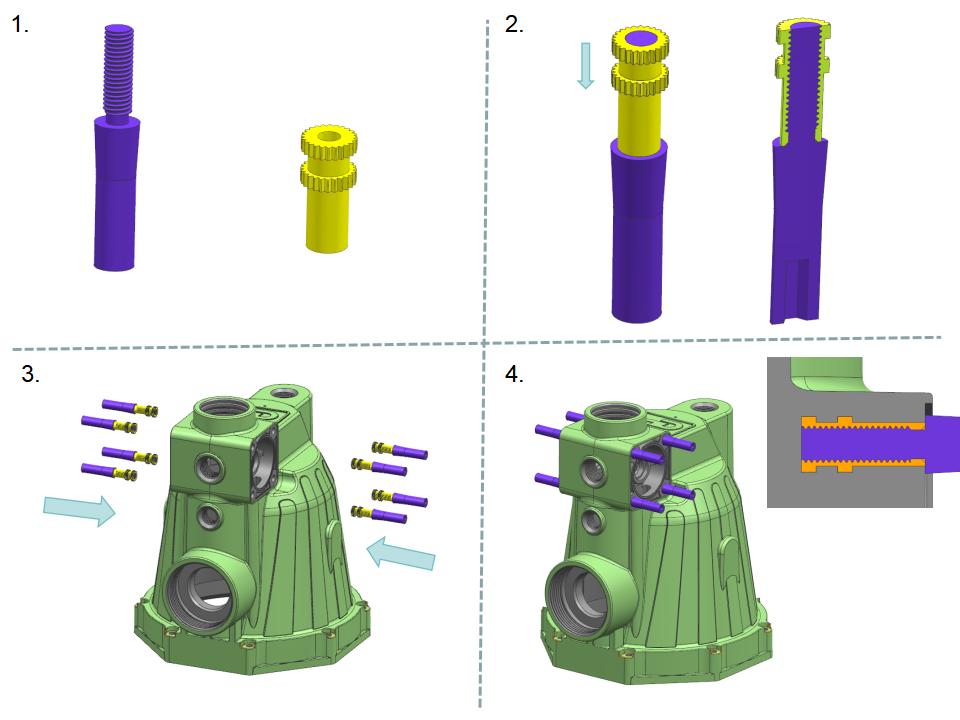

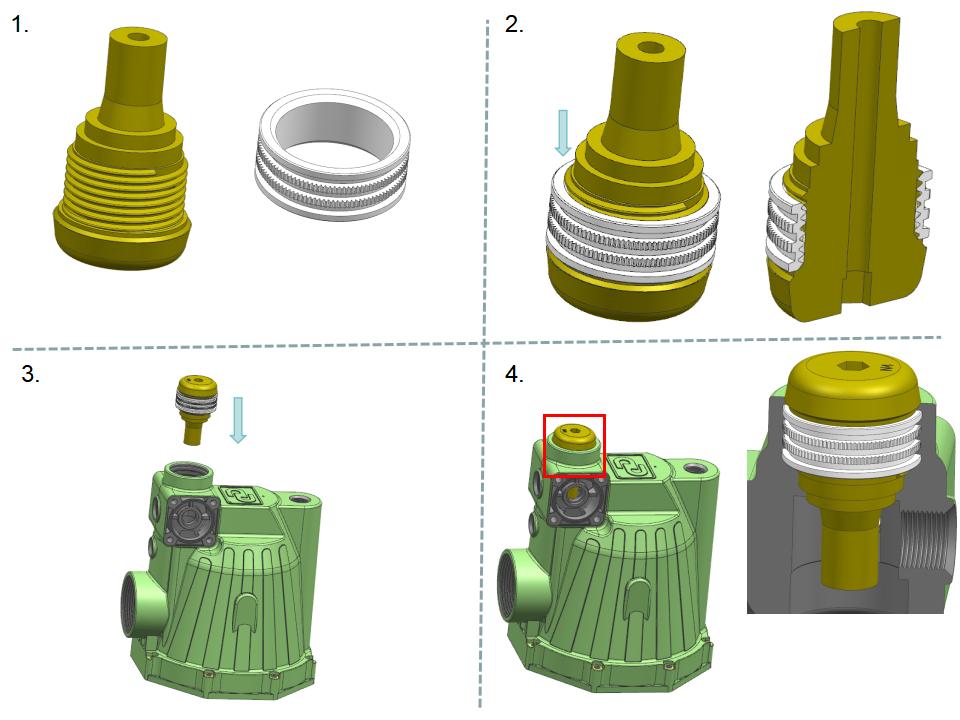

Six brass inserts must be correctly seated every cycle. The failure mode of a missing insert — where no brass nut is present in one of the six positions — results in a part with a naked PA GF20 boss and no threaded connection at that port. If this part reaches field installation, the missing thread will be discovered only when the installer attempts to connect a pipe fitting — at which point the housing must be replaced. ABERY prevents this through: optical presence sensors at all six insert positions (integrated into the mold body — one sensor per insert seat, all six must confirm "insert present" before the press closes); and a systematic insert loading protocol using a custom tray that loads the three main-cavity inserts simultaneously, verified by the operator against a checklist. The slider-face inserts are loaded separately during the slider advance sequence, confirmed by the kinematic registration nest geometry.
Challenge 3 — PA GF20 Weld Line Management at Three-Slider Convergence
With three slider cores advancing from three directions into the same cavity, the injection flow front splits around each slider core and reunites on the opposite side — forming weld lines at the far edges of each slider bore zone. Weld lines in PA GF20 with glass fiber reinforcement have significantly lower tensile strength than the parent material (~50–60% of base tensile strength). If a weld line falls at a pipe port boss — a structural load point — the boss can fracture when a pipe fitting is torqued. ABERY's mold flow simulation (Moldex3D) locates all weld lines before mold cutting, and the gate position is optimized to push all weld lines to low-stress zones (non-port-boss, non-sealing-face areas) on the housing body.
Challenge 4 — Uniform PA GF20 Shrinkage in a Large Complex Part
Large injection-molded parts with complex geometry and multiple insert-boss features are susceptible to differential shrinkage — different regions of the part cool and shrink at different rates, causing warp in the overall housing body. For a water pump housing, warp in the flange face (the face that mates with the pump body) causes a leak gap that cannot be corrected with a gasket alone. ABERY controls differential shrinkage through: balanced runner system feeding the single gate at the part geometric center; mold temperature uniformity (water circuits on all four cavity faces plus slider faces, ±3 °C uniformity); and extended hold pressure time to fully pack all six insert-boss zones before cooling begins.
PA GF20 is the standard material for structural injection-molded pump components in European and Russian pump OEM specifications. The glass fiber reinforcement provides the structural rigidity needed for pipe port bosses under torque loading, and the PA base offers the combination of impact toughness, water-contact dimensional stability, and chemical resistance to pump fluids that distinguishes it from commodity alternatives.
Property | PA GF20 | PP GF20 | PBT GF20 | ABS |
Tensile Strength | ~120–130 MPa | ~70 MPa | ~110 MPa | ~45 MPa |
Flexural Modulus | ~5,500–6,500 MPa | ~3,500 MPa | ~6,000 MPa | ~2,300 MPa |
Impact Resistance (notched Izod) | ~55–70 kJ/m² | ~40 kJ/m² | ~45 kJ/m² | ~25 kJ/m² |
Heat Deflection Temp (1.82 MPa) | ~200 °C | ~120 °C | ~210 °C | ~88 °C |
Chemical Resistance (water, glycols) | Good | Excellent | Good | Poor |
Insert Overmolding (brass) | Excellent | Good | Good | Good |
Relative Material Cost | Medium | Low | Medium | Low |
PA6 vs. PA66 for this application: PA6 GF20 is preferred over PA66 GF20 for pump housings operating in cold Russian climates. PA6 has noticeably better impact resistance at sub-zero temperatures (Charpy notched impact at −30 °C: PA6 ~25 kJ/m² vs. PA66 ~12 kJ/m²) — critical for a pump housing that may experience mechanical shock during winter installation or transport. The moderate temperature requirement of this pump (max 90 °C operating) is well within PA6's capability, so the temperature advantage of PA66 is not needed and PA6's cold-climate toughness is the deciding factor.
Hot-water circulator pump housings, cold-water supply booster pump heads, pressure tank manifold housings, and heat exchanger circulation pump components. The Russia-market building services sector uses large volumes of injection-molded PA pump components as domestic boilers, underfloor heating systems, and municipal hot-water distribution infrastructure drives demand.
Chemical process pump manifold heads, cooling water system circulation pump housings, industrial boiler feed pump components, and condensate return system pump heads. Industrial pumps demand higher structural integrity (larger pipe fittings, higher pipe torque loads) than residential equipment — making PA GF20's superior modulus vs. PP GF20 the critical material differentiator.
Irrigation system distribution manifold heads, drip irrigation pump housings, and agricultural water treatment pump components. These applications benefit from PA's resistance to fertilizer and agricultural chemical solutions, and from the weight saving of polymer vs. brass casting for large distribution manifolds.
Heating and cooling system hydronic pump components, fan coil unit circulator pump housings, and variable flow pump manifolds for commercial building HVAC. HVAC pump housings in Russia must operate reliably from −20 °C (cold system startup in winter) to +90 °C (high-temperature radiator circuits) — PA GF20's thermal range covers this without degradation.
Week 1
├── DFM Review & Hydraulic Slider Design
│ ├── Customer provides 3D files + pipe thread specifications (6 positions)
│ ├── ABERY identifies slider direction requirements from part geometry
│ ├── Three-slider sequence design: opening/closing order, interlock circuit layout
│ ├── Hydraulic cylinder sizing: force calculation for each slider direction
│ ├── Insert loading system: slider-face kinematic nests + main-cavity loading tray
│ ├── Weld line prediction (Moldex3D): gate location optimization to shift weld lines
│ ├── Cooling circuit design: all cavity faces + all 3 slider faces
│ └── DFM report + quotation delivered free of charge
Week 2–6
├── Mold Fabrication (extended: 3× hydraulic circuit integration)
│ ├── H13 steel procurement (main blocks + 3 slider blocks) — rough machining
│ ├── MAKINO 5-axis CNC: main cavity geometry, pipe port boss features
│ ├── SODICK wire EDM: insert seat precision nests (±0.005 mm per seat)
│ ├── AG Charmilles sinker EDM: slider face geometry, deep bore features
│ ├── H13 hardening + tempering (48–52 HRC) — all blocks including sliders
│ ├── Hydraulic cylinder procurement and mounting block machining (3 units)
│ ├── Cascade sequential hydraulic control circuit installation
│ ├── Limit switches (3 per slider: open/close/mid-stroke) — 9 total
│ ├── Optical insert-presence sensors (6 total, one per insert position)
│ ├── Cooling circuit: separate water circuits for main cavity + each slider face
│ └── Mold assembly, full hydraulic dry-run test (100 cycles, no plastic)
Week 7
├── T1 Sample Production
│ ├── Insert loading drill: all 6 brass nuts, sensor confirmation
│ ├── Fill study (short shots): weld line location verification vs. simulation
│ ├── Full-process T1 shots: dimensional CMM (all 6 insert positions, ±0.01 mm)
│ ├── Insert pull-out test: ≥ 800 N axial force (6 positions tested)
│ ├── Mating flange flatness: ≤ 0.08 mm warp acceptance criterion
│ ├── Thread gauge test (all 6 threaded bores): go/no-go check
│ └── T1 sample shipment to Russia customer
Week 8
├── T1 Review & Assembly Validation
│ ├── Customer pipe fitting installation test (all 6 ports)
│ ├── Hydrostatic pressure test (per customer pump spec)
│ └── Mold corrections if required (ABERY T2 guarantee)
Week 9+
└── Mass Production
├── Insert loading: 6 brass nuts per cycle, optical sensor confirmation
├── Cycle time: ~55–70 sec (single cavity, 3 hydraulic sliders + insert loading)
├── Pull-out force sampling: 3 inserts per lot (rotated across all 6 positions)
├── Thread gauge go/no-go: AQL 1.0 per batch
└── Delivery: sea/air to Russia or via ABERY Russia after-sales officeQ1: Why does a water pump housing need brass inserts instead of molded-in PA threads?
PA (Nylon) has adequate tensile strength for structural features, but threaded connections in PA are vulnerable to two failure modes that brass inserts eliminate: (1) Thread wear — repeated installation/removal of pipe fittings (by installers, or during pump service) wears PA threads rapidly, while brass threads maintain their thread form for thousands of cycles; (2) Torque creep — PA is a viscoelastic material that creeps under sustained stress. A tightened pipe fitting exerts a sustained hoop stress on the PA thread boss; over time, this causes the thread engagement to loosen (creep relaxation), creating a potential leak path. Brass inserts eliminate both failure modes: the metal thread form is wear-resistant, and brass's much lower creep rate under sustained load maintains pipe joint tightness over the pump's service life.
Q2: How do the three hydraulic sliders avoid colliding with each other during mold opening?
The sliders are prevented from colliding by a cascade hydraulic circuit with position interlocks. Each slider has a limit switch that confirms its "fully retracted" position. The hydraulic circuit is designed so that slider 2 (vertical) cannot begin retracting until its retract signal is given, and sliders 3 and 4 (lateral) cannot begin retracting until slider 2's limit switch confirms it has cleared the collision zone. On closing, the sequence reverses with the same interlock logic. If any slider fails to reach its confirmed position within the expected hydraulic stroke time (monitored by a timer circuit), the cascade stops and the press receives a fault signal — preventing close until the fault is cleared. This interlock system has operated for 1,000,000+ cycles on similar ABERY hydraulic mold tools without a collision event.
Q3: What happens if one of the six brass inserts is missing from the mold?
If any of the six brass insert seats is unoccupied when the press close cycle initiates, the optical fiber sensor at that position does not receive its reflected signal and outputs a fault state. The mold control system receives the fault signal and inhibits the press close command — the mold cannot close with a missing insert. This prevents: (1) the press tool being damaged by an absent insert allowing plastic to fill the empty insert seat bore (which would create a solid PA boss where the thread should be, requiring a scrap part); (2) the defective part reaching the customer. The sensor system is tested daily at production start-up by deliberately withholding one insert to verify each sensor responds correctly.
Q4: Can ABERY produce this housing in both PA6 and PA66 GF20 grades to support different customer temperature requirements?
Yes. The mold is material-agnostic between PA6 GF20 and PA66 GF20 — the two materials run at similar processing temperatures (~250–270 °C), similar mold temperatures (~70–90 °C), and similar shrinkage (~0.4–0.7% flow direction). Switching between grades requires a material purge sequence and a process parameter adjustment (primarily hold pressure and cooling time) but does not require any mold modification. ABERY maintains separate process parameter sheets for PA6 GF20 and PA66 GF20 on this tool, allowing the customer to order either grade with standard 10-business-day production lead time.
Q5: How does ABERY handle the six-insert loading time in a production setting?
Insert loading time is a key cycle-time driver for single-cavity insert molds. ABERY's insert loading protocol for this tool uses two parallel loading steps: the operator loads the three main-cavity brass nuts using a custom loading tray (all three in one placement action — 8 seconds total), while the three slider-face nuts are positioned in their kinematic nests on the slider blocks during the press open stroke (the slider blocks travel out of the press platen area during opening, making them accessible for insert placement). By overlapping main-cavity loading with slider insert placement, total insert loading time is reduced to approximately 20–25 seconds per cycle — versus 40–50 seconds for sequential individual loading. At a 60-second base cycle time, this 20-second saving represents a ~25% cycle time reduction versus unoptimized insert loading.
Q6: What pressure rating does the PA GF20 housing achieve, and how is it tested?
The housing is designed for the customer's standard pump working pressure specification. At T1, ABERY performs a hydrostatic pressure test on the complete housing: the part is filled with water, all ports are sealed with test plugs (thread-engaged into the brass inserts), and the pressure is raised to 1.5× the rated working pressure and held for 60 seconds. No leakage at any brass insert interface or any PA housing wall is the acceptance criterion. Any crack, seep, or pressure drop during the test indicates either an insert registration error (insert not fully encapsulated, leaving a micro-gap) or a wall thickness deficiency — both of which are addressed in the T1 mold revision cycle before production release.
Capability | Standard Insert Molder | ABERY |
Slider direction count | 1–2 sliders (spring or cam actuated) | 3 independent hydraulic deep sliders (3 directions) |
Sequential slider interlock | Manual setup or no interlock (collision risk) | Cascade hydraulic circuit + 9 limit switches — PLC-controlled |
Insert loading (6 per cycle) | Individual manual loading (~50 sec) | Custom tray + parallel loading protocol (~25 sec) |
Insert presence verification | Operator visual check | 6× optical sensors in mold body — press cannot close with any missing |
Slider-face insert registration | Approximate seating | Kinematic 3-point nest per slider face — insert position ±0.005 mm |
Weld line control (3-slider tool) | Not simulated | Moldex3D pre-mold simulation — all weld lines relocated to low-stress zones |
Hydrostatic pressure test at T1 | Not standard | 1.5× rated working pressure, 60-second hold, per insert position |
Russia market logistics | Shipping only | After-sales office in Russia — delivery, QV, and field support |
PA6 / PA66 grade flexibility | Single grade only | Both grades from same tool — separate process parameter sheets maintained |
Mold life warranty | Limited | Lifetime warranty, standard on all ABERY tools |
ABERY specializes in high-complexity insert molds: multi-directional hydraulic sliders, 6+ inserts per cycle, and sequential actuation systems that keep production running reliably for 1,000,000 shots. Share your 3D files for a free DFM review covering slider direction analysis, insert loading system design, and weld line simulation.
