Electronic connector housings are a category where dimensional tolerance is not an engineering preference — it is a functional binary. A connector housing with terminal apertures 0.05 mm too wide allows the terminal pin to move laterally under vibration, causing intermittent contact failure. A housing 0.02 mm too narrow prevents the terminal from being inserted without deformation. In a high-volume connector production context, where a single vehicle platform or industrial equipment line may consume millions of connector housings annually, even a 0.1% out-of-tolerance rate translates to thousands of field failures per year.
This project produces PA66 reinforced with 20% glass fiber (PA66 GF20) electronic connector housings in a 4-cavity precision injection mold. PA66 GF20 is the industry-standard material for electronic connectors in automotive, industrial, and commercial electronics applications: it combines the dimensional stability needed to hold ±0.005 mm tolerances at both production temperature and the connector's operating temperature (up to 130 °C continuous for PA66 vs. ~100 °C for PA6), the glass-fiber reinforcement that prevents creep at the terminal retention boss under sustained insertion force, and the flame retardancy (PA66 GF20 meets UL94 V-0 in FR-modified grades) required by most connector design standards.
The mold is built to the highest tooling supply chain standard that ABERY deploys: HASCO (Germany) mold base for dimensional consistency and interchangeable component maintenance, GF+ (formerly Georg Fischer, Switzerland) 5-axis high-speed CNC machining center for cavity geometry and terminal aperture features, Mitsubishi (Japan) wire and sinker EDM for the micro-feature finishing that CNC cannot reach, and MISUMI (Japan) standard mold components (guide pillars, ejector pins, springs, latch locks) for internationally certifiable component quality. This supply chain combination — German mold base, Swiss CNC machining, Japanese EDM and standard parts — is the same tooling specification used by Tier 1 automotive mold makers in Europe and Japan.
Parameter | Specification |
Process | Precision Injection Molding |
Material | PA66 (Polyamide 66), 20% Short Glass Fiber (PA66 GF20) |
Material Grade | Equivalent to BASF Ultramid A3HG6 or DuPont Zytel 70G20L or equivalent |
Color | Black (carbon black pigment, heat-stable) |
Dimensional Tolerance | ±0.005 mm (terminal aperture critical dimensions) |
Application | Electronic connector housing — multi-pin, locking latch design |
Mold Cavities | 4 |
Mold Type | Precision injection mold, hot runner, 4-cavity family |
Mold Base | HASCO (Germany) — DIN-standard, high-precision ground plates |
Cavity/Core Machining | GF+ (Switzerland) 5-axis high-speed CNC machining center |
EDM Finishing | Mitsubishi (Japan) wire EDM + sinker EDM |
Standard Components | MISUMI (Japan) — guide pillars, ejector pins, springs, latch locks |
Mold Steel | H13, full hardened (48–52 HRC) — all cavity and core inserts |
Mold Life | 1,000,000 shots |
Mold Lead Time | 5–6 weeks (T1 sample) |
Production Lead Time | 10–15 business days (post-approved T1) |
Operating Temperature | Connector rated to 130 °C continuous (PA66 standard) |
Flame Retardancy | UL94 V-0 (with FR-grade PA66 GF20 variant) |
Target Market | France, Western Europe |
Applicable Standards | ISO 9001:2015 (ABERY certified); IEC 60664-1 (connector clearance/creepage distances — design input) |

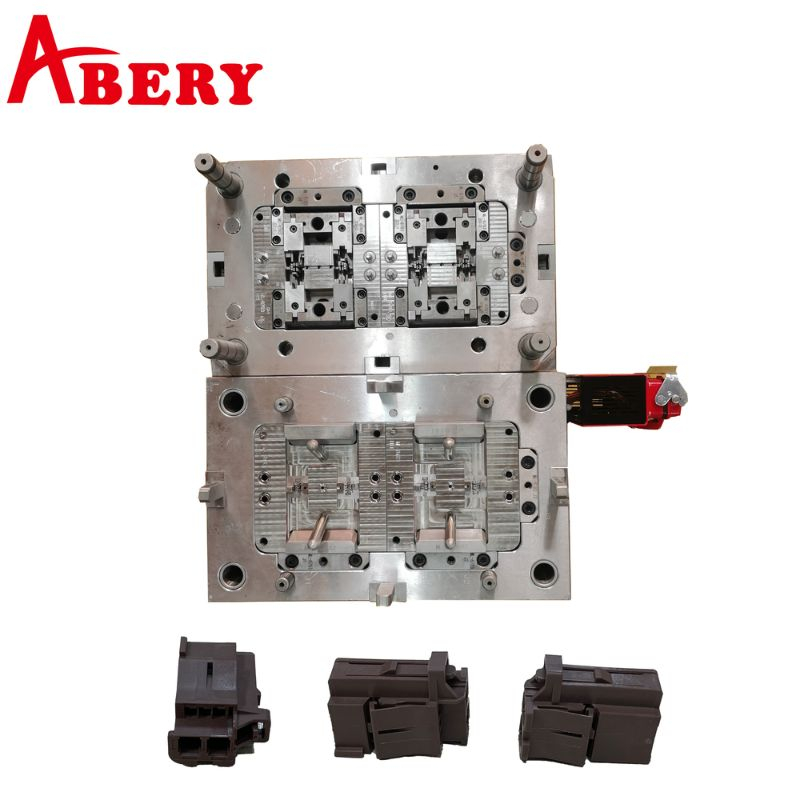

Combined mold-and-part display image. Upper half: ABERY-built 4-cavity precision connector mold in open position — A-plate (top) showing the complex multi-slider cavity array with fine terminal-pin aperture features visible across all four cavity positions; B-plate (bottom) showing the core side with hot runner distribution and the red hydraulic/pneumatic side-action unit on the right lateral face. Lower half: three PA66 GF20 black connector housings displayed from three different viewing angles, showing the multi-pin terminal retention cavity array, the cantilever latch lock geometry, and the complex mating-face geometry. ABERY brand logo confirms in-house tooling manufacture.
From ABERY's Precision Connector Mold Engineering Team:
"±0.005 mm is a tolerance that most injection molding teams treat as a target — something you aim for and verify statistically. We treat it as a production floor hard limit. The difference matters at scale: if you produce 4 million connector housings per year from a 4-cavity tool at 1,000 cycles per day, a process that holds ±0.005 mm with Cpk 1.67 gives you roughly 1.7 ppm out-of-tolerance — that's 7 defective connectors per year from 4 million. A process holding ±0.005 mm at Cpk 1.0 gives you 2,700 ppm — over 10,000 defectives. The way we achieve Cpk > 1.67 on ±0.005 mm connector apertures is through equipment specification, not process adjustment. HASCO mold bases hold plate flatness to ±0.005 mm ex-factory — that's your zero point, before machining begins. GF+ CNC positional accuracy is ±0.003 mm — so the machined feature is already within spec before EDM finishing. Mitsubishi wire EDM holds cut position to ±0.001 mm — which is where the actual terminal aperture walls are finished. The result is that our Cp for terminal aperture width on this connector runs between 1.7 and 2.1 at steady-state production — a margin that absorbs any normal production variation without adjustment."
Challenge 1 — Four-Cavity Consistency: All Cavities Must Be Identical
A 4-cavity connector mold produces four parts per shot. If cavity 3 is 0.006 mm narrower on the terminal slot than cavities 1, 2, and 4 (due to a machining error, steel hardness variation, or unequal cooling), every fourth part in the production stream is out-of-tolerance. Cavity-to-cavity consistency is controlled through: (1) HASCO mold base plate flatness — all four cavity insert pockets ground to the same reference datum; (2) identical machining programs run sequentially on all four cavities without re-fixturing; (3) equal cooling circuit flow rates verified by thermal imaging on T1 samples; (4) CMM measurement of all four cavities independently on T1 approval.
Challenge 2 — Micro-Feature EDM for Terminal Retention Geometry
The terminal retention slots — the features that hold the metal contact pins in the connector body and prevent back-out under wire pull-force — have wall thickness down to 0.3–0.5 mm and depth-to-width ratios (aspect ratios) of 5:1 or higher. At these aspect ratios, CNC end-mill machining cannot reach the feature bottom without deflection error, and the mill radius prevents sharp internal corner formation. Mitsubishi wire EDM and sinker EDM finish these features to their final geometry: wire EDM for through-slot apertures (cutting speed controlled to ±0.001 mm positional accuracy), sinker EDM for blind slot bottoms and retention latch pocket geometry.
Challenge 3 — Warpage Control on a Multi-Pin Housing
PA66 GF20 has differential shrinkage: flow-direction shrinkage (~0.3–0.5%) is significantly lower than cross-flow shrinkage (~0.8–1.2%) due to fiber orientation. In a connector housing with multiple parallel terminal rows running in one direction, this anisotropic shrinkage tends to bow the mating face — the face that must be flat to seat against the mating connector. ABERY controls warpage through: gate location optimization (central gates that equalize flow-front arrival at all terminal rows), mold temperature uniformity (±2 °C across the cavity footprint, verified by thermocouple logging), and extended hold pressure time tuned to each cavity insert's fill balance. Warpage is measured on T1 samples using a surface plate and feeler gauge; the acceptance criterion is ≤ 0.05 mm flatness error on the mating face.
Challenge 4 — Latch Arm Flexibility vs. Dimensional Stability
Connector latch arms (the cantilever snap-fit locking fingers) must simultaneously be stiff enough to hold under axial pull-out force and flexible enough to deflect during insertion and release. This is fundamentally a design-material-process interaction: PA66 GF20's flexural modulus (~6,500 MPa) gives very stiff latch arms at nominal wall thickness. If the latch arm is over-packed (excessive hold pressure), residual stress increases apparent stiffness further, causing latch breakage during repeated insertion cycles. ABERY runs a hold pressure optimization study on T1 samples specifically targeting the latch arm — finding the hold pressure range where insertion force, retention force, and fatigue life simultaneously meet the customer's specification.
PA66 GF20 is the dominant material for mid-to-high performance electronic connector housings globally. The GF reinforcement shifts the base PA66 from a relatively flexible, moisture-sensitive polymer to a precision engineering material. The choice between PA6 GF20 and PA66 GF20 for this connector application comes down to two key differences:
Property | PA66 GF20 | PA6 GF20 | PBT GF20 | LCP GF20 |
Tensile Strength | ~130 MPa | ~120 MPa | ~110 MPa | ~200 MPa |
Flexural Modulus | ~6,500 MPa | ~5,800 MPa | ~6,000 MPa | ~18,000 MPa |
Heat Deflection Temp (1.82 MPa) | ~240 °C | ~200 °C | ~210 °C | >250 °C |
Continuous Service Temp | ~130 °C | ~100 °C | ~120 °C | ~200 °C |
Water Absorption (23°C, sat.) | ~2.5% | ~3.5% | ~0.5% | ~0.1% |
UL94 V-0 (FR grade) | Available | Available | Available | Available |
Processing Precision (shrinkage) | ~0.4–0.6% | ~0.4–0.6% | ~0.5–0.8% | ~0.1–0.3% |
Relative Material Cost | Medium | Low | Medium | High |
Why PA66 over PA6? The critical difference is the continuous service temperature: PA66 at 130 °C vs. PA6 at ~100 °C. For connectors in engine-bay, motor controller, or industrial control panel environments (this France customer's application area), 130 °C service rating is a standard connector design requirement. PA6 GF20 fails this requirement; PA66 GF20 meets it.
Why not LCP GF20? LCP (Liquid Crystal Polymer) with GF20 can achieve even higher precision and temperature ratings, but at 5–8× the material cost of PA66 GF20. For this connector design's tolerance requirements (±0.005 mm is achievable with PA66 GF20 via precision tooling), LCP is not cost-justified. LCP is reserved for miniaturized connectors (pitch ≤ 1.0 mm) where PA66 GF20's shrinkage behavior cannot hold the required tolerance even with premium tooling.
Sensor connectors, actuator wiring harness connectors, fieldbus (Profibus, EtherCAT) module connectors, and DIN-rail mounted terminal housing connectors. France-based industrial automation OEMs (Schneider Electric, Legrand, Staubli) are among the most demanding customers for connector housing precision — their design specifications routinely require ±0.005 mm or better on terminal apertures.
Engine management ECU connectors, transmission control module connectors, body control module (BCM) wiring harness housings, and high-voltage EV battery management system (BMS) connectors. PA66 GF20 with UL94 V-0 flame retardancy is the standard specification for under-hood automotive connectors exposed to engine heat and potential fuel vapor.
Modular appliance wiring connectors, building automation system connectors (BACnet, KNX, LON wiring blocks), solar panel junction box connectors, and EV charging station interface connectors. The French building automation and renewable energy sectors are significant end markets for high-volume precision connector housings.
Rack-mount connector housings, fiber optic adapter flanges (mechanical housing), outdoor junction box connectors, and base station wiring harness connectors. This application space is expanding rapidly with 5G infrastructure deployment across France and Western Europe — a key growth driver for the connector housing volumes this type of precision mold serves.
Week 1
├── DFM Review & Tolerance Stack-Up Analysis
│ ├── Customer provides 3D files + GD&T drawing (critical dimensions flagged)
│ ├── ABERY performs tolerance stack-up analysis:
│ │ ├── Identify all ±0.005 mm critical features
│ │ ├── Assign machining method to each feature (CNC vs. EDM vs. grinding)
│ │ └── Verify achievability with GF+ CNC + Mitsubishi EDM equipment spec
│ ├── Gate location and flow simulation (Moldex3D) — warpage check on mating face
│ ├── Cooling circuit layout — equal flow to all 4 cavities verified
│ └── HASCO mold base selection, DFM report + quotation delivered
Week 2–5
├── Mold Fabrication
│ ├── HASCO mold base procurement (DIN-standard, plates ground to ±0.005 mm)
│ ├── H13 insert blank procurement, rough machining
│ ├── GF+ 5-axis CNC: cavity/core geometry, terminal row features, latch arm geometry
│ ├── Mitsubishi wire EDM: terminal aperture walls (±0.001 mm cut position)
│ ├── Mitsubishi sinker EDM: retention latch pockets, blind slot bottoms
│ ├── H13 inserts hardening + stress-relief (48–52 HRC)
│ ├── MISUMI components: guide pillars, ejector pins, springs — installation
│ └── Mold assembly, bench fit, hot runner commissioning
Week 6
├── T1 Sample Production
│ ├── First shots: fill study (short-shots, gate analysis)
│ ├── CMM measurement: all 4 cavities, all critical ±0.005 mm features
│ ├── Cavity-to-cavity consistency report (max deviation between cavities)
│ ├── Mating face flatness measurement (target: ≤ 0.05 mm)
│ ├── Latch arm insertion/retention/fatigue cycle test
│ ├── Cpk calculation on terminal aperture width (target: Cpk ≥ 1.67)
│ └── T1 sample shipment to France customer
Week 7
├── T1 Review & Fit Test
│ ├── Customer terminal pin insertion test (all 4 cavities)
│ ├── Connector mating test with counterpart housing
│ ├── Latch engagement force measurement
│ └── Mold corrections if required (ABERY T2 guarantee)
Week 8+
└── Mass Production
├── 4-cavity output per cycle (cycle time ~20–30 sec for PA66 GF20)
├── CMM sampling: AQL 1.0 on terminal aperture critical dimensions
├── Cavity-to-cavity tracking: flag any single cavity showing drift
└── Delivery: sea/air to France customerQ1: What does ±0.005 mm tolerance actually mean for a connector housing in production?
±0.005 mm is half the diameter of a human hair (a hair is ~0.06 mm). In production terms, it means that the terminal aperture width on every connector housing in a production batch must land within a 0.010 mm total range — from 0.005 mm below nominal to 0.005 mm above nominal. Achieving this consistently requires that the mold cavity feature itself is machined to better than ±0.005 mm (since the machining error plus the process variation must together fit within ±0.005 mm of the nominal part dimension), which is why ABERY uses Mitsubishi wire EDM (±0.001 mm cut accuracy) for these features rather than CNC end-milling (±0.005–0.010 mm typical). It also requires process stability — melt temperature, mold temperature, and injection speed must be held within narrow control limits every cycle.
Q2: Why does ABERY use a HASCO mold base instead of a Chinese domestic mold base?
HASCO (Germany) mold bases are ground to ±0.005 mm plate flatness and ±0.002 mm guide pillar hole alignment ex-factory, with full dimensional certification. Domestic Chinese mold bases are typically ground to ±0.02–0.05 mm tolerance. For a standard consumer plastic part, this difference is irrelevant — the mold base tolerance is orders of magnitude better than the part tolerance. But for a ±0.005 mm connector housing, the mold base is the dimensional foundation of the entire tool: if the base plate is out of flat by ±0.02 mm, the cavity insert position inherits that error, and you cannot hold ±0.005 mm on the part even with perfect EDM machining. HASCO's dimensional precision propagates through the entire tool, ensuring that the GF+ CNC and Mitsubishi EDM machining accuracy is not wasted on an imprecise mold base.
Q3: How do you achieve consistent ±0.005 mm across all 4 cavities?
Four-cavity consistency requires three things that ABERY controls explicitly: (1) a common machining datum — all four cavity inserts are referenced to the same HASCO mold base datum feature, not individually located; (2) identical machining programs — all four sets of terminal aperture features are cut from the same CNC/EDM program files with no manual adjustment between cavities; (3) equal process conditions — cooling circuit balance is verified by flow meter at T1, and any cavity receiving more or less flow than nominal is corrected by adjusting circuit restriction. The result is confirmed by CMM measurement of all four cavities separately on the T1 report — we report not just the average but the cavity-to-cavity range, which must be ≤ 0.003 mm for T1 approval.
Q4: Can ABERY provide PPAP (Production Part Approval Process) documentation for this connector?
Yes. ABERY supports PPAP Level 3 documentation for automotive and industrial connector OEMs. The PPAP package includes: Part Submission Warrant (PSW), Design FMEA (customer responsibility) and Process FMEA (ABERY), Control Plan, Measurement System Analysis (MSA / Gauge R&R study on critical dimensions), Initial Process Studies (Cpk data from initial production runs), Material and Performance Test Results (tensile, heat deflection, UL94 as applicable), and Sample Parts. Full PPAP Level 3 preparation adds approximately 2 weeks to the project timeline after T1 approval.
Q5: What is the service life of the mold, and what maintenance does it require?
The tool is rated for 1,000,000 shots. With a 4-cavity tool at 1,000 cycles/day (2-shift operation), this corresponds to approximately 2.7 years of continuous production. Planned maintenance schedule: every 50,000 cycles — ejector pin wear inspection, guide pillar/bushing lubrication, gate tip cleaning; every 200,000 cycles — full cavity inspection (optical comparator on terminal aperture dimensions), replace any worn MISUMI standard components; at 500,000 cycles — full teardown, re-EDM any cavity features showing wear beyond 0.003 mm, re-harden if required. ABERY provides a lifetime mold warranty covering manufacturing defects — wear from normal production cycles is covered under the maintenance plan, not the warranty.
Q6: How does PA66 GF20 compare to PA66 GF30 for this type of precision connector?
For most connector housing applications, GF20 is the preferred choice over GF30 for two reasons: (1) GF20 has slightly lower flexural modulus (~6,500 MPa vs. ~9,000 MPa for GF30), which gives latch arms and clip features more elastic flexibility — critical for repeated insertion/release cycles without fatigue failure; (2) GF20's lower glass content means shorter fiber protrusion at the connector cavity walls, reducing friction during terminal pin insertion and preventing contact plating damage. GF30 is used when higher structural rigidity is required (e.g., large multi-row connectors with 50+ pins where mating face warp is a greater risk than latch fatigue). This project's connector design uses GF20 specifically because the latch arm geometry requires a material with sufficient flexibility for 30+ insertion-release cycles without fracture.
Capability | Standard Precision Molder | ABERY |
Tolerance capability | ±0.01 mm (typical) | ±0.005 mm — Mitsubishi EDM-finished terminal apertures |
Mold base specification | Domestic Chinese base (±0.02–0.05 mm flatness) | HASCO (Germany) — ±0.005 mm plate flatness, DIN-certified |
CNC machining equipment | Standard 3-axis CNC | GF+ (Switzerland) 5-axis high-speed CNC — ±0.003 mm positional accuracy |
EDM equipment | Standard domestic EDM | Mitsubishi (Japan) wire + sinker EDM — ±0.001 mm cut accuracy |
Standard components | Mixed domestic components | MISUMI (Japan) — internationally certifiable quality, lot traceability |
4-cavity consistency reporting | Cavity average only | CMM all 4 cavities independently; cavity-to-cavity range ≤ 0.003 mm required |
Cpk reporting at T1 | Not standard | Cpk ≥ 1.67 on all critical dimensions — target, not optional |
PPAP Level 3 support | Not available | Full PPAP Level 3 package available |
France market reference | General claim | Validated France customer project; ABERY France office for local support |
Lifetime mold warranty | Not offered | Standard on all ABERY tools |
ABERY's precision connector mold team — equipped with HASCO mold bases, GF+ CNC machining, and Mitsubishi EDM — delivers the tooling infrastructure that ±0.005 mm tolerance demands. Share your connector drawing and tolerance callouts for a free DFM review, tolerance stack-up analysis, and 3-hour quotation.
