Medical examination and surgical lighting systems require lenses that simultaneously achieve structural rigidity (the arc-form lens must maintain its curvature under the thermal load of LEDs over years of clinical operation), optical clarity (any haze, surface scratches, or sink marks create visible bright-dark banding in the projected light field), and uniform light diffusion (the optical rib array must distribute each LED's point source into a smooth, shadow-free field). These three requirements — structural, optical, and photometric — must be simultaneously satisfied by a single injection-molded transparent PC component.
This project produces a large arc-shaped PC lamp lens for a Germany-market medical device OEM. The lens is curved along its long axis (the arc form follows the luminaire's beam geometry), with a dense array of parallel optical diffusion ribs running perpendicular to the arc length. These ribs serve as micro-prisms: each rib refracts and redirects the LED light from the underlying LED array, spreading the point-source intensity into a wide-angle diffusion pattern while maintaining high overall transmission. The rib cross-section geometry — the rib angle, depth, tip radius, and base radius — is optimized by the customer's optical simulation and must be reproduced in the mold to tolerances of ±0.01 mm.
The manufacturing challenge is centered on the rib geometry and the thick base wall. The ribs are deep (15–20 mm depth relative to rib pitch), creating narrow-slot geometry in the mold that is inaccessible to standard polishing tools. The base wall is thick (4–8 mm in cross-section depending on arc position) to maintain structural stiffness. Thick PC walls cool slowly and non-uniformly — the primary cause of sink marks on optical PC surfaces. Every sink mark on this lens face creates a visible shadow in the clinical light projection, making sink mark prevention the highest-priority quality outcome of the process development work.
Parameter | Specification |
Process | Precision Injection Molding |
Material | Polycarbonate (PC), optical grade |
Material Grade | Covestro Makrolon OD2015 or equivalent optical-grade PC |
Color | Water-clear transparent (zero tint, zero haze) |
Part Geometry | Arc-shaped, long-axis curvature matching luminaire beam radius |
Optical Rib Structure | Dense parallel diffusion ribs, full arc length |
Rib Depth | 15–20 mm (deep rib geometry requiring hand-polished root faces) |
Wall Thickness (base) | 4–8 mm (thick-wall, controlled cooling required) |
Surface Finish (rib faces) | Mirror polish, Ra ≤ 0.02 μm — hand-polished to optical standard |
Surface Finish (outer face) | Mirror polish, Ra ≤ 0.02 μm — machine + hand polished |
Dimensional Tolerance | ±0.01 mm (rib pitch, rib cross-section geometry) |
Optical Clarity | Haze ≤ 1.5% (ASTM D1003); Transmission ≥ 89% |
Mold Type | 2-cavity, mechanical sliders (×2), cold runner |
Mold Cavities | 2 |
Mold Steel | H13, full hardened (48–52 HRC) |
Mold Life | 1,000,000 shots |
Mold Lead Time | 6–7 weeks (T1 sample — extended for manual polishing process) |
Production Lead Time | 10–15 business days (post-approved T1) |
Target Market | Germany, Western Europe |
Applicable Standards | ISO 9001:2015 (ABERY certified); ISO 13485 supply-ready documentation |

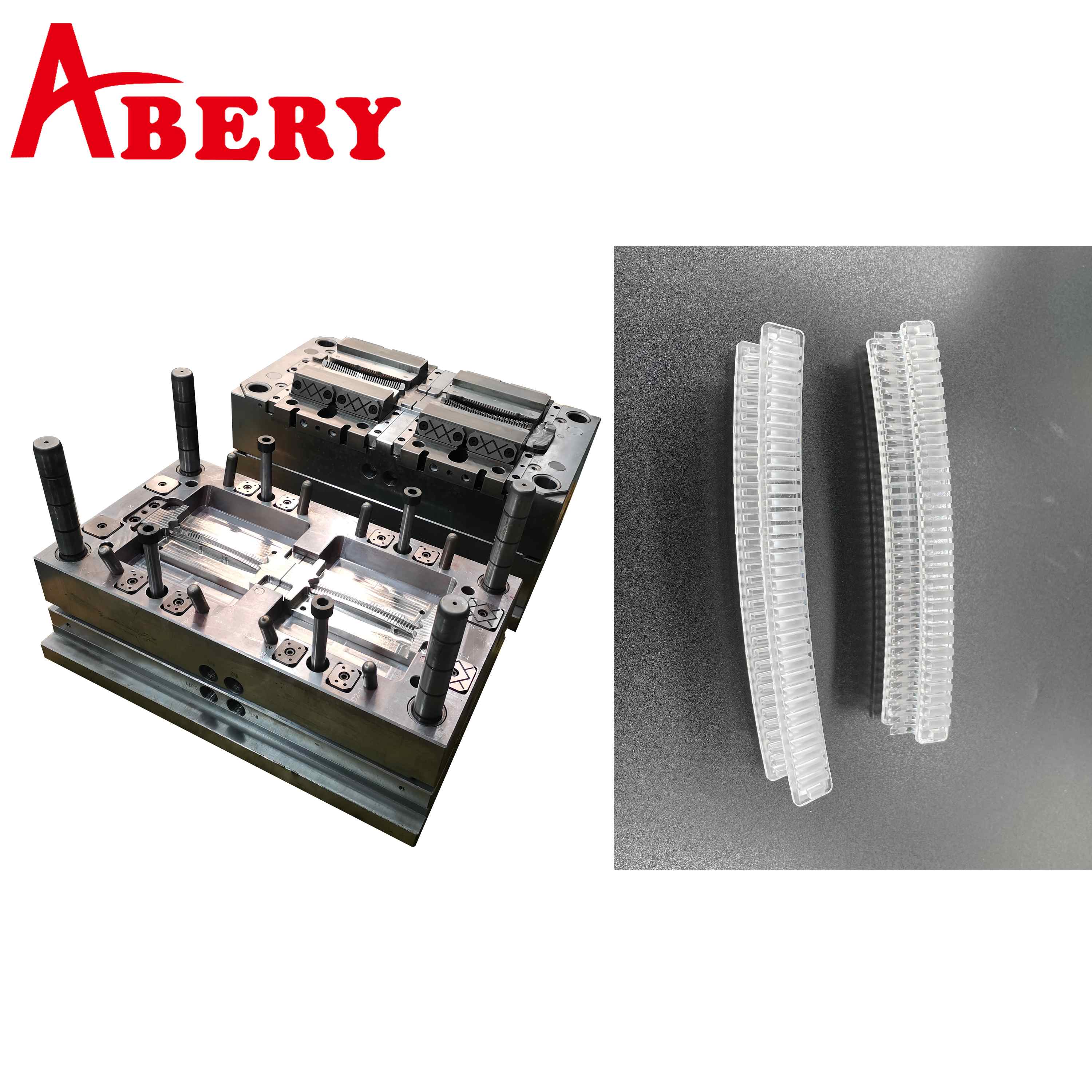

Side-by-side mold and part display image. Left: ABERY 2-cavity H13 precision injection mold in elevated isometric view — the two long, narrow arc-shaped cavities are visible in the B-plate face, each cavity's rib array visible as a fine-pitch corrugated texture running the full cavity length. Two mechanical slider units are visible at the top of the tool (one per cavity, symmetrically positioned) for the end-face geometry. Multiple ejector pins are distributed along the cavity length. Right: two finished transparent PC arc-shaped medical lamp lenses photographed on a dark background — the dense parallel rib array is clearly visible across the full curved face, and the arc curvature is pronounced. The lens material shows water-clear optical transparency with no visible haze or discoloration. ABERY brand logo top left.
From ABERY's Optical Injection Molding Engineering Team:
"Thick-wall optical PC is the most demanding combination we work with. Thick walls mean long cooling time — you cannot rush it, because if the outer skin freezes before the core has cooled, you get volumetric shrinkage voids at the wall center that scatter light and appear as bright spots in the clinical projection. On this lens, we run a mold temperature of 110–120 °C (hot mold for PC, which most shops run at 70–80 °C) and we extend the cooling time to 90–120 seconds per cycle. Yes, that's a 3-minute cycle for a single lens — but it's the only way to cool 4–8 mm of PC uniformly without internal voids. The deep ribs add another layer of difficulty: the rib roots are 15–20 mm deep and only 1.5–2 mm wide. No machine polishing tool can reach those surfaces — we use hand-polished wooden dowel sticks with diamond polishing paste, working each rib root surface for 20–30 minutes per cavity until the Ra reading confirms ≤ 0.02 μm mirror finish. This is not a quick step: polishing one set of two cavities takes our senior polisher 3–4 days. But if a rib root has Ra 0.5 μm instead of 0.02 μm, the resulting lens has visible bright bands at the rib spacing interval in the clinical light field — which is a visible defect that no medical device customer will accept."
Challenge 1 — Thick-Wall Sink Mark Prevention
Sink marks in optical PC are formed when the outer wall skin freezes and the interior continues to shrink, pulling the surface inward to form a concave dimple. On an optical surface, a sink mark 0.02 mm deep is sufficient to create a visible shadow in the projected light pattern under clinical lighting (a light source at 500–1000 lux will cast a detectable shadow from a 0.02 mm surface depression). ABERY controls sink marks through three simultaneous measures: (1) extended hold pressure time tuned to fill all wall sections fully before the skin freezes; (2) elevated mold temperature (110–120 °C) to slow skin freeze-off rate, giving the material longer to pack and reducing the skin-to-core cooling differential; (3) gate positioned at the thickest wall zone to ensure that packing pressure reaches the thick sections first, before the thinner arc sections solidify and block pressure transmission.
Challenge 2 — Deep Rib Draft Angle and Demolding
The optical diffusion ribs are 15–20 mm deep with narrow pitch. The two mechanical sliders are required to demold the rib end geometry — the slider action releases the rib tips at the arc ends, which are undercut relative to the main opening direction. The rib side faces require adequate draft angle to release without dragging — at 15–20 mm rib depth, even a 0.5° draft angle translates to 0.13–0.17 mm taper over the full rib height, which affects the rib's optical cross-section profile. ABERY's optical engineers work with the customer's optical simulation team to verify that the draft-adjusted rib cross-section (accounting for the taper) still produces the required light diffusion angle in the finished lens.
Challenge 3 — Two-Cavity Optical Consistency
The 2-cavity tool produces two lenses per shot. For a medical lighting application, both lenses must have identical optical performance — any difference in rib geometry between cavity 1 and cavity 2 produces a detectable difference in light field uniformity between the two lenses used in the same luminaire. ABERY ensures cavity-to-cavity rib geometry consistency through: (a) both cavities machined from the same CNC program without re-fixturing; (b) independent hand polishing of each cavity to the same Ra specification, verified by profilometer measurement on 5 ribs per cavity; (c) independent haze measurement (ASTM D1003) on T1 samples from each cavity — maximum permitted cavity-to-cavity haze difference is 0.3%.
Challenge 4 — Arc-Form Warpage Control
The arc-shaped part geometry is inherently susceptible to differential shrinkage: the outer arc face cools faster than the inner arc face (outer radius > inner radius, different surface-to-volume ratios), creating a shrinkage differential that tends to flatten the arc (reduce the curvature) as the part cools. For a lens that must fit into a precision-curved luminaire housing, arc radius deviation from nominal is a critical dimension. ABERY controls arc warpage through: equal cooling channel depth on both inner and outer arc cavity faces; and a post-ejection fixture that holds the lens in the correct arc geometry during the secondary cooling period (the 60–90 seconds after ejection when residual heat from the core continues to flow outward and the final arc dimension is set).
Polycarbonate is the dominant material for medical luminaire lenses and covers globally. For this arc-form lamp lens application, the critical properties are:
Property | Optical PC | PMMA (Acrylic) | Optical PS | Glass |
Light Transmittance | ~89–90% | ~92% | ~88% | ~92% |
Impact Resistance (Izod notched) | ~850 J/m | ~20 J/m | ~22 J/m | Brittle |
Heat Deflection Temp (1.82 MPa) | ~130 °C | ~95 °C | ~76 °C | >500 °C |
UV Stability (10,000 hrs) | Good (with UV stabilizer) | Good | Poor | Excellent |
Sterilization: IPA Wipe | Yes | Yes | Moderate | Yes |
Arc-Form Moldability | Excellent | Good | Good | Not moldable |
Relative Material Cost | High | Medium | Low | Very high (fabrication) |
Why not PMMA? PMMA provides slightly higher baseline transmittance (~92% vs. ~89–90% for PC) but has 40× lower impact resistance. A medical luminaire handle or lens that is dropped during cleaning or maintenance will fracture PMMA — creating sharp fragments that are a clinical hazard. PC's superior impact resistance is non-negotiable for any patient-proximate medical device component. PMMA also has lower HDT (~95 °C vs. ~130 °C for PC) — insufficient for a lamp lens that may see 60–80 °C surface temperature during extended LED operation.
Why optical grade vs. standard PC? Standard injection-grade PC has bulk haze of 2–4% in thick-wall sections due to internal stress and slight molecular weight variation. Optical-grade PC (e.g., Makrolon OD2015) achieves ≤ 1.5% haze in thick-wall parts through tighter molecular weight distribution and lower particulate content. For a medical lamp lens, the additional cost of optical-grade PC is justified — the haze difference is visible to the clinical operator as a reduction in light quality.
Operating theater shadowless lamp lenses, examination room ceiling light diffusers, dental unit work-light lenses, and procedure lamp arc covers. Germany is Europe's largest medical device manufacturing market, and German medical lighting OEMs (Heraeus Kulzer, Berchtold, Dräger, and emerging LED lighting brands) maintain high specification standards for lens optical quality and dimensional precision.
CT scanner gantry light ring covers, MRI bore illumination diffusers, X-ray room ceiling light panels, and ultrasound examination table task-light lenses. These applications require the same combination of optical clarity, structural integrity, and cleanroom-compatible surface finish as direct surgical lighting.
Photobiomodulation therapy panel lenses, infrared therapy lamp covers, and UV disinfection system covers. Rehabilitation equipment lenses are typically larger format than surgical lenses — the arc-shaped thick-wall PC injection process developed for this tool is directly scalable to larger luminaire sizes.
High-specification architectural lighting diffusers, museum display case lighting lenses, and retail lighting fixtures where optical precision and impact resistance are specified together. The PC thick-wall optical rib molding capability developed for medical applications is commercially transferable to premium commercial lighting products.
Week 1
├── DFM Review & Optical Design Confirmation
│ ├── Customer provides 3D files + optical rib specification (cross-section, pitch, depth)
│ ├── ABERY reviews rib geometry: draft angle vs. optical cross-section trade-off
│ ├── Thick-wall cooling simulation: target mold temperature, cooling time estimate
│ ├── Gate location optimization: thick-zone gate for sink mark control
│ ├── Arc warpage simulation: cooling channel placement, post-ejection fixture design
│ ├── Polishing plan: identify all hand-polish surfaces, time estimate per cavity
│ └── DFM report + quotation delivered free of charge
Week 2–5
├── Mold Fabrication
│ ├── H13 steel procurement, rough machining (2 cavity inserts)
│ ├── MAKINO 5-axis CNC: arc-form cavity geometry, rib pre-machining
│ ├── SODICK wire EDM: rib end geometry, mechanical slider parting features
│ ├── H13 hardening + tempering (48–52 HRC)
│ └── Pre-polish to Ra ≤ 0.1 μm (machine polish baseline)
Week 6–7
├── Manual Polishing (critical path — 3–4 days per cavity set)
│ ├── Hand polishing — rib root surfaces (wooden dowel + diamond paste)
│ │ └── Ra verification by profilometer: each rib root to ≤ 0.02 μm
│ ├── Hand polishing — outer arc face (machine-assisted with felt pad)
│ │ └── Ra verification: ≤ 0.02 μm across full arc surface
│ ├── Polishing QC: 5 ribs per cavity measured, cavity-to-cavity delta ≤ Ra 0.005 μm
│ └── Mold assembly, slider fitting, cooling circuit pressure test
Week 8
├── T1 Sample Production
│ ├── Mold temperature qualification: 110–120 °C target, thermocouple mapping
│ ├── Cooling time optimization: 90–120 sec, sink mark inspection per run
│ ├── T1 transparent lens parts: haze measurement (ASTM D1003), transmittance
│ ├── Cavity 1 vs. Cavity 2: independent haze comparison (≤ 0.3% difference)
│ ├── Arc radius measurement: CMM arc profile vs. nominal
│ ├── Clinical light projection test: customer evaluates light field uniformity
│ └── T1 sample shipment to Germany customer
Week 9
├── T1 Review & Optical Qualification
│ ├── Customer light projection photometric test (illuminance uniformity, CRI)
│ └── Mold corrections if required (ABERY T2 guarantee)
Week 10+
└── Mass Production
├── 2-cavity output per cycle; cycle time ~120–150 sec (thick PC cooling)
├── Haze lot-testing: 2 samples per batch (ASTM D1003)
├── Sink mark inspection: 100% visual under oblique LED light check
└── Delivery: sea/air to Germany customerQ1: Why is the cycle time so long (120–150 seconds) for this PC lens?
PC is a thermally slow material even in thin-wall applications. For this lens, the base wall is 4–8 mm thick — at the thickest zone, the thermal diffusion time for PC (thermal diffusivity ~0.13 mm²/s) from the wall center to the mold surface is approximately 90–120 seconds. Running a shorter cooling time to increase throughput is not an option: inadequate cooling causes sink marks (visible on the optical surface) and internal stress (visible as birefringence under polarized light). ABERY uses elevated mold temperature (110–120 °C) — paradoxically, a hotter mold reduces sink marks because it slows the skin freeze-off rate, keeping the surface pliable longer and allowing the hold pressure to pack the wall more completely. The 120–150 second cycle time for this lens is not a production inefficiency — it is the physically correct cooling time for the wall thickness and optical quality specification.
Q2: Why are the rib root surfaces hand-polished instead of machine-polished?
The optical diffusion ribs are 15–20 mm deep with approximately 1.5–2.0 mm rib pitch. At this aspect ratio, any polishing tool larger than ~1 mm diameter cannot reach the rib root. Machine-polishing tools (felt bobs, rubber abrasive wheels) are all significantly larger than 1 mm — they can polish the rib tips but not the root zones. The alternative — EDM spark finishing of the rib roots to a fine spark gap — produces an EDM texture (Ra ~0.3–0.8 μm depending on spark parameters) that is not sufficiently smooth for optical surfaces. The only technique that achieves Ra ≤ 0.02 μm in a 1.5–2.0 mm gap is manual polishing with wooden dowels or linen sticks coated with diamond polishing paste in progressively finer grits (6 μm → 3 μm → 1 μm → 0.5 μm). ABERY's senior mold polishing team has specialized in this technique for optical mold applications.
Q3: How does ABERY verify that both cavities produce optically identical lenses?
Cavity-to-cavity optical consistency is verified through two parallel measurement streams: (1) surface quality — Ra profilometer measurement on 5 rib root locations per cavity; both cavities must show ≤ 0.02 μm Ra with a cavity-to-cavity Ra variation of ≤ 0.005 μm; (2) part optical quality — haze measurement (ASTM D1003 hazemeter) on T1 samples from each cavity; the maximum permitted cavity-to-cavity haze difference is 0.3%. At T1, both measurement streams are reported independently so the customer can confirm cavity-to-cavity consistency before accepting the tool for production.
Q4: Does the arc-form geometry cause warpage problems, and how is it controlled?
Yes — arc-form PC parts are inherently susceptible to arc-radius reduction (flattening) after ejection due to differential cooling between the inner and outer arc faces. ABERY controls this through: (1) matched cooling channel depth and flow rate on both inner and outer cavity faces (verified by thermal imaging at T1); (2) a post-ejection arc-fixture — a curved cradle into which each lens is placed immediately after ejection and held for 60–90 seconds while residual core heat equilibrates and the final arc dimension sets. The arc radius is measured on T1 samples by CMM profiling; the acceptance criterion is arc radius within ±0.5 mm of nominal.
Q5: What is ABERY's process for maintaining optical surface quality over the 1,000,000-shot mold life?
The optical rib surfaces are the most wear-prone features of this tool. H13 at 48–52 HRC resists wear well, but even H13 will show gradual rib tip rounding after hundreds of thousands of shots. ABERY's maintenance protocol for this tool: (1) every 100,000 cycles — full rib surface Ra inspection by profilometer (both cavities); (2) at Ra > 0.05 μm on any rib measurement point — manual re-polishing of the affected surfaces back to ≤ 0.02 μm; (3) at 500,000 cycles — full tool teardown, complete cavity re-polish, dimensional re-check of rib pitch and cross-section. Re-polishing is covered under ABERY's lifetime mold warranty for manufacturing-related surface degradation. Production-wear re-polishing (after 500K cycles) is scheduled as a planned maintenance event at agreed tool downtime.
Q6: Can ABERY produce this lens with an anti-scratch or anti-fog coating?
In-mold coating (IMC) is technically possible for PC but requires specialized press equipment and coating system integration that is outside ABERY's standard process scope. Post-mold coating (hard coat, AR coat, anti-fog) is the standard approach for medical PC optical parts: the lens is injection-molded at ABERY to optical surface quality, and the customer applies post-mold coating at their facility or through a specialist coating supplier. ABERY provides lenses cleaned and packaged in ISO Class 8 cleanroom conditions to minimize particulate contamination before coating.
Capability | Standard Optical Molder | ABERY |
Deep rib polishing | Machine polish only (Ra ~0.3–0.8 μm achievable) | Hand polish with diamond paste dowels — Ra ≤ 0.02 μm in 1.5 mm rib gaps |
Thick-wall sink mark control | Standard cooling (sink marks common >3 mm wall) | 110–120 °C mold temperature + extended hold pressure — sink-free at 4–8 mm wall |
Thick-wall cooling time | Shortened for throughput (quality sacrifice) | Physically correct 120–150 sec cycle — optical quality, not throughput, is primary |
Cavity-to-cavity haze verification | Not measured | Independent ASTM D1003 haze measurement per cavity; ≤ 0.3% delta required |
Arc warpage control | Not addressed (cooling only) | Post-ejection arc-fixture + matched inner/outer cooling — arc radius ±0.5 mm |
Germany medical device documentation | General ISO 9001 | ISO 13485-ready package: material lot traceability, cleanroom records, CMM reports |
Mold polishing maintenance plan | On-request basis | 100K-cycle Ra inspection + 500K-cycle full re-polish schedule — pre-agreed |
Mold life warranty | 1 year or limited shots | Lifetime warranty, standard on all ABERY tools |
DFM for thick-wall optical parts | Not available | Free: includes cooling simulation, sink mark risk analysis, polishing time estimate |
ABERY's optical molding team — with deep-rib hand polishing capability and thick-wall PC process expertise — delivers medical-grade transparent lenses that pass photometric uniformity testing from day one. Share your lens drawing and optical rib specification for a free DFM review including polishing plan and cooling time estimate.
